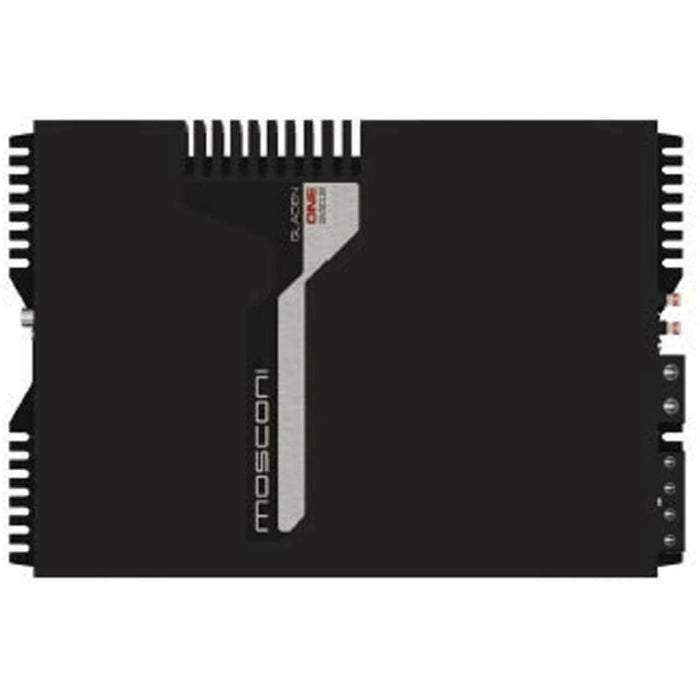

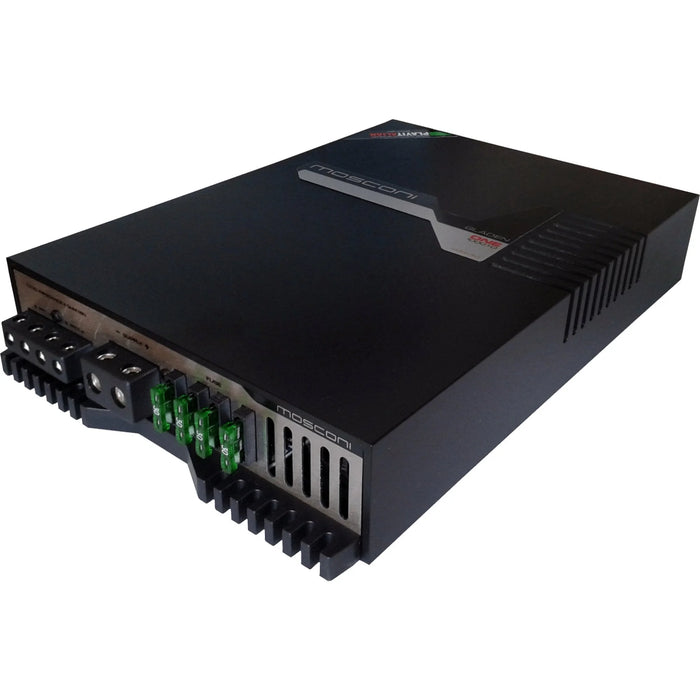

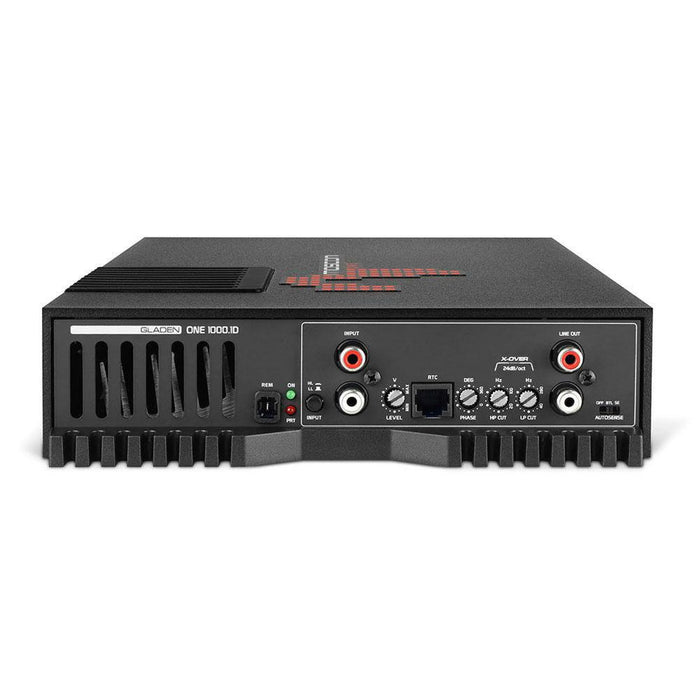

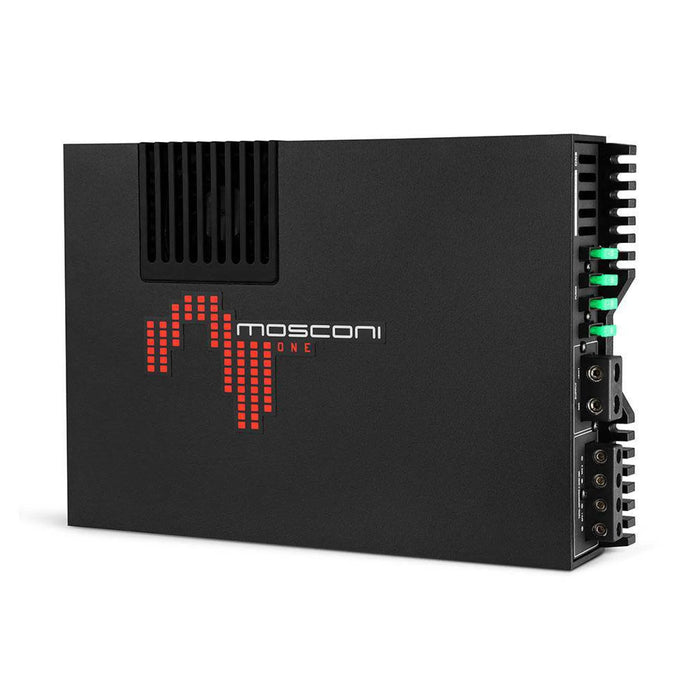

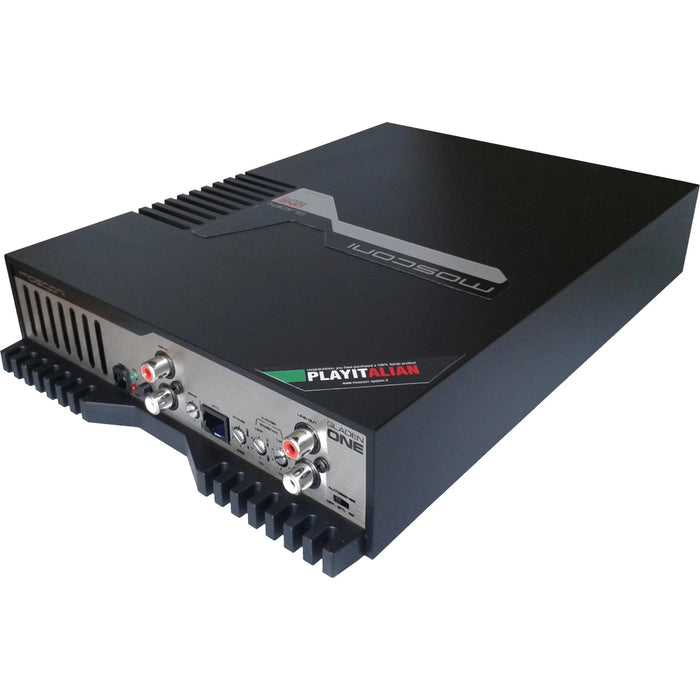

Mosconi Gladen ONE 1000.1D - Monoblock Amplifier

Mono channel D class amplifier
Black finishing.

Power Rating: 554 Watt @ 4 Ohm < 1% THD+N Sn Ratio: > 80 dBA (ref: 1 Watt into 4 Ohm)

HANDY POWERFUL RANGE
The smallest line with fresh and dynamic young sound recommended also for OEM applications. Absolutely great features on board like High Level Input with auto-switch on. Besides, thermo controlled fans and Plug & Play wiring harness (optional). Low Level (LL) and High Level (HL) input.

Strong points

Target powers:

• 600 Watt @ 4 Ohm
• 1000 Watt @ 2 Ohm

Input sensitivity: (Power rating ref)

• 0.2 V ÷ 4 V (Low Level)
• 0.5 V ÷ 10 V (High Level)

Xover functions: (always in line)

• Subsonic Filter: (20 ÷ 100 Hz – 24 dB/oct)
• Low Pass Filter: (40 ÷ 280 Hz – 24 dB/oct)

Special Features:

• Remote Volume Control (optional)
• Phase Shift (always in line): 0° ÷ 360°
• Low Level / High Level imput mode (by switch)
• Auto Sense (only in High Level mode)
• Low Level Output (like HLA) Size:
  • 310x200x50 mm
  Weight:
  • 2,7 Kg
  Download:
  • Download datasheet
  • Download manual
