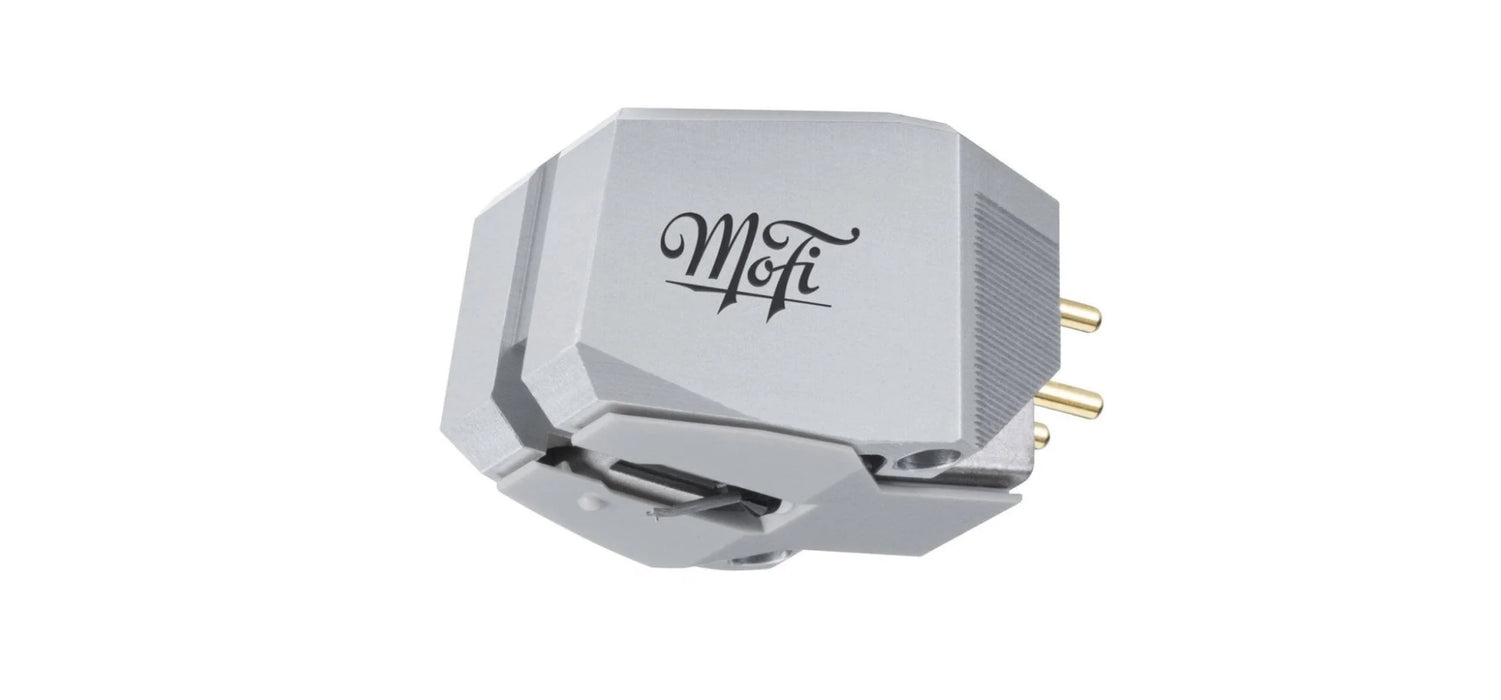

MoFi UltraTracker MM - Moving Magnet Phono Cartridge

MoFi cartridges are designed by looking at where a record starts: On a cutting lathe like the model used at Mobile Fidelity Sound Lab. UltraTracker features a V-Twin dual-magnet generator that mirrors the layout of the cutting head that originally makes a record’s grooves. Employing two low-mass, powerful magnets aligned in a V formation parallel with the record grooves, UltraTracker features excellent tracking ability.

WELL-DAMPED BILLET ALUMINUM BODY

The well-damped billet aluminum body controls resonances for tight, accurate bass reproduction. UltraTracker delivers finely tuned wide-bandwidth audio, with extension at both frequency extremes and no smearing of detail.

NUDE-ELLIPTICAL DIAMOND STYLUS

By using a nude-elliptical diamond stylus, UltraTracker easily tracks complex dynamic passages. You’ll hear superb detail and experience musical emotionalism that will send shivers down your spine.

Features

• V-Twin dual-magnet generator
• Nude Elliptical stylus
• Well-damped billet aluminum body
• 3.5mV output

• Type Dual Magnet (MM) Stereo
• Stylus Nude Elliptical
• Output Voltage 3.5mV
• Frequency Response 20–20,000Hz
• Weight 9.7g
• Tracking Force 1.8–2.2g
• Impedance 47kOhm
• Capacitance 100pF
• Compliance Static compliance :  35 x 10e-6/dyne, Dynamic compliance :  10 x 10e-6/dyne
