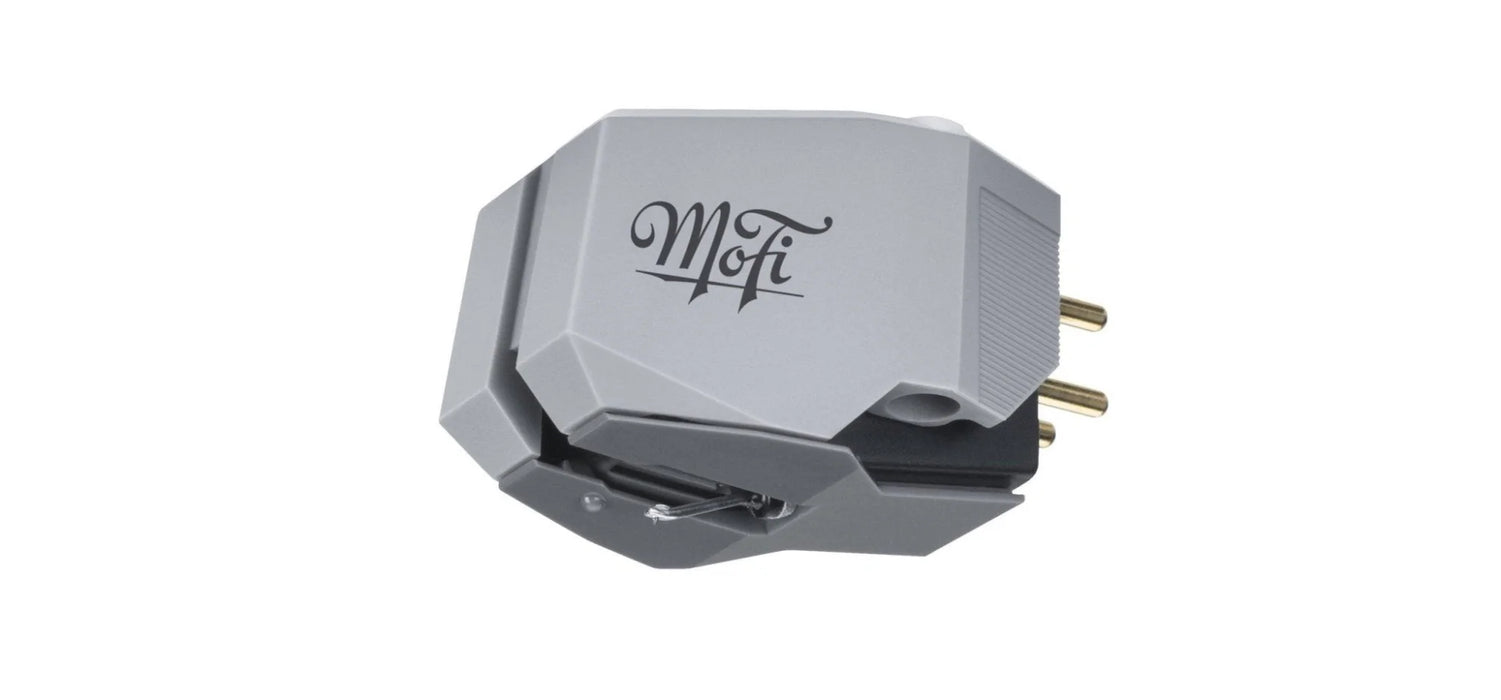

MoFi StudioTracker MM - Moving Magnet Phono Cartridge

MoFi cartridges are designed by looking back at where a record starts: On a lacquer cutting lathe like the model used at Mobile Fidelity Sound Lab. StudioTracker features a V-Twin dual-magnet generator that mirrors the layout of the cutting head that originally made a record’s grooves.

V-TWIN DUAL-MAGNET GENERATOR

Employing two low-mass, powerful magnets aligned in a V formation parallel with the stereo record grooves, StudioTracker accurately extracts precious details from your LPs.

ELLIPTICAL DIAMOND STYLUS

With a polymer body and elliptical stylus, StudioTracker offers surprising bang-for-your-buck value and a rich sound distinguished with a smooth, slightly forgiving top end.

Features

• V-Twin dual-magnet generator
• Elliptical stylus
• Polymer body
• 3.5mV output

• Type Dual Magnet (MM) Stereo
• Stylus Elliptical
• Output Voltage 3.5mV
• Frequency Response 20–20,000Hz
• Weight 6.4g
• Tracking Force 1.8–2.2g
• Impedance 47kOhm
• Capacitance 100pF
• Compliance Static compliance :  35 x 10e-6/dyne, Dynamic compliance :  8 x 10e-6/dyne
