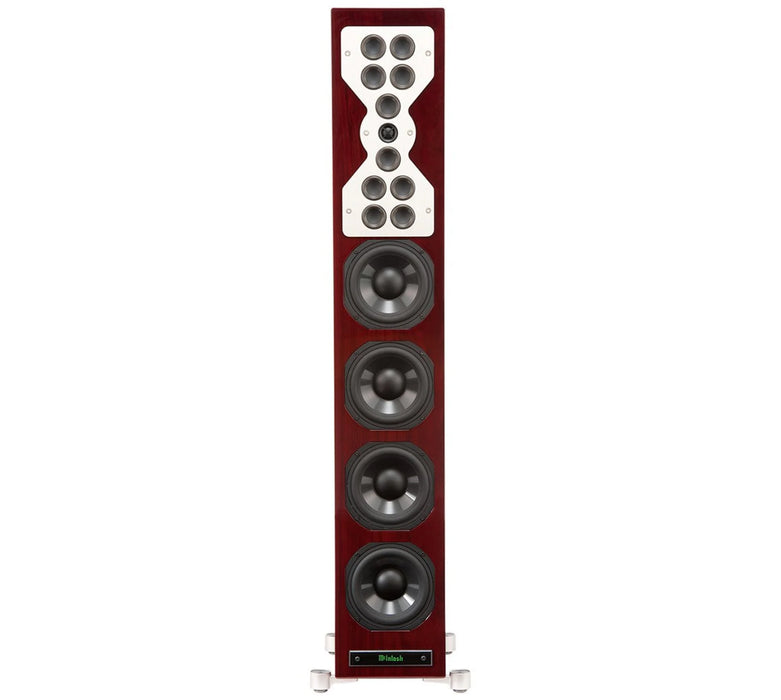

McIntosh XR100 Floorstanding Speaker

The XR100 Floor Standing Loudspeaker is sleek and contemporary in appearance while producing full range audio reproduction typical of much larger cabinet designs. Fine gloss wood finishes are offered in Black and Red Walnut (shown). The magnetically attached grille is acoustically transparent and covered with neutral black cloth. Our patented Solid Cinch™ speaker binding posts easily but securely attach the speaker cables to prevent them from coming loose and possibly causing a short; the binding posts are gold-plated to prevent corrosion and ensure a quality signal is delivered to your speakers.

Unique front panel McIntosh logo may be illuminated when configured with a McIntosh system. Amplifiers from 75 to 600 Watts are appropriate power for XR100 speakers. Spikes and furniture glide feet are included.

Features

• Combining 600 Watts of power handling capability with superior musicality, the XR100 will fill even large rooms with full-bodied sound.
• Available in Gloss Black, Red Walnut and Pear Maple, the XR100’s high-gloss finishes and fine cabinetry will be a welcome addition to even the most elegant homes.
• The XR100 utilizes 11 upper-frequency drivers. Their unique layout and crossover design combine high power handling with precise sound-staging.
• With four McIntosh patented LD/HP® woofers, these speakers reproduce an incredible deep bass experience from a slim cabinet design.
• The McIntosh front panel emblem can be illuminated using the Power Control connection on complementary McIntosh components.
• Two sets of unique patented McIntosh speaker binding posts are provided for bi-wiring setups.
• Solid alloy, machined midrange tweeter baffle enhances imaging and appearance.
• Made in USA

Specifications

• Impedance Nominal

  8 Ohms

• Power Rating

  75 to 600 Watts

• Frequency Response

  30Hz to 45kHz

• Sound Pressure Level, 2.8V/1m

  87dB

• Crossover

  300Hz, 2kHz, 8kHz

• Number of Woofers

  4

• Woofer Size

  6"

• Woofer Type

  Cast Frame, LD/HP^®, Poly Cone

• Number of Midranges

  10

• Midrange Size

  2"

• Midrange Type

  8 Inverted Titanium Dome Midranges covering 300Hz to 2kHz, and 2 Inverted Titanium Dome Midrange-Tweeters covering 2kHz to 8kHz

• Number of Tweeters

  1

• Tweeter Size

  3/4"

• Tweeter Type

  Titanium Dome

• System Type

  Ported 4-Way Floor Standing

• Grille

  Black knit cloth, magnetically attached

• Available Finishes

  Red Walnut, Black

• Unit Dimensions (W x H x D)

  8" (20.3cm) x 51" (129.5cm) x 18-1/2" (46.9cm) (including cables and connectors)

• Unit Weight

  68.5 lbs (31.1 kg)

• Shipping Weight

  83 lbs (37.6 kg)
