McIntosh MTI100 - Audiophile Integrated All-in-One Turntable Amplifier

by McIntosh Laboratory
₹ 793,900 - ₹ 793,900
₹ 793,900
₹ 793,900
₹ 793,900 - ₹ 793,900
₹ 793,900

Taxes & Shipping Included

Turntable? ✔
Amplifier? ✔
Vacuum tube preamplifier? ✔
Phono preamplifier? ✔
Analog input? ✔
Digital inputs? ✔
Bluetooth® receiver? ✔
Speaker outputs? ✔
Subwoofer output? ✔
Headphone jack? ✔
McIntosh engineering? ✔

What else do you need? Just add your music and speakers..

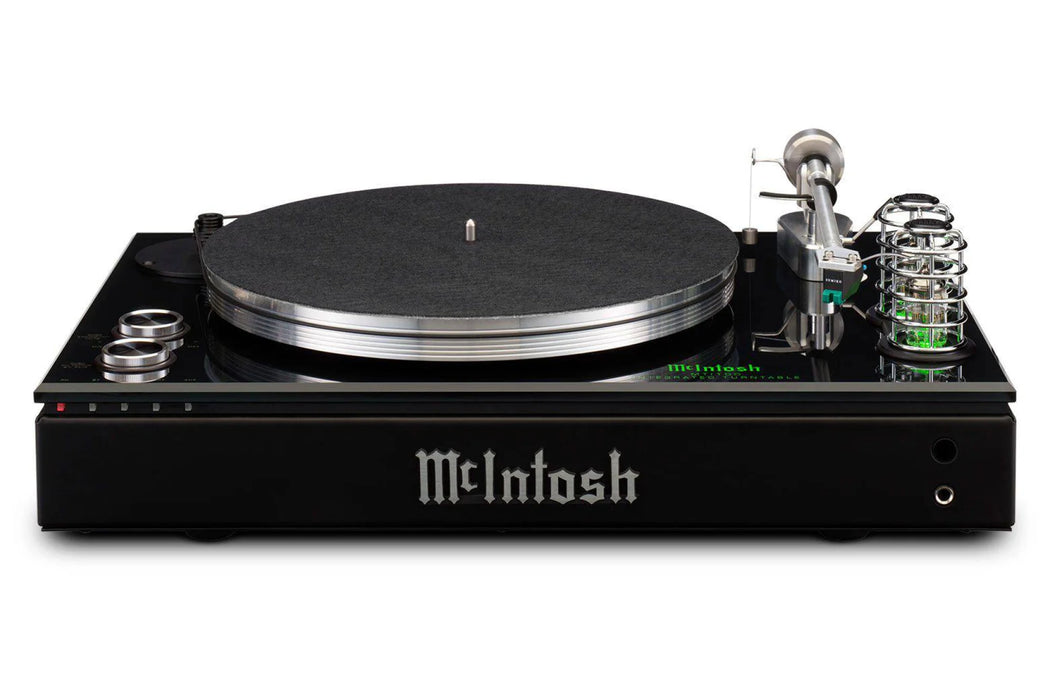

At first glance, the McIntosh MTI100 Integrated Turntable may look like it’s just a turntable, but a closer look will reveal that it is in fact so much more. Truly a one-of-a-kind product, it is designed for those who want maximum flexibility in their home audio system but don’t want – or don’t have the space for – a large audio system in their home. With all the built-in connectivity the MTI100 offers, it can become the center piece of a modern home audio system for modern lifestyles. Simply add your favorite speakers of choice (such as our XR50 bookshelf or XR100 floorstanding speakers) and you’ll have a complete and comprehensive audio system.

Besides the turntable that plays both 33-1/3 and 45 rpm vinyl records, the MTI100 also includes a power amplifier, a vacuum tube preamplifier section, a shielded phono preamplifier, an unbalanced auxiliary input, digital audio coaxial and optical inputs, a Bluetooth receiver, a subwoofer output, stereo speaker outputs for sharing your music with friends, and a headphone jack for personal listening.
The 7 pound (3.18 kg) machined aluminum platter resides on the top of the unit. This and the matching machined aluminum tonearm with anti-skate sit atop a 3/8” (9.5mm) thick piece of glass – the same glass found in the front panels of our larger amplifiers; this in turn sits atop a custom 1/4” (6.35mm) thick metal plate that adds stability. The combined heftiness of both the platter and metal plate helps resist and absorb noise that could be caused by external vibrations.

The belt drive platter with manual speed change is driven by an industrial grade permanent magnet AC synchronous motor with a 2 speed pulley. With this motor, the platter speed is precisely synced to the AC power line’s frequency to deliver precise rotational speeds for playback accuracy. The MTI100 comes with a Sumiko Olympia Moving Magnet cartridge, whose upgraded stylus and cantilever assembly allow for more dynamic punch and improved frequency response.

A Class D amplifier that’s rated for 80 Watts per channel into 4 Ohms or 50 Watts per channel into 8 Ohms is used to drive a pair of speakers (sold separately) that are connected via the back panel speaker binding posts. Two 12AX7 vacuum tubes power the main preamplifier section, while a separate dedicated phono preamplifier is housed in a custom shielding box that prevents interference or noise from seeping into the vinyl signal. Together, the vacuum tube preamplifier and shielded phono preamplifier are a perfect choice to help make your vinyl albums sound their best.

To combine playing vintage vinyl records with modern playback methods, you can also stream music to the MTI100 via its High Definition Bluetooth 4.2 input that ensures you receive the best sound quality possible from your Bluetooth device. An external Bluetooth antenna helps achieve optimal reception and signal quality. The analog and digital audio inputs allow external sources, such as a TV, tuner or CD Player, to be connected. Not to overlook the impact that low sound frequencies can add, a subwoofer output is also included. Finally, for personal listening, the front panel includes a headphone jack that is powered by our High Drive headphone amplifier, which features increased gain and output power and is optimized for virtually all headphone types.
Power, volume and input selection can be controlled by either the included remote or via two knobs on the unit. An illuminated McIntosh logo is located in the top glass panel, while a classic McIntosh-styled die cast aluminum name badge adorns the front of the chassis. Contact us to learn more about making the MTI100 the center of your home audio system.



Features

  • A modern home audio system for modern lifestyles
  • Turntable, preamplifier and amplifier all in one
  • Includes Bluetooth® and auxiliary inputs
  • Just add your music and speakers

Specifications

CARTRIDGE SPECIFICATIONS

  • Cartridge Type
    Moving Magnet
  • Output Level
    4mV at 1kHz
  • Load Impedance
    47k Ohms
  • Frequency Response
    12Hz to 30kHz
  • Channel Separation
    30dB at 1kHz
  • Compliance
    12 x 10-6 cm/dyne
  • Recommended Tracking Force
    2.0 g
  • Channel Difference
    Less than 1dB at 1kHz
  • Total Mass
    6.5 g
  • Stylus
    Elliptical
  • Cantilever Material
    Aluminum

TONEARM SPECIFICATIONS

  • Bearing
    Lateral type bearing
  • Arm Tube
    Damped machined aluminum
  • Counterweight
    Concentric
  • Adjustments
    None

TURNTABLE SPECIFICATIONS

  • Playback Speeds
    33-1/3 and 45 rpm
  • Motor Type
    Permanent magnet AC synchronous
  • Speed Control
    Manual speed change via a 2 speed pulley
  • Platter
    Aluminum
  • Platter Bearing
    Oil bath bearing with a high performance polyetheretherketone (PEEK) thrust disc and machined graphite impregnated brass bushings
  • Signal To Noise Ratio
    35dB - 40dB
  • Wow & Flutter
    0.1%

CONNECTIVITY

  • Stereo Outputs Unbalanced
    1 (bridged to AMP IN)
  • Stereo Inputs Unbalanced
    1
  • Digital Coaxial Input
    1
  • Digital Optical Input
    1
  • Subwoofer Output
    1
  • Wireless Input
    High Definition Bluetooth 4.2

CONTROL

  • Power Control Input
    0
  • Power Control Output
    1
  • Platter Light
    N/A
  • Speed Control Fine Adjustment
    No

ELECTRONIC SPECIFICATIONS

  • Power Output per Channel
    50 Watts into 8 Ohms
    80 Watts into 4 Ohms
  • Number of Channels
    2
  • Speaker Impedance
    4 or 8 Ohms
  • Rated Power Band
    20Hz to 20kHz
  • Total Harmonic Distortion
    0.5% (Amplifier)
    0.2% (Preamplifier)
  • Dynamic Headroom
    1.0dB (8 Ohms)
    1.3dB (4 Ohms)
  • Frequency Response +0,-0.7dB
    20Hz to 20kHz
  • Signal To Noise Ratio (Moving Magnet)
    75dB
  • Signal To Noise Ratio (High Level)
    90dB
  • Damping Factor
    8 Ohms: >200
    4 Ohms: >100
  • Maximum Output (Balanced / Unbalanced)
    9V Unbalanced

GENERAL SPECIFICATIONS

  • Dust Cover Included
    No

WEIGHTS & DIMENSIONS

  • Unit Dimensions (W x H x D)
    19-1/4” (48.9cm) x 6-3/4” (17.15cm) x 14” (35.6cm)
  • Unit Weight
    33.5 lbs (15.2 kg)
  • Shipping Weight
    40.5 lbs (18.4 kg)
