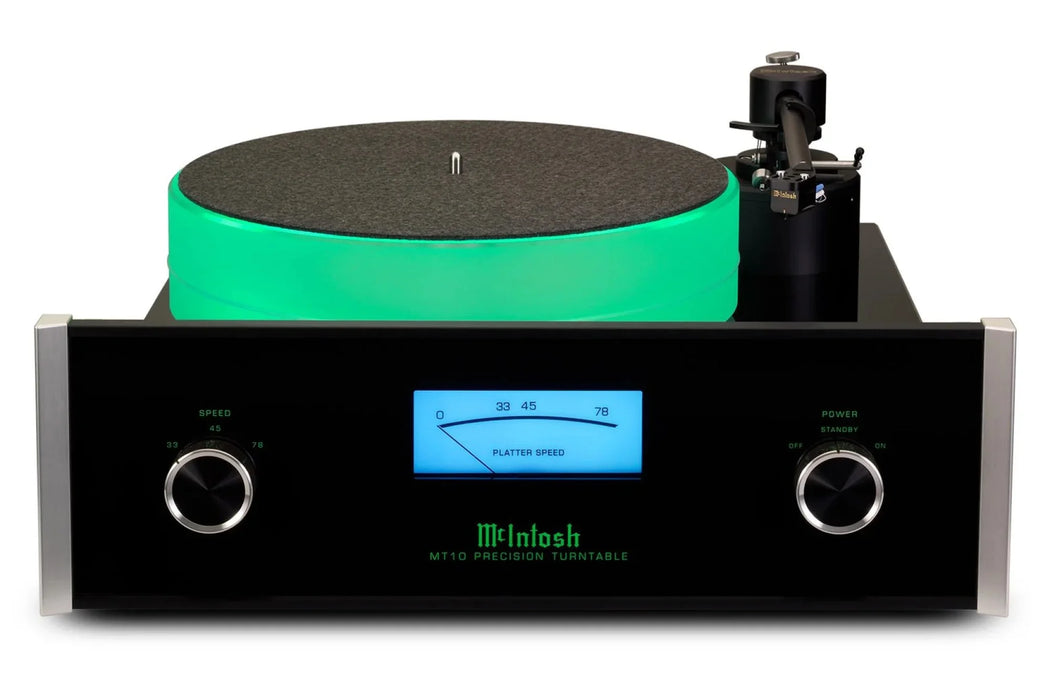

McIntosh MT10 Precision Turntable

With tracking force, anti-skate and cartridge position preset at the factory, the McIntosh MT10 Precision Turntable delivers high performance LP playback with minimal set up. A custom tonearm features a rigid, dural-aluminum arm-tube gimbaled in two sapphire (horizontal) and two ceramic (vertical) bearings for the least possible friction. A .5mV moving coil cartridge is included, and features an ebony body with an elliptical stylus. Enjoy a new level of music with the MT10 turntable.

The McIntosh MT-10 marries classic McIntosh glass front panel cosmetics with serious mechanics to create a unique, ready-to-play LP solution. With tracking force, anti-skate and cartridge position preset at the factory the McIntosh MT-10 delivers high performance LP playback with minimal set up.

The turntable base is comprised of a damped sandwich of stainless steel and acrylic plate; a unique combination of dissimilar materials that provides a resonance-free foundation for the tonearm.

A massive, 12 pound, 2 ½” thick acrylic platter spins on a cushion of air, elevated by a custom magnetic bearing. A regulated power supply drives a super-quiet, brushless, Swiss DC motor. Unmatched accuracy is derived from a new electronic speed control that references 1,595 strobe markings per revolution of the platter. Speed adjustments of 331/3, 45, or 78 RPM are made from the front panel and are registered on a blue, backlit McIntosh meter.

A custom tonearm features a rigid, dural-aluminium arm-tube gimbaled in two sapphire (horizontal) and two ceramic (vertical) bearings for the least possible friction. A .5mV moving coil cartridge is included, and features an ebony body with an elliptical stylus.

Features

• Precision Motor and Drive Electronics
• Illuminated Speed Meter
• Multi-Layered Damped Chassis
• Power Control
• Fiber-Optic Illuminated Glass Front Panel
• Super Mirror Chassis Finish
• Ready to Play
• Matches Tone Arm and Cartridge
• Massive Platter
• Magnetic Air Damped Bearing
• Made in USA

Specifications

• Cartridge Type

  Moving Coil, Low Output

• Output Level

  0.5 mV at 5 cm/s

• Load Impedance

  400 to 500 Ohms recommended

• Frequency Response

  20Hz to 50kHz

• Channel Separation

  Greater than 30dB at 1Khz

• Compliance

  6 x 10^-6 cm/dyne

• Recommended Tracking Force

  2.4 g

• Channel Difference

  Less than 0.3dB at 1kHz

• Total Mass

  11 g

• Stylus

  Elliptical Diamond

• Cantilever Material

  Aluminum

• Bearing

  Sapphire and Ceramic

• Arm Tube

  Dural-Aluminum

• Counterweight

  Eccentric

• Adjustments

  Vertical Tracking Angle, Antiskate, Azimuth

• Playback Speeds

  33-1/3, 45 and 78 rpm

• Motor Type

  DC Brushless

• Speed Control

  Electronic w/ braking feature

• Platter

  Silicon Acrylic

• Platter Bearing

  Magnetic Suspended Ceramic

• Signal To Noise Ratio

  41dB - 44dB

• Wow & Flutter

  0.10% - 0.15%

• Stereo Outputs Unbalanced

  1

• Power Control Input

  1

• Power Control Output

  1

• Platter Light

  Yes

• Speed Control Fine Adjustment

  Yes

• Dust Cover Included

  No

• Unit Dimensions (W x H x D)

  17-1/2" (44.45cm) x 8-13/16" (22.38cm) x 21" (53.34cm)
  Note: Tone Arm Height will vary depending on the type of Cartridge installed.

• Unit Weight

  42 lbs (19 kg)

• Shipping Weight

  63 lbs (28.6 kg)
