McIntosh MIP200 Power Controller

The MIP200 provides superior AC power protection with advanced line-to-neutral protection, utilizing a thermally protected metal-oxide varistor (TPMOV) to eliminate the common failure modes found in standard MOVs. In addition to surge protection, the MIP200 offers electromagnetic interference (EMI) filtering and programmable over/under voltage protection. This sophisticated protection system automatically switches off the outlets when unsafe voltage levels are detected and turns them back on only when the voltage is restored to safe operating levels.

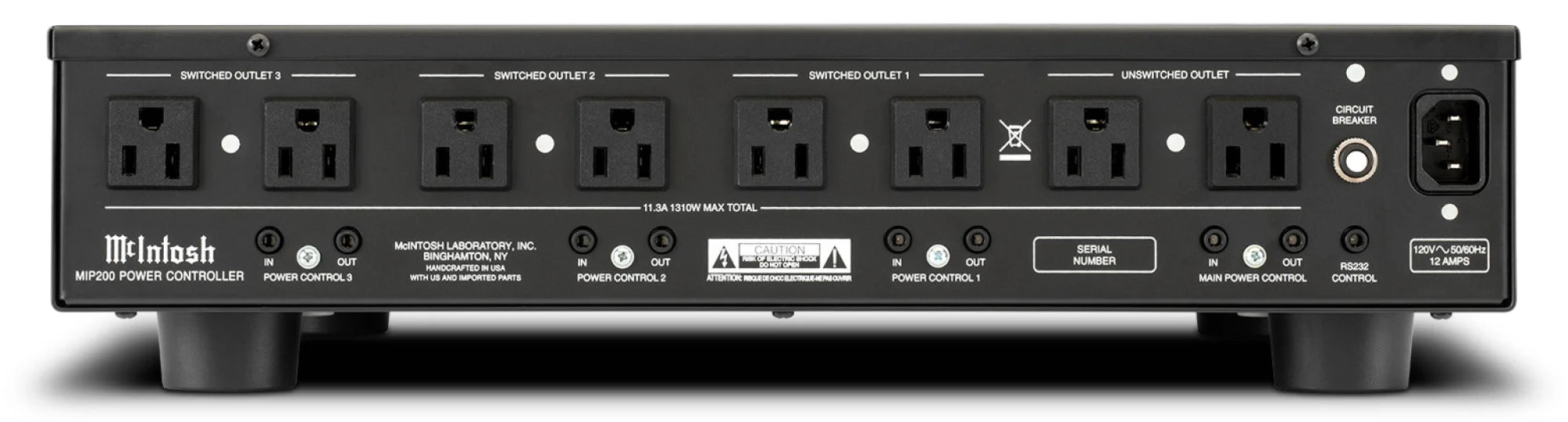

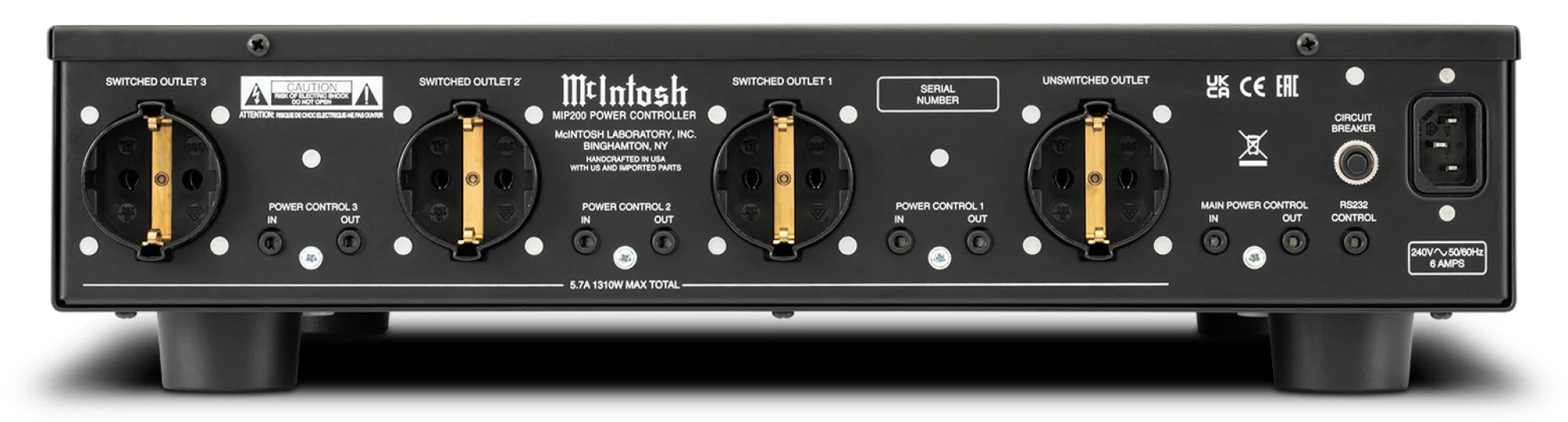

Designed to accommodate various global power standards, the MIP200 is available with either 4 Type B¹ (NEMA 5-15R) outlets with 2 receptacles each, or 4 Type F¹ (CEE 7/3 or “Schuko”) outlets with 1 receptacle each. An always-on, unswitched outlet ensures continuous power to critical components, while the remaining outlets can be managed via the front panel, remote operation through the rear panel Power Control or RS232 ports, or configured as additional always-on outlets. Programmable delays for each outlet minimize inrush current, ensuring a safe startup for all connected devices and reducing the risk of tripping a circuit breaker.

The MIP200 is designed for seamless integration into custom install home theater or whole-home audio systems. Its 2U rack-mountable form factor ensures easy installation, making it a perfect fit for any high-end audio setup. This design not only saves valuable space but also allows for a clean, organized system layout, enhancing both functionality and aesthetics. This thoughtful design perfectly complements our range of custom install amplifiers (MI502, MI254, MI347, MI128, and MI1250) and A/V processors (MHT300 and MX200), offering both functionality and aesthetic appeal.

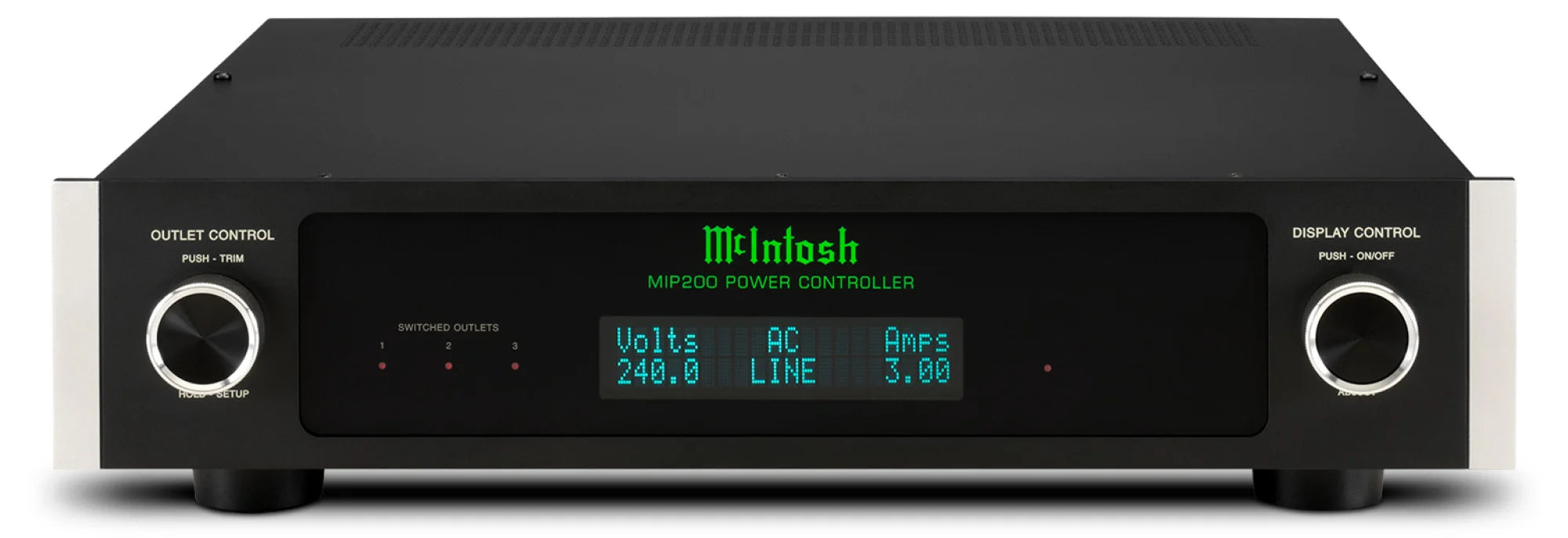

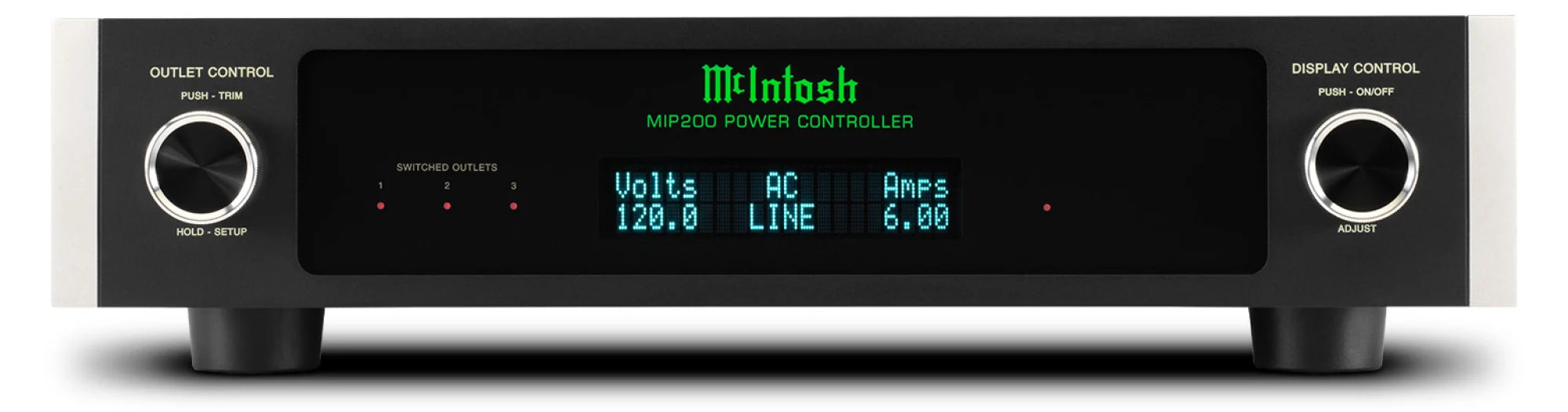

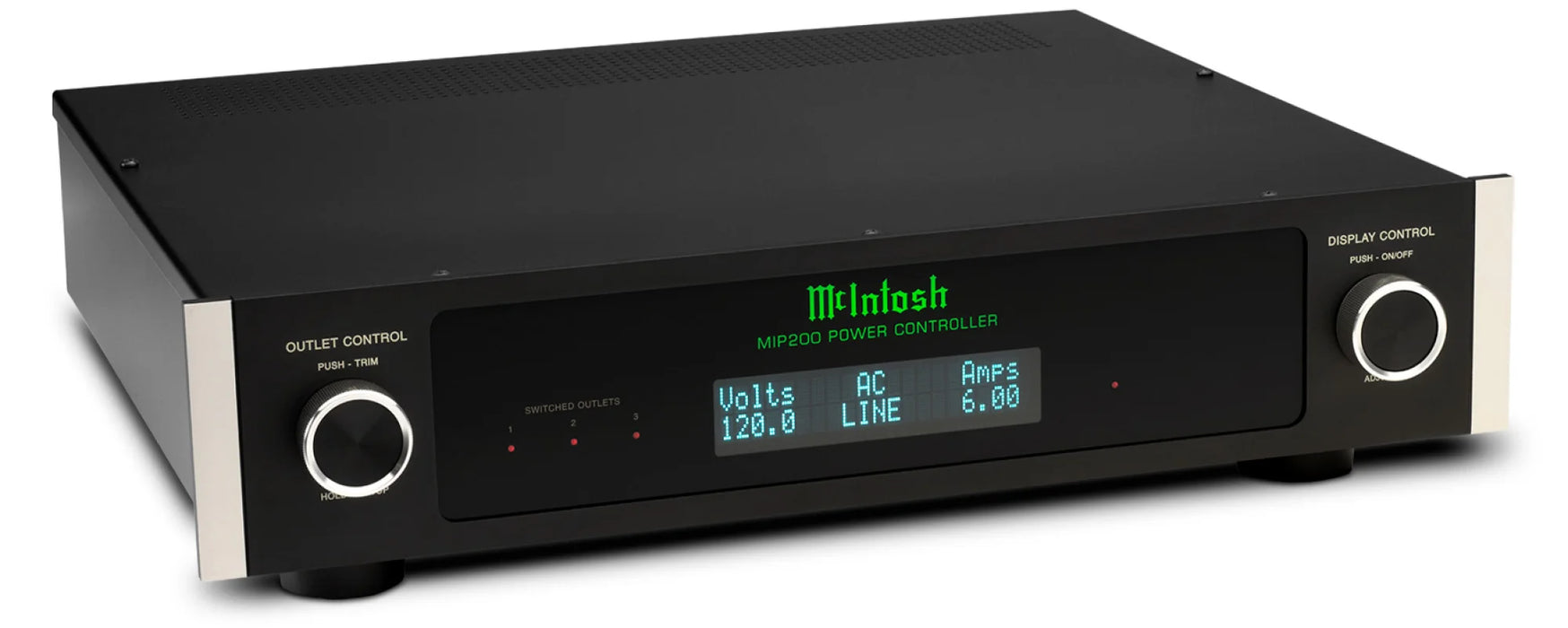

The MIP200's front panel AC line monitor provides real-time data on input voltage, current draw, and total apparent power, offering peace of mind and precision control. Encased in the iconic McIntosh black glass front panel with aluminum trim, illuminated logo, and aluminum control knobs, the MIP200 exudes luxury and sophistication.

Features

• A sophisticated solution for protecting your audio investment from unexpected electrical issues
• AC power line surge protection
• Electromagnetic interference (EMI) filtering
• Programmable over/under voltage protection
• Accommodates various global power standards
• 2U rack mountable
• Made in USA

Specifications

• Input Rating

  With Type B (NEMA 5-15R) receptacles:
  100 - 120V 50/60Hz 12A (Max)
  With Type F (CEE 7/3 or “Schuko”) receptacles:
  220 - 240V 50/60Hz 6A (Max)

• Output Rating

  With Type B (NEMA 5-15R) receptacles: 11.6A (1160W)
  With Type F (CEE 7/3 or “Schuko”) receptacles: 5.8A (1275W)

• AC Surge Suppression

  50 kA - 8/20μs Line to Neutral

General Specifications

• AC Surge Suppression Type

  Thermally protected metal-oxide varistor (TPMOV) for Line to Neutral protection

• Number of Receptacles

  With Type B (NEMA 5-15R) receptacles: 8
  With Type F (CEE 7/3 or “Schuko”) receptacles: 4

• Number of Always ON Receptacles

  With Type B (NEMA 5-15R) receptacles: 2
  With Type F (CEE 7/3 or “Schuko”) receptacles: 1

• Number of Programmable Receptacles

  With Type B (NEMA 5-15R) receptacles: 6
  With Type F (CEE 7/3 or “Schuko”) receptacles: 3

Weights & Dimensions

• Unit Dimensions (W x H x D)

  With Type B (NEMA 5-15R) receptacles:
  17-1/2” (44.45cm) x 4-3/8” (11.1cm) x 15-9/16” (39.5cm)
  With Type F (CEE 7/3 or “Schuko”) receptacles:
  17-1/2” (44.45cm) x 4-3/8” (11.1cm) x 15-23/32” (39.9cm)

• Unit Weight

  17 lbs (7.7 kg)

• Shipping Weight

  33 lbs (15 kg)
