McIntosh MI254 4 Channel Power Amplifier

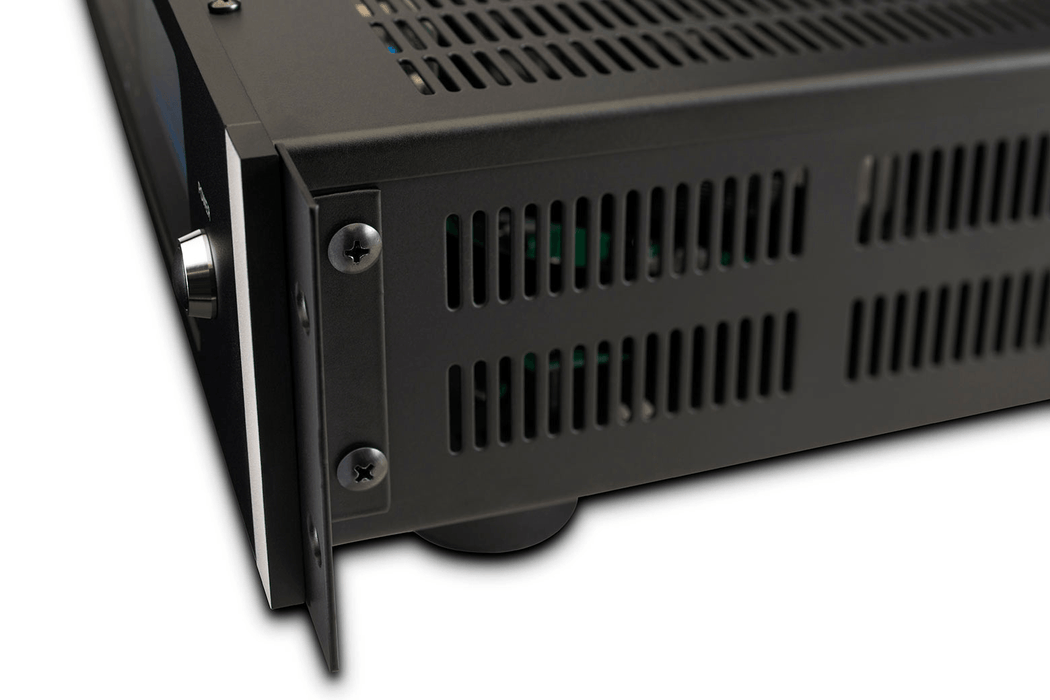

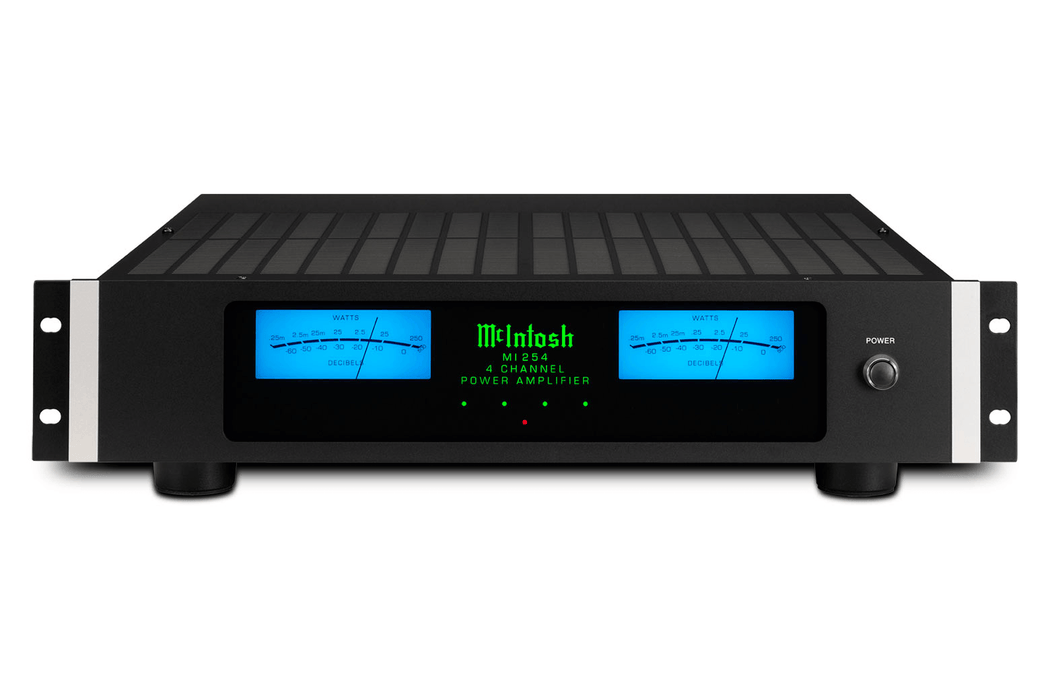

It has installer-friendly physical dimensions and is 2U rack mountable via the included mounting ears (the mounting ears are removable for non-rack installations). As a highly efficient Class D amplifier, it does not require noisy cooling fans to maintain nominal operating temperature. In addition to distributed audio use, the MI254 is well suited for home theaters to drive surround sound speakers and could be integrated into virtually any existing home theater system.

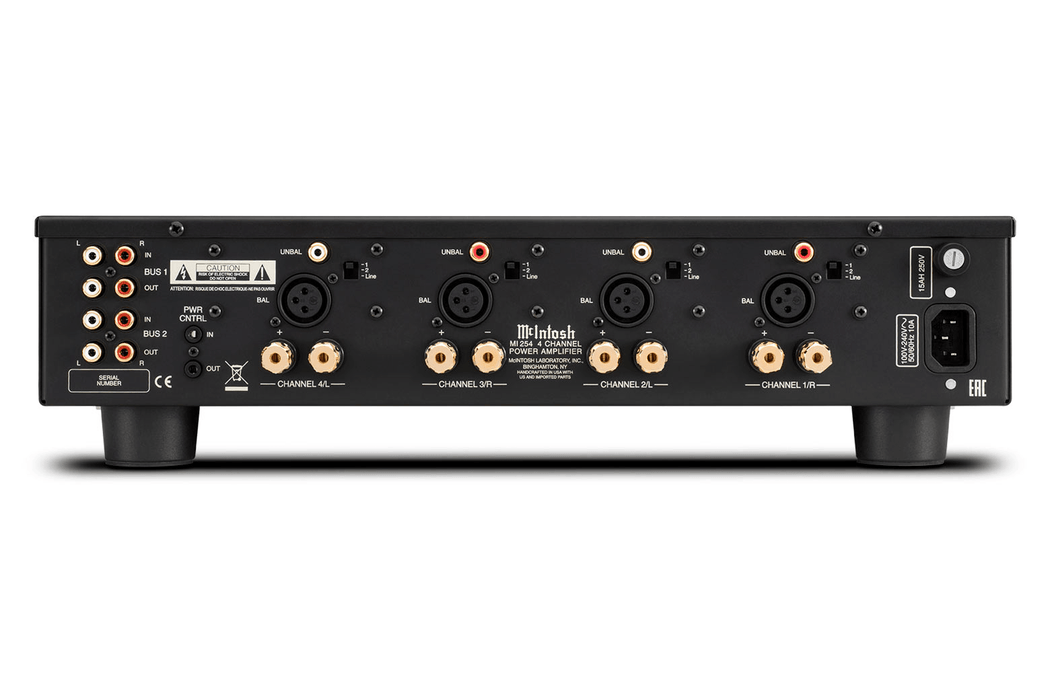

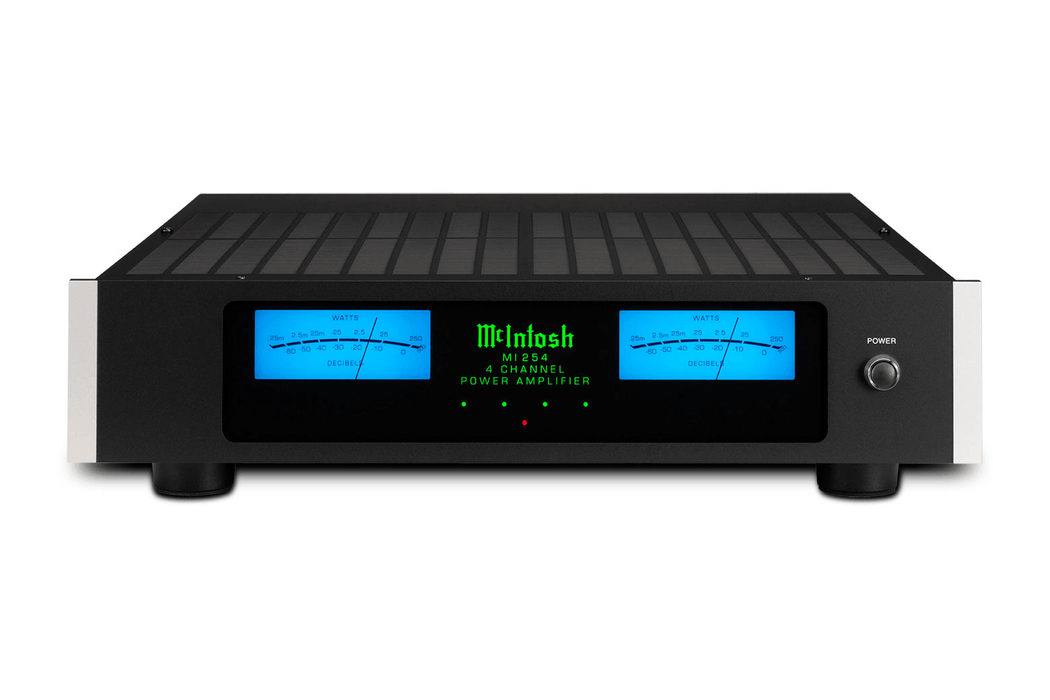

On the front panel are two blue McIntosh Watt Meters that display the summed power output of channels 1 + 2 and channels 3 + 4. Multi-color LED indicators display the status of each channel. The back panel includes both a balanced and unbalanced input for each channel along with our standard 5-way speaker binding posts.

Other features that come with the MI254 are: Power Guard^® signal overload technology that prevents overdriving the speakers; our Sentry Monitor^™ short-circuit protection circuit that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal; BUS input & outputs to easily distribute a stereo signal to multiple outputs and/or multiple amplifiers; individual channel inputs; 12 Volt triggering capabilities; and eco-friendly on/off signal sensing that turns the unit off if no input signal has been detected for a set amount of time or automatically turns the amp on when it senses a signal.

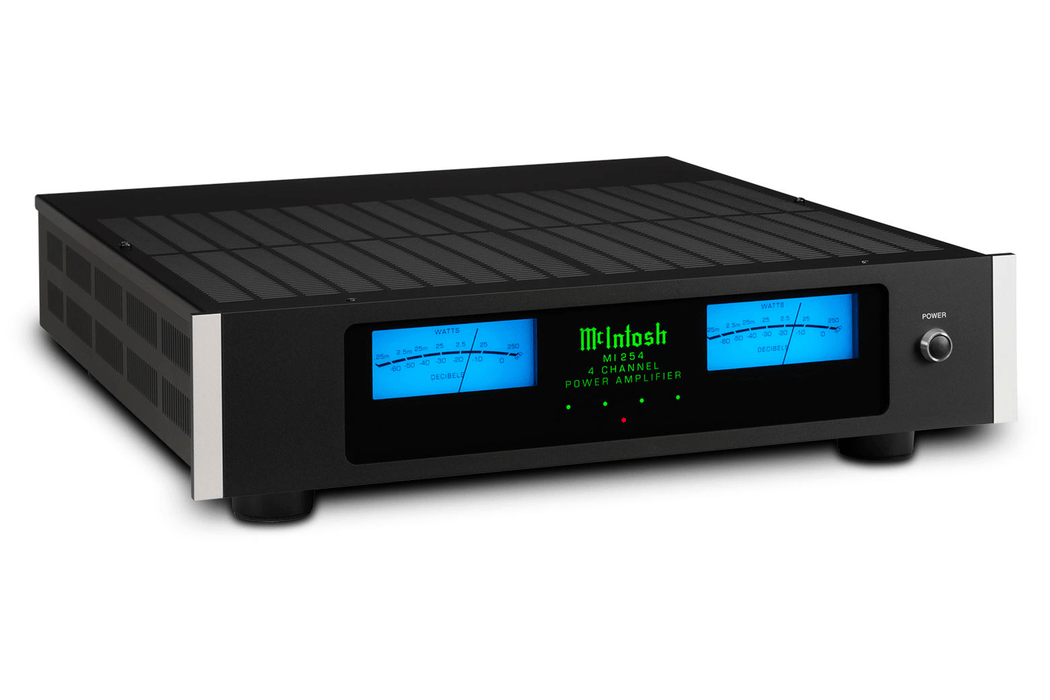

The MI254 includes many McIntosh design cues including a black glass front panel, blue Watt meters, an illuminated McIntosh logo, and a familiar form factor highlighted by silver trim.

Contact us to learn more about integrating the MI254 into your custom audio installation.

Features

• Type: Digital
• 250 Watts x 4-Channels into 8 Ohms
• 300 Watts x 4-Channels into 4 Ohms
• Power Guard®, Sentry Monitor™, On/Off signal sensing, Bussable inputs
• 2U rack mountable
• Power Guard^® signal overload technology that prevents overdriving the speakers.
• Our Sentry Monitor^™ short-circuit protection circuit that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal.
• BUS input & outputs to easily distribute a stereo signal to multiple outputs and/or multiple amplifiers.
• Individual channel inputs.
• 12 Volt triggering capabilities to automatically turn other connected McIntosh components on and off.
• Eco-friendly on/off signal sensing that turns the unit off if no input signal has been detected for a set amount of time or automatically turns the amp on when it senses a signal.
• Made in USA

Specifications

• FTC Power Output Rating

  250 W

• Power Output per Channel

  250 W into 8 ohms
  300 W into 4 ohms

• Number of Channels

  4

• Total Harmonic Distortion

  0.025%

• S/N below rated output

  100dB

• Dynamic Headroom

  8 ohms: 2.5dB
  4 ohms: 3.5dB

• Damping Factor

  8 ohms: >85
  4 ohms: >45

• Rated Power Band

  20Hz to 20kHz

• Frequency Response

  +0, -0.9dB from 20Hz to 20kHz

CONTROL

• Remote Power Control

  Yes

• Multi-Channel DB25 Cable

  No

GENERAL SPECIFICATIONS

• Circuit Configuration

  Closed loop digital switching

• Circuit Design

  Digital

• Mono Bridge

  N/A

• Mono Parallel

  N/A

• Output Type

  Direct Coupled

• Meters

  Yes

• Meter Light Switch

  No

• Balanced Input

  4

• Front Panel

  Glass with removable rack mounting ears

• Illumination

  Direct LED

• Chassis Style

  Black painted steel

• BTU Rating

  1000 BTU/h

CONNECTIVITY

• Speaker Binding Post Type

  Standard

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  17-1/2" (44.45cm) (19" (48.3cm with mounting ears)) x 4-5/16" (11cm) (including feet) x 21" (53.3cm) (including front panel and cables)


• Unit Weight

  23.5 lbs (10.7 kg)

• Shipping Weight

  40 lbs (18.1 kg)
