McIntosh MEN220 Room Correction System
Taxes & Shipping Included
The MEN220 delivers a potent suite of Room Correction, Custom-EQ and 2-Way Crossover capabilities in one easy-to-use stereo component. While any single feature of the MEN220 has the power to optimize the sonic characteristics of the highest quality audio systems, combining all the features can reveal a level of clarity and resolution unattainable by any other means.
Full system control and PC link are provided via RS232 while McIntosh data, power control and IR inputs offer additional remote control flexibility. Both single-ended and balanced connections are supported; a hand-held, IR remote control is included.

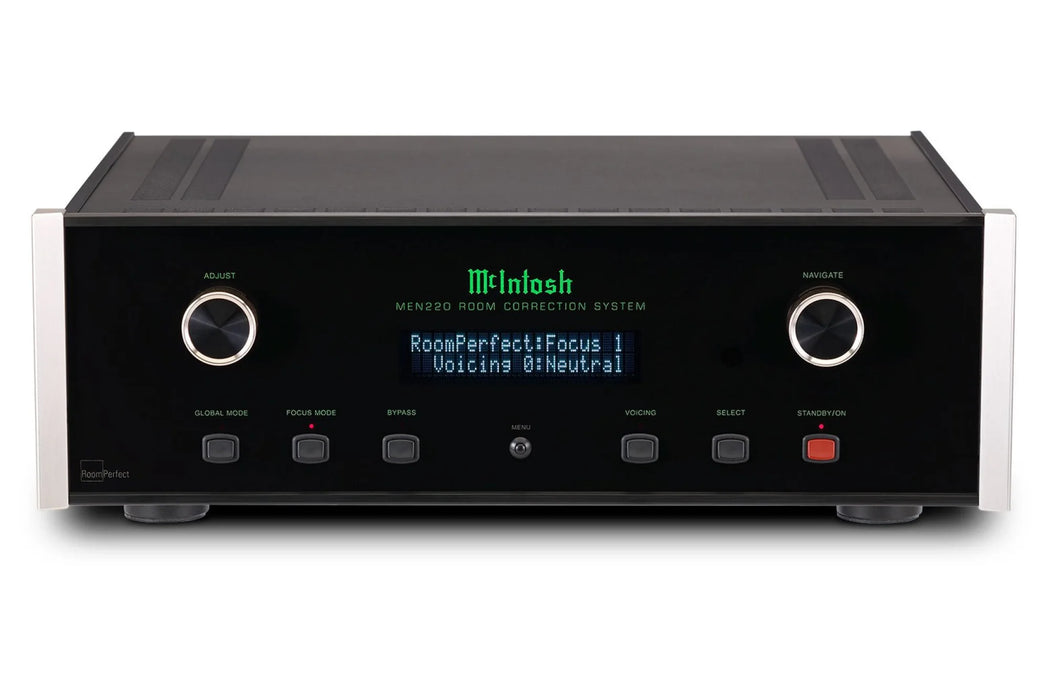

The new MEN220 Room Correction System by McIntosh delivers a potent suite of Room Correction, Custom-EQ and 2-Way Crossover capabilities in one easy-to-use stereo component. While any single feature of the MEN220 has the power to optimize the sonic characteristics of the highest quality audio systems, combining the features can reveal a level clarity and resolution unattainable by any other means. Styled in the rich tradition of McIntosh audio components the MEN220 features our trademark Fiber-Optic Illuminated Black Glass Front panel and aluminum casework. Front panel buttons and control knobs bring a familiar, easy-to-use analog interface to this digital product just as a 2-line vacuum fluorescent display reports status and aids in set-up of the MEN220. Full system control and PC link are provided via RS232 while McIntosh Data, Power Control and IR inputs offer additional remote control flexibility. Both single-ended and balanced connections are supported; a hand-held, IR remote control is included.
The effect of room acoustics on the quality of music playback is well known to music aficionados, and it is not uncommon to see peaks and dips between +10 to –20 dB in the frequency response. The mechanism by which this occurs is as complex as the range of listening rooms and audio components are variable; no two situations are alike. The MEN220 harnesses the power of RoomPerfectTM* software, an advanced room correction algorithm that automatically creates a digital model of your listening room, called RoomKnowledge. By using data gathered from multiple locations in the room, the MEN220 corrects frequency response anomalies – revealing, perhaps for the first time, the full capabilities of your fine audio system.
A 6-Band Parametric EQ Application (that runs on any Windows PC) allows the creation of specialized Voicing Curves to suit the tastes of the user, or to solve specific issues such as refreshing inferior but still-cherished source material, or compensating for inferior formats.
MEN220 contains a sophisticated, phase coherent 2-way electronic crossover that allows for true loudspeaker bi-amping or seamless integration of mono or stereo subwoofers.
Features
- Uses sophisticated RoomPerfect™ Room Correction Technology
- Works on 1/12 Octaves
- 2-Way Electronic Crossover for Bi-amping
- Built-In EQ
- Create custom curves w/ PC Interface
- 2-way Electronic Crossover for Bi-amp
- Integrate Mono or Stereo Subwoofer
- Preserves tonality of loudspeaker while eliminating room-interaction
- Greatly enhances quality of imaging width and depth
- IR Remote Control
- RS-232
-
Made in USA
Specifications
-
- Frequency Response
- +0, -0.5dB from 20Hz to 20,000Hz
-
- Total Harmonic Distortion
- 0.002% from 20Hz to 20,000Hz
-
- Maximum Input Voltage
- 4.5V Unbalanced and Balanced (Preamp-Power Amp)
2.25V Unbalanced and Balanced (Processor Loop)
-
- Maximum Output Voltage
- 4.5V Unbalanced and Balanced (Preamp-Power Amp)
2.25V Unbalanced and Balanced (Processor Loop)
-
- Signal To Noise Ratio (A-Weighted)
- 100dB
-
- Input Impedance
- 10K ohms Unbalanced and Balanced
-
- Voltage Gain
- 0dB
-
- Output Impedance
- 50 ohms
-
- Crossover Filter Types, Order and Slope
- Butterworth, 1st order, 6 dB/octave
Butterworth, 2nd order, 12 dB/octave
Butterworth, 4th order, 24 dB/octave
Linkwitz-Riley, 2nd order, 12 dB/octave
Linkwitz-Riley, 4th order, 24 dB/octave
Linkwitz-Riley, 8th order, 48 dB/octave
-
- Unit Dimensions (W x H x D)
- 17-1/2" (44.45cm) x 6" (15.24cm) x 18" (45.72cm) (including front panel, knobs and cables)
-
- Unit Weight
- 25.5 lbs (11.6 kg)
-
- Shipping Weight
- 41.9 lbs (19 kg)
Support
- Brochure
-
Manual
- Connection Diagram
- Crossover and Subwoofer Connection Diagrams
- Graphs and Set Up Menus
- PC Guide for Custom Equalization Curves
