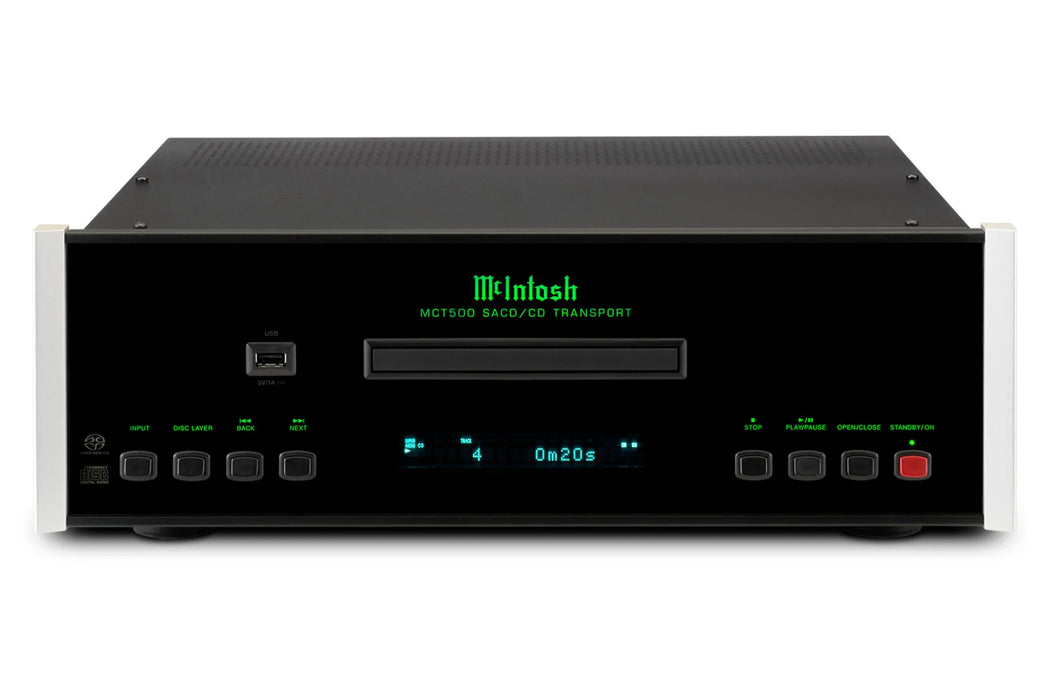

McIntosh MCT500 SACD/CD Transport

Be transported into your music with the MCT500 SACD/CD Transport. The McIntosh MCT500 is a digital only unit and features 4 digital outputs: industry standard balanced, coax and optical outputs plus our exclusive MCT connector. To enjoy your CDs, it can be paired with any product that has standard digital inputs and a digital-to-analog convertor (DAC). This includes select McIntosh home theater processors, integrated amplifiers and preamplifiers.

For SACD playback, the MCT500’s proprietary MCT output needs to be connected (via the included cable) to a McIntosh product with an MCT input. This includes the D1100, C55, C2800, C49 and D150 preamplifiers, MA9500, MA8950, MA7200 or MA5300 integrated amplifiers or MAC7200 receiver. When the MCT500 is connected to one of these devices, a secure digital connection is created, allowing for the playback of the high definition audio found on SACDs. Regular CDs can also be played over the MCT connection.

All common disc types can be played on the MCT500, including SACD, CD, CD-R/RW and DVD-R. A twin laser optical pickup assures optimal disc reading. A USB input is conveniently located on the front panel for easy access. In addition to store bought CDs and SACDs, popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA can be played from user generated CD or DVD Data Discs and USB flash drives.1

Disc handling is smooth and quiet thanks to an advanced disc transport with a precision die-cast aluminum tray. An advanced digital servo provides fast, quiet and accurate operation. A disc’s audio data is read at twice the normal rate insuring better disc tracking and error correction processing.

Integration with other McIntosh system components is achieved via the Power Control and data ports. The MCT500 is wrapped in classic McIntosh styling with a polished stainless steel chassis, black glass front panel, illuminated logo and aluminum end caps.

Features

• Plays CD/DVD Data Discs; USB flash drives
• Balanced, coax, optical, MCT outputs
• Made in USA

Specifications

AUDIO SPECIFICATIONS

• Number of Channels

  2

• Fixed Output Level

  N/A

• Variable Output Level

  N/A

• Output Impedance

  N/A

• Frequency Response

  N/A

• Signal To Noise Ratio

  N/A

• Dynamic Range

  N/A

• Total Harmonic Distortion

  N/A

• Channel Separation

  N/A

• Headphone Output Impedance

  N/A

DIGITAL AUDIO SPECIFICATIONS

• Digital-to-Analog Converter (DAC) Type

  N/A

• Coaxial Sample Rate

  N/A

• Optical Sample Rate

  N/A

• USB Sample Rate

  N/A

• Digital Coaxial Input

  N/A

• Digital Optical Input

  N/A

• Digital Output Sample Rate

  Coaxial: Up to 24-Bit/192kHz
  Optical: Up to 24-Bit/192kHz
  XLR: Up to 24-Bit/192kHz
  MCT: Up to 24-bit/96kHz (CD); DSD128 (SACD and Data DVD)

• Digital Optical Output

  -15dbm to -21dbm

• Digital Coaxial Output

  0.5V p-p/75 ohms

• Digital Output Jitter

  ≤ 32ns with 1kHz test tone

• Digital XLR Output

  5V p-p/150 ohms

• Digital MCT Output

  3V @110 ohms

CONNECTIVITY

• Balanced Fixed Output

  0

• Unbalanced Fixed Output

  0

• Balanced Variable Output

  0

• Unbalanced Variable Output

  0

• Digital Coaxial Input

  0

• Digital MCT Input

  0

• Digital Optical Input

  0

• Digital USB Input

  1 (front)

• Digital USB Input Type

  Type A

• Digital Coaxial Output

  1

• Digital MCT Output

  1

• Digital Optical Output

  1

• Digital XLR Output

  1

• Headphone Output

  0

CONTROL

• Power Control Input

  1

• Power Control Output

  1

• Rear Panel Data Input

  1

• Rear Panel IR Sensor Input

  1

• RS232 Control Input

  0

GENERAL SPECIFICATIONS

• Disc Formats

  SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA

• Disc Capacity

  1

• Laser Type

  Twin Beam

• Laser Beam Wavelength

  650nm (SACD)
  790nm (CD)

• Laser Power

  CLASS IIa/CLASS I

• Standby Power Requirement

  <0.5 watt

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  17-1/2" (44.45cm) x 6" (15.24cm) x 19" (48.3cm) Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).

• Unit Weight

  26 lbs (11.8 kg)

• Shipping Weight

  40.5 lbs (18.4 kg)
