McIntosh MC1.25KW Audiophile Monoblock Power Amplifier
Taxes & Shipping Included
The MC1.25KW Quad Balanced Power Amplifier is one of our most advanced amplifiers. Redesigned from top to bottom, it replaces the venerable MC1.2KW as our most powerful single chassis monoblock amplifier. A simple glance at this 158 pound (71.7 kg) amp is enough to convey its power and performance capabilities, but when you hear it – then you’ll truly understand what it can do.
The MC1.25KW outputs 1,200 Watts of pure power into a single channel with a nearly imperceptible total harmonic distortion of 0.005%. This astonishing amount of power is fully available to 2, 4 or 8 Ohm speakers via our Autoformer™ technology. A pair of these amps can anchor a home audio system that can rival nearly any stereo system in the world.

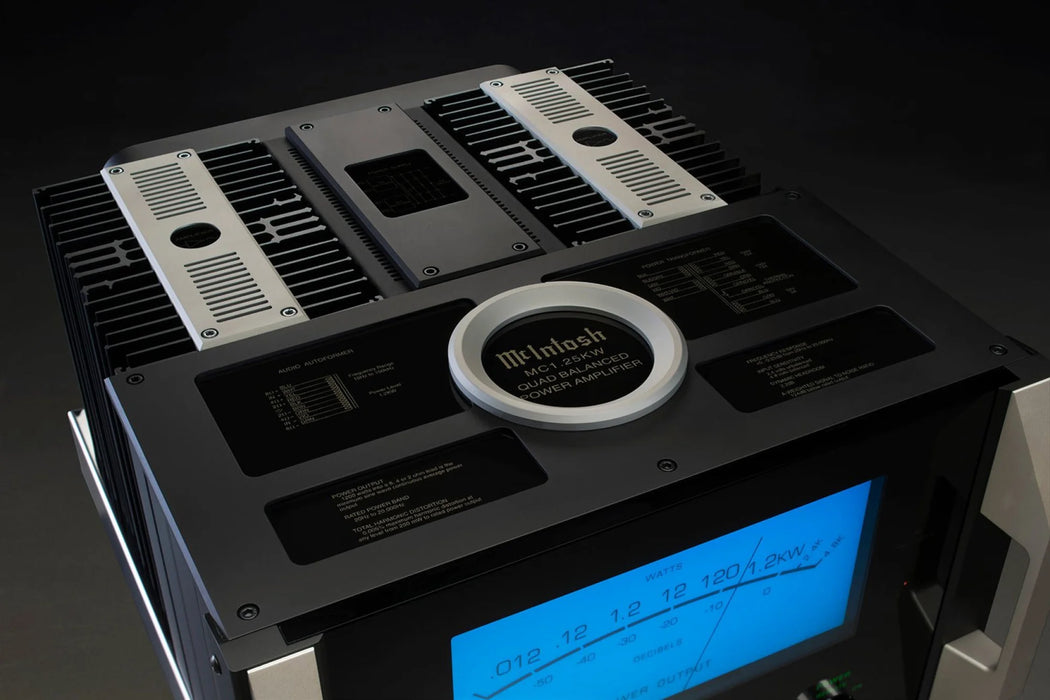

Updates and enhancements abound in the MC1.25KW. A 50% increase in filter capacity improves the performance of low end frequencies as well as increasing dynamic headroom. The top of the amp showcases an updated yet unmistakable McIntosh industrial design that will fit right in with current McIntosh products or those made decades ago. The audio Autoformer and power transformer remain located just behind the front panel but are now contained in new glass topped enclosures. In between them is new circular glasswork housing the amplifier’s name badge that is adorned with a decorative trim ring.

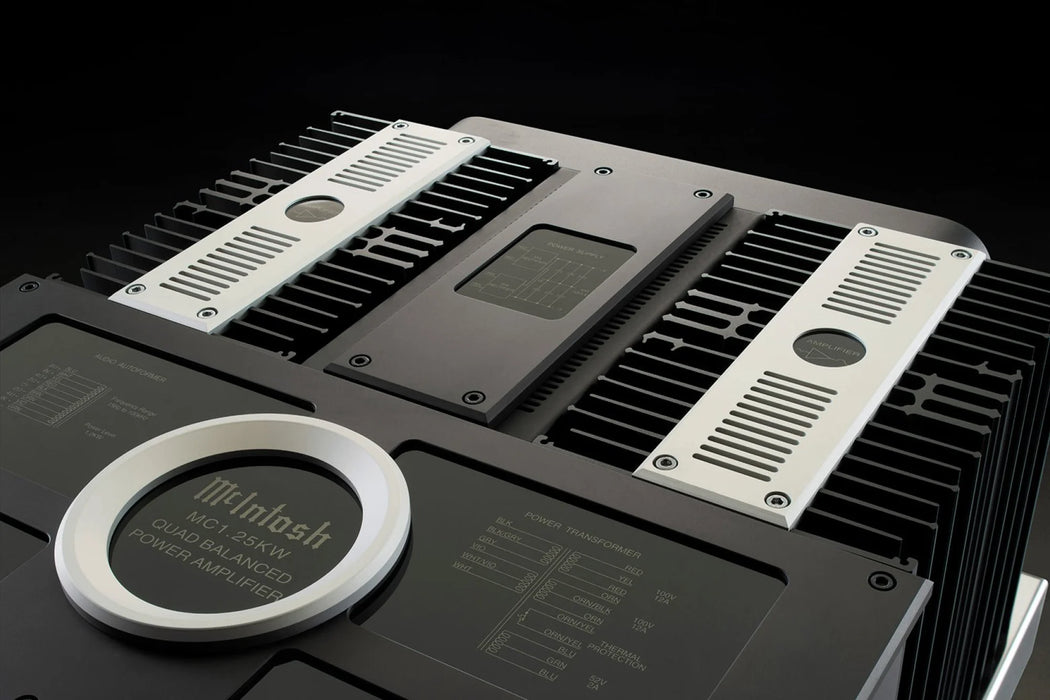

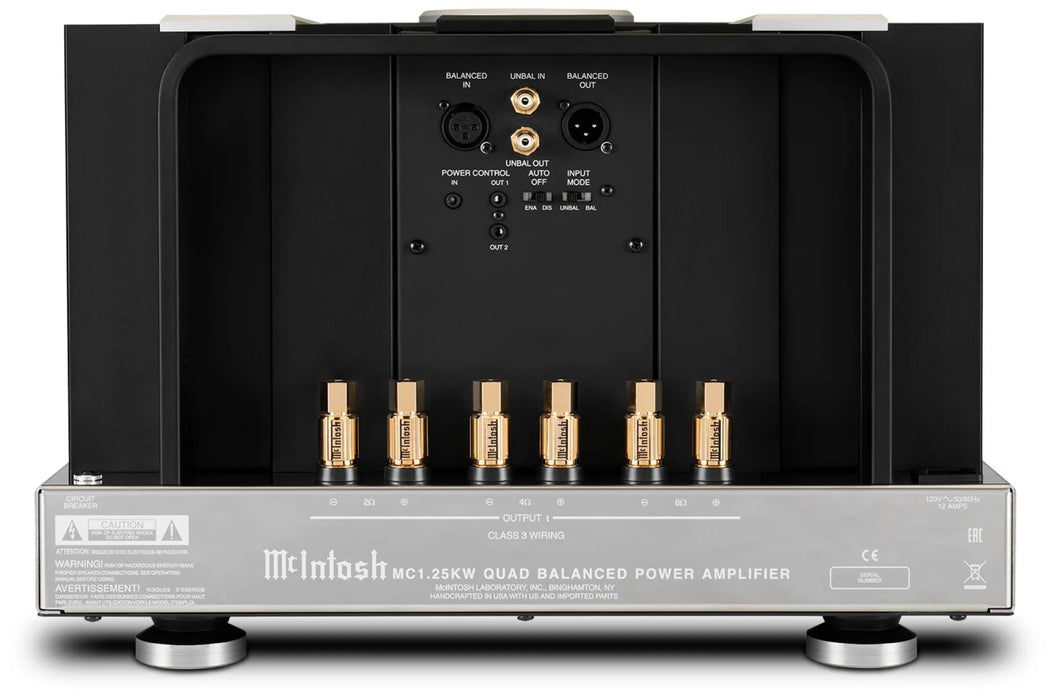

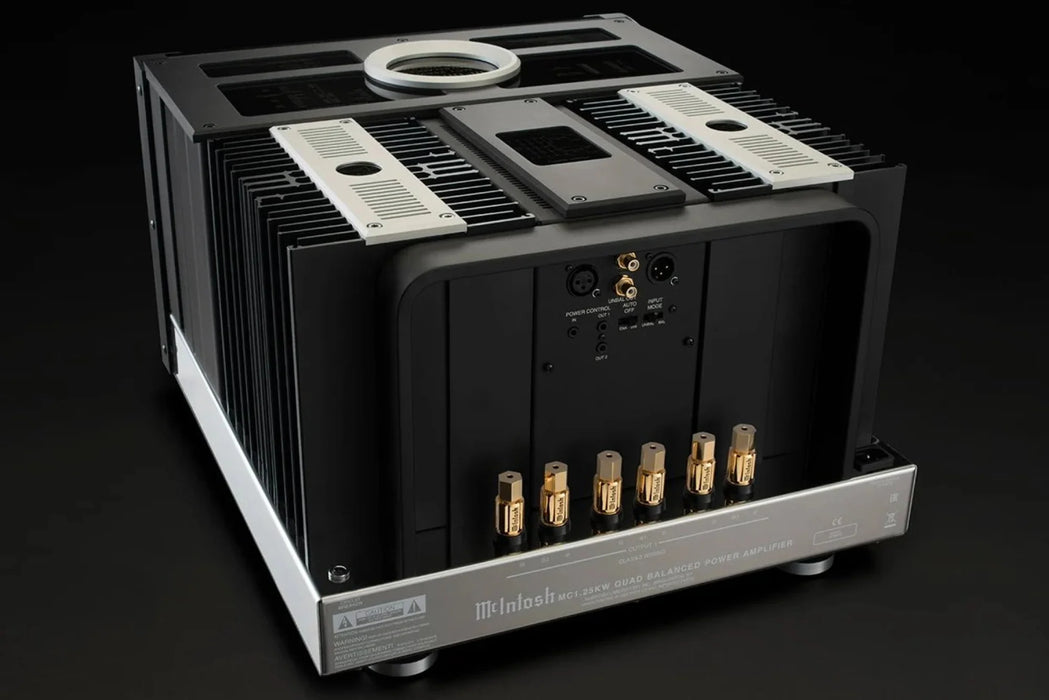

The rear of the unit features 4 of our McIntosh Monogrammed Heatsinks™. Made from high quality materials with excellent thermal conductivity properties, these heatsinks are so efficient at dissipating heat that they warrant bearing the McIntosh “Mc” logo. They connect to advanced high current output transistors that eliminate thermal equilibrium lag time so that the first musical note played sounds just as good as songs played later in your listening session.
The heatsinks are capped with handsome ventilation trim plates. These trim plates and the circular trim ring are made from aluminum and are finished to match the front panel handles.

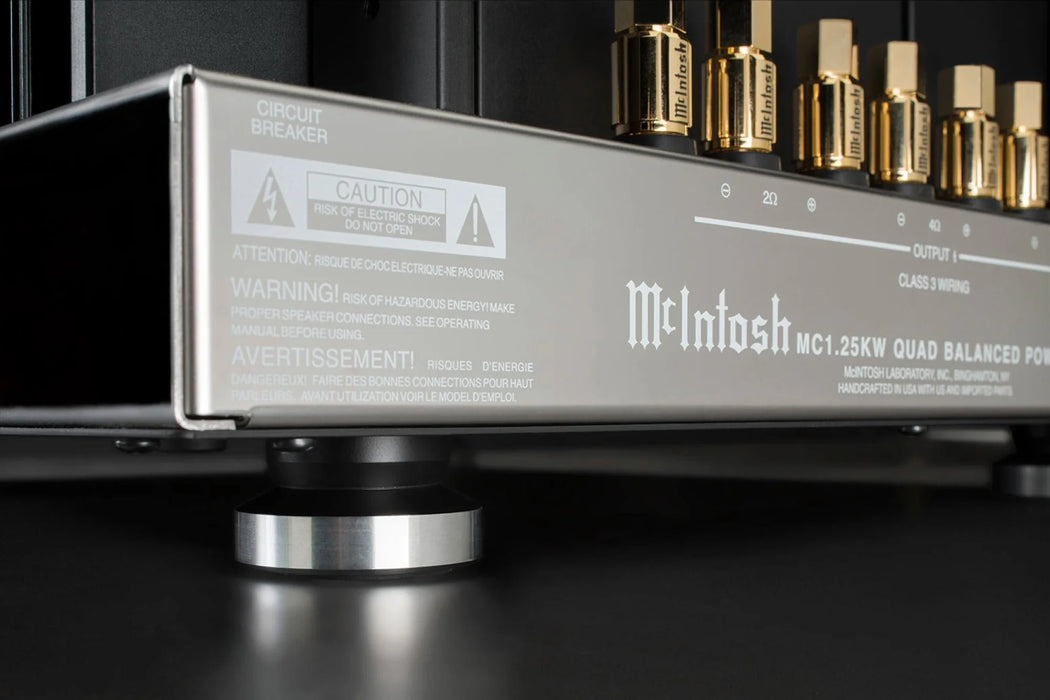

The AC receptacle has been repositioned to provide additional clearance so a wider assortment of power cords can more easily be used. All of this sits atop a polished stainless steel chassis which rests on 4 new redesigned feet that feature a chamfered edge. Other updates include an updated power transformer, heavier gauge internal wiring, upgraded circuit components, and the addition of our power management system that will turn the amp off after a set amount of time when no input signal has been detected.

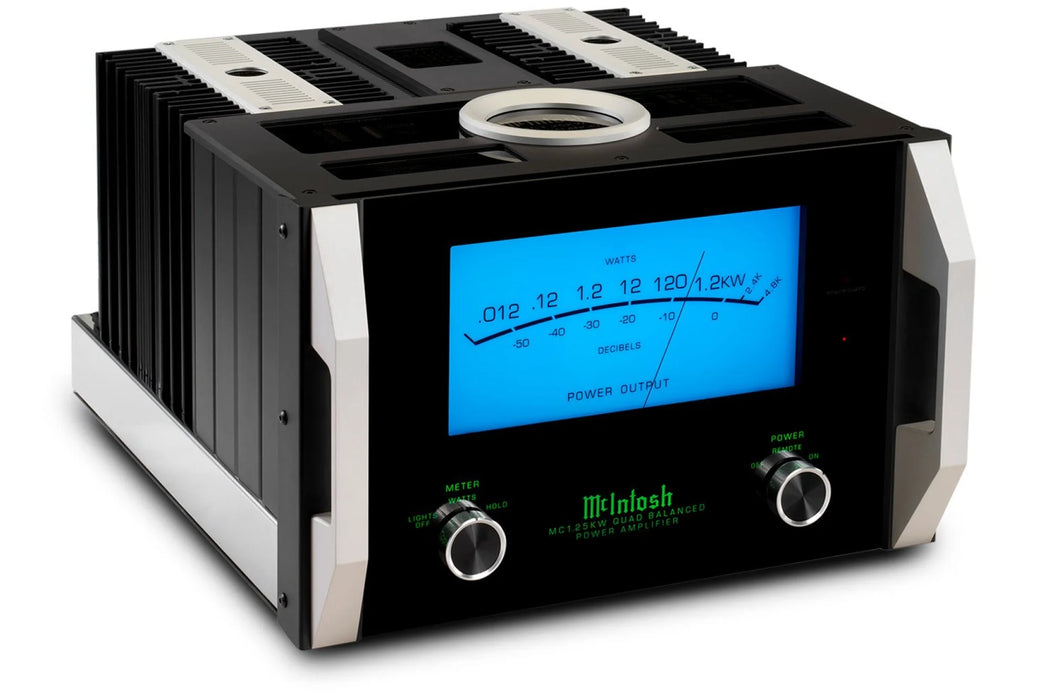

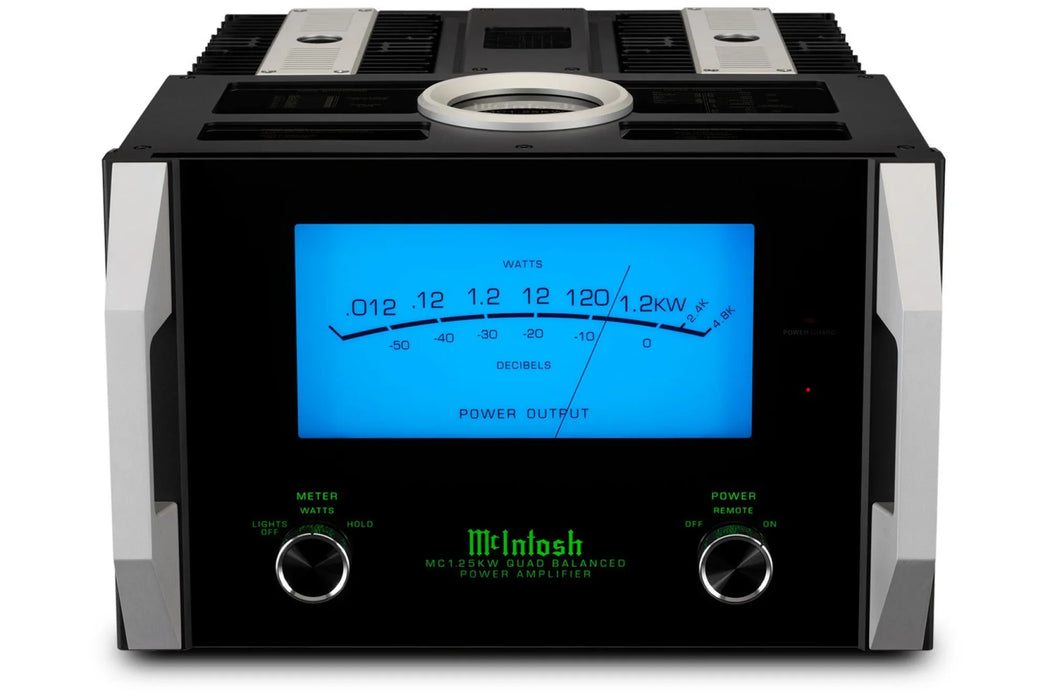

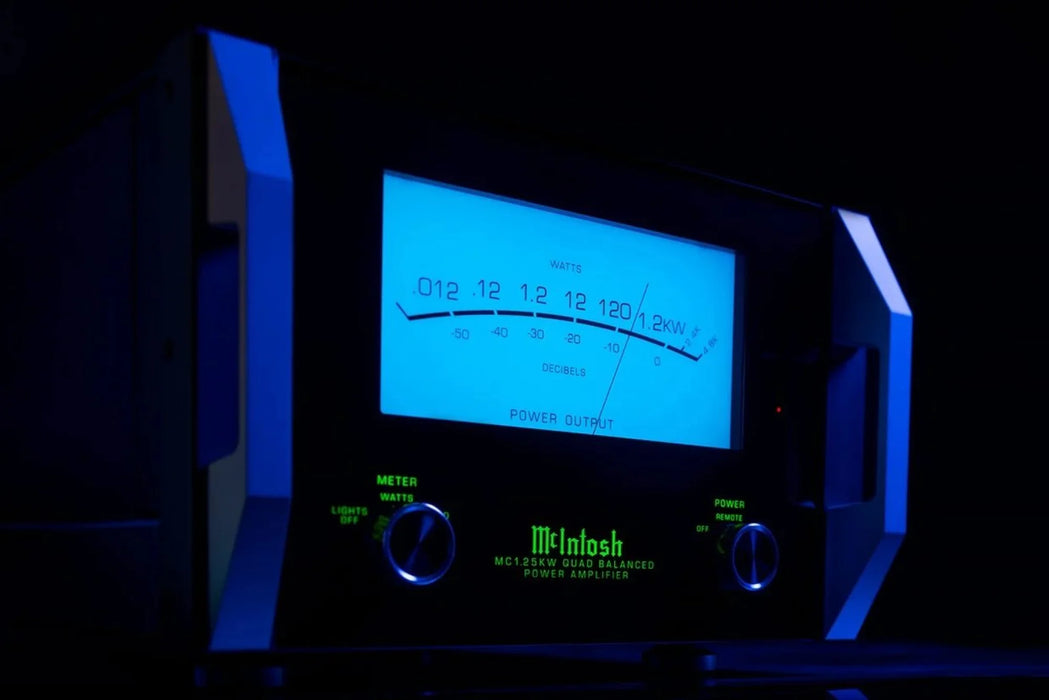

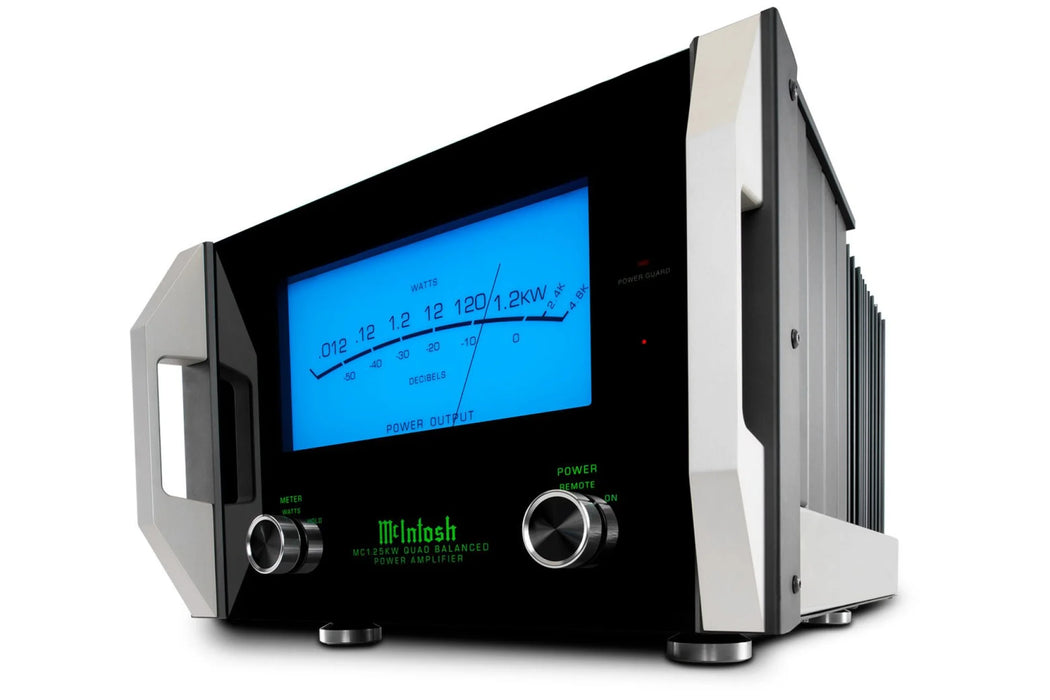

With all the changes and improvements made in the MC1.25KW, one thing that hasn’t changed is the large, fast responding 11” (27.9 cm) blue Watt meter that accurately shows the amp’s power output. Also unchanged is the signature black glass front panel with control knobs, illuminated logo, and aluminum end caps with handles. The front panel and meter have new direct LED backlighting for improved appearance and color accuracy.
Features
- Our most powerful single chassis monoblock amplifier.
- Delivers 1,200 Watts via our Autoformer™ into a 2, 4 or 8 Ohm speaker with a nearly imperceptible total harmonic distortion of 0.005%.
- Updated yet unmistakable McIntosh industrial design that fits right in with current McIntosh products or those made decades ago.
- A 50% increase in filter capacity from previous generation improves the performance of low end frequencies and increases dynamic headroom.
- Other updates include an updated power transformer, heavier gauge internal wiring, upgraded circuit components, addition of our power management system, and a repositioned AC receptacle for easier use of power cords.
- Full of numerous McIntosh technologies including Power Guard®, Sentry Monitor™, Quad Balanced design, McIntosh Monogrammed Heatsinks™, patented Solid Cinch™ speaker binding posts and Power Control.
- Signature black glass front panel features new direct LED backlighting for improved appearance and color accuracy.
- Sits atop a beautiful polished stainless steel chassis and is completed with a fast responding 11” (27.9 cm) blue Watt meter, control knobs, illuminated logo and aluminum end caps with handles.
- Power Guard® that monitors and adjusts the output signal at the speed of light and makes real time adjustments to prevent harsh sounding and potentially speaker damaging clipping
- Sentry Monitor™ - our fuse-less short-circuit protection circuit that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal
- Quad Balanced design that cancels virtually all noise and distortion that may have crept into the audio signal
- Power Control to send power on/off signals to other connected McIntosh components (such as CD Players, turntables, tuners and media streamers) for easy system power up and shutdown

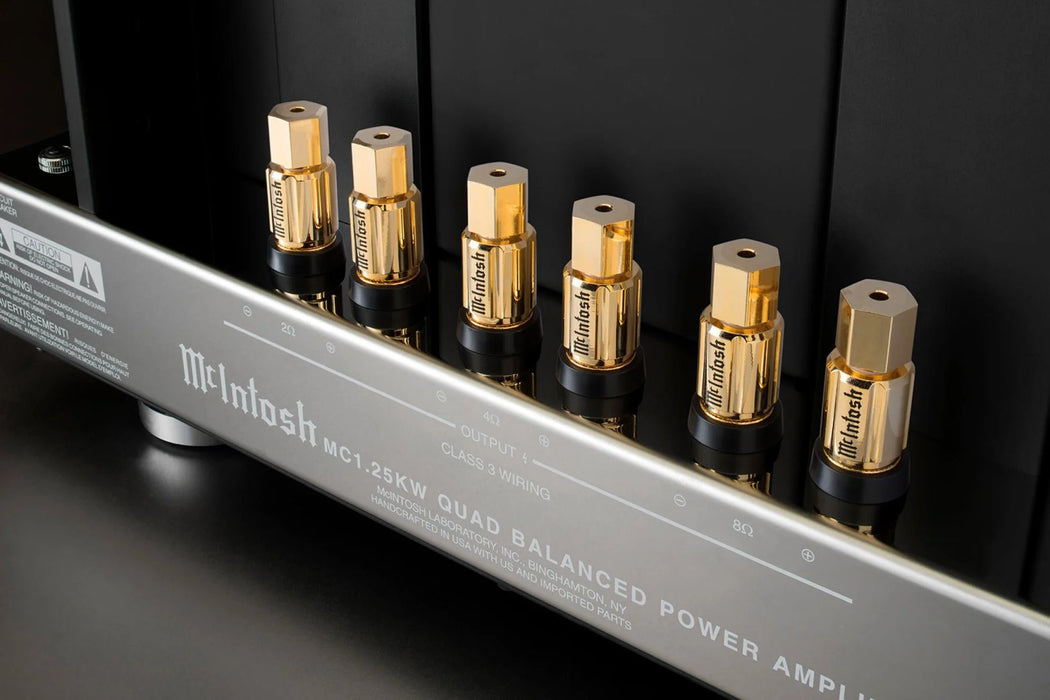

- Our patented Solid Cinch™ speaker binding posts that easily but securely attach the speaker cables to prevent them from coming loose and possibly causing a short; the binding posts are also gold-plated to prevent corrosion and ensure a quality signal is sent over your speaker cables
Specifications
-
- Power Output per Channel
- 1200 Watts @ 2, 4 or 8 Ohms
-
- Number of Channels
- 1
-
- Total Harmonic Distortion
- 0.005%
-
- S/N below rated output
- Balanced: 124dB
Unbalanced: 120dB
-
- Dynamic Headroom
- 2.2dB
-
- Damping Factor
- >40 Wideband
-
- Rated Power Band
- 20Hz to 20kHz
-
- Frequency Response
- +0, -0.25dB from 20Hz to 20,000Hz
+0, -3dB from 10Hz to 100,000Hz
CONTROL
-
- Remote Power Control
- Yes
-
- Multi-Channel DB25 Cable
- N/A
GENERAL SPECIFICATIONS
-
- Circuit Configuration
- Quad Balanced
-
- Circuit Design
- Solid State
-
- Mono Bridge
- N/A
-
- Mono Parallel
- N/A
-
- Output Type
- Autoformer™
-
- Meters
- Yes
-
- Meter Light Switch
- Yes
-
- Balanced Input
- 1
-
- Front Panel
- 1/2" Glass with handles
-
- Illumination
- Direct LED
-
- Chassis Style
- Polished stainless steel & black painted steel
CONNECTIVITY
-
- Speaker Binding Post Type
- Patented Solid Cinch™ Speaker Binding Posts
WEIGHTS & DIMENSIONS
-
- Unit Dimensions (W x H x D)
- 17-3/4" (45.09cm) x 12-5/16" (31.27cm) (including feet) x 22" (55.88cm) (including the front panel and cables)
-
- Unit Weight
- 158 lbs (71.7 kg)
-
- Shipping Weight
- 184 lbs (83.4 kg)
