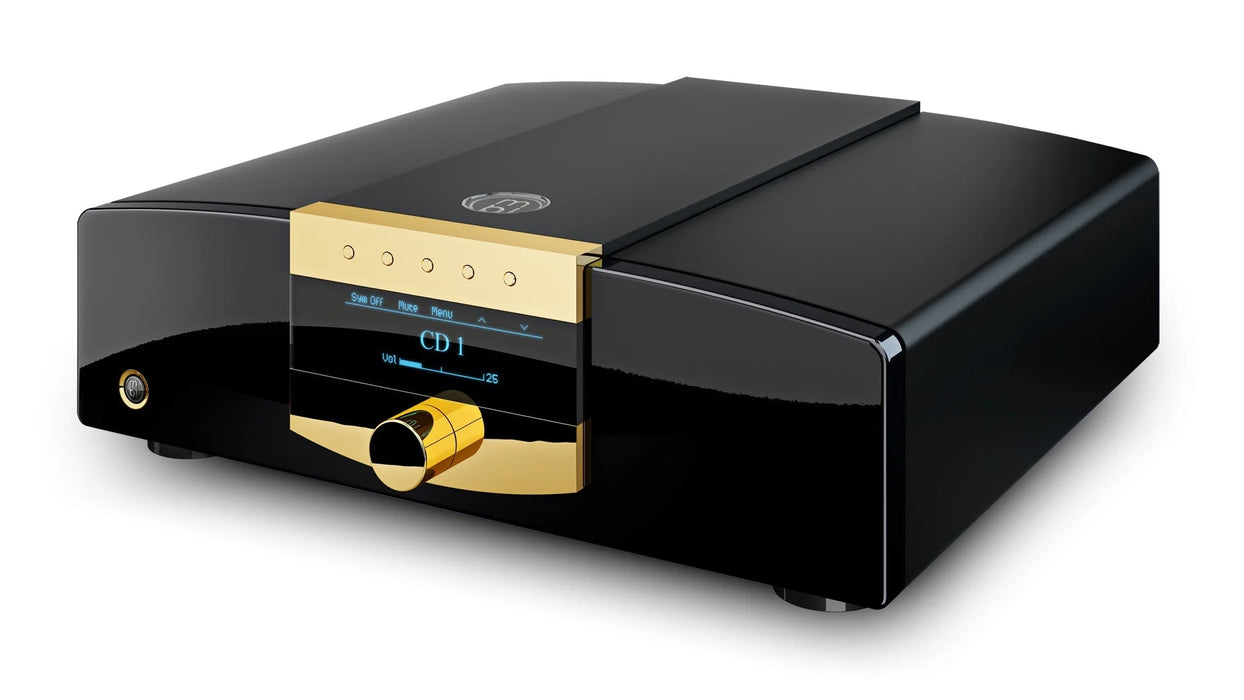

MBL C51 Integrated Amplifier

Rs. 1,199,900.00

The system’s heart or motor, the amplifier, has a special role to play as it carefully “amplifies” the delicate musical signal and controls the loudspeaker, enabling all pieces of musical information to be bundled into a meaningful whole. The MBL C51 provides the strong-hearted foundation of a simpler system by carefully combining the functions of the preamp and amplifier in one elegant chassis.

No compromises here, discrete components fill the input section, our trail-blazing LASA technology provides a powerful and efficient amplifier…MBL to its core.

For optimum channel separation and a distinct, true-to-life musical image, we have crafted the input stages from carefully selected discrete components.

Full listening pleasure in half the space.

Features

  • LASA technology (Linear Analog Switching Amplifier)
  • 180w x 2 @ 8 Ohms, 400W x 2 @ 2 Ohms
  • Signal by Noise Ratio 122 dB (A) @ 300 W / 4 Ohm
  • Made in Germany

Specifications

  • Weight: 23 kg / 50.7 lbs
  • Dimensions (without cables): W 45,0 cm / D 44,5 cm / H 14,5 cm, W 17.7 in / D 17.5 in / H 5.7 in
  • Dimensions with packaging: W 59,0 cm / D 54,0 cm / H 35,5 cm, W 23.2 in / D 21.3 in / H 21.9 in
  • Line Voltage: 230 Vac / 50 Hz or 115 Vac / 50/60 Hz (single voltage, factory setting depending on country)
  • Power consumption: in stand by < 0.5 VA, in idle < 70 VA, Maximum < 1000 VA (w. 2 x 300 W @ 4 Ohm)
  • Rated Power: Stereo 4 Ohm 2 x 300 W, Stereo 8 Ohm 2 x 300 W, Stereo 2 Ohm 2 x 400 W
  • Peak Output Voltage: 62 Vp
  • Peak Output Current: 20 Ap
  • Input Sensitivity (RCA / XLR): 100 mV for 1 W @ 4 Ohm
  • Rated Input Voltage (RCA / XLR): 1.70 V for 300 W @ 4 Ohm
  • Voltage Gain: 20 (26 dB)
  • Absolute Polarity: In-Phase
  • Signal / Noise Ratio @ Rated Output: 122 dB (A) @ 300 W / 4 Ohm
  • Signal / Noise Ratio @ 1 Watt: 98 dB (A) @ 1 W / 4 Ohm
  • Equivalent Input Noise: 124 dB (A) @ 2 V Input
  • Frequency Response: < 10 Hz – 45 kHz
  • Distortion THD+N: Typ. 0.01 % @ 3 W from 20 Hz … 20 kHz
  • Damping Factor: > 100 (40 dB) @ 1 kHz / 4 Ohm
  • Channel Separation: > 90 dB @ 1 kHz
