Matrix Audio TS-1 Music Streamer
Taxes & Shipping Included
Matrix Audio proudly presents the TS-1, a new-generation all-in-one solution for headphone and active monitor audiophiles. Adhering to the core philosophy of "simplifying complexity", the TS-1 seamlessly integrates a streamer, DAC and headphone amplifier into one compact device. Pair it with your favorite headphones or active speakers, and you'll have a high-quality Hi-Fi system ready to go. Whether you’re a digital audio guy seeking convenience or a discerning audiophile with picky ears for sound quality, the TS-1 offers a one-stop solution that strips away the unnecessary and brings music back to its pure essence.

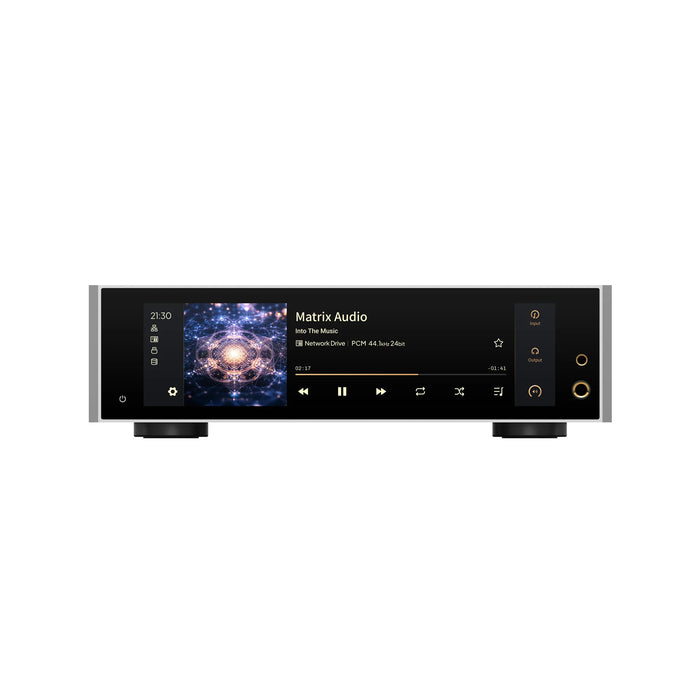

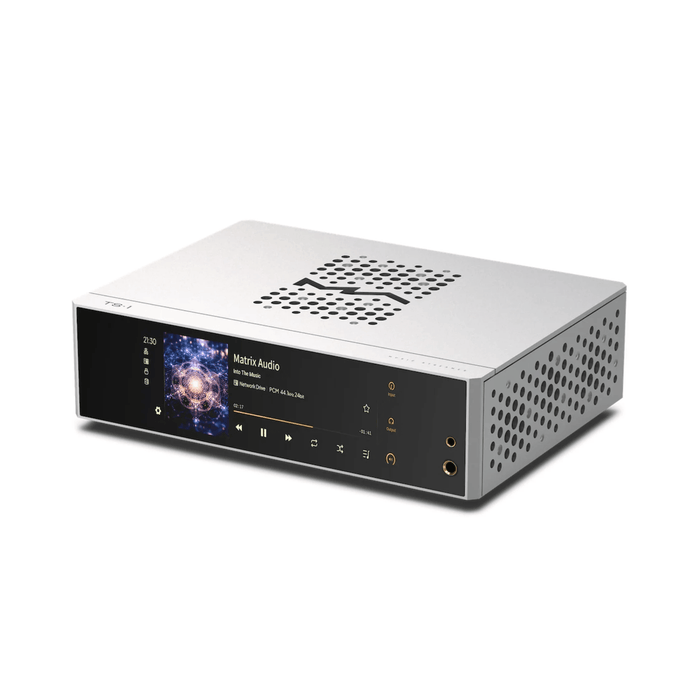

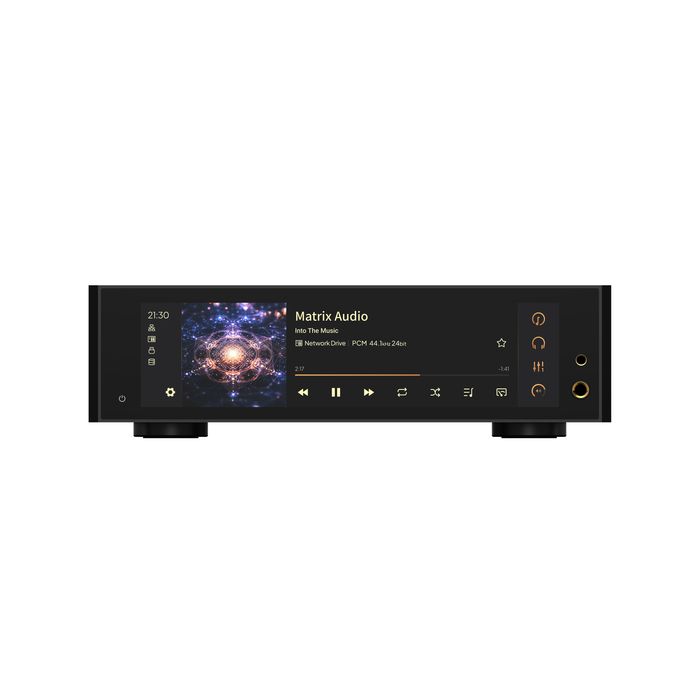

Powered by the Hi-Fi streaming hardware platform from the Matrix Audio M Series, the TS-1 delivers a significant leap in performance. Its upgraded display and the continuously evolving MA Player Hi-Fi Streaming OS, paired with the MA Remote App, provide seamless compatibility with both iOS and Android devices. Whether using a smartphone or tablet, you'll experience an effortlessly smooth and intuitive user experience.

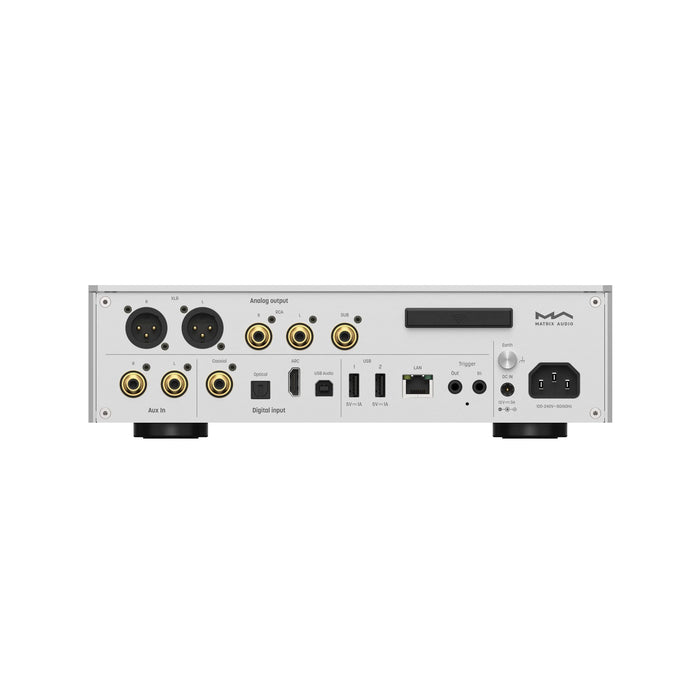

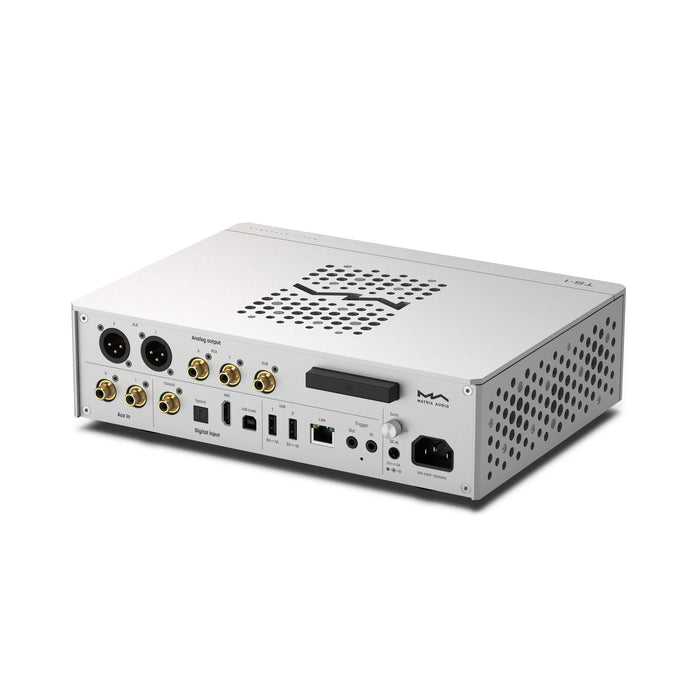

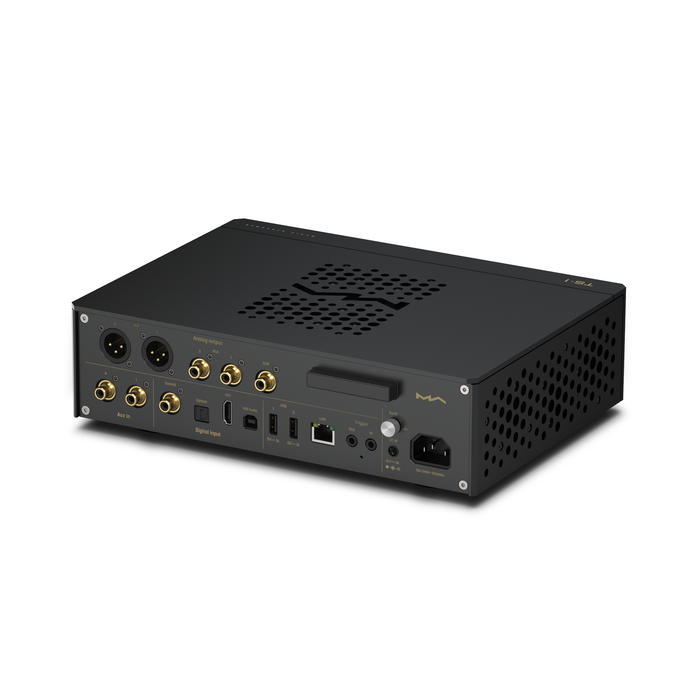

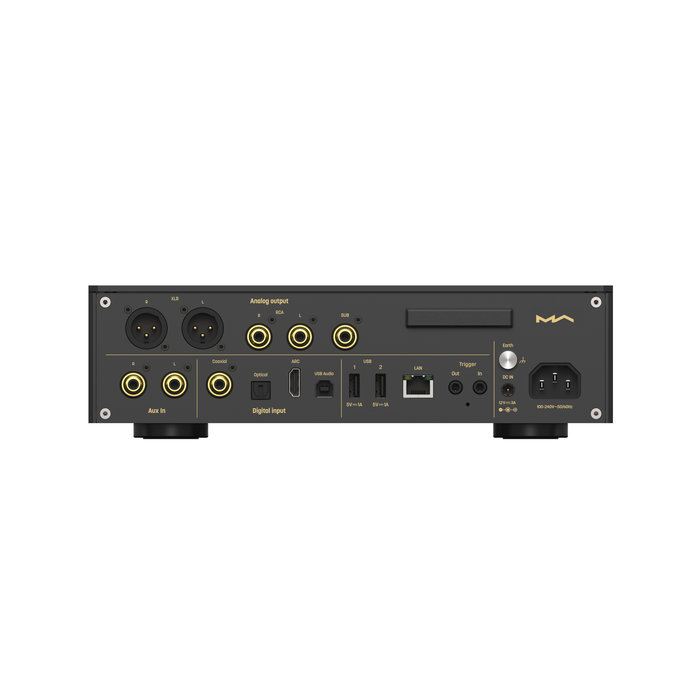

Designed with the concept of an "all-scenario audio center," it features five input interfaces: optical, coaxial, USB Audio, HDMI ARC, and RCA analog inputs. Whether it is in living room entertainment, in a desktop setup, a vinyl system, or modern streaming music, all audio sources can be seamlessly connected to achieve "one device for all scenarios". Effortlessly switch audio sources using the IR remote or the MA Remote App.
With high-standard XLR and RCA analog output interfaces, building an active speaker system becomes easier. No need to worry about amplifier matching or complex wiring—whether creating a desktop Hi-Fi system or enhancing your living room entertainment, you can achieve studio-quality sound in a minimalist way. The analog outputs offer two output voltage settings, catering to active speakers with different gain requirements.
A newly added subwoofer output specifically handles audio frequencies below 150Hz with synchronized volume control of the line output. With this interface, you can easily connect an active subwoofer to compensate for the limited low-frequency extension of small active speakers. Whether you're enjoying music or watching TV, it creates a more immersive audio experience and opens up new possibilities for a 2.1-channel setup.
Equipped with 6.35mm unbalanced and 4.4mm balanced outputs, the new fully balanced, high-bias discrete headphone amplifier has an output impedance of just 1 ohm. This ensures effective voltage dynamics, even with low-impedance, high-sensitivity headphones. Especially tuned for modern high-resolution headphones, it maintains high-frequency extension while subtly restraining the highs for a more comfortable, long-term listening experience. With a two-level output voltage setting, it effortlessly handles both low-impedance IEMs and high-impedance full-sized headphones.
Ingeniously, the analog and digital circuits are arranged on separate PCB layers, with the digital section on the lower layer and the analog section on the upper layer. This approach minimizes interference between circuits and facilitates efficient heat dissipation for the high-bias headphone amplifier. The analog PCB features a fully symmetrical left-right design, ensuring stable audio signal transmission from the circuit architecture level. This not only enhances audio performance but also improves the overall reliability of the product.
Featuring a fully balanced design from digital to analog, each channel is equipped with an AK4493SEQ chip, with its dual DAC units operating in parallel. This configuration significantly enhances dynamic range, bringing richer sound details and more distinct layering. Notably, the power supply sections of the two DAC chips are completely independent, with each chip powered by a dual-channel ultra-low-noise LDO. This ensures that the performance of the DAC chips is fully unleashed, delivering pure, high-fidelity audio output.
Equipped with two compact ultra-low phase noise femtosecond clocks, each dedicated to serving as the clock reference for 44.1kHz and 48kHz sampling rates and their multiples. Powered by independent low-noise linear regulators, and with intelligent control through FPGA, it automatically handles frequency division and switching operations. This design lays a solid foundation for low-jitter digital audio output.
Mount your NAS drive to the device, allowing you to create a music library directly from your NAS. If your music is stored in the cloud drive, such as Baidu Netdisk, it can also be mounted directly on the device. With MA Remote App, music files from NAS and cloud drive can be copied to internal storage of TS-1 conveniently.
Simply connect an USB CD drive and use the MA Remote App, you can convert CD albums into digital audio files and save them to the device's internal storage. This process creates a digital copy of your precious CDs, seamlessly combining the high-quality audio of CDs with the flexible management of streamers. Users can enjoy the unique ritual of CD playback while transcending the limitations of physical media, turning valuable music resources into digital formats for convenient playback. Let music become a constant, beautiful companion in your life.
With the SMB protocol, computers on the same network can easily access the device's storage, making it simple to manage your music library. Additionally, the device can function as a NAS, enabling other streamers on the same network to seamlessly play the stored music.

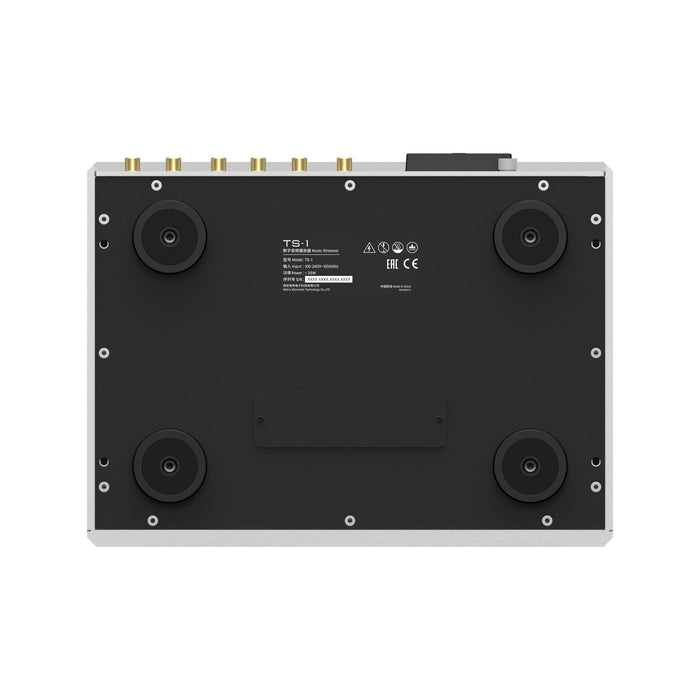

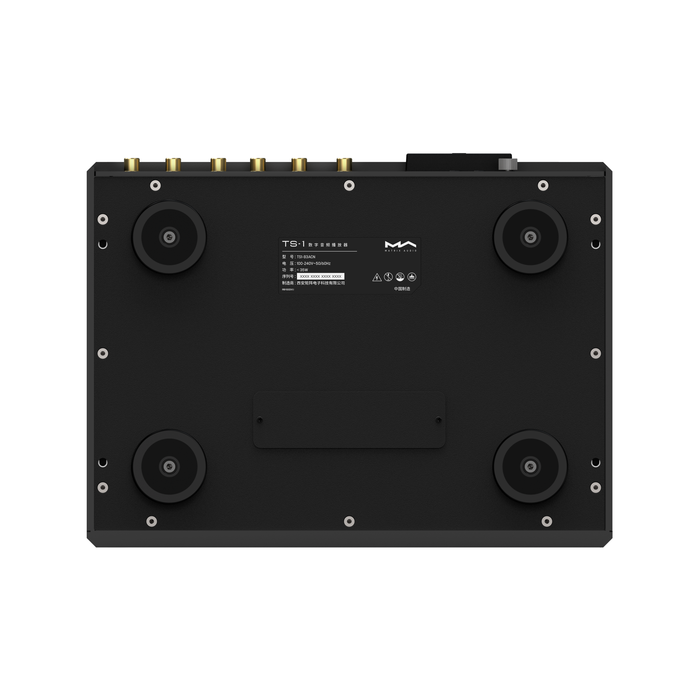

The bottom of the device features an NVMe SSD slot, allowing for the installation of an SSD to expand internal storage. A specially designed ultra-low-noise independent power supply ensures a quiet operating environment for the SSD, which surpasses what an ordinary computer can offer.
If wired connection is inconvenient for you, the TS-1’s Wi-Fi 6 connectivity offers a simple and convenient solution. To ensure optimal sound quality and stable performance during high resolution audio streaming, it is recommended to give priority to use a wired connection.
The TS-1 is specially designed with an DC power input to unlock its full performance potential with adding a linear power supply. When both external power and AC power are connected, the system prioritizes the external power supply and disconnects the AC power, retaining only the ground connection. Additionally, the product is equipped with a power filter and multiple low-noise LDOs to power each circuit unit independently, ensuring pure and stable power delivery in every aspect.
Features
- New-generation all-in-one solution for audio streaming
- Exceptional User Experience through touch-screen and MA Remote App, derived from the top of the line M Series
- Featuring a fully balanced design from digital to analog, each channel is equipped with an AK4493SEQ chip, with its dual DAC units operating in parallel.
- Independent power supply sections of the two DAC chips with each chip powered by a dual-channel ultra-low-noise LDO.
- Dual Femtosecond Clock each dedicated to serving as the clock reference for 44.1kHz and 48kHz sampling rates and their multiples, powered by independent low-noise linear regulators, and with intelligent control through FPGA.
- Five input interfaces: optical, coaxial, USB Audio, HDMI ARC, and RCA analog inputs
- From local NAS and Cloud NAS to Internal Storage in the TS-1, The TS-1 can stream from local or internal storage. Supported formats include MP3、WMA、WAV、AIF、AIFC、AIFF、AAC、FLAC、OGG、APE、ALAC、M4A、DSF、DFF、CUE、ISO and DSD
- Plethora of Digital Streaming Inputs: Roon, AirPlay 2, DLNA/UPNP, Tidal Connect, Spotify Connect
- XLR and RCA analog output interfaces, with two output voltage settings catering to active speakers with different gain requirements.
- Built-in Headphone Amplifier with 6.35mm unbalanced and 4.4mm balanced outputs
- Subwoofer Out
- Separate Analog and Digital boards for enhanced audio performance
- Trigger in and Out for integration with other devices such as Power Amplifiers
- 10/100/1000 Mbps Ethernet and 2.4 GHz / 5 GHz Wi-Fi
- External DC Input option

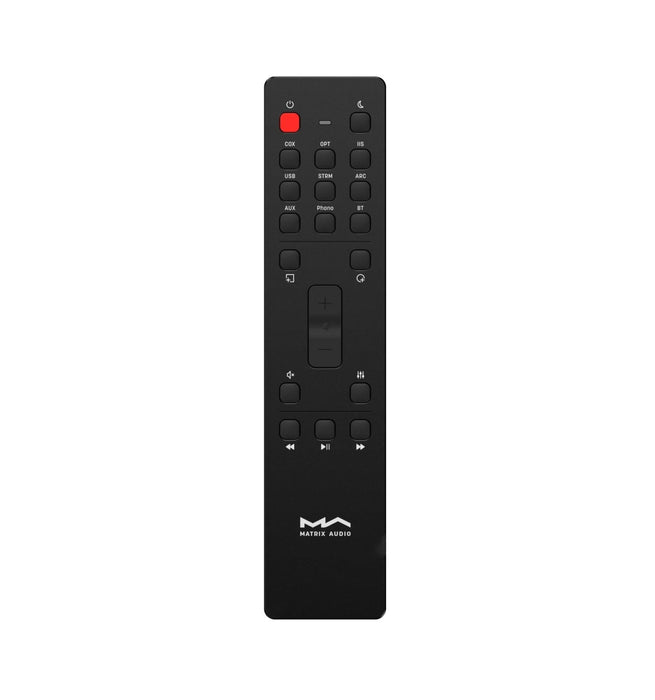

- Remote Control Included
Specifications
Digital Input
COAXIAL & OPTICAL |
PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD 2.8MHz (DoP) |
HDMI ARC | PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
USB Audio |
PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP) DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native) |
Aux In
SNR |
100dB A-weighting |
THD+N |
< 0.004%@1k,<0.004%@20Hz-20kHz |
Frequency Response |
20Hz-20kHz ±0.1 -3dB@40kHz |
Crosstalk |
>-105dB |
MAX Input Level |
2.1VRMS |
Line Out
XLR |
SNR:123dB A-weighting THD+N:< 0.00018%@1k, < 0.00022%@20Hz-20kHz Frequency Response:20Hz-20kHz ±0.1 -3dB@80kHz Crosstalk:>-140dB Output Level:4.5VRMS @ 0dB / 0~4.5VRMS Adjustable |
RCA |
SNR:120dB A-weighting THD+N:< 0.00020%@1k,<0.00022%@20Hz-20kHz Frequency Respons:20Hz-20kHz ±0.1 -3dB@80kHz Crosstalk:> -120dB Output Level:2.2VRMS @ 0dB / 0~2.2VRMS Adjustable |
SUB |
Cutoff Frequency:150Hz@-3dB Output Level:2.2VRMS @ 0dB / 0~2.2VRMS Adjustable |
Headphone Output
4.4mm Blanced |
SNR:119dB A-weighting THD+N:< 0.0004%@20Hz-20kHz 4VRMS Frequency Response:20Hz-20kHz ±0.5 -3dB@22kHz Output Impedance:< 2Ω Output Power:1000mW@33Ω, 1000mW@300Ω, 500mW@600Ω, 1%THD Gain:+12dB |
6.35mm Unbalanced |
SNR:116dB A-weighting THD+N:< 0.0004%@20Hz-20kHz 2VRMS Frequency Response:20Hz-20kHz ±0.5 -3dB@22kHz Output Impedance:< 1Ω Output Power:1400mW@33Ω, 250mW@300Ω, 130mW@600Ω, 1%THD Gain:+12dB |
Network
LAN |
10/100/1000 Mbps |
Wi-Fi | 2.4 GHz / 5 GHz |
USB
2 x USB 3.0 The USB port provides a maximum power of 5V/1A. |
|
The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices. |
MA Player
Controller app | MA Remote App |
Local Playback |
Format Supported:MP3、WMA、WAV、AIF、AIFC、AIFF、AAC、FLAC、OGG、APE、ALAC、M4A、DSF、DFF、CUE、ISO PCM 16-24Bit/44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz |
Roon Ready |
PCM 16-24 Bit /44.1 kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz DSD 2.82MHz, 5.64MHz, 11.29MHz, 22.58MHz |
QQ音乐 |
The audio specs depend on the service provider |
AirPlay 2 | The audio specs depend on the service provider |
DLNA/UPnP | The audio specs depend on the service provider |
TIDAL Connect | The audio specs depend on the service provider |
Spotify Connect | The audio specs depend on the service provider |
vTuner | The audio specs depend on the service provider |
Radio Paradise | The audio specs depend on the service provider |
Trigger
Trigger in |
DC 6-12V<10mA |
Trigger out |
DC 12V/50mA MAX |
Storage Extension
M.2 2280 2260 2242 NVMe PCIe SSD slot
SSD supporting PCIe 3.0/4.0/5.0 standards,The maximum power specification provided by the expansion slot is DC 3.3V3A. |
Power
AC input |
Wide voltage switching power supply Power Voltage: AC 100V-240V 50/60Hz Standby Power Consumption: < 5W MAX Power Consumption: < 35W |
DC input |
External power voltage: DC 12V ±10% External power wattage: Larger than 36W Power plug: Outer diameter 5.5mm; inner diameter 2.1mm (+ for inner, - for outer) |
Weight & size
Weight |
2.89kg (6.37 pounds) |
Dimension |
Width: 280 mm (11.02 inches) Depth: 210 mm (8.27 inches) Height: 82 mm (3.23 inches) |
Accessories
Power cable *1
IR Remote *1 Printed material *1 |
