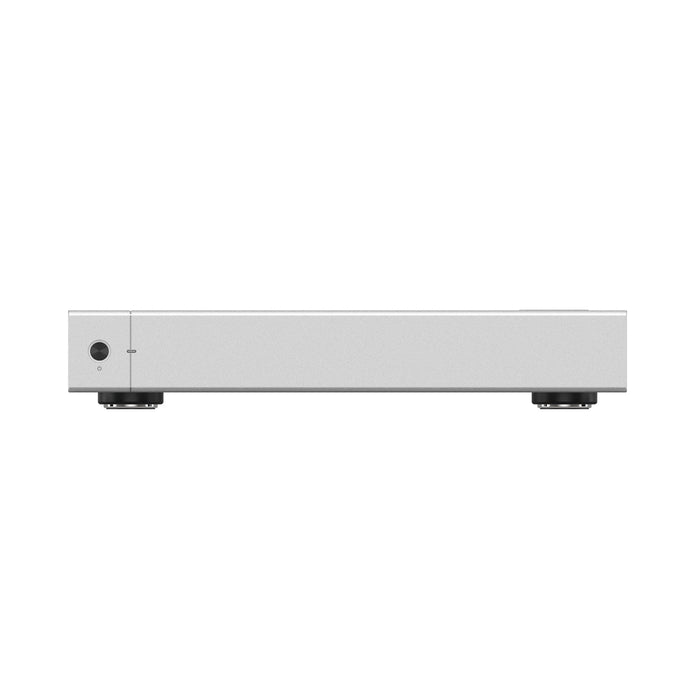

Matrix Audio Element P2 - Power Amplifier

Original price ₹ 191,990 - Original price ₹ 191,990
Original price ₹ 191,990
₹ 191,990
₹ 191,990 - ₹ 191,990
Current price ₹ 191,990

A powerful fulcrum of your Hi-Fi system... Continuing with the element series family design language, the Matrix Audio element P2 power amplifier inherits the simple and modern design. With class D amplification technology, the front-end devices can be easily combined, providing plenty of power to various speakers. Let your whole audio system perform better than ever.

The outside matches the inside

The appearance of element P2 matches with the element product line from Matrix, which looks elegant at every angle. It integrates with your home furniture organically. Audio equipment is no longer a cold and heartless block, with an element P2, it is so easy to build an ideal sound system with both perfect sound and beautiful look.

Multiple input methods

An excellent power amplifier is essential for flexible input methods. The element P2 is equipped with RCA and XLR input ports. No matter your front-end device has balanced or single-ended output, delivers the original signal of music to the amplifier authentically and accurately.

Stereo mode

In stereo mode, the element P2 provides 230W output power to each channel at 4 ohms load, drives bookshelf speakers or small floorstanding speakers effortlessly. The sound will take you to the real stage, keep every detail of the music, fully interpret the meaning of Hi-Fi.

Double power on mono mode

With two element P2 which are configured to mono mode, each amplifier works with one speaker, you'll get 850W output power from each channel at 4 ohms load. Unleash the full potential of your speaker system, even with low-sensitivity floor-standing speakers.

Fine music starts on a "trigger"

Techniques make people lazier. When the element P2 is connected to a front-end device which has trigger ports, the unit will enter working status immediately from standby mode without manual operations.

Brilliant connectors from WBT

With the newly added "moment of force indicator" to the hand-tightened part of WBT-0703 Cu, the pole terminals and the spades of speaker wires are protected effectively. The terminal uses hollow design, the conductors are gold-plated on pure copper and anti-oxidation treated. To effortlessly achieve a low impedance connection with high reliability, and easily cope with instantaneous high current. Always ready to provide sufficient power for magnificent music.

Ceramic Ball Vibration Buffer

The element P2 is equipped with CBVB pads. The core of CBVB is made of ceramic balls and silicone rubber. There are 6 ceramic balls in each pad to minimize the noises caused by mechanical vibration. The transparency of the sound is further improved, creating a wide and clear sound stage for you.

Features

  • Mono/Stereo Configuration
  • WBT Connectors
  • 2 x 230w in Stereo / 1 x 850w in Mono in 4 Ohms
  • 2 x 110w in Stereo / 1 x 500w in Mono in 8 Ohms
  • Ceramic Ball Vibration Buffer feet
  • 12v Trigger

    Specifications

    Analog Input

    Stereo mode RCA input

    Input impedance:47kΩ

    Gain:28dB@1kHz



    Stereo mode XLR input

    Input impedance:47kΩ

    Gain:34dB@1kHz



    Mono mode XLR input

    Input impedance:47kΩ

    Gain:34dB@1kHz




    Speaker Output

    Stereo mode

    Output power:2 x 230W @ 1% THD+N, 20Hz – 20kHz, 4Ω

    2 x 110W @ 1% THD+N, 20Hz – 20kHz, 8Ω


    DNR:112dB  A-weighting


    Frequency Response:20Hz-20kHz ±0.3dB


    THD+N = 0.008% @ 1W


    Output impedance:<25mΩ



    Mono Mode

    Output power:500W @ 1% THD+N, 20Hz – 20kHz, 8Ω

    850W @ 1% THD+N, 20Hz – 20kHz, 4Ω


    DNR:121dB  A-weightin


    Frequency Response:20Hz-20kHz ±0.3dB


    THD+N:THD+N = 0.004% @ 1W


    Output impedance:<30mΩ


    Trigger

    Trigger in

    DC 6-12V<10mA

    Trigger out

    DC 12V/50mA MAX


    Power Specs

    Power Voltage

    AC 100V-120V 50/60Hz / AC 220V-240V 50/60Hz

    Standby Power Consumption

    < 5W

    Maximum Power Consumption

    < 1200W


    Weight & Size

    Weight

    3.7kg (8.16 pounds)

    Size

    Width: 340 mm (13.39 inches)


    Depth: 259 mm (10.20 inches)


    Height: 58 mm (2.28 inches)


    Accessory

    Power cable

    x1

    Quick start guide

    x1

    Warranty card

    x1
