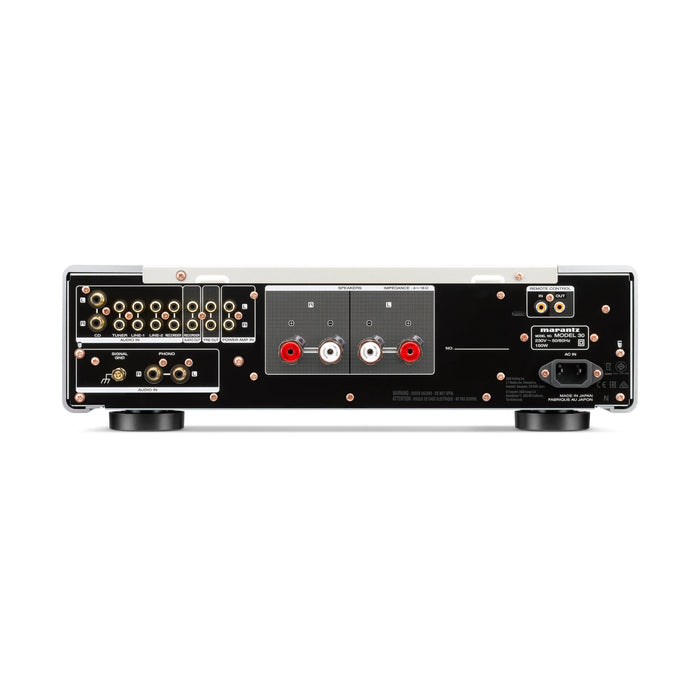

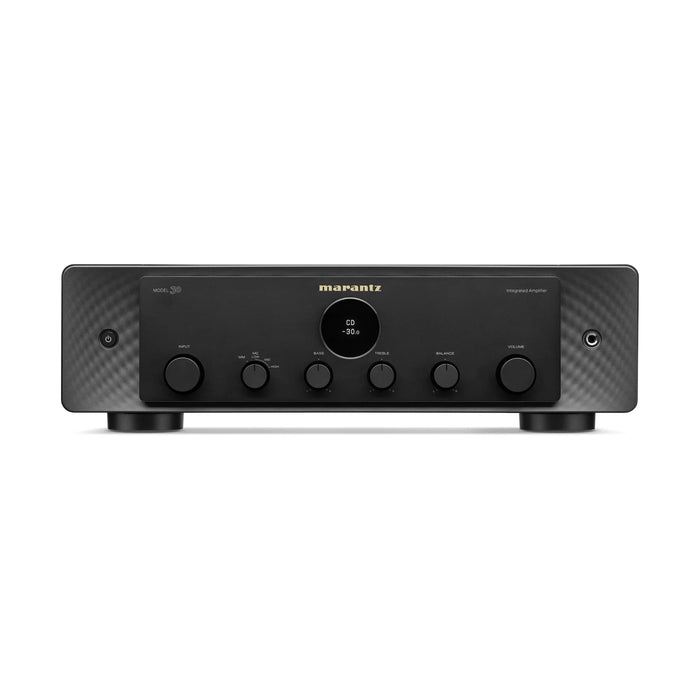

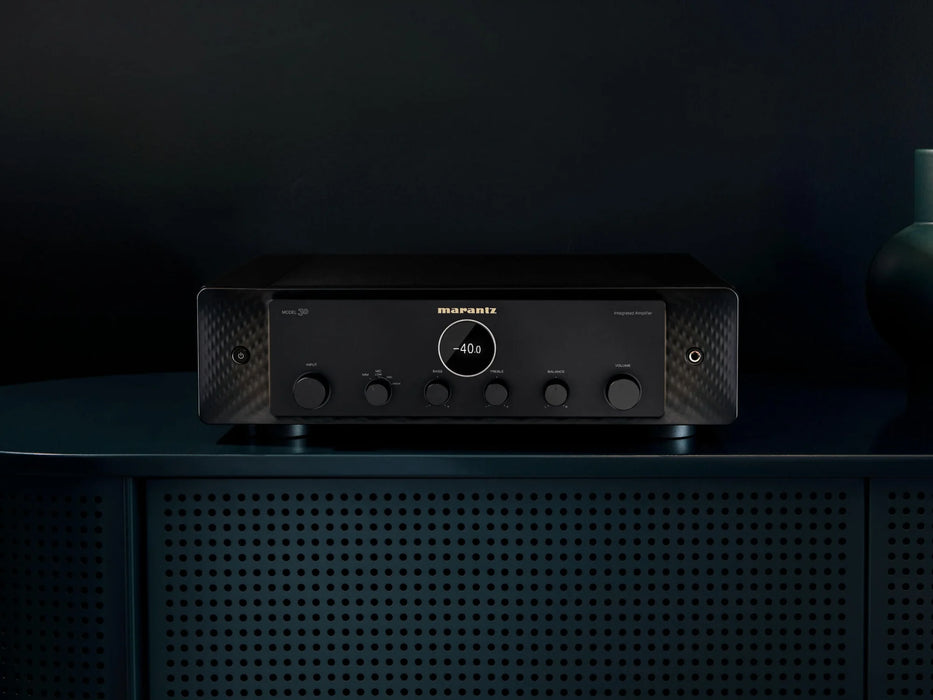

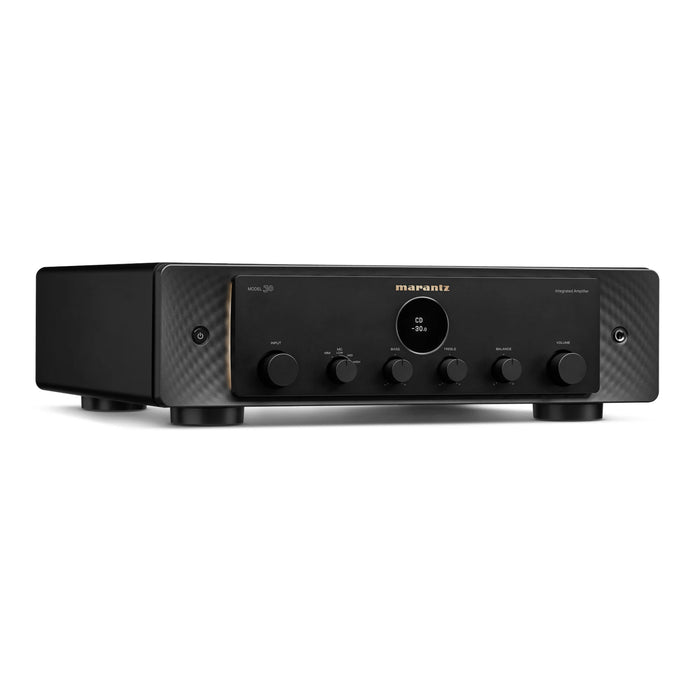

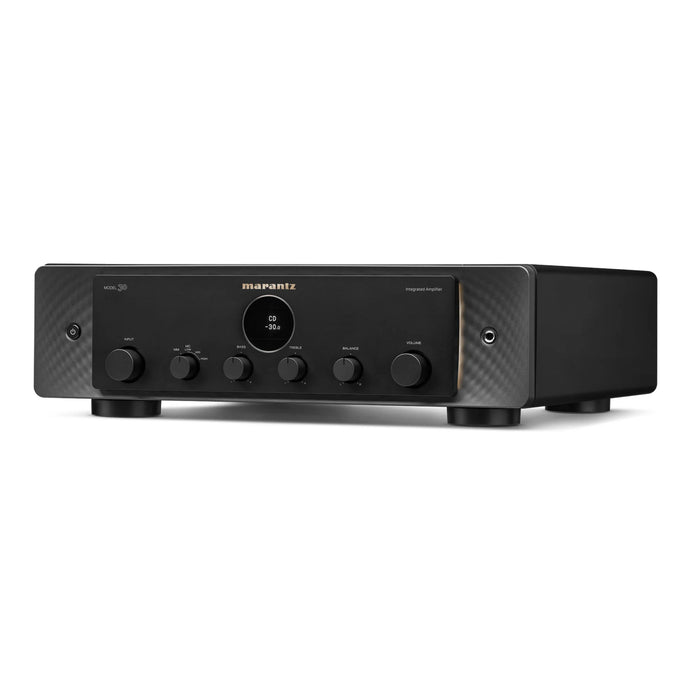

Marantz MODEL 30 Integrated Amplifier
Taxes & Shipping Included
Get the most musical sound possible from this Sound Master tuned integrated amplifier. Its custom designed technology delivers exquisite detail and unforgettable musicality from any style of music.
The Marantz MODEL 30 Integrated Amplifier is crafted with a fully discrete, two-stage design to minimize interference, enhanced by Marantz’s exclusive HDAM technology for pristine signal quality. Its superior build is evident in every detail, delivering an exquisite listening experience. Whatever your musical taste, MODEL 30 elevates your sound with precision. The HDAM-SA3 modules, composed of hand-selected components, ensure detailed, authentic audio reproduction. Meticulously tuned by the Marantz Sound Master, it achieves unparalleled performance and the Most Musical Sound for your home. Built with exceptional craftsmanship, this amplifier promises enduring enjoyment for years to come.
Features
- Artisanal Design
- 2.2 Channels
- 100 Watts Per Channel
- Built-in MM/MC Phono Pre
- Custom HDAM
Specifications
|
RMS Power output (Simultaneous drive of both channels) : |
100 W x 2 (8 Ω/ohms load, 1 kHz, T.H.D. 0.05 %) |
|
200 W x 2 (4 Ω/ohms load, 1 kHz, T.H.D. 0.1 %) |
|
|
Total harmonic distortion |
0.005 % |
|
Frequency response (CD, 1 W, 8 Ω/ohms load) : |
5 Hz – 50 kHz ±3 dB |
|
Damping factor (8 Ω/ohms load, 20 Hz – 20 kHz) : |
500 |
|
Input sensitivity/Input impedance |
|
|
PHONO (MC Low) : |
250 μV / 33 Ω/ohms |
|
PHONO (MC Mid) : |
250 μV / 100 Ω/ohms |
|
PHONO (MC High) : |
250 μV / 390 Ω/ohms |
|
PHONO (MM) : |
2.3 mV / 39 kΩ/kohms |
|
CD/TUNER/LINE/RECORDER : |
220 mV / 18 kΩ/kohms |
|
POWER AMP : |
1.0 V / 18 kΩ/kohms |
|
Output voltage/Output impedance |
|
|
PRE OUT : |
1.6 V / 220 Ω/ohms |
|
Maximum allowable PHONO input level (1 kHz) |
|
|
MC Low/Mid/High: |
8 mV |
|
MM : |
80 mV |
|
RIAA deviation (20 Hz – 20 kHz) : |
±0.5 dB |
|
S/N (IHF-A, 8 Ω/ohms load) |
|
|
PHONO (MC Low/Mid/High) : |
75 dB (0.5 mV Input) |
|
PHONO (MM) : |
88 dB (5 mV Input) |
|
CD/TUNER/LINE/RECORDER : |
107 dB (Rated output) |
|
Tone Control |
|
|
BASS (50 Hz) : |
±10 dB |
|
TREBLE (15 kHz) : |
±10 dB |
|
Operating temperature: |
+5 ℃ - +35 ℃ |
|
Power supply : |
AC 230 V, 50/60 Hz |
|
Power consumption : |
150 W |
|
Power consumption in standby mode : |
0.2 W |
