Luxsin X9 Music Streamer, DAC & Headphone Amplifier
Taxes & Shipping Included

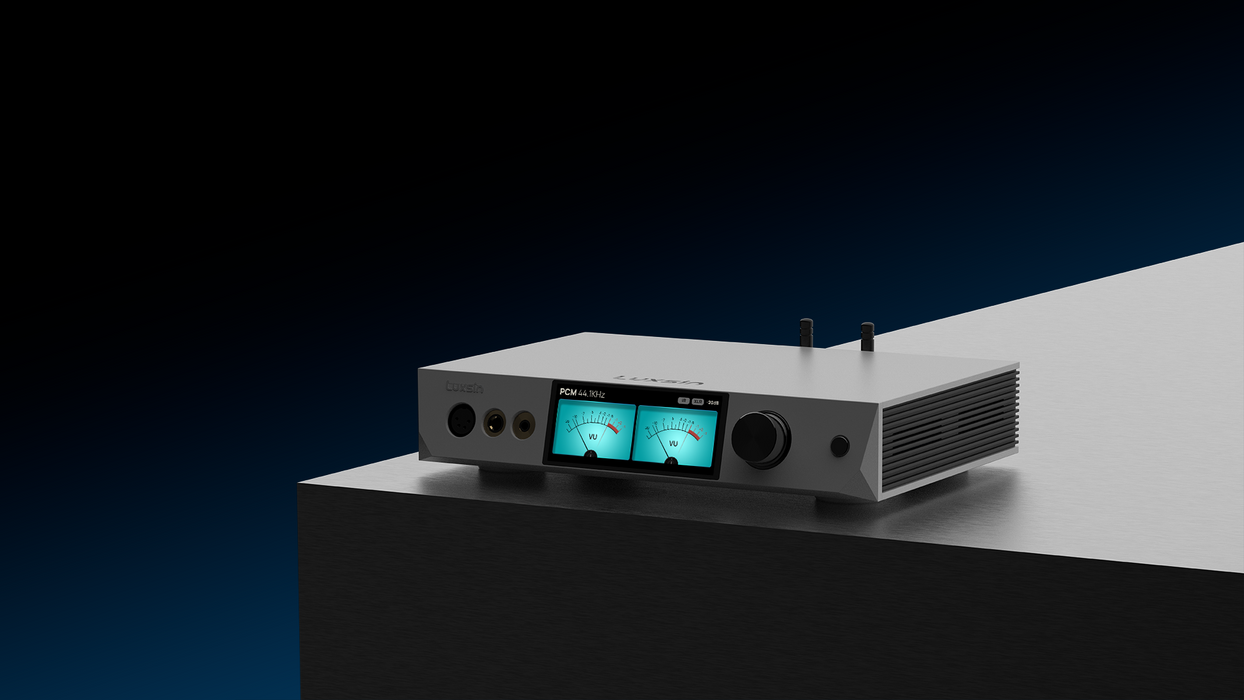

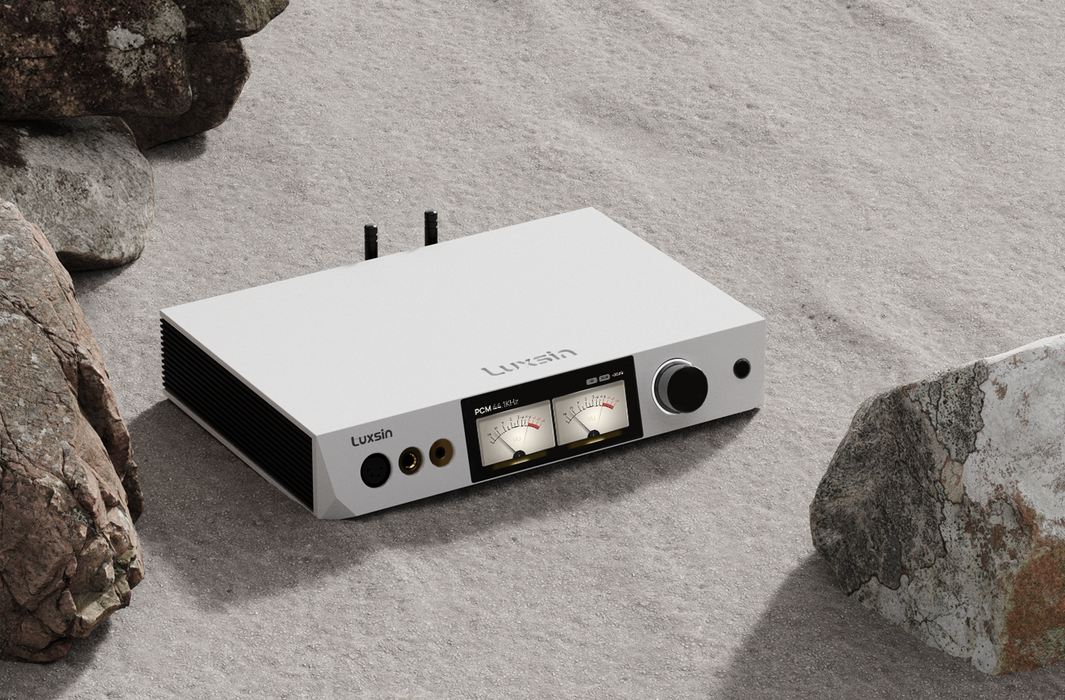

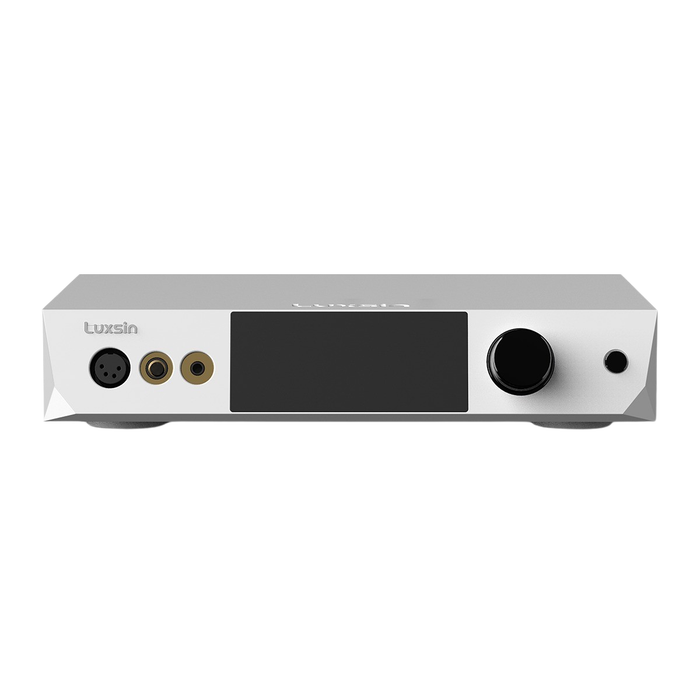

The Luxsin X9 is a meticulously engineered, high-performance desktop DAC and headphone amplifier. It features a flagship-grade AK4499EX DAC chip and hardware-level HP-EQ, automatically optimizing headphone frequency response with support for over 2,500 models. Equipped with hardware-based crossfeed technology and audiophile-grade components, it ensures exceptional sound accuracy. The fully balanced headphone amplifier delivers an impressive 6000mW output at 16Ω. Additionally, the X9 offers a comprehensive range of input options, R2R relay volume control, Wi-Fi remote operation, OTA updates, and HDMI ARC audio return, providing a seamless and versatile user experience.
Designed to meet the exacting standards of audiophiles and high-fidelity sound enthusiasts, Luxsin X9 seamlessly blends powerful hardware with a sleek, functional design to deliver pure and captivating sound. Innovative in-house developed features provide a uniquely immersive listening experience, while the intuitive software system ensures effortless and efficient operation.
HP-EQ
The X9’s unique HP-EQ technology applies real-time hardware-level EQ adjustments based on each headphone’s frequency response. This enables a sound signature closely aligned with the ideal Harman curve, providing an audio experience that resonates with a wide range of listener preferences. It also supports custom EQ profiles with one-click switching, backed by a growing database of over 2500 headphone models.
Precision Perfected
Engineered with a fully balanced R2R volume control circuit composed of high-precision components, it enables left-right channel balance adjustments with exceptional accuracy of 0.1dB, ensuring precise and distortion-free audio performance.
Headphone Impedance Self-Check System
Luxsin’s self-developed impedance detection system automatically measures the impedance of connected headphones via the 6.35mm or 4.4mm ports and intelligently recommends the most suitable output gain setting. Utilizing advanced bypass detection technology, this system ensures precise impedance measurement with zero impact on sound quality.
True Flagship
With an ultra-low ripple of just 40nV, the motherboard features a star-shaped voltage distribution circuit that cleanly separates digital and analog power paths. The AK4499EX DAC is stabilized by an OPA1612 op-amp, providing an ultra-stable reference voltage for highly accurate signal processing. With a THD+N of -120dB, the system delivers outstanding clarity, resolution, and dynamic range.
Crossfeed and Adjustable Soundstage
The X9 features advanced digital crossfeed for a natural, speaker-like sound, reducing fatigue during long sessions. Users can also adjust soundstage depth and width, with both features implemented digitally to ensure precise control without the distortion or coloration typical of analog solutions.
True Full Balance
Every stage, from signal input decoding and AK4499EX DAC to OP1612 IV conversion, LPF filtering, R2R volume control, dynamic feedback, and the 6120A2 headphone amplifier, is powered by a fully differential balanced circuit. This design ensures uncompromising audio performance, delivering unparalleled sound clarity, precision, and depth.

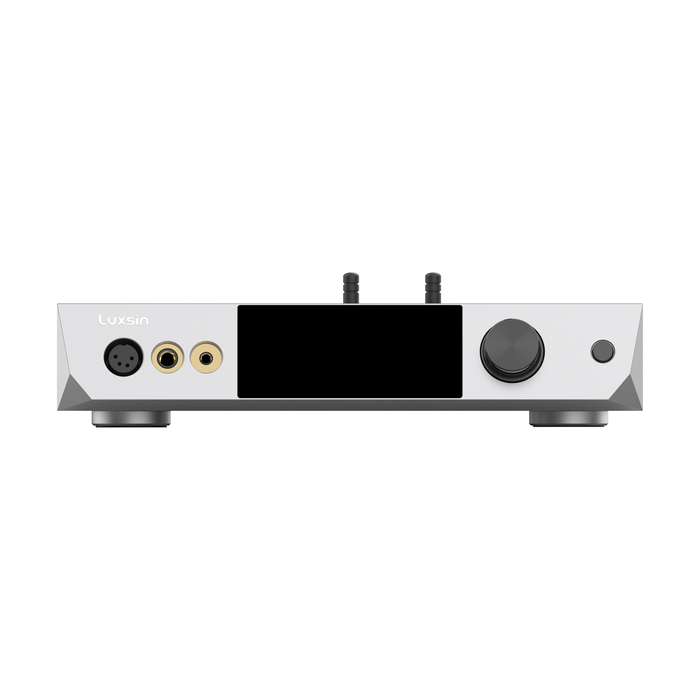

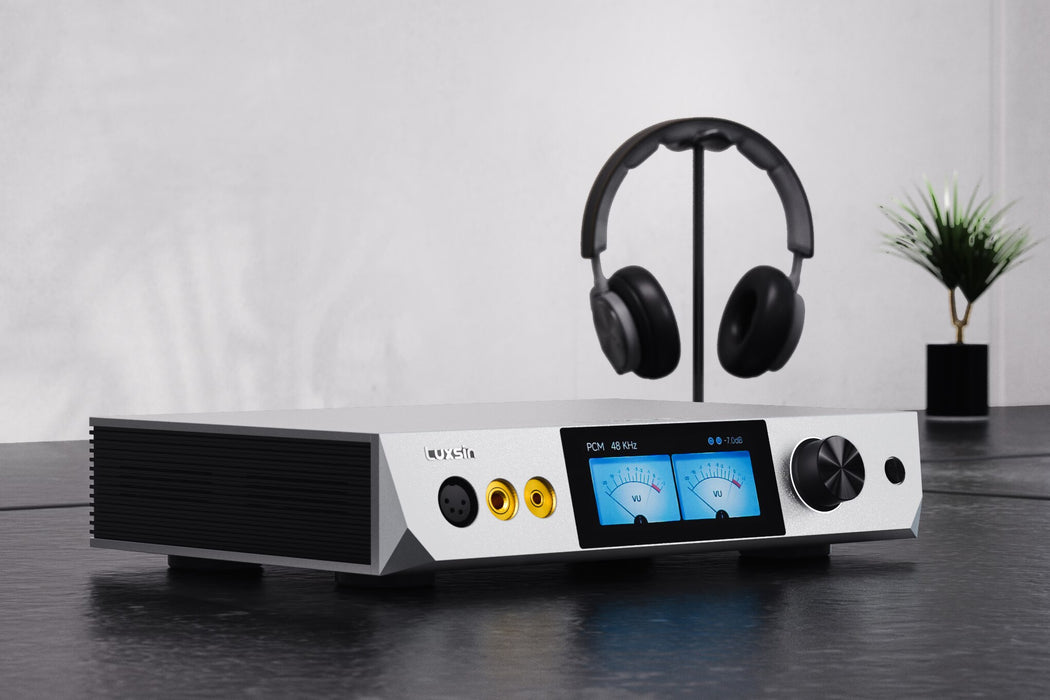

4.0-inch Full-Color Touchscreen
Smart Control
The X9 runs on an advanced automotive-grade RTOS, ensuring stable and efficient control of all I/O interfaces. It supports both infrared remote and wireless control via phone or computer, with OTA updates for easy firmware upgrades and ongoing performance improvements.
Dynamic Negative Feedback
Luxsin Dynamic Negative Feedback (DNF) technology, utilizing the OPA1612 + TPA6120A2 combination, significantly reduces harmonic and intermodulation distortion, ensuring a cleaner, more transparent sound with minimal coloration while accurately reproducing every sonic detail. This advanced design enhances tonal purity and dynamic expression.

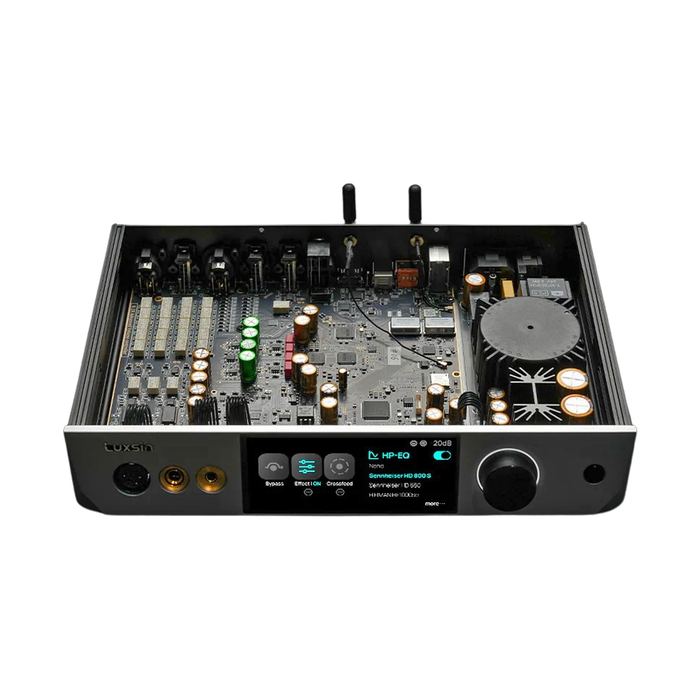

Audiophile-Grade Components
To achieve ultimate sound quality, every component has been meticulously chosen. This includes premium red WIMA capacitors, gold-plated aluminum electrolytic capacitors, high-grade green non-polarized capacitors, numerous 0.1% high-precision low-temperature drift resistors, femtosecond clock, gold-plated connectors, Ohno Continuous Cast silver-plated cables, and TI BB's OPA1612 op-amps.
Headphone Amp and Desktop Preamp in One

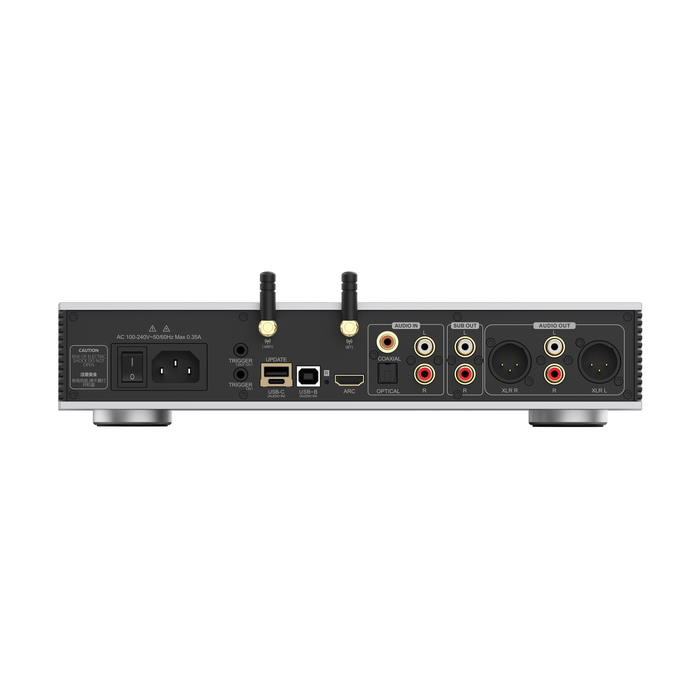

The X9 is equipped with an extensive range of connectivity options, including HDMI ARC, optical, coaxial, analog inputs, USB-B/USB-C, 12V trigger ports, and dual subwoofer outputs. This allows for seamless integration into various audio setups, providing flexibility for both home and professional audio environments.

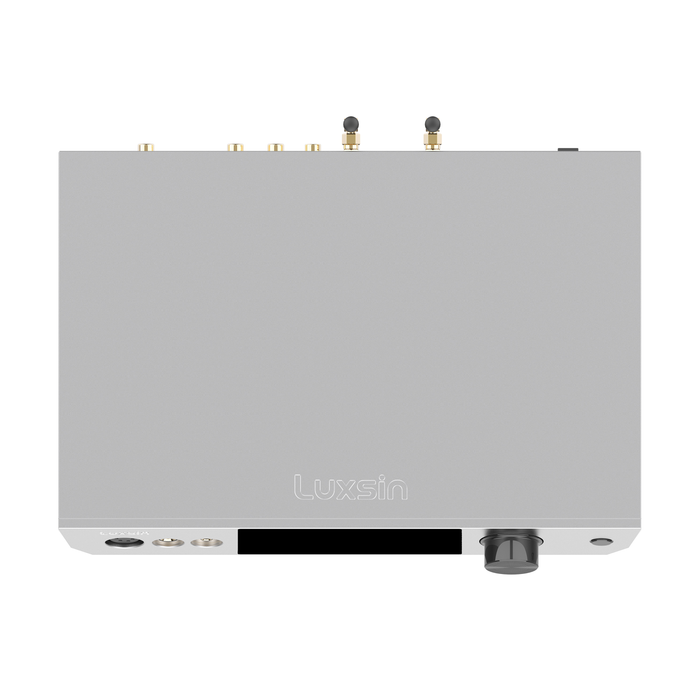

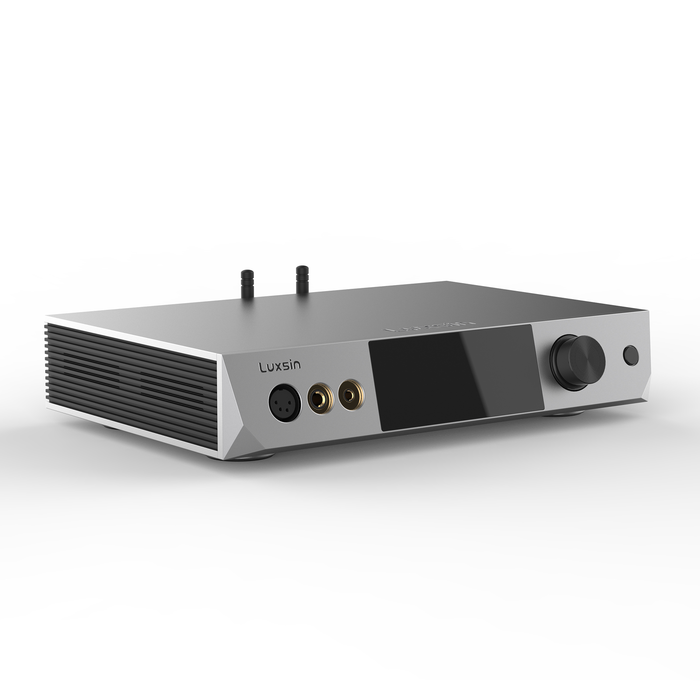

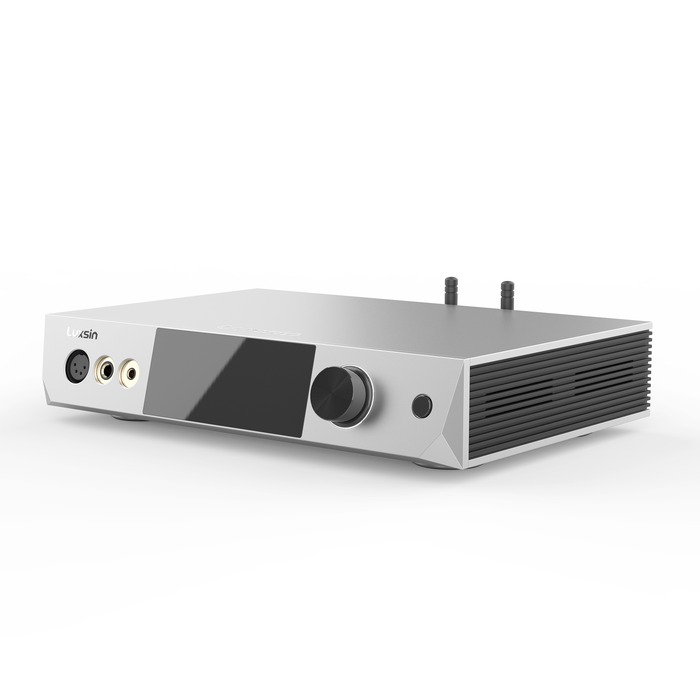

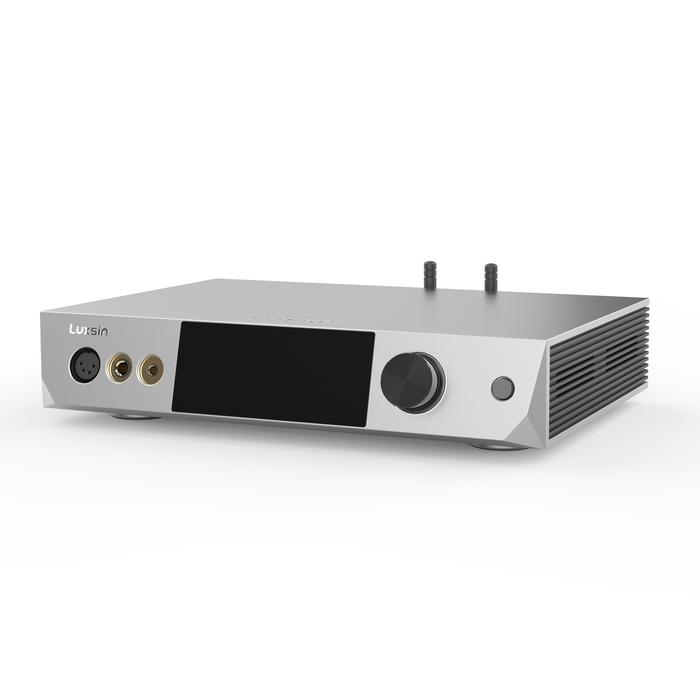

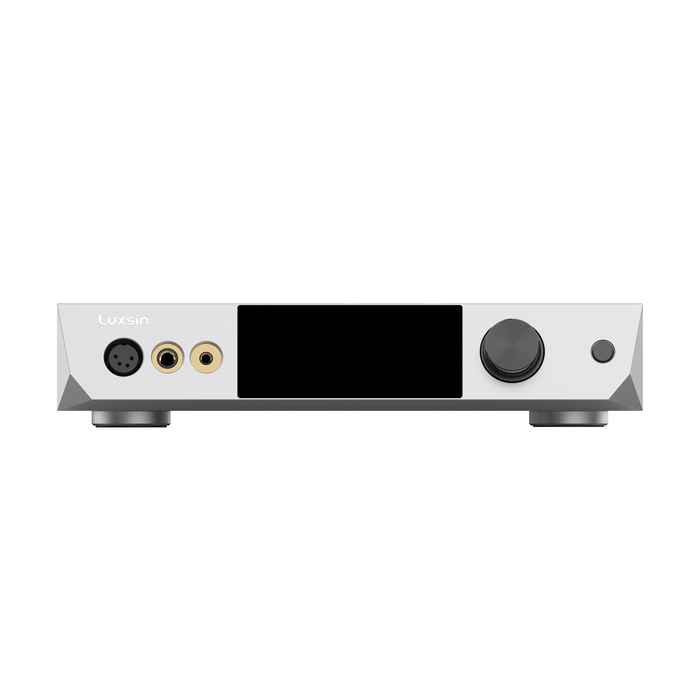

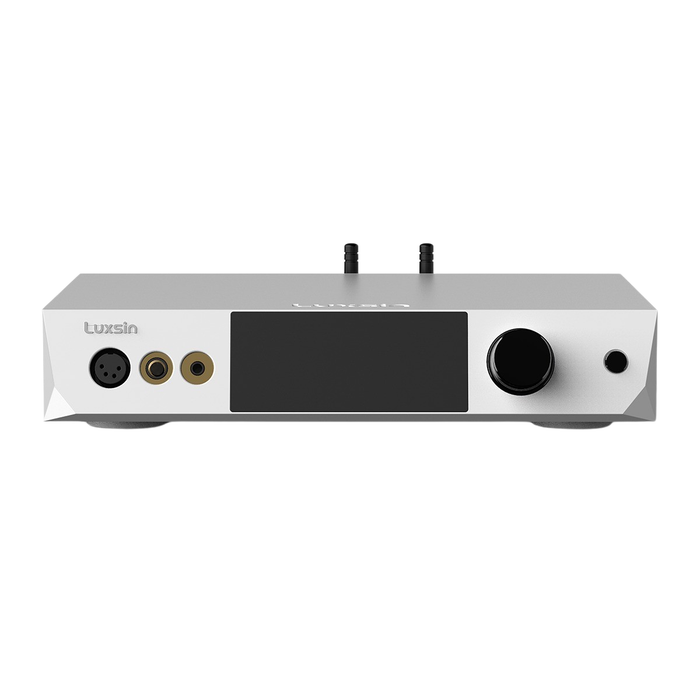

Diamond-cut design
Features
- Top-Tier Streamer + DAC + Preamplifier + Headphone Amplifier in one compact chassis
- AK4499EX DAC + OPA1612 op-amp delivers ultra-low distortion
- Advanced HP-EQ tuning applies real-time hardware-level EQ adjustments based on each headphone’s frequency response
- Digital crossfeed for fatigue-free, speaker-like imaging
- Fully balanced R2R volume circuit ensures impeccable channel matching
- Elegant 4-inch touchscreen with blackout mode and auto-standby

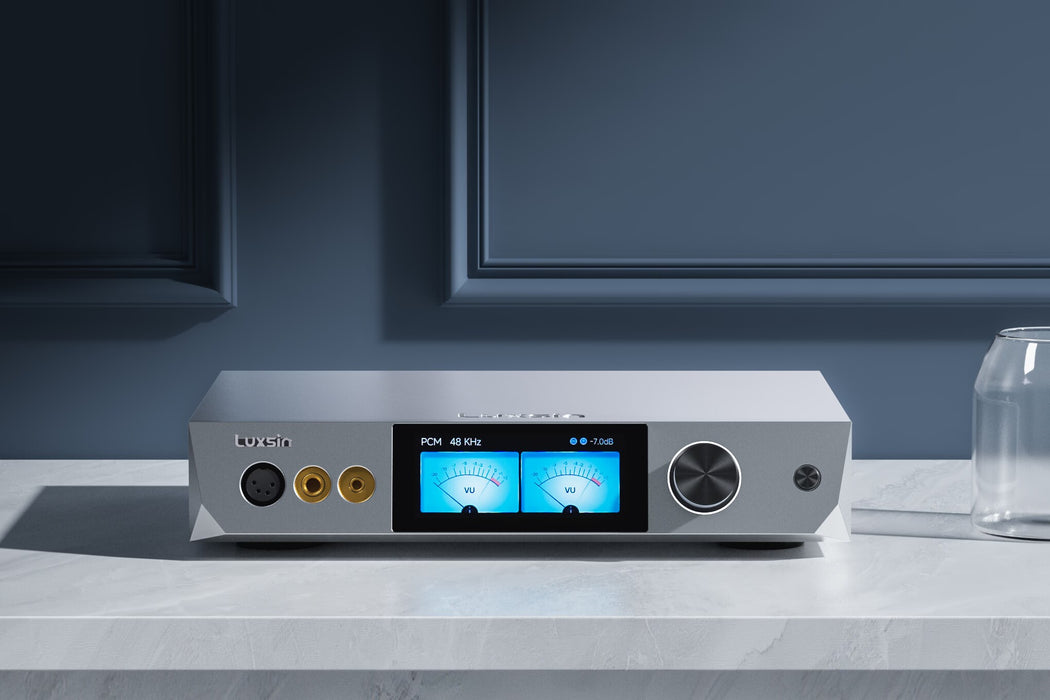

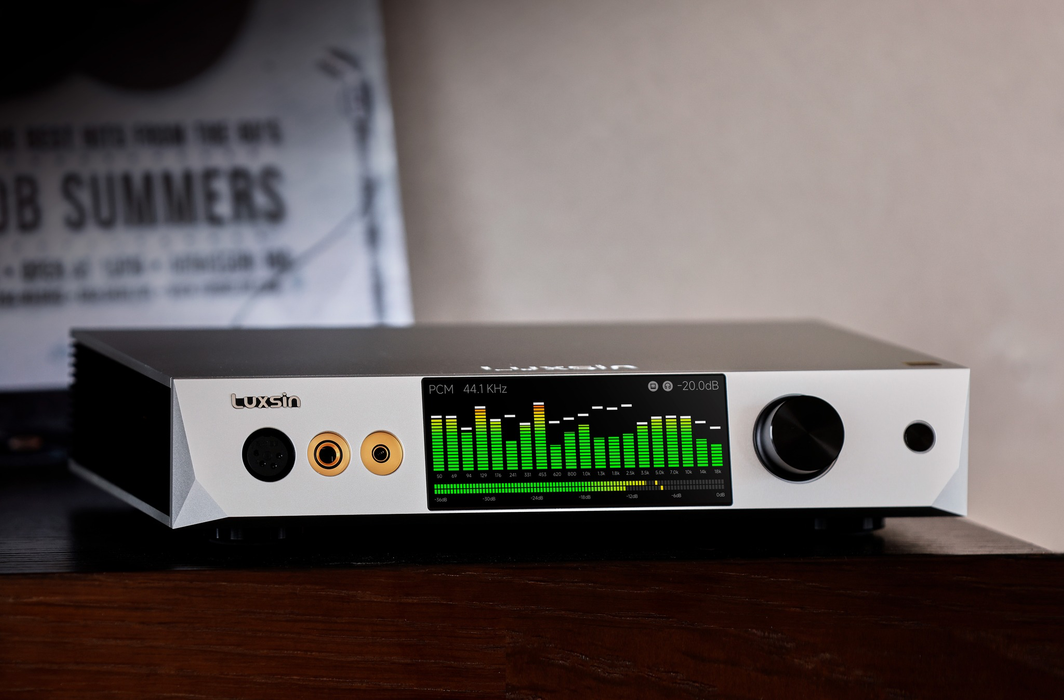

- Dynamic VU meters
- Dual Subwoofer Out with DSP control
- Fully Differential Dual Mono design

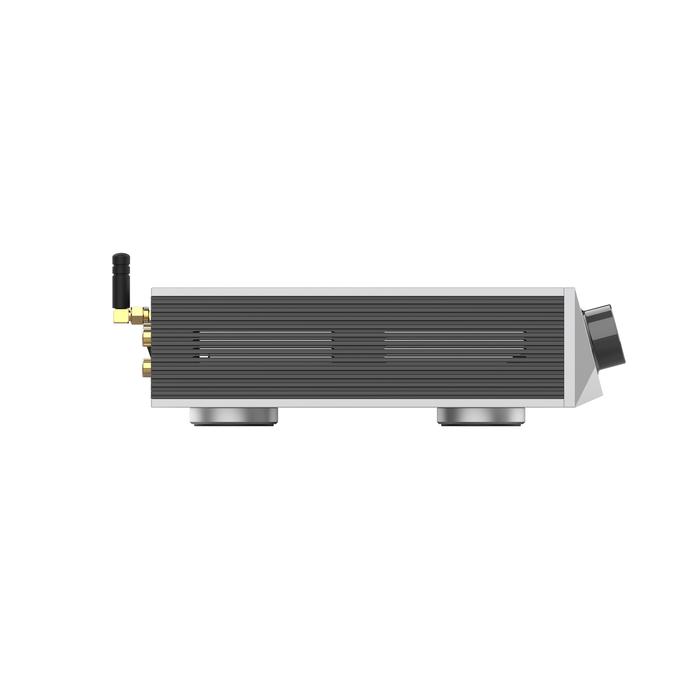

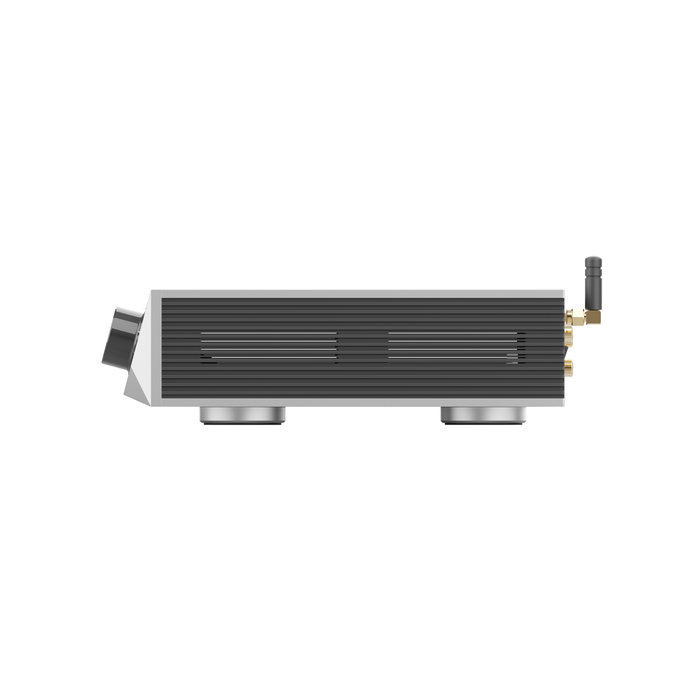

- Full CNC-machined aluminum chassis ensures excellent heat dissipation, durability, and a sleek, elegant appearance.
Specifications
- Player & DAC support DSD512，PCM 768KHz 32-bit
- Bluetooth audio input BT5.0，support AAC/SBC
- USB-B audio input supports Windows (10, 11)，Android，IOS support DSD512，PCM 768KHz 32-bit
- Optical/Coaxial audio input support PCM 192KHz 24-bit，DoP64
- HDMI ARC support PCM 192KHz 24-bit
- Analog input RCA（unbalance），max gain +10dB
- Analog audio output interface XLR (balanced) + RCA (unbalanced) + Subwoofer output
-
XLR Audio Output
- Output level 4.2Vrms @ 0dBFS
- Frequency Response 20Hz~20KHz (±0.25dB)
- Dynamic Range > 128dB
- Signal-to-Noise Ratio (SNR) >128dB
- THD+N <0.000096% (-120.3dB) @ Unweighted
- Crosstalk >-117dB
-
RCA Audio Output
- output level 2.1Vrms @ 0dBFS
- Frequency Response：20Hz~20KHz (±0.25dB)
- Dynamic Range：> 125dB
- Signal-to-Noise Ratio (SNR)：>125dB
- THD+N：<0.00010% (-119dB) @ Unweighted
- Crosstalk：>-114dB
-
Headphone Audio Output
- Output level 4-15Vrms@0dBFS
- Frequency Response 20Hz~20KHz (±0.25dB)
- Dynamic Range > 128dB
- Signal-to-Noise Ratio (SNR) >128dB
- THD+N <0.00016% (-116dB) @ Unweighted
- Display 4-inch TFT Fully Laminated Touchscreen（960X400）
- Hardware solution DAC：AK4191EQ+AK4499EX ；Bluetooth decoding：QCC5125
- Audio processor AKM 7739 DSP
- Op-Amp chip OPA1612
- Power supply Ultra-Low Noise Linear Power Supply
- Rated Power 25W
- Color Silver
- Operation method Touchscreen, Infrared + Bluetooth Remote Control, Luxsin App (compatible with Android and iOS)
- USB-A Port For Firmware Updates Only
- USB- B Port USB Audio System Compatibility: Windows (10, 11), Android, iOS; Supports up to Stereo DSD512, PCM 768kHz/32-Bit
- USB Type-C USB Audio System Compatibility: Windows (10, 11), Android, iOS; Supports up to Stereo DSD512, PCM 768kHz/32-Bit
- Analog (unbalanced input) RAC*2（unbalanced），Max Gain +10dB
- Optical Support up to PCM 192KHz 24-bit，DoP64
- Coaxial RCA*1
- Bluetoth input BT5.0，support AAC/SBC
- HDMI ARC support PCM 192KHz 24-bit
- TRIGGER Connection 3.5mm Headphone Jack (TRIGGER IN ×1 + TRIGGER OUT ×1)
- WiFi 2.4G / 5G
- Volume Knob Encoder Knob
- Power Button Single Press: Mute, Long Press: Standby
- Power Switch Rocker Switch
- Power Supply AC 100-240V~50/60Hz

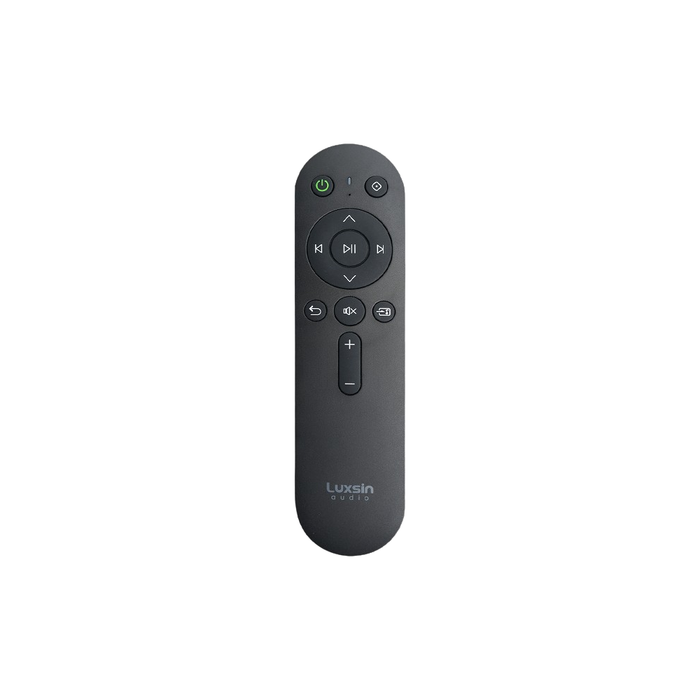

- Controller 12-Button Infrared Remote Control
- Balanced Circuit Output XLR3 Balanced Socket
- Unbalanced Circuit Output RCA*2
- Subwoofer Output RCA*2
- Balanced Headphone Output 4.4mm Socket ×1 + XLR4 Balanced Socket ×1
- Unbalanced Headphone Output 6.35mm Socket
- Dimensions Width: 300mm * Length: 206mm * Height: 65mm
- Weight 3.72kg
Included
- Power Cable ×1
- Remote Controller ×1
- USB-B Cable ×1
- Type-C OTG Cable ×1
- User Manual ×1
