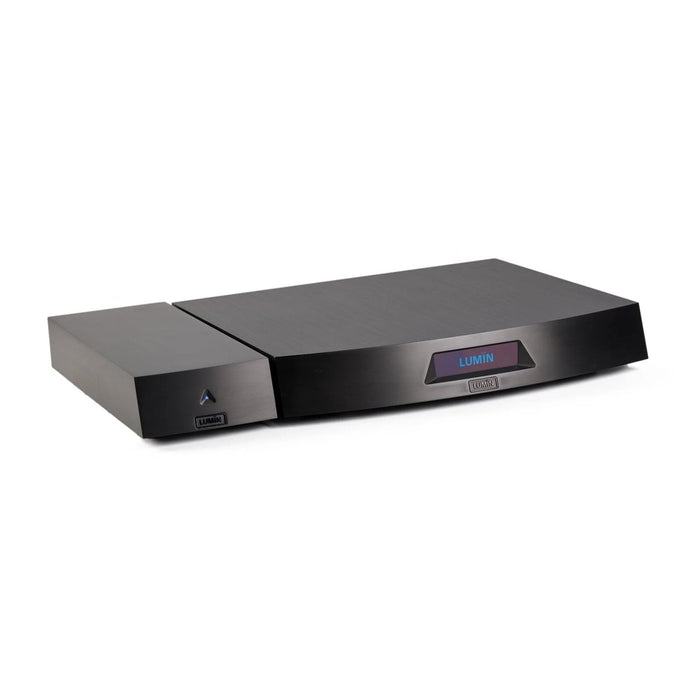

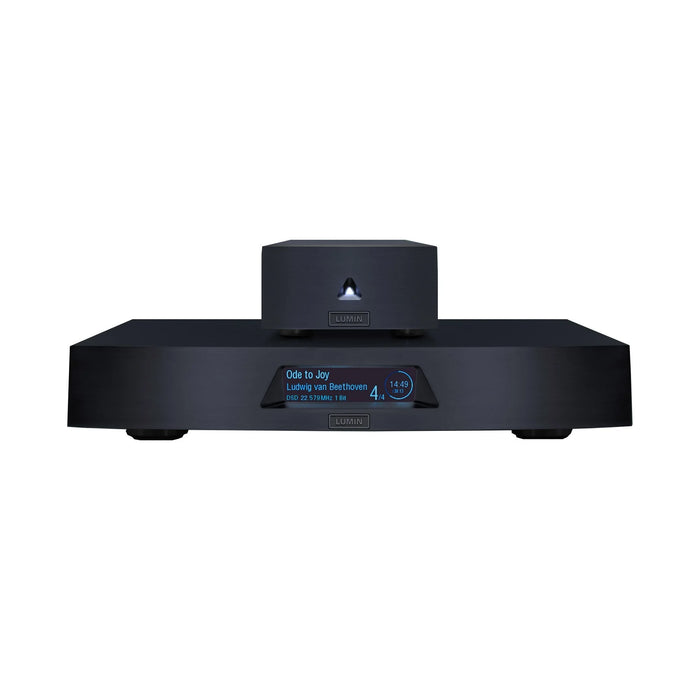

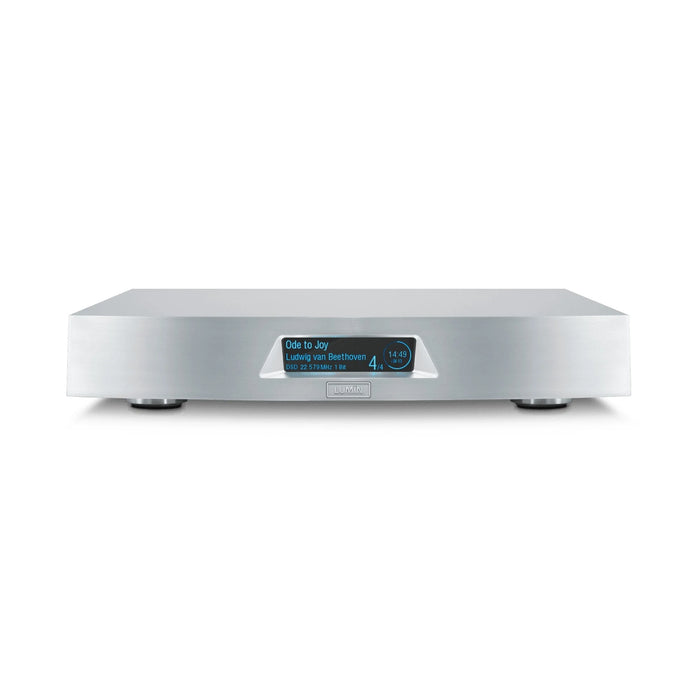

Lumin X1 Hi-Res Network Music Streamer DAC Preamplifier

STREAMING'S NEW CUTTING EDGE. Hear every last musical detail. Re-engineered without compromise, LUMIN X1 redefines the digital musical experience.

Lumin's reference grade player, the X1 sets the bar with serious specifications and musicality to boot.

Features

• New processor delivers native DSD512 & PCM768 playback
• Dual Mono design throughout maximises channel separation
• Dual ES9038Pro SABRE DACs featuring 140dB dynamic range
• Femto Clock System with precision FPGA distribution

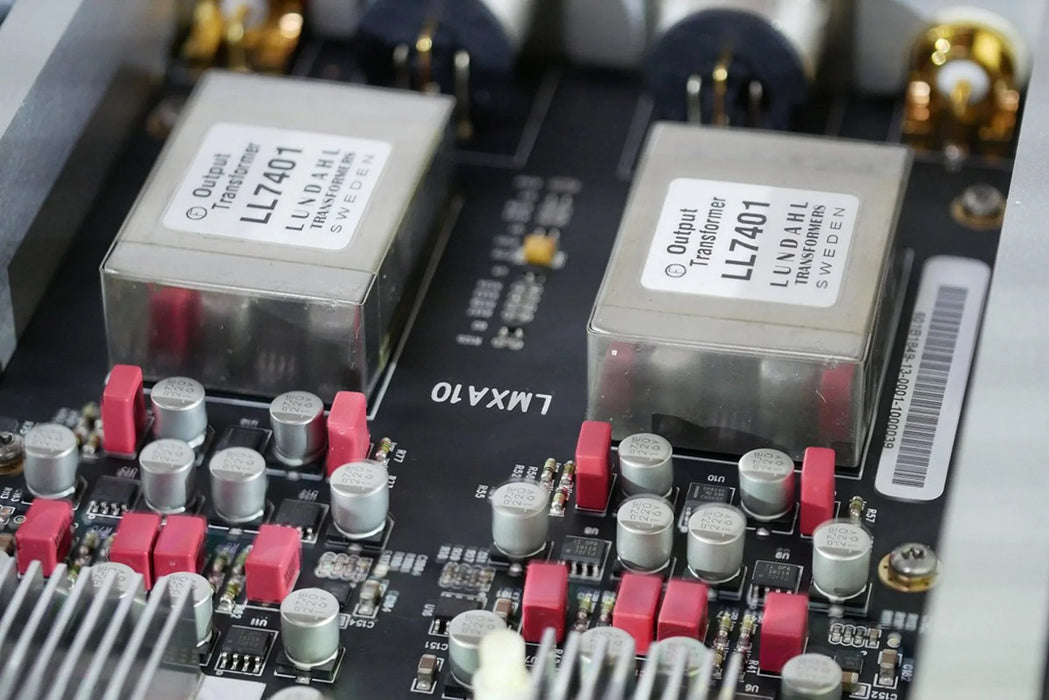

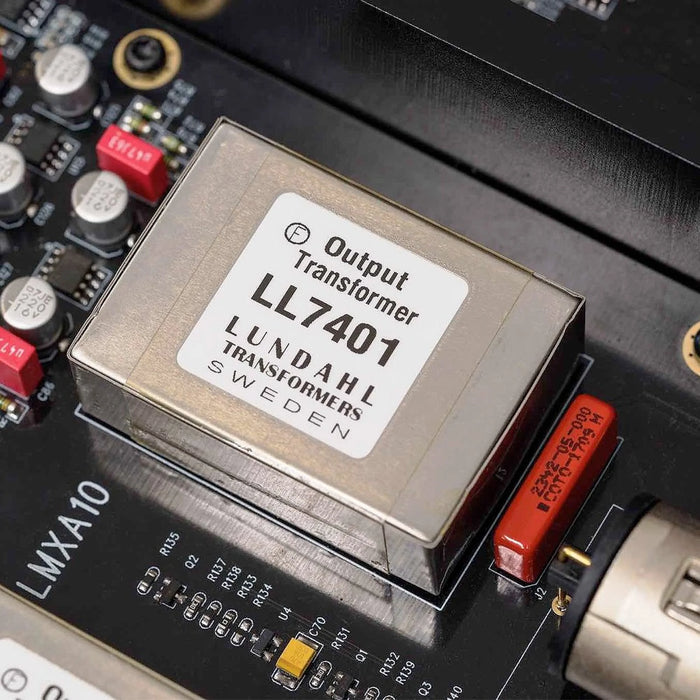

• New Output Buffer design
• Dual Mono dual stage linear regulator

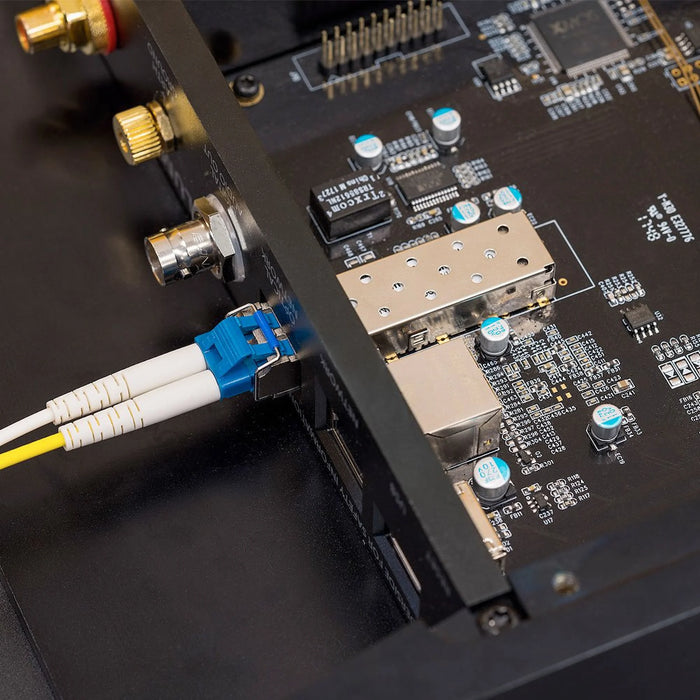

• Optical Network provides complete isolation from network digital noise
• USB Digital Audio Output supports Native DSD512

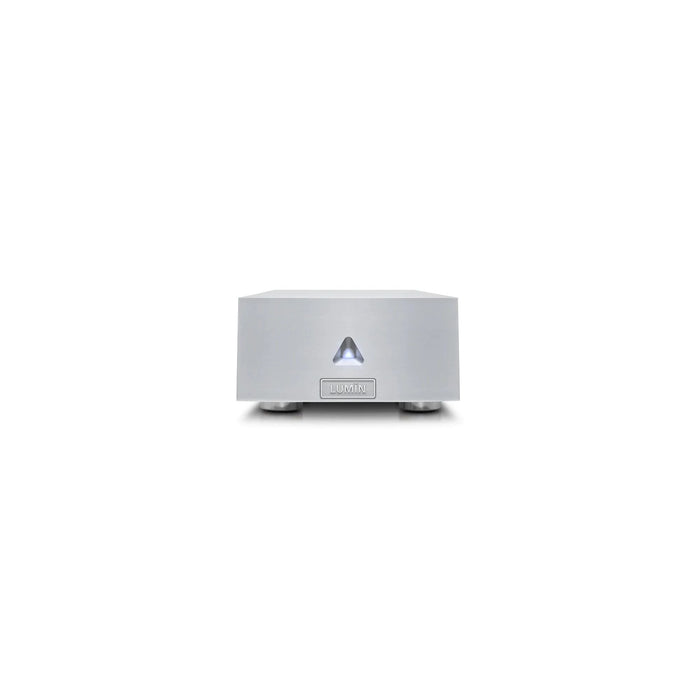

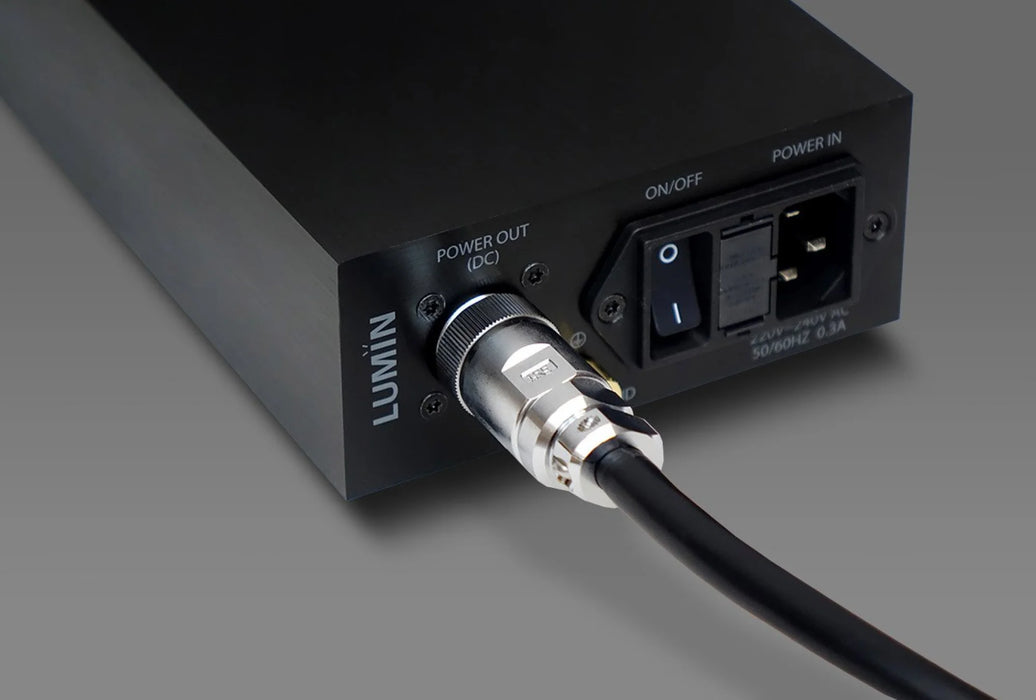

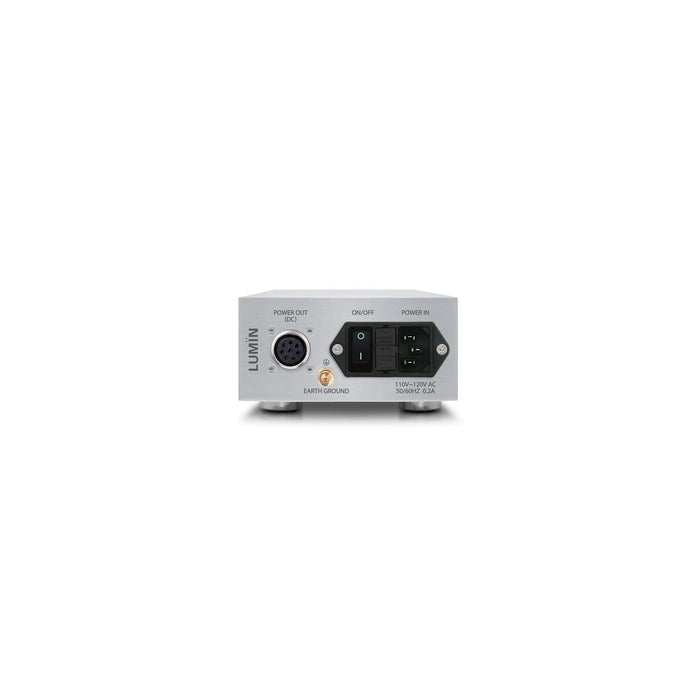

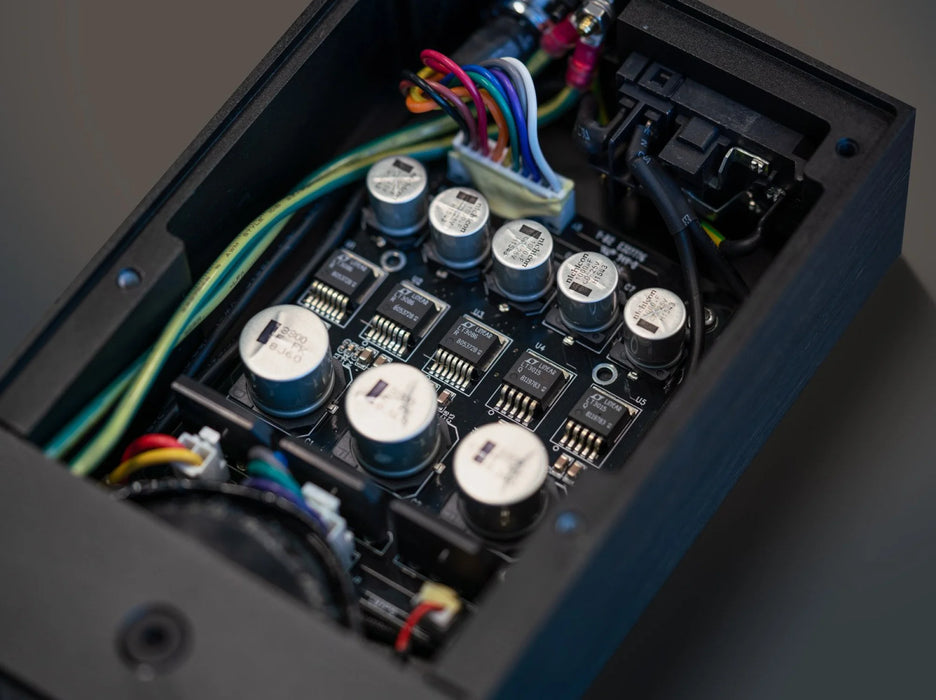

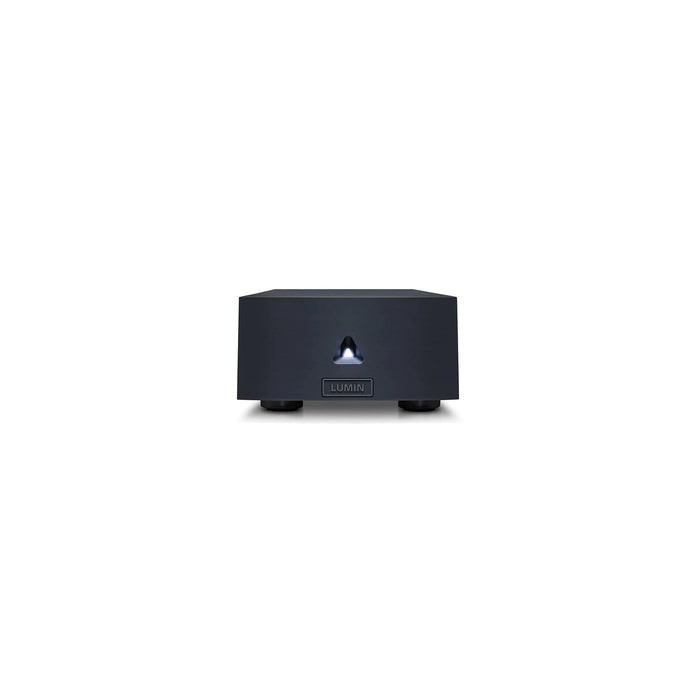

• External Power Supply with new solid billet CNC casing design, Separate digital & analogue circuitry, Low-noise linear regulator and new 9-pin output connector
• Optical fiber network provides complete isolation from network digital noise
• Leedh Processing lossless volume control

Specifications

• DSD support: Up to DSD512 22.6mhz, 1-bit
• PCM support: Up to 768khz, 16–32-bit, stereo
• Analog output stage: Dual ESS SABRE32 ES9038PRO DAC chips
• Upsampling rates & bit depths: DSD128 upsampling option for all files, PCM 384kHz upsampling option for all files
• USB: Native DSD512 support,PCM 44.1–768kHz, 16–32-bit, stereo
• BNC S/PDIF: PCM 44.1khz–192khz, 16–24-bit; DSD (DoP, DSD over PCM) 2.8mhz, 1-bit
• Optical network: Industry-standard SFP,  1000base-T Eigabit Ethernet. Adapter may be needed for your particular switch/cables. Use simultaneously with RJ45
• DIMENSIONS X1: 350mm (w), 345mm (d), 60mm (h), 8kg PSU: 106mm (w), 334mm (d), 60mm (h), 4kg
