Lumin U2 Hi-Res Network Music Streamer Transport

by Lumin
Original price ₹ 565,000 - Original price ₹ 565,000
Original price ₹ 565,000
₹ 565,000
₹ 565,000 - ₹ 565,000
Current price ₹ 565,000

The Next Generation Streaming Transport.  An all-new LUMIN for DAC owners; LUMIN U2 focusses on pure digital. After the huge success of our sweetspot price/performance LUMIN T3, LUMIN U2 brings the same design philosophy to a transport for the first time.

Taking chassis construction methods, linear power supply design and dual-network from the multi-award-winning LUMIN P1, the all-new LUMIN U2 brings high-end digital right into the heart of the LUMIN range.

New processing hardware and software first introduced with the U2-Mini and T3. The best features used from our flagship players such as Fibre Networking, Linear Power Supply and Dual-stage voltage regulators

New for a LUMIN Transport - U2 uses CNC panel construction finished in a new silky surfacing process taken from our high-end P1 that is less susceptible to finger marks and easier to clean.

Features

  • First LUMIN Transport to use new all-in-one chassis

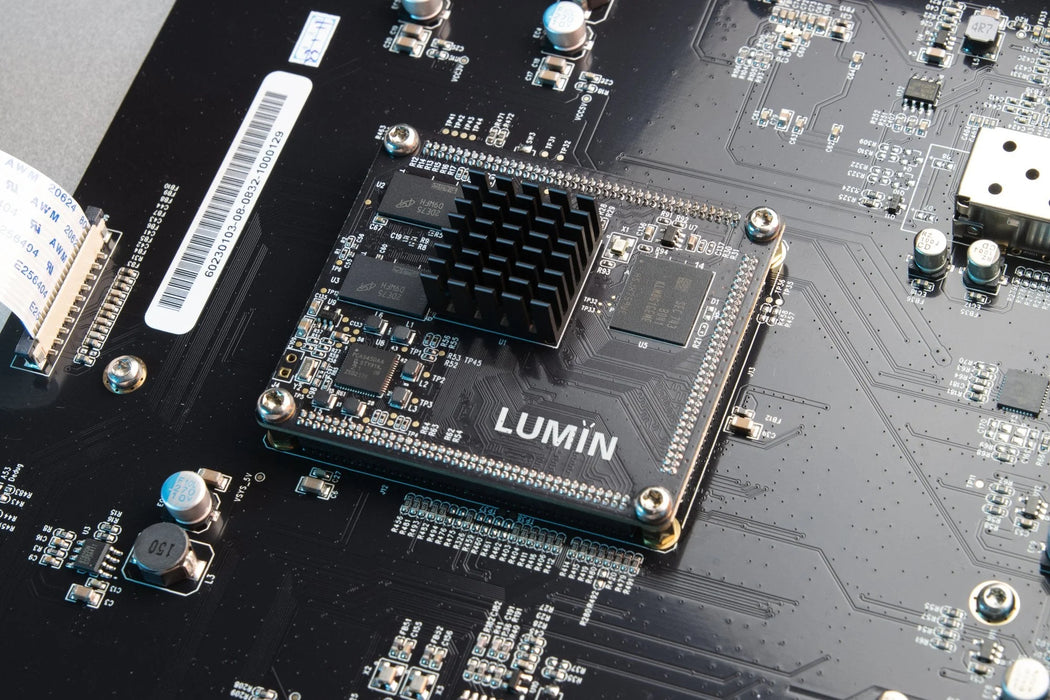

  • Latest processor provides greater resampling flexibility

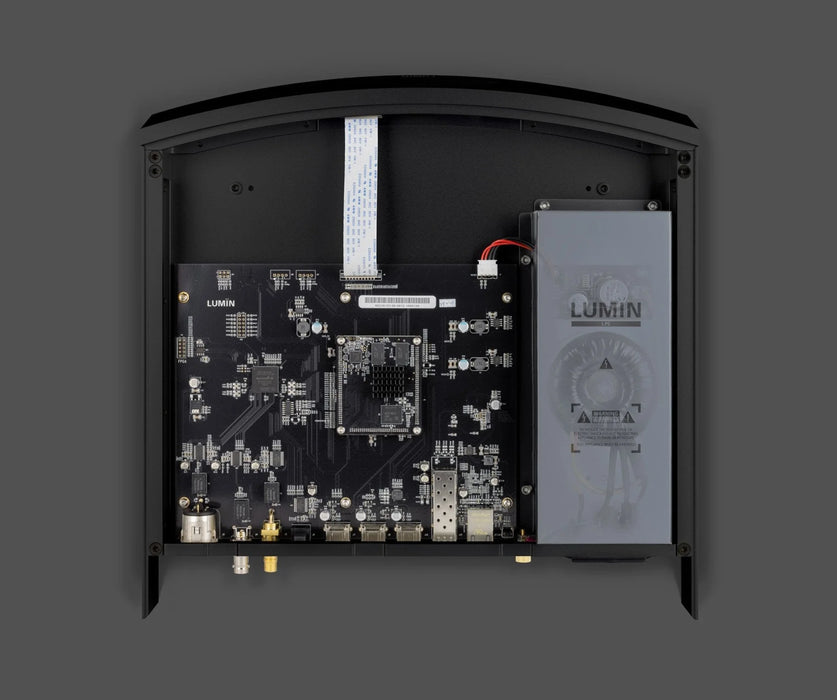

  • New integrated toroidal linear power supply
  • Fibre Network provides complete isolation from network digital noise
  • Increased capacity for future updates

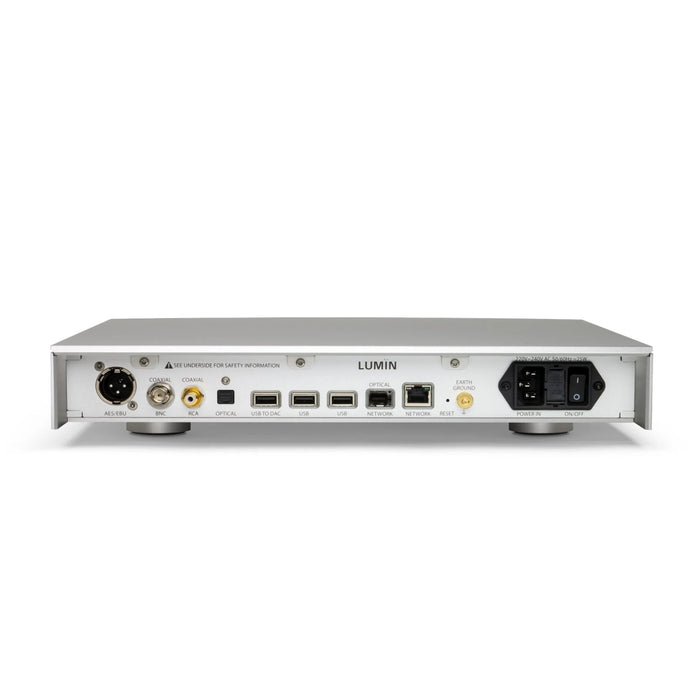

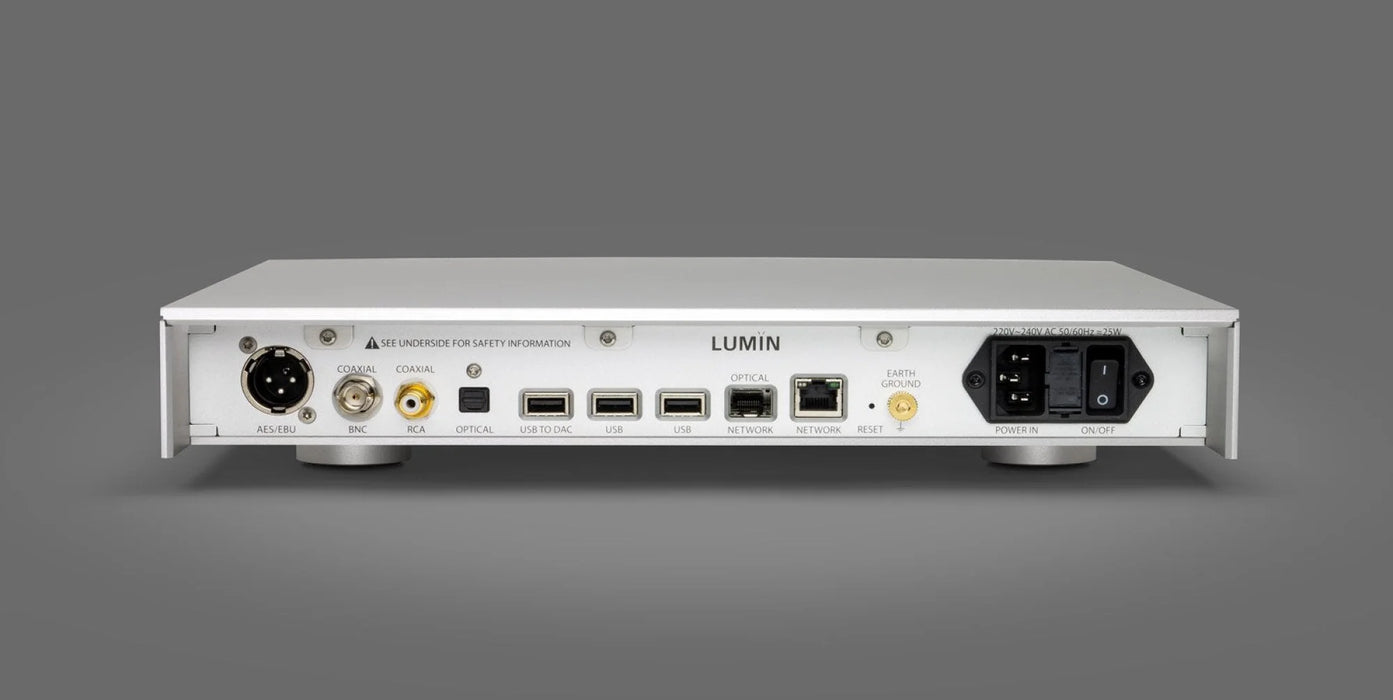

  • 3 USB ports including a NEW dedicated low-noise USB output
  • Dual-Network interface with built-in Network Switch
  • DSD512 and PCM768 playback
  • 4 exceptionally low-phase-noise crystal clock oscillators
  • New surface finish taken from the high-end P1
  • Leedh Processing lossless volume control
  • Completely new next-generation hardware and software provide a new foundation for LUMIN
  • Increased processing power and storage capacity provide greater resampling flexibility, audio processing performance and future-proofing.
  • Up/down sampling up to DSD256
  • First LUMIN Transport with a built in linear power supply
  • Ultra-low-noise rectifier and linear regulator

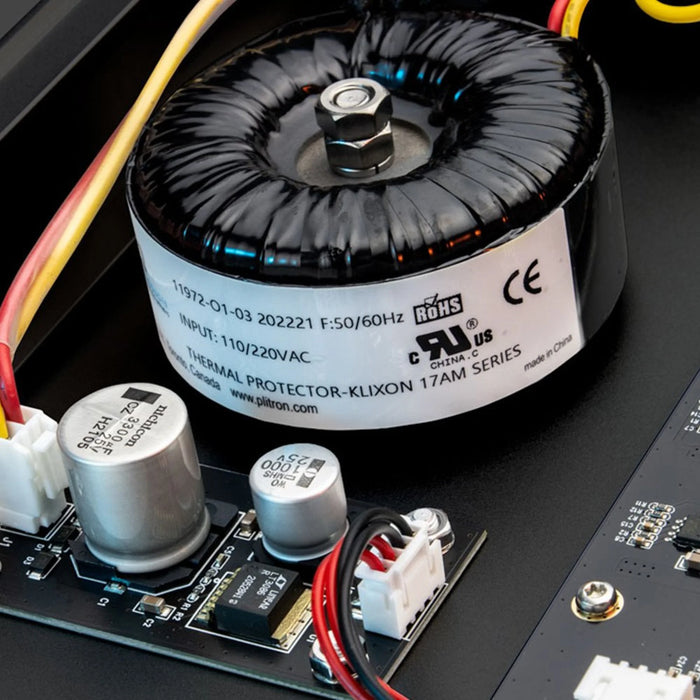

  • Extra large toroidal transformer
  • First LUMIN to feature 3 USB ports
  • New dedicated “Direct-Coupled” USB digital audio output port
  • Leaves two ports free for music storage and accessories

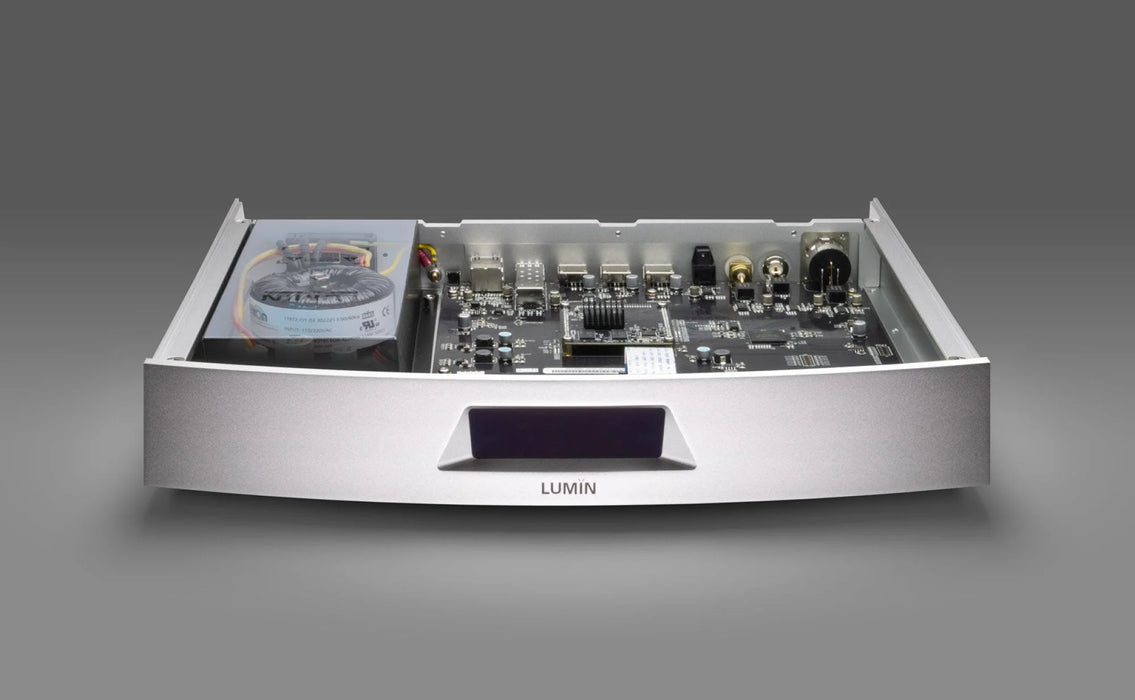

  • First LUMIN Transport to use new all-in-one chassis

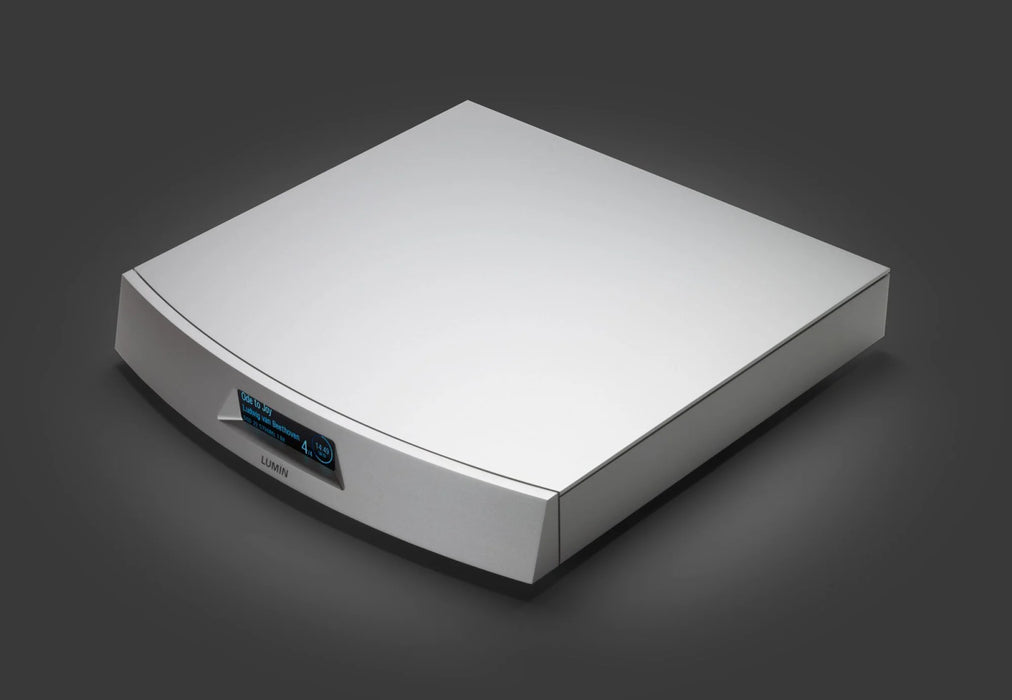

  • The thick CNC panelled aluminium construction offers upgraded structural rigidity and sheilding compared to the U2-Mini
  • Precision CNC milling techniques from our flagship products provide the high-end LUMIN family aesthetic
  • From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
  • Native support for TIDAL, Qobuz, Spotify and AirPlay-compatible, giving you access to tens of millions of songs
  • The unique and intuitive LUMIN App described as "the most convenient interface in existence" by TINMAN
  • LUMIN programme of continuous development that has seen Roon, MQA, and Spotify support added in 2017 alone.

Specifications

  • DSD SUPPORT: Up to DSD512 22.5MHz, 1-bit

  • PCM SUPPORT: Up to 768kHz, 16–32-bit, Stereo

  • UPSAMPLING RATES & BIT DEPTHS: DSD256 upsampling option for all files, PCM 384kHz upsampling option for all files

  • DIGITAL OUTPUT STAGE:

    • USB: Native DSD512 support, PCM 44.1–768kHz, 16–32-bit, Stereo

    • OPTICAL, COAXIAL RCA, COAXIAL BNC & AES/EBU: PCM 44.1kHz–192kHz, 16–24-bit, DSD (DoP, DSD over PCM) 2.8MHz, 1-bit

  • OPTICAL NETWORK: Industry-standard SFP

    • 1000Base-T Gigabit Ethernet

    • Adapter may be needed for your particular switch/cables

    • Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

  • POWER SUPPLY:

    • Internal toroidal linear

    • Low-noise linear regulator

  • PHYSICAL:

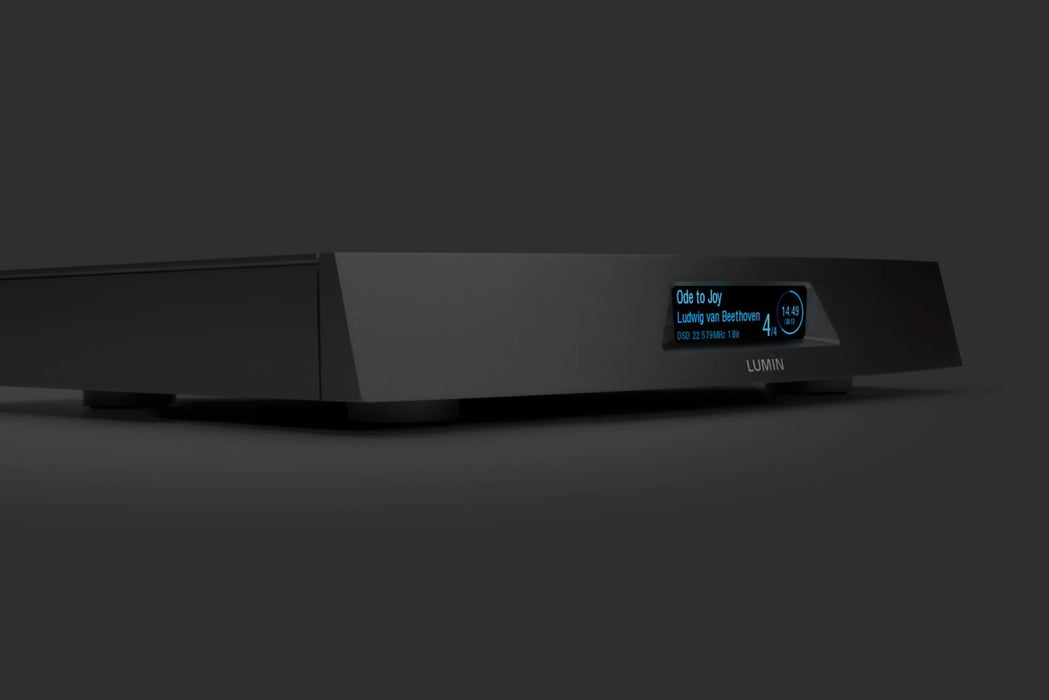

    • FINISH: Black anodised aluminium, Raw anodised aluminium

      DIMENSIONS: 350mm (W), 350mm (D), 60.5mm (H), 6kg

  • STREAMING PROTOCOL:

    • UPnP AV protocol with audio streaming extension (OpenHome)
    • Roon Ready
    • TIDAL Connect
    • Spotify Connect
    • AirPlay-compatible
    • Gapless Playback
    • On-Device Playlist
  • APP FEATURES:

    • Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
    • Tidal MQA icons to identify high-res music
    • Qobuz high-res icons to identify high-res music
    • Volume control
    • High-resolution artwork
    • Artwork caching
    • Search
    • Multiple tag handling
    • Composer tag support
    • Album-grouping in playlist
    • Automatic internet links to artists/album/songs
    • Saving and restoring of playlists (including Tidal and Qobuz)
  • SUPPORTED AUDIO FILE FORMATS:

    • DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
    • PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
    • Compressed (lossy) Audio: MP3
    • MQA
  • INPUT:

    • Ethernet RJ45 network 1000Base-T
    • USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)
  • SUPPORTED CONTROL DEVICES:

    • Apple devices. iOS 11.0 or later
    • Android devices. Android 4.0 (Ice Cream Sandwich) or later required
  • OTHER:

    • Leedh Processing lossless digital volume control
    • Programme of Continuous Development – Firmware-upgradable for further features and enhancements
