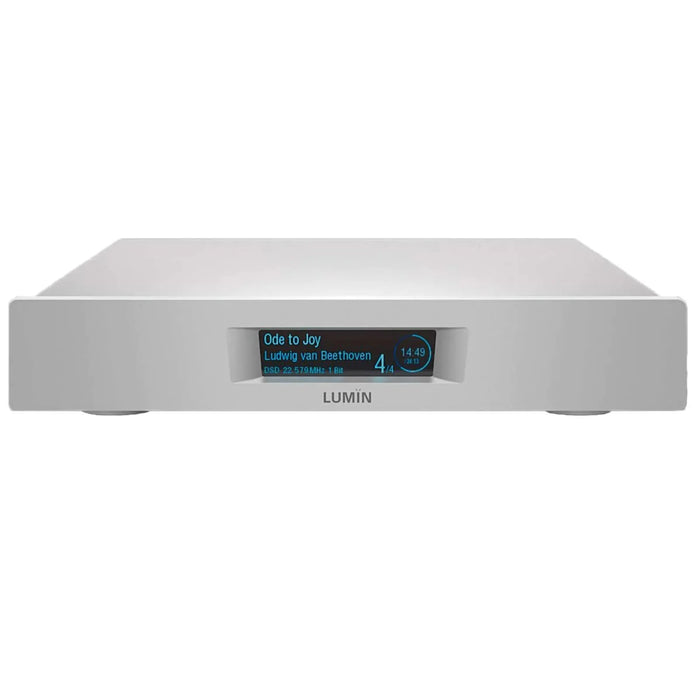

Lumin D3 - Hi-Res Network Music Streamer DAC Preamplifier
Taxes & Shipping Included
LUMIN D3 brings the audiophile potential of music streaming within everyone's reach. Building on the success of our most popular and longest-standing model, LUMIN D3 inherits the Sabre DAC technology used throughout the rest of our range and combines it with our new all-aluminium compact chassis. The latest LUMIN processor technology provides DSD256 upsampling and TIDAL Connect bringing audiophile-grade performance within your reach.
All-new processing system
- Completely new hardware and software provide a new foundation for LUMIN
- Increased processing power and storage capacity provide greater resampling flexibility and future-proofing.
Precision analogue output stage
- ES9028PRO DAC with up to DSD256 & PCM384 playback support
- Analogue buffer includes LUMIN X1 technology
- Ultra-low-noise and high dynamic range
Full aluminium enclosure
- The thick CNC front panel and new all-aluminium enclosure provide superior damping performance
- Improves on D2 chassis by eliminating steel
Builds on the massive success of LUMIN D1 & D2
Completely new processing hardware and software deliver improved features and increased resampling flexibility while retaining all the musicality that was noted in so many outstanding D1 & D2 reviews.
The new model is also finished in a new silky surfacing process taken from our high-end P1 that is less susceptible to finger marks and easier to clean.
Features
- Latest processor provides greater resampling flexibility
- New analogue output stage features Sabre DAC and a buffer including LUMIN X1 technology
- New DAC configuration featuring Sabre DAC ES9028PRO
- Retains fully balanced design including XLR outputs
- New surface finish taken from the high-end P1
- Upsampling and downsampling to every supported format up to DSD256/PCM384
- TIDAL Connect and Airplay 2 Compatible as well as Roon Ready, Spotify Connect, MQA, TIDAL, Qobuz, Plex and TuneIn
Specifications
-
DSD SUPPORT Up to DSD256, 1-bit, Stereo
-
PCM SUPPORT Up to 384kHz, 16–32-bit, Stereo
-
ANALOG OUTPUT STAGE
-
ESS SABRE32 ES9028Pro DAC chip
-
Balanced layout with high-quality components
-
Completely redesigned analogue buffer includes audiograde output capacitor and ultra-low-noise and high dynamic range
-
Discreet clock system for precision timing
-
-
UPSAMPLING RATES & BIT DEPTHS
-
DSD256 upsampling option for all files
-
PCM 384kHz upsampling option for all files
-
-
DIGITAL OUTPUT STAGE
-
BNC SPDIF:
-
PCM 44.1kHz–192kHz, 16–24-bit
-
DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
-
-
-
POWER SUPPLY
-
Internal 100–240V AC auto-ranging
-
Low-noise
-
Shielded power supply compartment for reduced interference with delicate electronics
-
-
PHYSICAL
-
FINISH
-
Black anodised aluminium
-
Raw anodised aluminium
DIMENSIONS
-
300mm (W), 244mm (D), 60mm (H), 2.5kg
-
-
SPECIFICATION FOR ALL LUMIN MUSIC STREAMERS
-
STREAMING PROTOCOL
- UPnP AV protocol with audio streaming extension (OpenHome)
- Roon Ready
- TIDAL Connect
- Spotify Connect
- AirPlay 2 compatible
- Gapless Playback
- On-Device Playlist
-
APP FEATURES
- Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
- Tidal MQA icons to identify high-res music
- Qobuz high-res icons to identify high-res music
- Volume control
- High-resolution artwork
- Artwork caching
- Search
- Multiple tag handling
- Composer tag support
- Album-grouping in playlist
- Automatic internet links to artists/album/songs
- Saving and restoring of playlists (including Tidal and Qobuz)
-
SUPPORTED AUDIO FILE FORMATS
- DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
- PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
- Compressed (lossy) Audio: MP3
- MQA
-
INPUT
- Ethernet RJ45 network 1000Base-T
- USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)
-
ANALOGUE AUDIO OUTPUTS
- XLR balanced, 6Vrms, pin 2 Hot
- RCA unbalanced, 3Vrms
-
SUPPORTED CONTROL DEVICES
- Apple devices. iOS 11.0 or later
- Android devices. Android 4.0 (Ice Cream Sandwich) or later required
-
OTHER
- Leedh Processing lossless digital volume control
- Programme of Continuous Development – Firmware-upgradable for further features and enhancements
