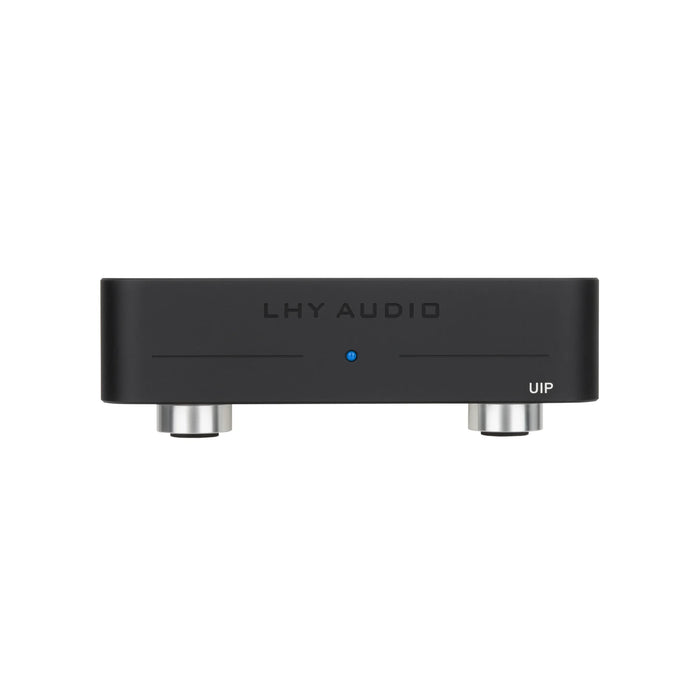

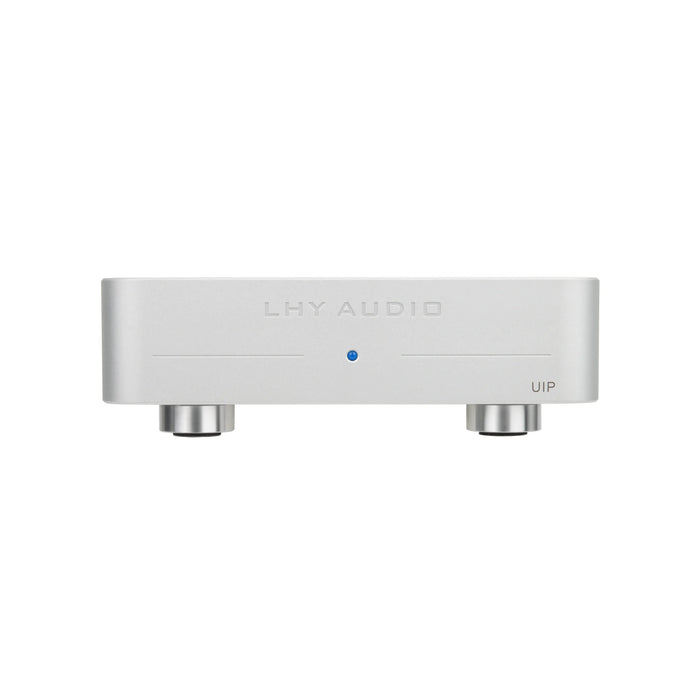

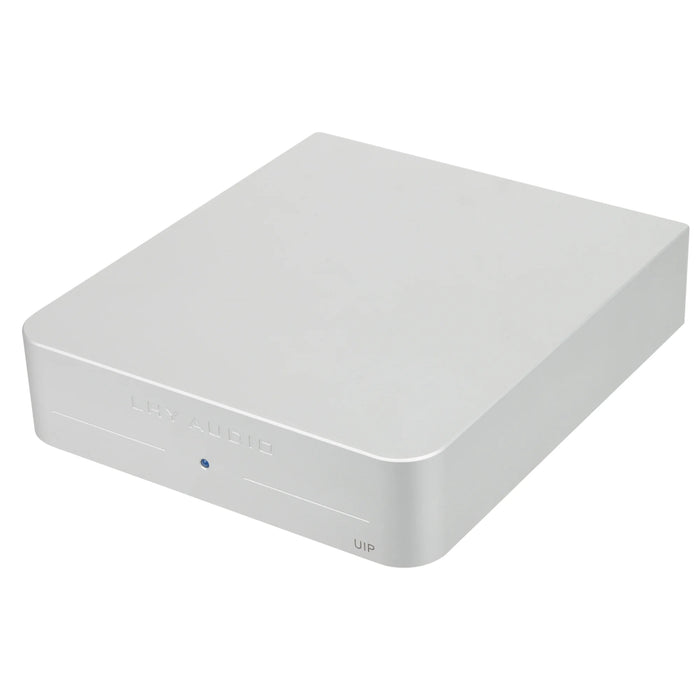

LHY UIP USB 2.0 Galvanic Isolator
Taxes & Shipping Included
Experience pristine audio quality with the LHY USB 2.0 Galvanic Isolator. By effectively interrupting ground loop interference, it removes hums, buzzes, and high-frequency disturbances, delivering clearer sound with enhanced detail and depth.
The LHY UIP USB 2.0 Galvanic Isolator offers advanced support for USB 2.0 high-speed data transfer at up to 480 Mbps, while providing up to 5700 V galvanic isolation to eliminate electrical interference. Its compact and robust design makes it perfectly suited for diverse environments, including home audio systems, professional studios, and portable gear setups. This isolator effectively blocks noise and ground loops, allowing your audio signal to remain pristine and free from distortions. Experience a refined listening journey with enhanced clarity and reduced signal degradation, ensuring your music is delivered exactly as intended.
Features
- Pure Transmission: Removes noise and distortion
- High-Fidelity Sound: Restores natural musical detail
- Plug & Play: No drivers, easy to use
- Wide Compatibility: Works with computers, DACs, and audio interfaces
- ADuM4165 USB 2.0 isolation (Supports up to DSD512, PCM768)

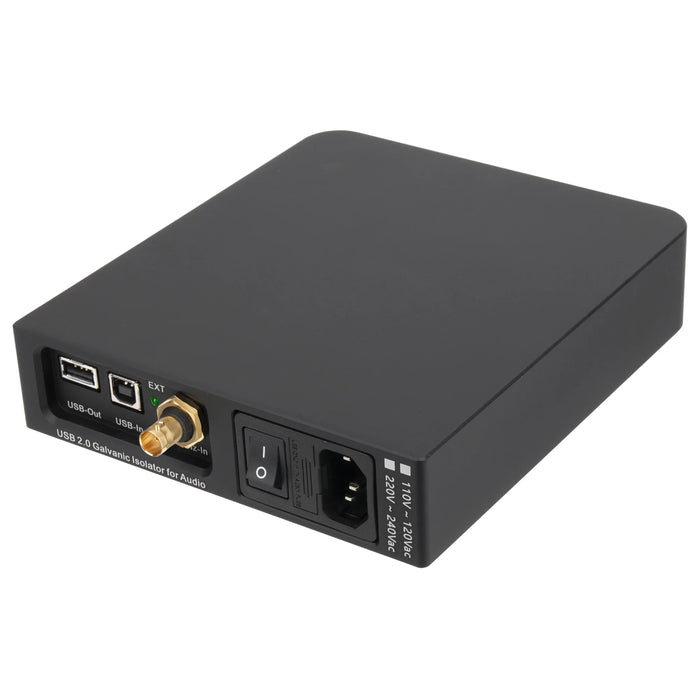

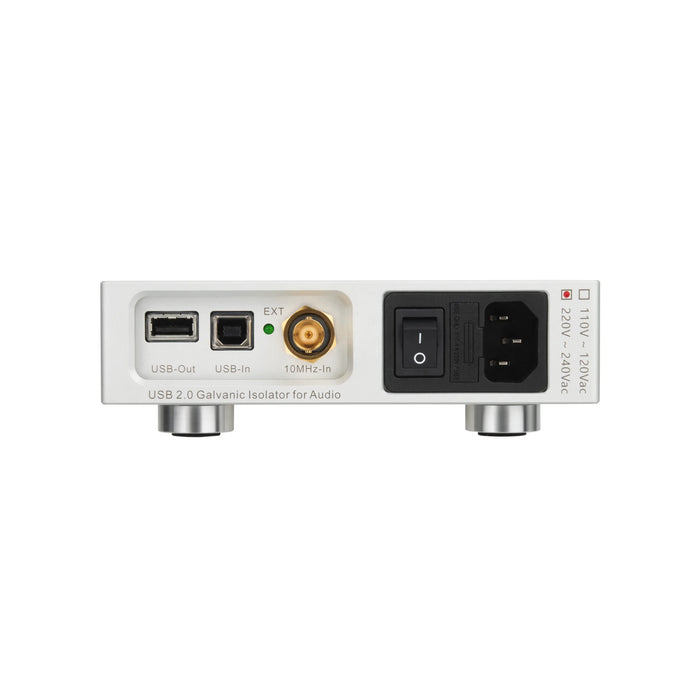

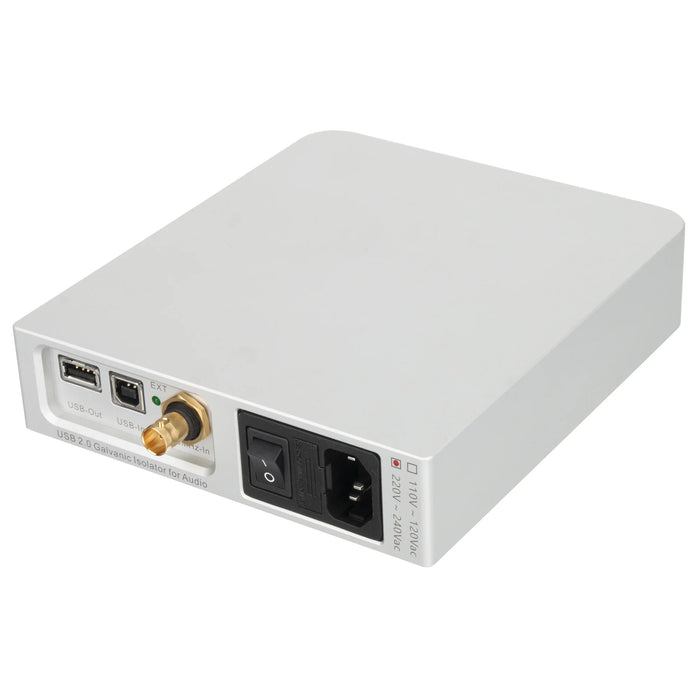

- 1 x USB-B input
- 1 x USB-A output
- 1 x Master Clock input

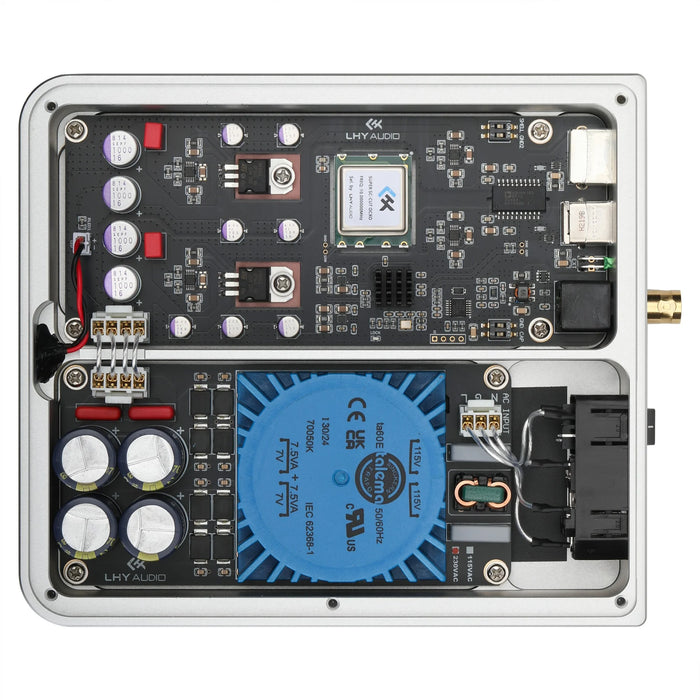

- Re-clock Data Stream by High-quality SC-CUT Oven Controlled Crystal Oscillator with ultra-low noise PLL circuitry
- CNC Aluminum Block Chassis [Black / Icey Silver]
- AC Incoming: High Quality IEC with Fuse & Switch
- AC Noise Filter: UK RIFA RFI Suppression Caps & Noise Filter
- AC Transformer: High Quality Encapsulated Talema
- High Speed Rectifier
- High Endurance Reservoir Caps
- Phillips 1% Precision Resistors
- Multistage DC/DC uV-class linear power supply with noise close to 0 (lab measurable noise in the range of uV)
- Integrated Aluminium Heat-sink Chassis
Specifications
- Transmission Rate Up to 480 Mbps
- Input Port USB-B
- Output Port USB-A
- External Clock 10.0MHz, BNC@50/75 Ohms, 0dBm-20dBm
- Power Supply Voltage 220–240 VAC (customizable to 110–120 VAC)
- Fuse T1.0A 250V，5x20mm
- Power Consumption Standby: 5 W; Operating: 7–10 W
- Operating Environment Temperature: -10 to 55°C; Humidity: 10% to 90% RH
- Dimensions 175 X 150 X 50mm
- Weight 1.5kg
- Accessories USB cable ×1, Power cable ×1
