LHY RPI Music Streamer & Bridge
Taxes & Shipping Included
The LHY RPI Streamer & Bridge, crafted by LHY Audio for discerning Roon users, is a premium lossless digital transport. Utilizing the RoPieee platform, it offers complete Roon Ready compatibility, effortlessly connecting to the Roon environment. It supports high-resolution PCM and DSD formats, guaranteeing reliable, swift, and fluid audio streaming, elevating your HIFI listening to the highest standard.
The RPI is a high-performance lossless digital music streaming bridge specially developed for Roon enthusiasts. It uses the Raspberry Pi 4 Model B 4G motherboard and features a built-in high-precision OCXO oven-controlled crystal oscillator plus PLL clock system, upgrading the three crystal oscillators of the Raspberry Pi 3.
It employs a UK Talema transformer, EMI AC filtering, high-speed DC filtering, and two LT3042 + PNP circuits providing independent ultra-low noise power supplies for the clock system and the Raspberry Pi. It also provides an external clock input interface. If you have a higher-level external clock, it can further improve your audio quality.
The RPI can seamlessly integrate with Roon, offering strong compatibility and stability. It can accurately read and parse commands and data sent by Roon, achieving stable audio transmission, supporting high-quality audio output, and playing high-resolution PCM and DSD audio. It is a very mature and reliable streaming bridge solution.
Features
- Roon-Ready Streaming Transport with built-in Linear Power Supply
- The pre-installed Ropieee system supports the following features:
- HQPlayer NAA
- Roon Bridge
- UPNP
- Airplay
- Squeezelite
- Upgrades all three crystal oscillators on the Raspberry Pi 4 motherboard. Delivers exceptional processing power and robust control capabilities, enabling meticulous audio signal conditioning for glitch-free, fluid music playback.
- LT3042+PNP architecture delivers dual independent μV-rails dedicated to the clock system and Raspberry Pi. This critically enables pristine clock generation and high-precision signal output.
- The EMI filter + 15VA UK Talema transformer + high-speed rectification/filtering stage delivers robust current while neutralizing AC noise components, unlocking the network bridge’s full sonic potential.
- Designed for plug-and-play operation, it supports smartphone app push and NAS playback, offers broad compatibility, and features self-updating capability with minimal maintenance required.
Specifications
- Hardware
- Raspberry Pi 4 Model B
- High-speed 64GB MicroSD TF card
- OCXO + PLL clock system
- Dual LT3042 with PNP — ultra-low ripple noise linear power supply (μV level)
- Talema sealed toroidal transformer
- Software
- Pre-installed with RoPieee
- Supports installation of MOODE and Volumio playback software

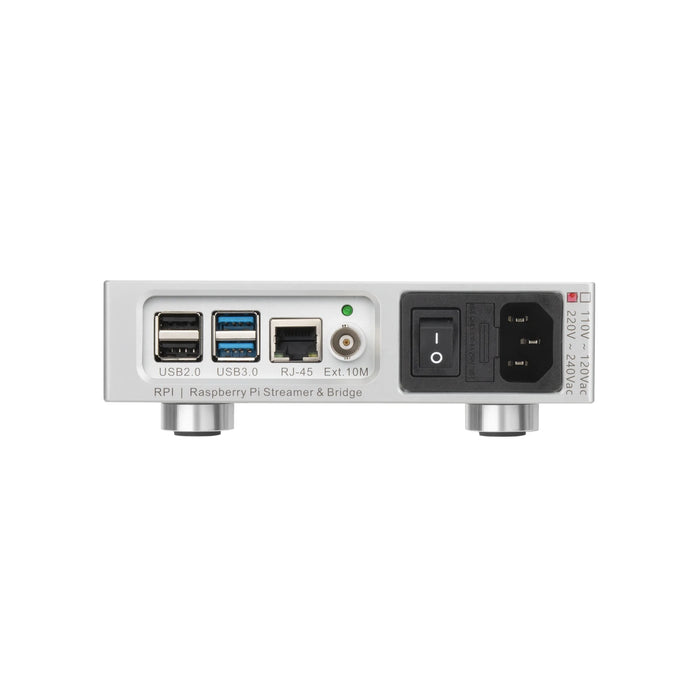

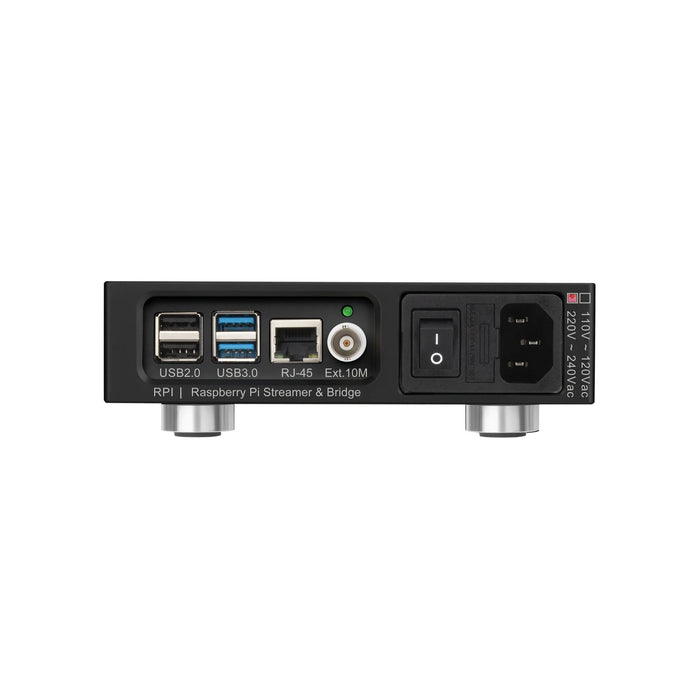

- Inputs
- LAN (RJ45 Ethernet port)
- 10MHz reference clock input (compatible with 50Ω / 75Ω)
- Output
- Native USB: PCM 44.1kHz–768kHz / 32-bit
- DSD64 / DSD128 / DSD256 / DSD512
- Power
- Input: IEC AC 220-240v
- Consumption: < 10w
- Dimensions & Weight
- 1550W x 50H x 175D (mm)
- 1.7kg
In the Box
- LHY RPI
- Generic Power Cord
