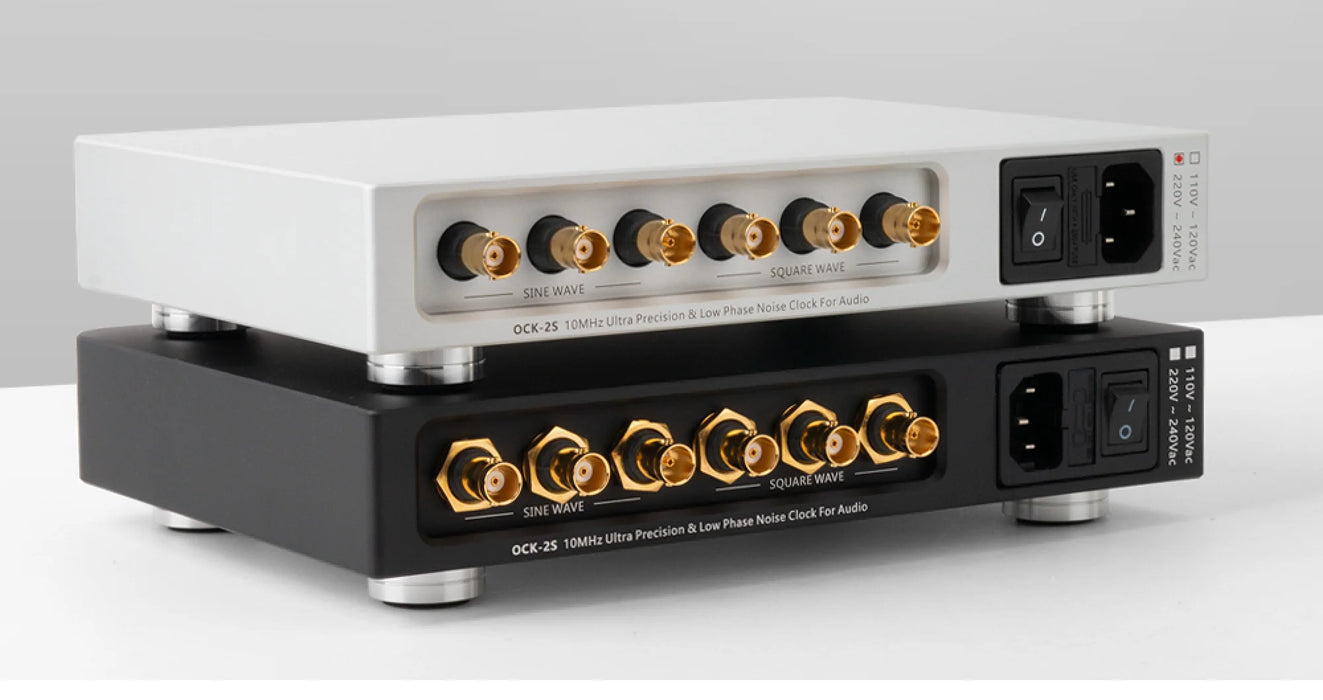

LHY OCK-2S Reference Master Clock Generator

Enhance your audio and digital equipment with the LHY Audio OCK-2S, a premium master clock generator crafted for superior accuracy and reliability. Equipped with an SC-CUT OCXO oscillator delivering ultra-low phase noise (-110 dBc/Hz at 1Hz offset), it guarantees outstanding frequency stability, reduces jitter, and elevates the clarity and detail of your Hi-Fi audio experience.

Ultra-Low Phase Noise Performance

• Custom-selected SC-cut OCXO
• Phase noise: -110dBc @1Hz Offset (typical)
• Each oscillator individually tested with included phase noise report


Exceptional Stability & Accuracy

• Frequency stability: <± 5ppb

• Frequency accuracy: <± 0.05ppm

• Optimized OCXO tuning voltage reference circuit

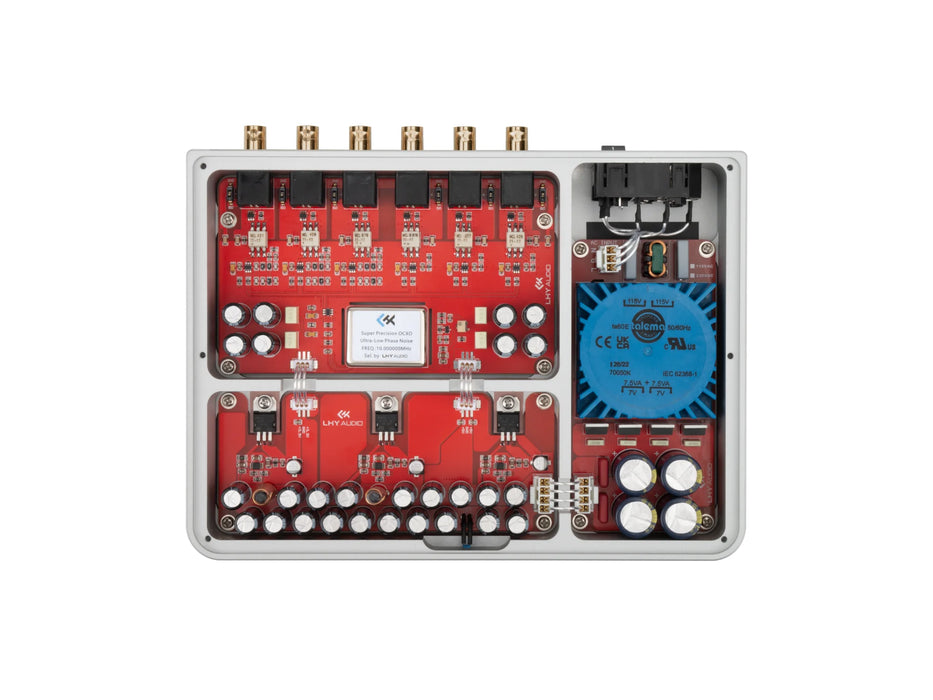

Professional Circuit Design

• 6 independent output drivers with isolation

• Isolation transformers for square wave outputs

• Optimized signal and power routing

• μV-level linear power supply


Premium Mechanical Design

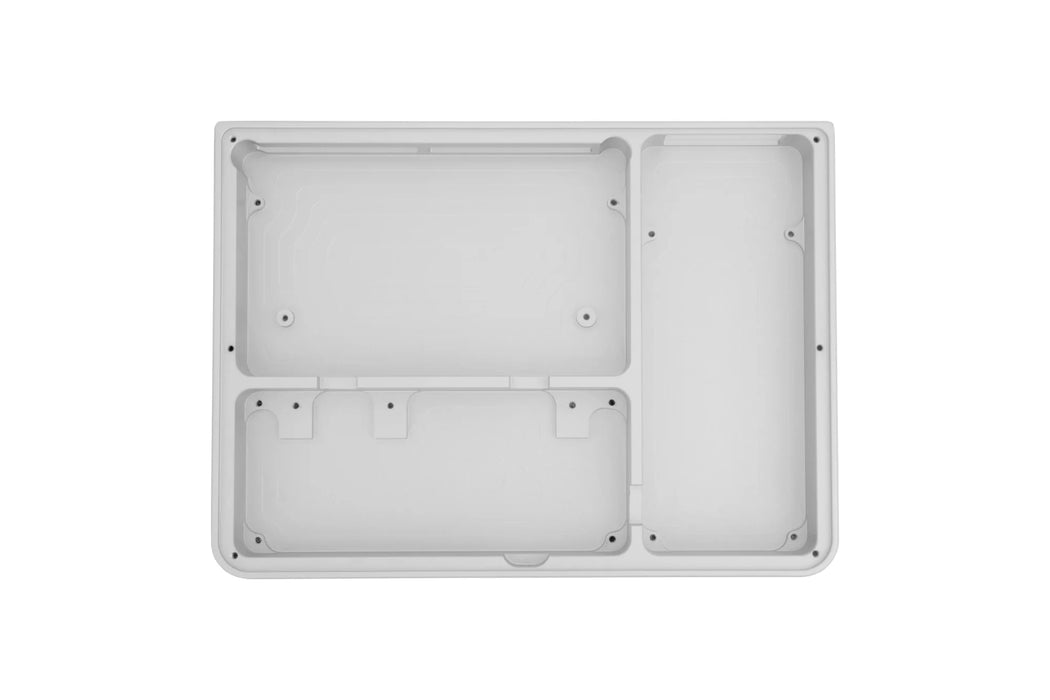

• CNC-machined thick aluminum chassis

• Separated circuit compartments

• Minimized interference and mechanical resonance

• Effective vibration and noise isolation

Features

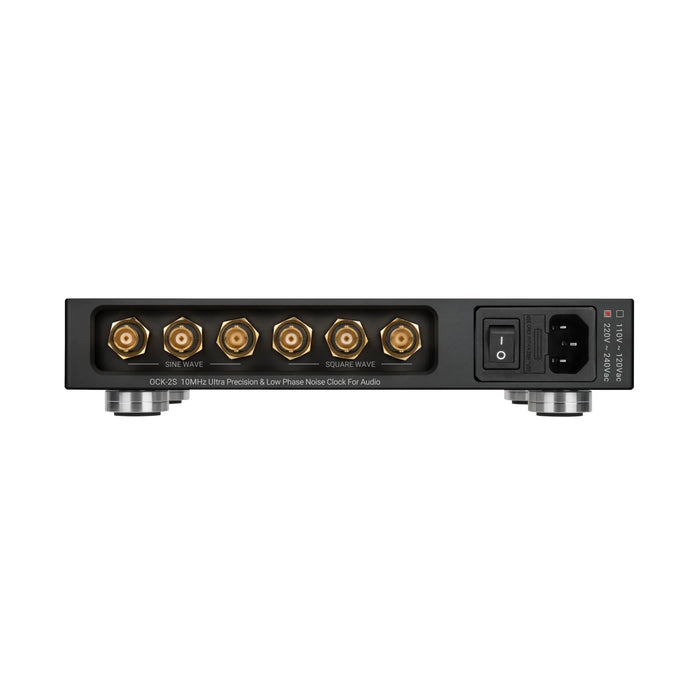

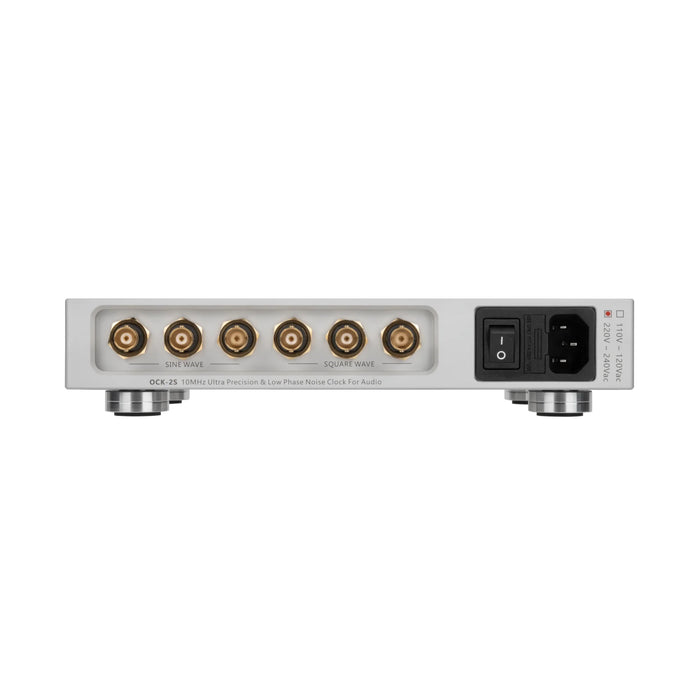

• Six Independent Outputs: Three sine wave and three square wave outputs (50Ω/75Ω BNC connectors) for versatile connectivity
• Premium Design: Low-noise power supply reduces electrical interference, ensuring optimal performance
• Wide Compatibility: Ideal for high-end DACs, digital transports, and audio streamers, improving overall system accuracy
• Superior Stability: Outperforms standard oscillators with advanced SC-CUT technology for higher frequency accuracy
• Ideal For: Audiophile-grade audio systems, Professional telecommunications and research equipment, Embedded systems and digital signal processing

Specifications

• Number of Ports 6 Outputs (3 × Square Wave / 3 × Sine Wave)
• Output Impedance
• • Sinewave 50Ω x 2 ( 1.4Vpp / 0.5Vrms / 7dBm )
  • Sinewave 75Ω x 1 ( 1.4Vpp / 0.5Vrms / 7dBm )
  • Squarewave 50Ω x 2 ( 1.4Vpp / 0.5Vrms / 7dBm )
  • Squarewave 75Ω x 1 ( 1.4Vpp / 0.5Vrms / 7dBm )
• Output Level 1.4Vpp / 0.5Vrms /7dBm (@50ohms)
• Close-in Phase Noise
  • ≤-110dBc @ 1Hz Offset (typical)
  • ≤-135dBc @ 10Hz Offset (typical)
  • ≤-150dBc @ 100Hz Offset (typical)
  • ≤-157dBc @ 1KHz Offset (typical)
  • ≤-160dBc @ 10KHz Offset (typical)
• Frequency Stability < ±5 ppb
• Frequency Accuracy < ±0.05 ppm
• Short-term Stability 2×10-12 @ 1 s
• Warm-up Time 15 minutes (basic) / 60 minutes (full)
• Power Consumption 8 W (warm-up) / 5 W (operating)
• Voltage 220–240 VAC
• Dimensions 240 × 175 × 50 mm (W × D × H)
• Weight 2.0 kg
• Accessories Main Unit ×1 / AC Power Cord ×1
