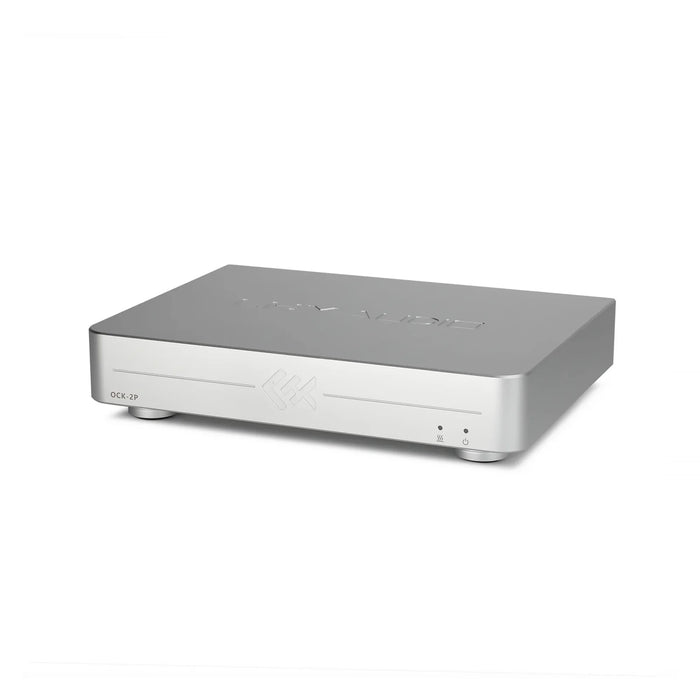

LHY OCK-2P Platinum Edition Reference Master Clock Generator
Taxes & Shipping Included
The LHY OCK-2P Platinum Edition elevates master clock technology through meticulous engineering advances that surpass its predecessor. This reference-grade generator delivers superior time-base precision, refined power delivery, and optimized mechanical construction to enhance micro-dynamics and spatial imaging. Experience redefined performance standards in external audio clock design, where every refinement contributes to deeper musical resolution and acoustic clarity.
Ultra-Low Phase Noise Performance
OCK-2P employs a carefully selected, high-grade OCXO, delivering a significant improvement in critical close-in phase noise performance:
- –115 dBc @1Hz
- –140 dBc @10Hz
- More stable soundstage
- Improved image focus
- Enhanced micro-detail retrieval
- Darker, more controlled background
Fully Upgraded Power Supply
- Two-Stage Regulation: LM350T + LT3041: The two-stage linear regulation topology further reduces noise and improves PSRR compared to the single-stage design of OCK-2S. This ensures a cleaner and more stable power foundation for both the OCXO and the distribution circuitry.
-
30VA Toroidal Transformer: OCK-2P features a Multicomp 30VA transformer, doubling the power headroom compared to the 15VA design used in OCK-2S. Greater power reserve results in:Improved transient response, Lower supply impedance and Enhanced overall stability
Features

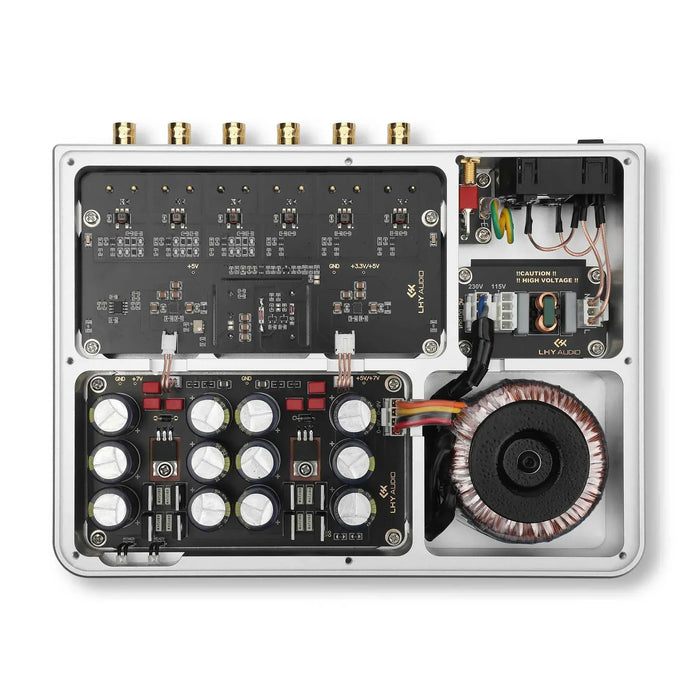

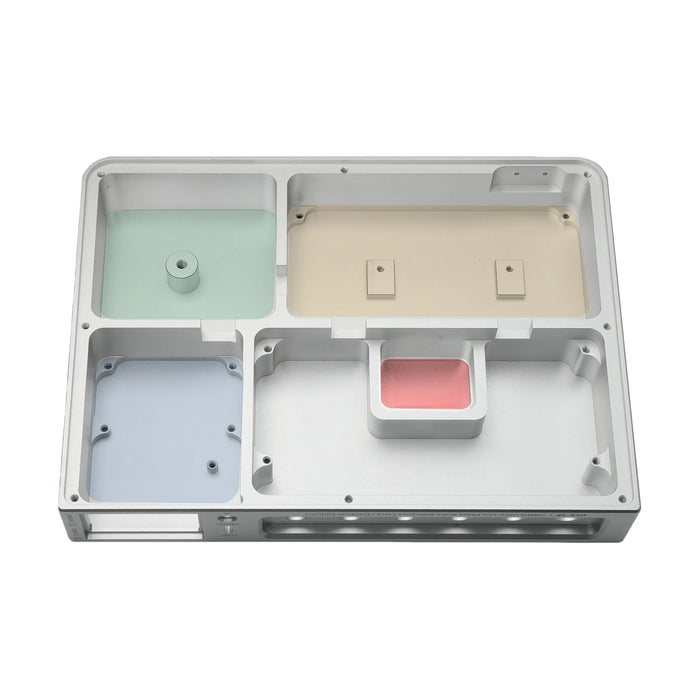

- Machined from a single block of aluminum, the chassis adopts a refined five-chamber isolation architecture.
- Each compartment is physically separated to minimize electromagnetic and mechanical interference, ensuring a cleaner power environment and a more stable signal path.
- OCK-2P introduces an Independent Thermos Chamber, providing a more stable and controlled thermal environment for the OCXO.

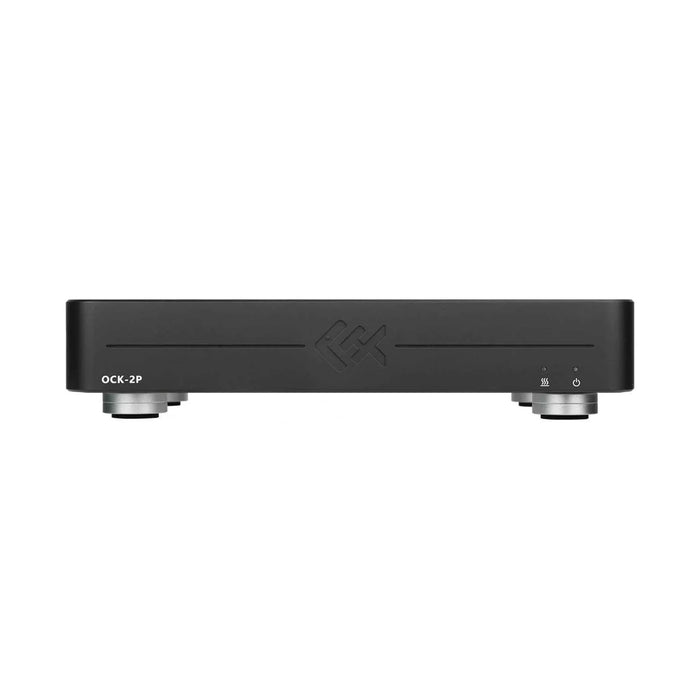

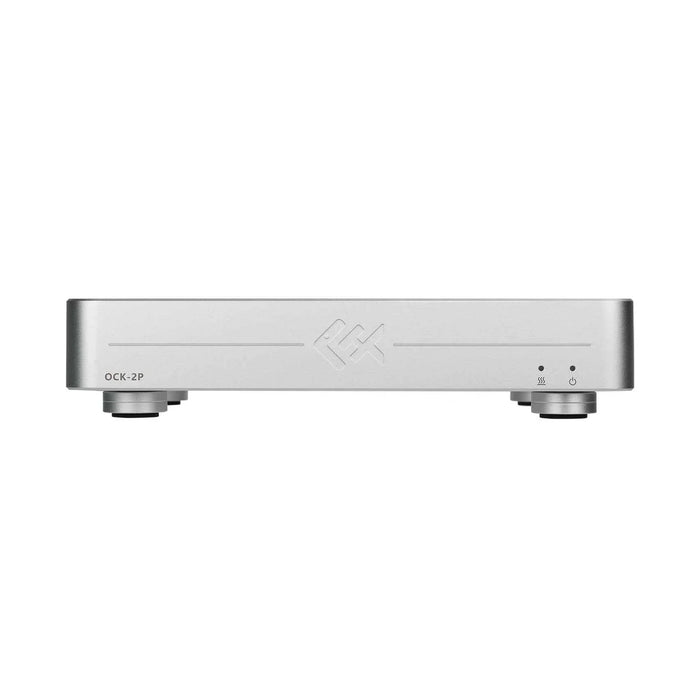

- An integrated OCXO warm-up status LED visually indicates when the oscillator has reached optimal operating conditions.

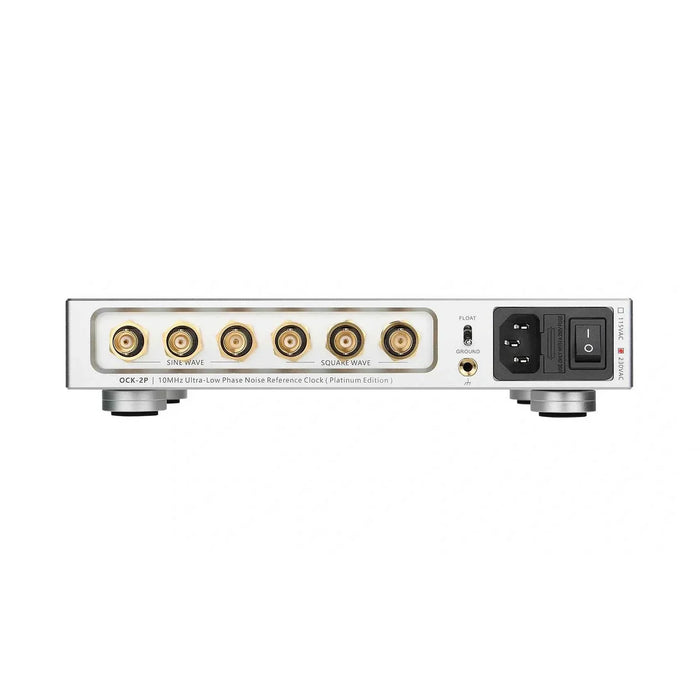

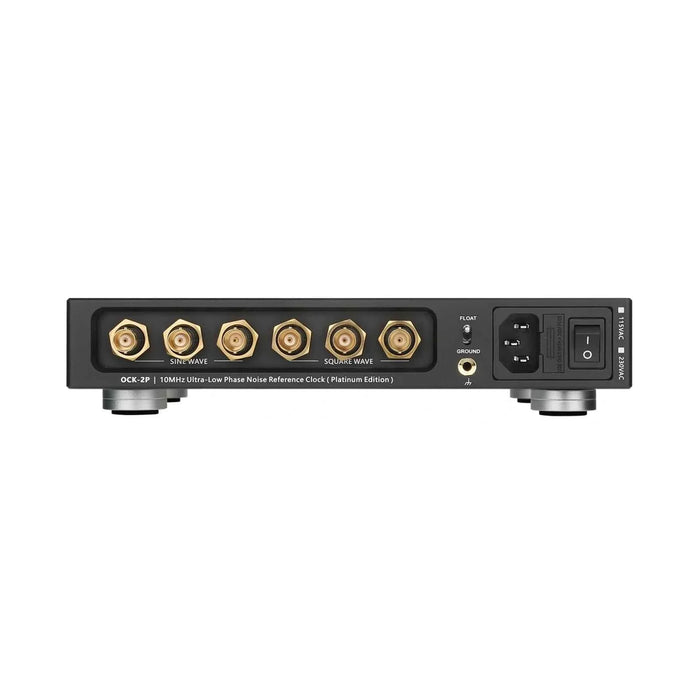

- Three sine wave and three square wave outputs (50Ω/75Ω BNC connectors) for versatile connectivity
- Fully Upgraded Power Supply with 30VA Toroidal Transformer

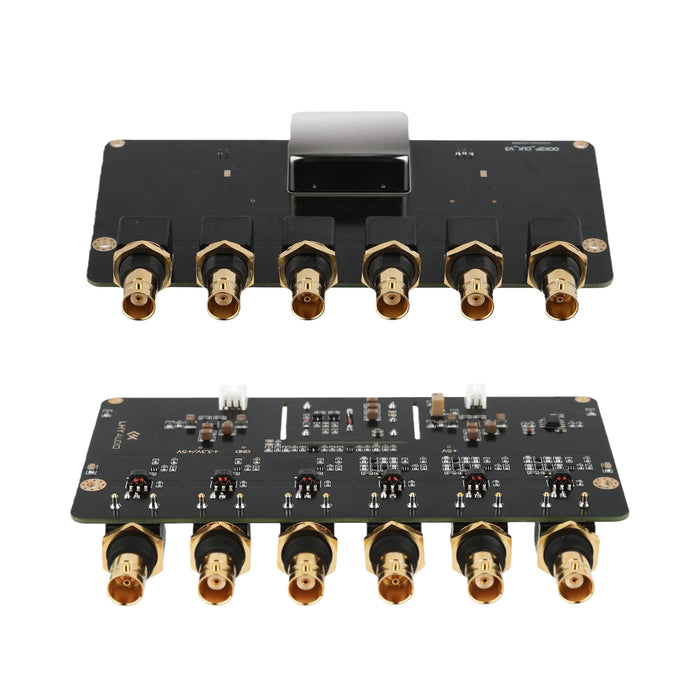

- OCK-2P upgrades its clock distribution amplifier to an ultra-low additive phase noise design, maintaining exceptional signal integrity even with multiple outputs.
- OCK-2P features a dedicated grounding terminal with a selectable ground switch, allowing users to choose grounded or floating operation to best match your system.
Specifications
- Number of Ports 6 Outputs (3 × Square Wave / 3 × Sine Wave)
-
Output Impedance
- Sinewave 50Ω x 2 ( 1.4Vpp / 0.5Vrms / 7dBm )
- Sinewave 75Ω x 1 ( 1.4Vpp / 0.5Vrms / 7dBm )
- Squarewave 50Ω x 2 ( 1.4Vpp / 0.5Vrms / 7dBm )
- Squarewave 75Ω x 1 ( 1.4Vpp / 0.5Vrms / 7dBm )
- Output Level 1.4Vpp / 0.5Vrms /7dBm (@50ohms)
-
Phase Noise
- ≤-115dBc @ 1Hz Offset (typical)
- ≤-140dBc @ 10Hz Offset (typical)
- Frequency Stability < ±5 ppb
- Frequency Accuracy < ±0.05 ppm
- Short-term Stability 2×10-12 @ 1 s
- Warm-up Time 15 minutes (basic) / 60 minutes (full)
- Thermal Design: Independent thermos cabinet
- Power Transformer: 30VA toroidal transformer
- Regulation Topology: Two-stage linear regulation (LM350T + LT3041)
- Clock Distribution: Ultra-low additive phase noise amplifier
- Grounding: Dedicated ground terminal with selectable ground switch
- Indicators: OCXO warm-up LED, Power LED
- Power Consumption 8 W (warm-up) / 5 W (operating)
- Voltage 220–240 VAC
- Dimensions 240 × 175 × 50 mm (W × D × H)
- Weight 2.0 kg
- Accessories Main Unit ×1 / AC Power Cord ×1
