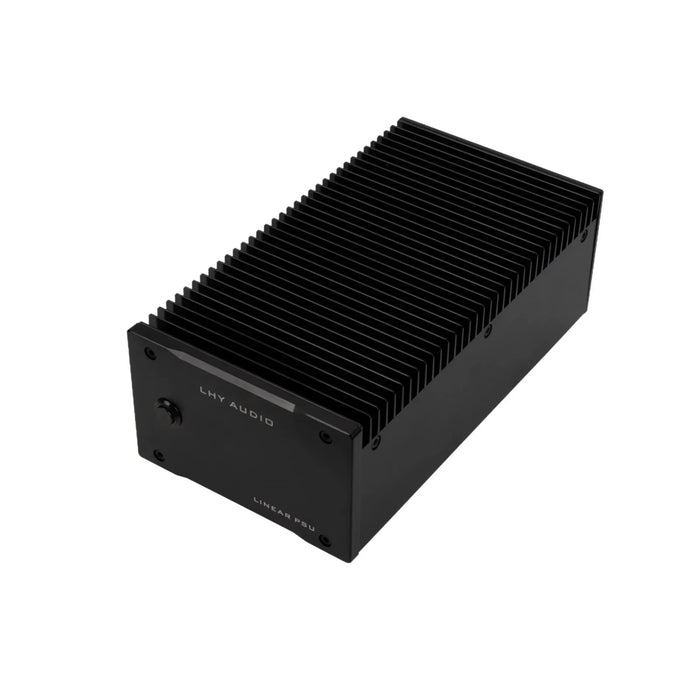

LHY LPS-160 160W Audio-Grade Ultra-Low Noise Linear Power Supply

by LHY Audio

₹ 49,990 - ₹ 49,990

₹ 49,990

₹ 49,990 - ₹ 49,990

₹ 49,990

Taxes & Shipping Included

Quantity

The LPS-160 is Audio-grade linear power supply designed for high-end audio and precision electronic equipment, featuring fully handcrafted construction to ensure Hi-End performance. Utilizing an premium toroidal transformer, discrete voltage regulation circuitry, and premium audio-grade components, this power supply delivers ultra-low noise and highly stable DC power, significantly enhancing the performance of audio systems, networking devices, computers, and more.

Features

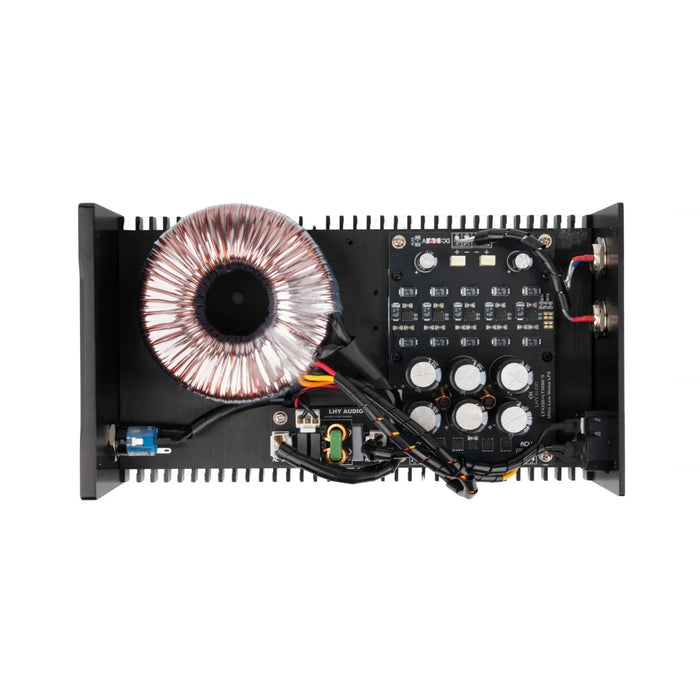

Toroidal Transformer: Talema / Noratel imported for high efficiency and minimal interference
Voltage Regulation: OP-AMP + MOSFET discrete linear regulator for fast transient response
Internal Wiring: Silver-plated copper for superior conductivity
Thermal Management: Multi-fin aluminum heatsink for stable long-term operation
Custom Voltage Support: Configurable output for various device requirements

Specifications

Input Parameters
- Input Voltage: AC 220V-240V (default), Frequency: 50/60Hz
Output Parameters
- Output Voltage: Default DC12V (customizable: 12V, 15V, 18V, 19V, 20V, 24V)
- Output Current:
  - 12V: 9A
  - 15V: 7A
  - 18V: 7A
  - 19V: 7A
  - 20V: 7A
  - 24V: 5A

Voltage Stability: ±0.5% (full load)
Ripple Noise: <29μV RMS (verified via Agilent oscilloscope)
Efficiency: 85% (typical)
Transformer: Talema / Noratel toroidal 160VA
Main Filter Capacitor: 10,000μF low-ESR audio-grade electrolytic
Fuse: Schurter gold-plated ceramic 2A
Regulation Circuit: Discrete OP-AMP + MOSFET topology
Transient Response: <100μs (50% load step)
Isolation Resistance: >100MΩ
Operating Temperature: -10°C to +45°C
MTBF: >50,000 hours
Dimensions: 140 × 90 × 260mm (W × H × D)
Weight: 4.5kg
Cooling System: 3mm aluminum chassis + extruded fin array (800cm² dissipation area)

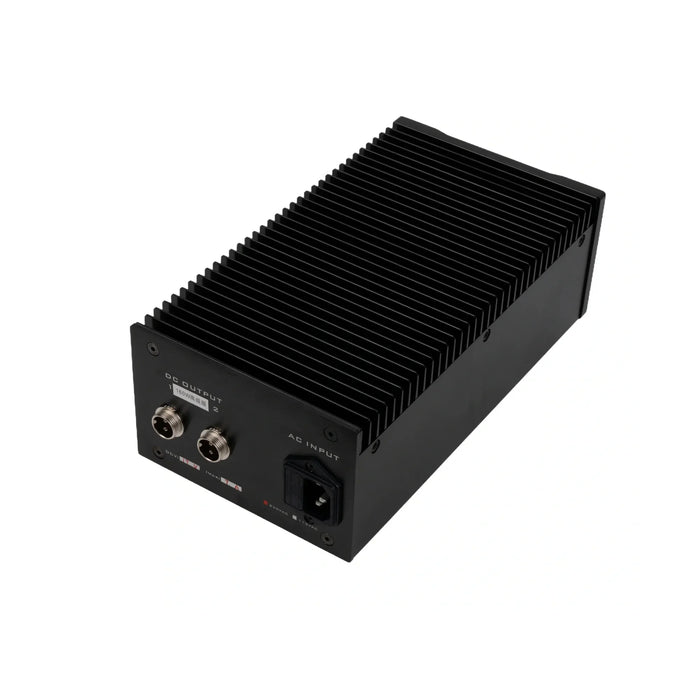

Input: IEC C14 socket (standard power cord included)
Output: 2 × aviation-grade 2P female sockets
Included Cable: 16AWG oxygen-free copper DC cable (DC5.5/2.5mm plug)
