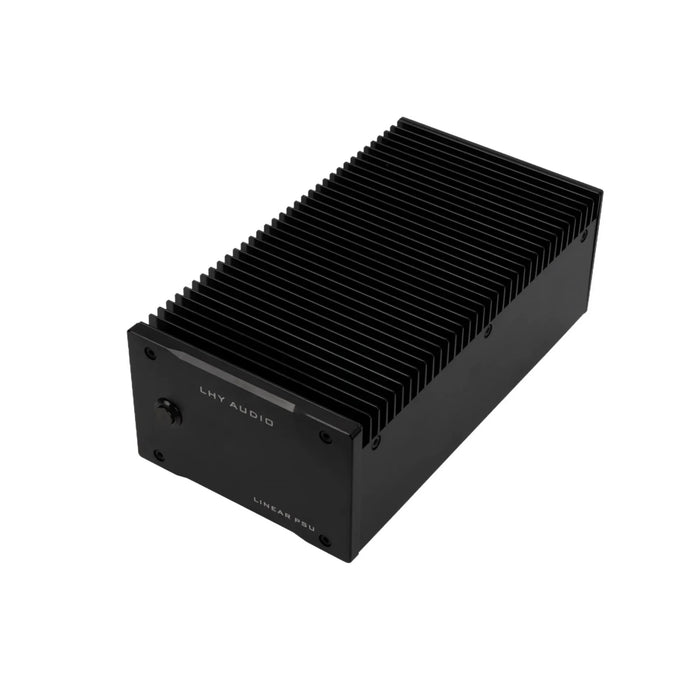

LHY LPS-120 120W Audio-Grade Ultra-Low Noise Linear Power Supply
by LHY Audio
Sold out
Original price
₹ 46,990
-
Original price
₹ 46,990
Original price
₹ 46,990
₹ 46,990
₹ 46,990
-
₹ 46,990
Current price
₹ 46,990
Taxes & Shipping Included
The LPS-120 is Audio-grade linear power supply designed for high-end audio and precision electronic equipment, featuring fully handcrafted construction to ensure Hi-End performance. Utilizing an premium toroidal transformer, discrete voltage regulation circuitry, and premium audio-grade components, this power supply delivers ultra-low noise and highly stable DC power, significantly enhancing the performance of audio systems, networking devices, computers, and more.
Features

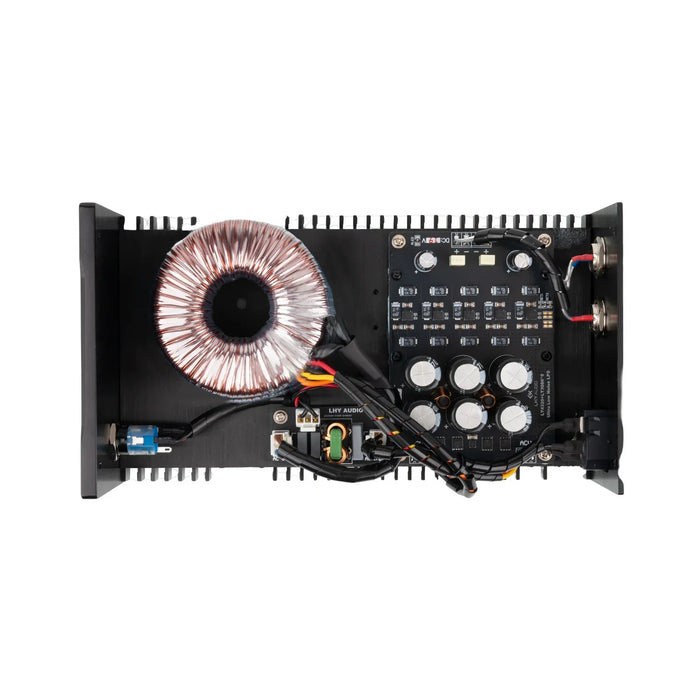

- Toroidal Transformer: Talema/Noratel imported for high efficiency and minimal interference
- Voltage Regulation: OP-AMP + MOSFET discrete linear regulator for fast transient response
- Internal Wiring: Silver-plated copper for superior conductivity
- Thermal Management: Multi-fin aluminum heatsink for stable long-term operation
- Custom Voltage Support: Configurable output for various device requirements
Specifications
-
Input Parameters
-
Input Voltage: AC 220V-240V (default), Frequency: 50/60Hz
-
-
Output Parameters
- Output Voltage: Default DC12V (customizable: 12V, 15V, 18V, 19V, 20V, 24V)
-
Output Current:
- 12V: 7A
- 15V: 6A
- 18V: 5A
- 19V: 5A
- 20V: 5A
- 24V: 4A
- Voltage Stability: ±0.5% (full load)
- Ripple Noise: <29μV RMS (verified via Agilent oscilloscope)
- Efficiency: 85% (typical)
- Transformer: Talema / Noratel toroidal 120VA
- Main Filter Capacitor: 10,000μF low-ESR audio-grade electrolytic
- Fuse: Schurter gold-plated ceramic 1.6A
- Regulation Circuit: Discrete OP-AMP + MOSFET topology
- Transient Response: <100μs (50% load step)
- Isolation Resistance: >100MΩ
- Operating Temperature: -10°C to +45°C
- MTBF: >50,000 hours
-
Dimensions: 140 × 90 × 260mm (W × H × D)
- Weight: 4.0kg
- Cooling System: 3mm aluminum chassis + extruded fin array (800cm² dissipation area)

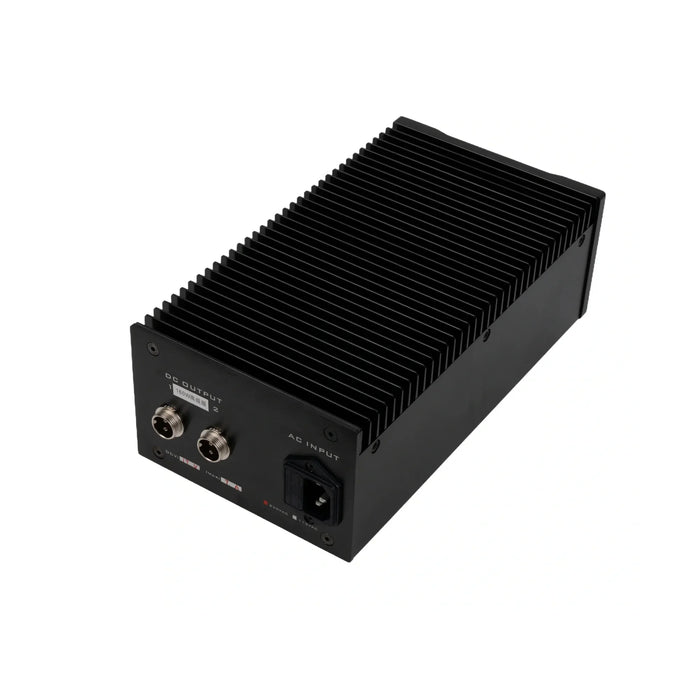

- Input: IEC C14 socket (standard power cord included)
- Output: 2 × aviation-grade 2P female sockets
-
Included Cable: 16AWG oxygen-free copper DC cable (DC5.5/2.5mm plug)
About
LHY Audio has built a reputation among audiophiles for high-end, audiophile-grade components and accessories for home audio systems. A subsidiary of Jay's Audio, the company focuses on designing and manufacturing precision-engineered solutions aimed at improving the sound quality of digital audio systems. LHY Audio's products are extremely popular with discerning audio enthusiasts and DIY hobbyists who are looking to upgrade their digital audio experience.
