LHY BATT Lithium Battery Ultra-Low Noise Linear Power Supply
Taxes & Shipping Included
Experience pristine power delivery with this advanced lithium-based linear supply, engineered around the LT3042 topology with integrated PNP current expansion. Achieving ultra-low noise performance at approximately 1μV—substantially superior to traditional regulators—it eliminates AC mains interference entirely. The integrated 4-cell Samsung 21700 battery array (20,000mAh capacity) ensures consistent, artifact-free DC output tailored for discerning applications: high-resolution digital audio transports, precision DAC implementations, sensitive RF instrumentation, and critical measurement equipment. A refined power foundation for uncompromised sonic clarity and operational stability.
Based on the LT3042 chip with PNP current expansion, this unit delivers DC power with near-zero noise (as low as 1μV)—significantly quieter than conventional regulators like LM317/78XX. Powered by 4 Samsung 21700 batteries (20,000mAh total), it provides clean, stable energy free from AC interference, making it ideal for precision instruments, noise-sensitive RF systems, DACs, and digital audio transports. A pure power solution for stable performance and detailed sound.
Features
Ultra-Low Noise Power Output
- Incorporates Linear Technology's premium LT3042 regulator with PNP current boost
- Achieves noise voltage as low as 1μV - 2-3 levels better than conventional LM317/LM78XX regulators
- 1% voltage accuracy for near-zero noise DC power supply
High-Performance Battery System

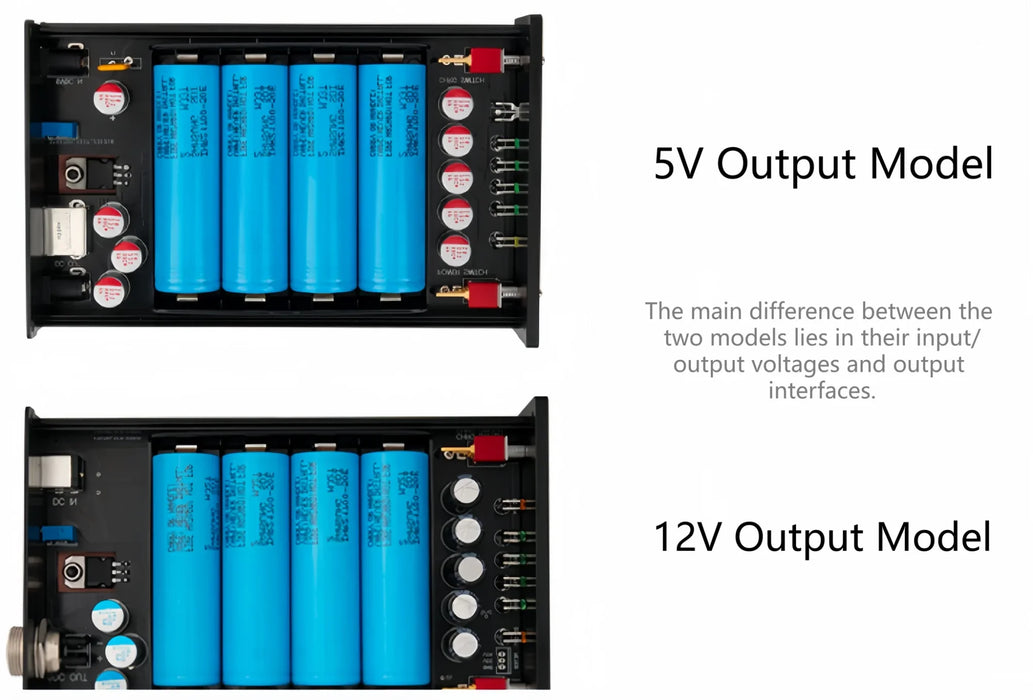

- Equipped with 4 Samsung 21700 lithium cells (5000mAh each)
- Superior volumetric energy density compared to standard lithium batteries
- Battery power completely isolates AC line interference for purest power
Audio-Optimized Performance
- Clean power delivery dramatically improves sound quality
- Eliminates high-frequency harshness caused by current noise
- Expands dynamic range for more stable musical presentation
- Enhances detail retrieval and creates more realistic soundstage
Applications
- High-precision measurement instruments
- Noise-sensitive RF applications
- DAC audio converters
- USB interface devices
- Digital music transports
- Professional mobile power requirements
Specifications
-
Dimensions: 100mm(W)×155mm(D)×47mm(H)
-
Weight: Approximately 0.65-0.72kg (lightweight and portable)
- Included Accessories: 5.5×2.1 DC cable (0.8m)×1, Charging adapter×1

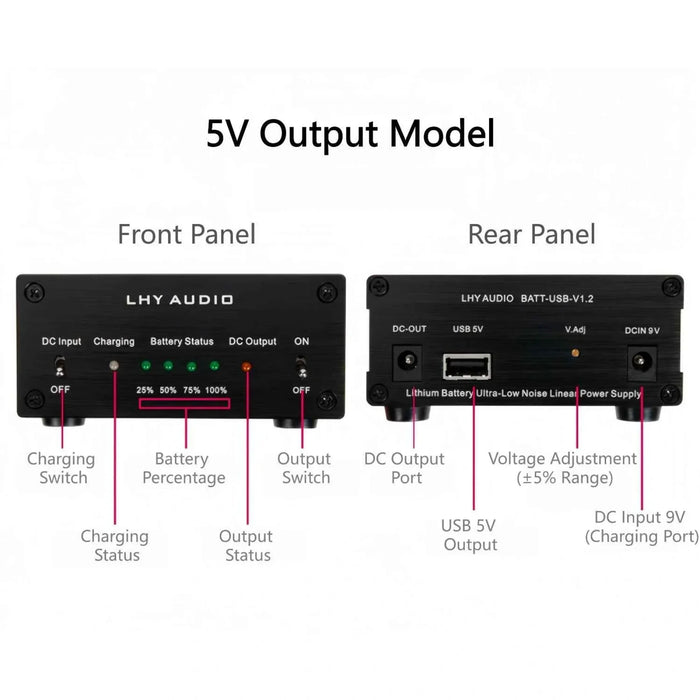

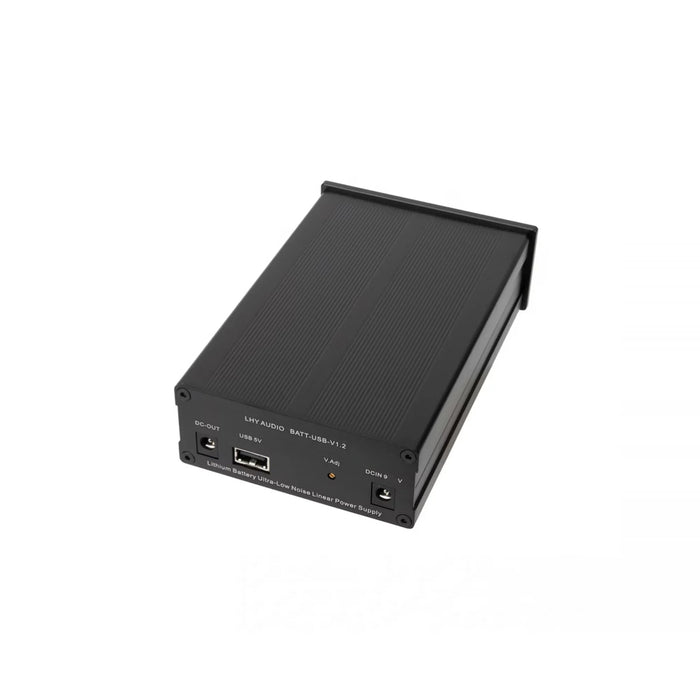

5V Output Version
- Input Voltage: DC9V
- Output: DC5V@2A

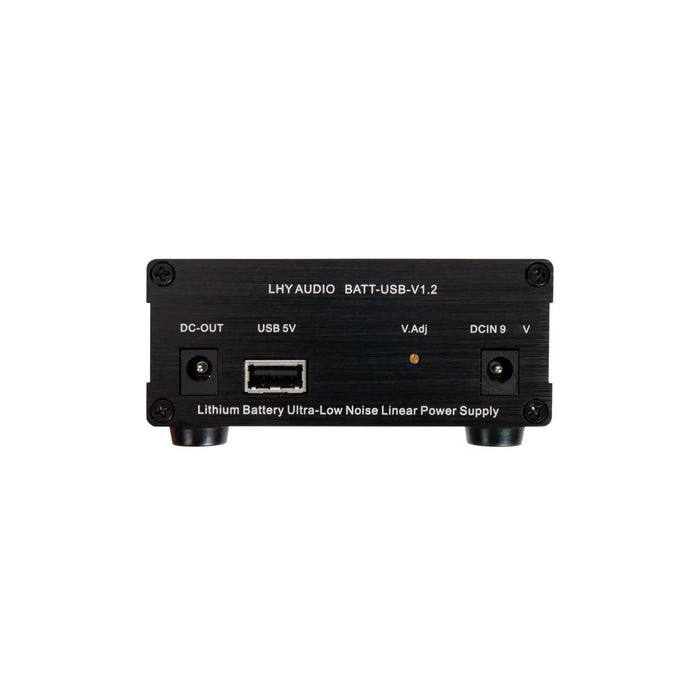

- Output Interfaces: USB + DC5.5mm/2.1mm (center positive) + aviation 2-pin connector
- Runtime: Approximately 7 hours at 1.25A load

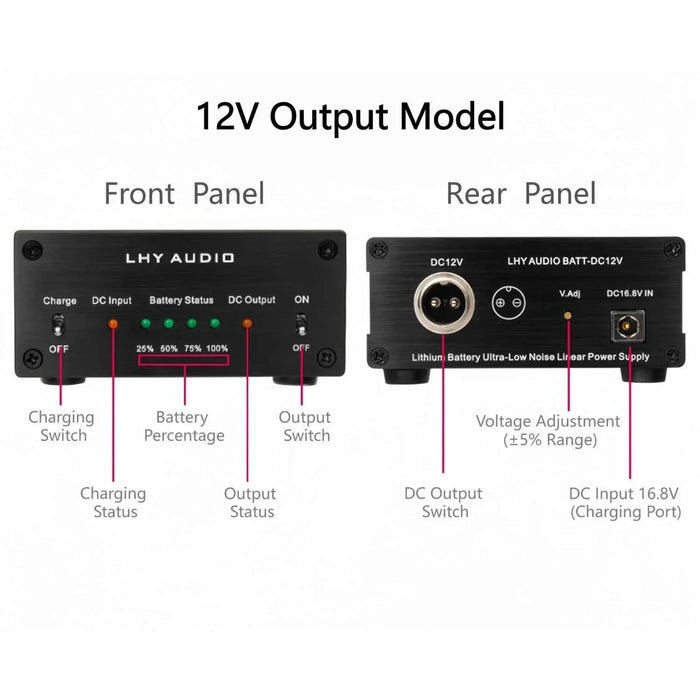

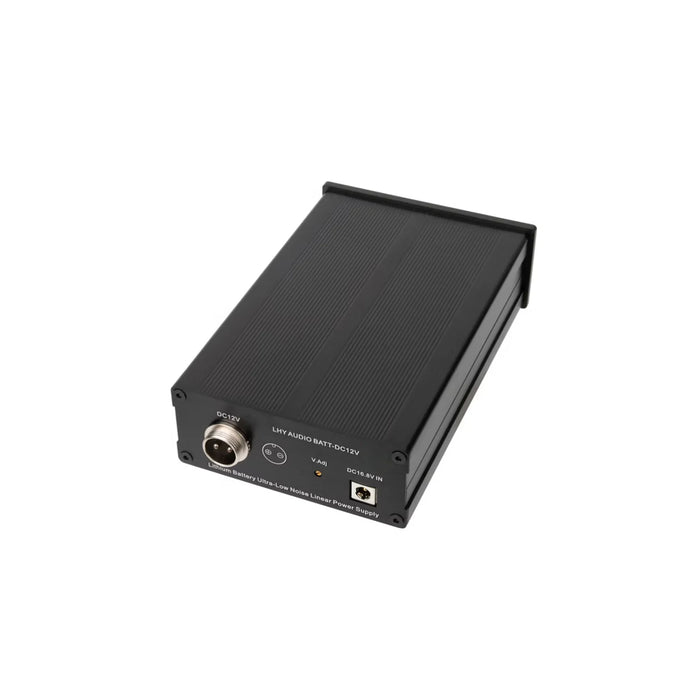

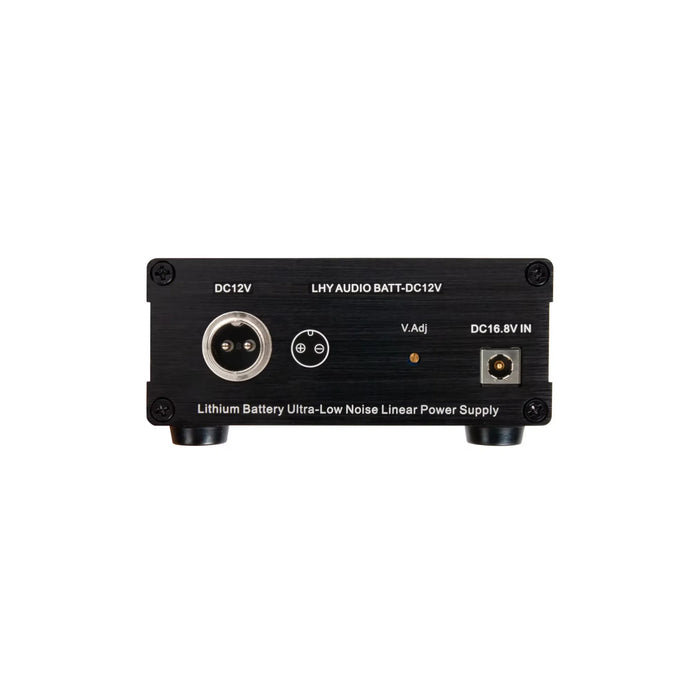

12V Output Version
-
Input Voltage: DC16.8V
-
Output: DC12V@2A
- Runtime: Approximately 2 hours at 2A load
Support
Multiple operation modes supported
-
Off Mode: Both input and output switches off
-
Charging Mode: Input switch on, output switch off
-
Charging with Output: Both switches on
- Battery Output Only: Input switch off, output switch on

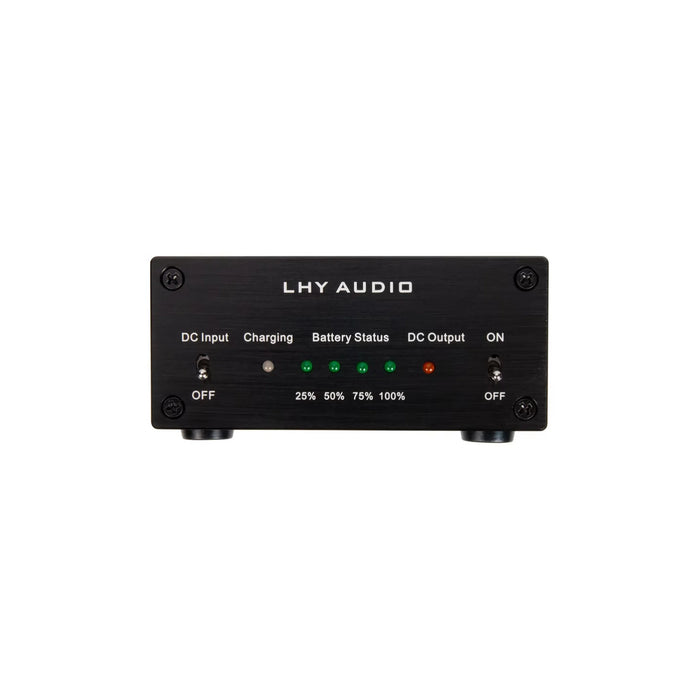

Charging Status Indicators
- Orange LED: Charging in progress
- Green LED: Fully charged
