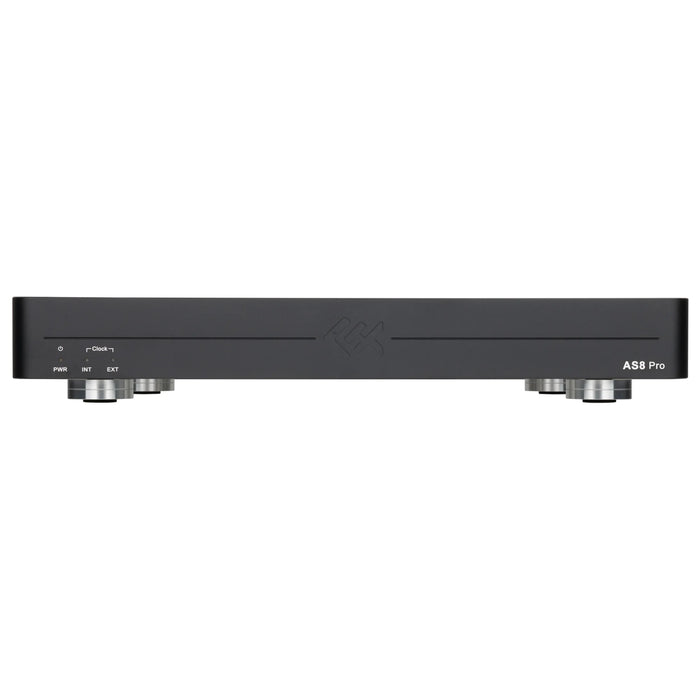

LHY AS8-Pro Audio-grade Network Switch

The LHY Audio AS8-Pro is a flagship-grade network switch specifically designed by LHY Audio for streaming audio scenarios. Unlike traditional network switches, this product is meticulously engineered to meet the requirements of Hi-End audio systems. It includes ultra-low noise linear power supply, reference clock system, 10G/2.5G data zone, 1G audio isolated zone, all focused on delivering the cleanest possible signal to your music streamers, music core or bridge, NAS, Media Servers and Smart TV, simultaneously optimising the performance of each device.

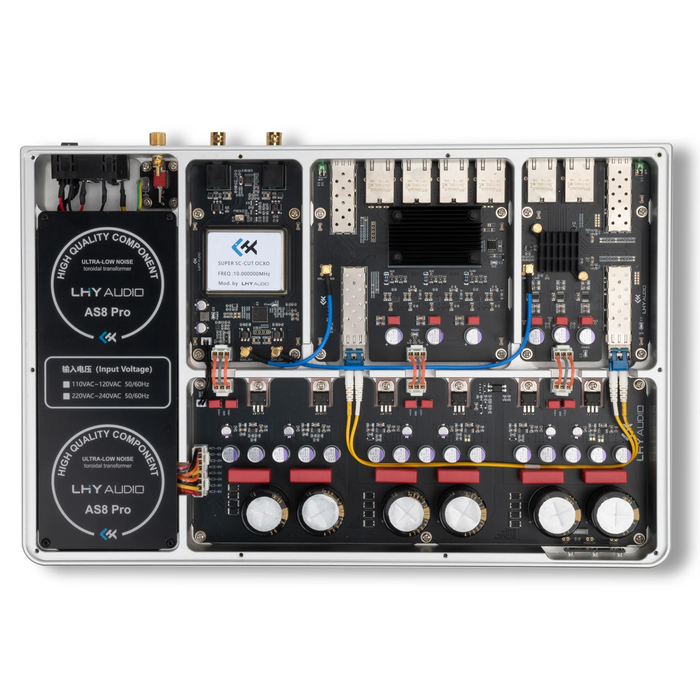

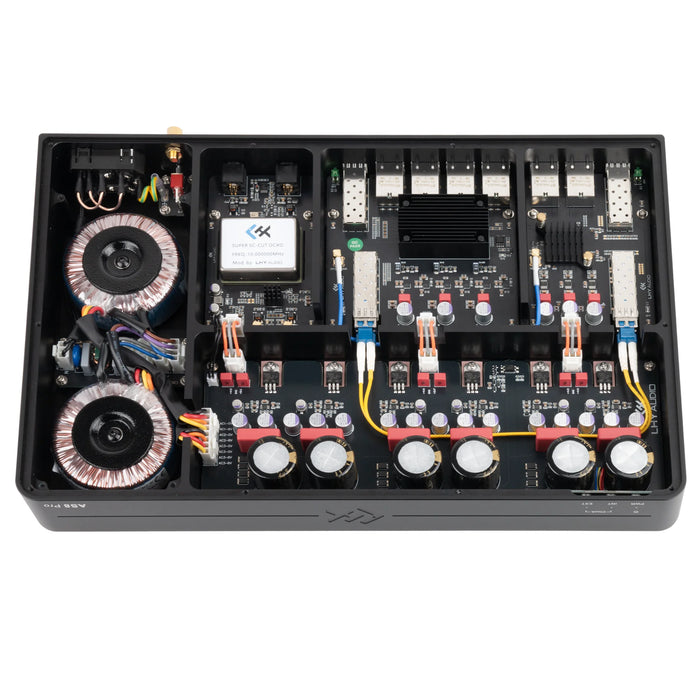

The internal single-mode fiber with optoelectronic isolation links the 2.5G main and 1G audio zones, ensuring an exceptionally pure digital streaming network. It boasts an SC-cut OCXO (-110dBc close-in phase noise) paired with a PLL clock chip, delivering highly accurate synchronous clocking across both zones. Clock I/O ports are included for future enhancements. Power is supplied by dual 50VA Talema toroidal transformers alongside multi-channel μV-level linear DC supplies. The unit is CNC-machined from solid aviation aluminum to minimize resonance and strengthen structural integrity, with circuit isolation to eliminate interference.

Features

• The 2.5G main and 1G audio zones are connected via internal single-mode fiber with optoelectronic isolation, delivering the purest network for digital streaming.

• Features an SC-cut OCXO (-110dBc close-in phase noise) with PLL clock chip, providing precise synchronous clocking for both zones. Includes clock I/O ports for upgrades.
• Equipped with dual 50VA Talema toroidal transformers and multi-channel μV-level linear DC power supplies.

• CNC-machined from solid aviation aluminum to reduce resonance and enhance rigidity.
• Circuits are isolated to prevent interference.
• Custom designed audio hi-fi dedicated gigabit switch motherboard
• Special designed Isolated RJ-45 port

Specifications

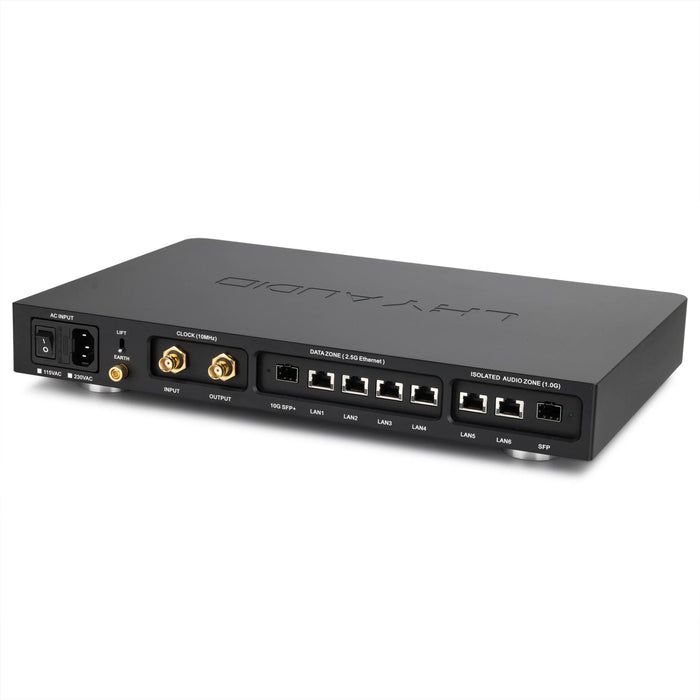

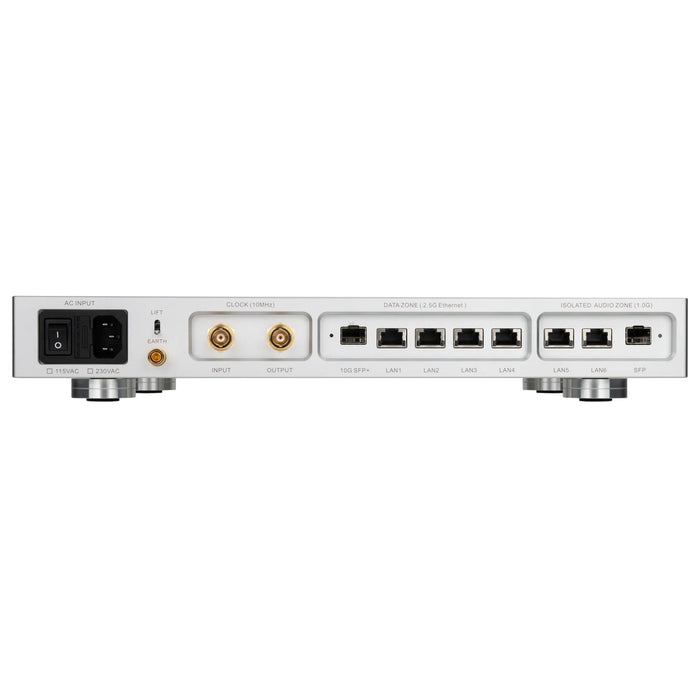

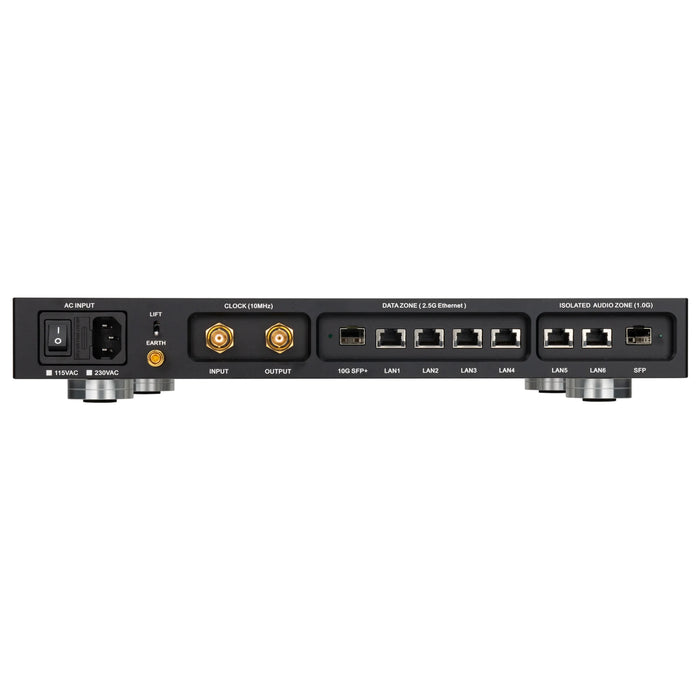

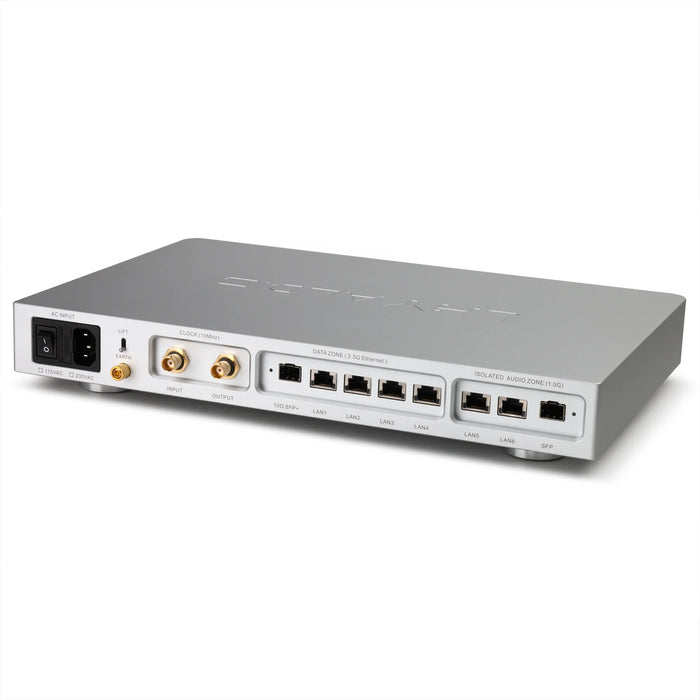

• Main Switching Area
  • 10Gbps SFP/SFP+ x 1
  • 2.5Gbps RJ45 x 4
• Audio Isolation Area
  • 1.25Gbps SFP x1
  • 1000Mbps RJ45 x2
• Clock Section
  • Clock Output AC Coupling:  BNC ×1 (10MHz @ 50Ω square wave, 7dBm / 0.5Vrms)
  • Clock Input AC Coupling: BNC ×1 (10MHz @ 50Ω sine/square wave, 7–14dBm / 0.5–1Vrms)
• Ground
  • Independent Ground Terminal ×1
  • Ground Mode Switch ×1
• Built-in OCXO Specifications
  • Phase Noise (Close-in): -110 dBc @ 1 Hz Offset (Typical)

  • Frequency Stability: < ±5 ppb

  • Frequency Accuracy: < ±0.05 ppm
• Indicator Lights

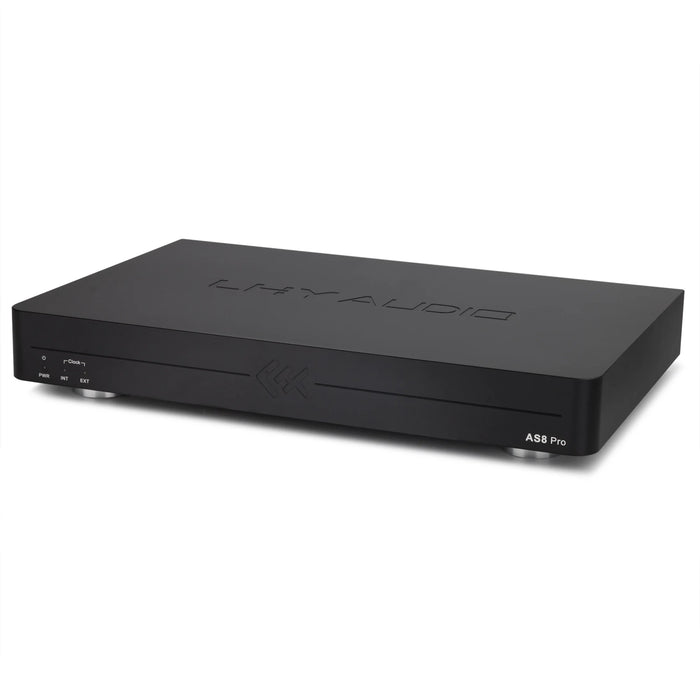

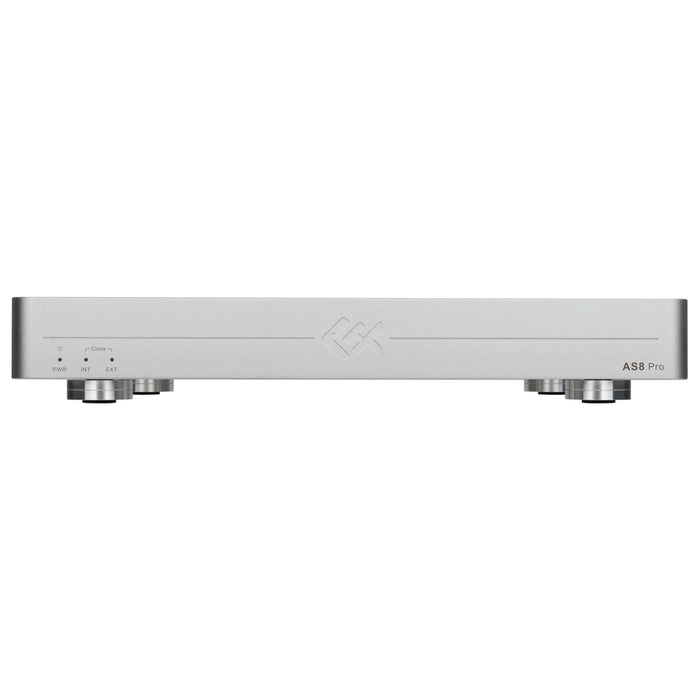

  • Front Panel: 1 Power Indicator Light, 2 Clock Mode Indicator Lights

  • Rear Panel Main Switching Area: Green light: 1000Mbps / 100Mbps, Orange light: 2.5G
  • Audio Isolation Area: Green light: 1000Mbps / 100Mbps, Each port has separate Speed, Link, and Activity indicator lights
• Dimensions 400 x 260 x 60 mm (W × D × H)
• Weight 5.5Kg
• Voltage 220-240VAC
• Power Consumption 18W (Standby) / 32W (Full Load)
• Fuse 5 x 20 mm T1.0AL（220~240VAC）
• Accessories Power cable, Category 6 Ethernet cable, gloves
