LHY AS6 Audio-grade Network Switch - Silver - Ethernet Switch

LHY AS6 Audio-grade Network Switch

by LHY Audio
₹ 98,990 - ₹ 98,990
₹ 98,990
₹ 98,990
₹ 98,990 - ₹ 98,990
₹ 98,990

Taxes & Shipping Included

Color: Silver

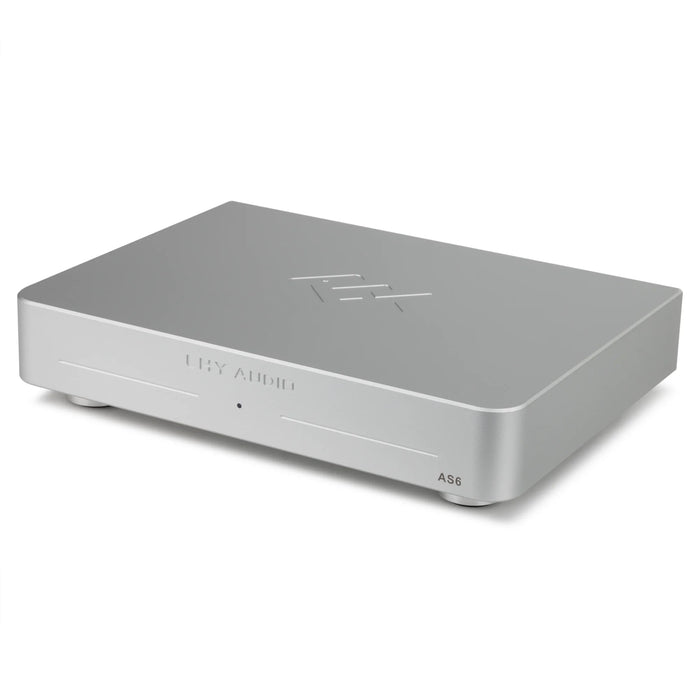

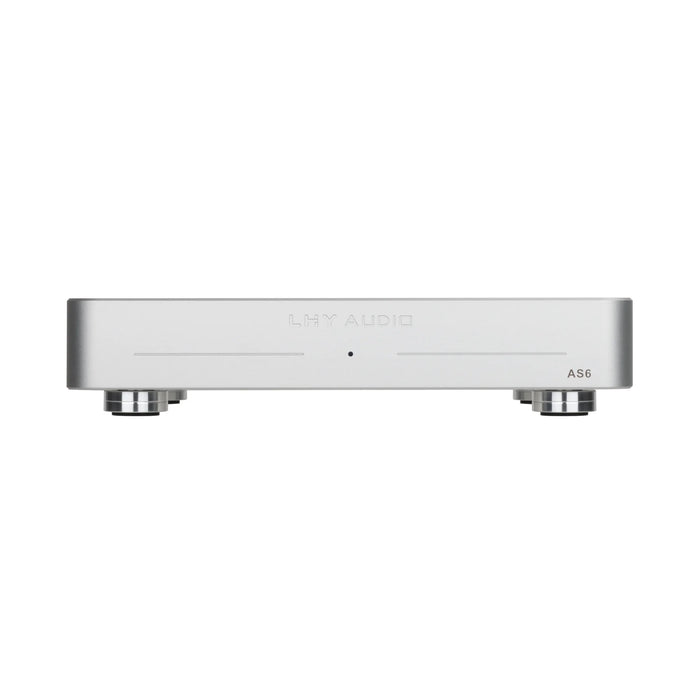

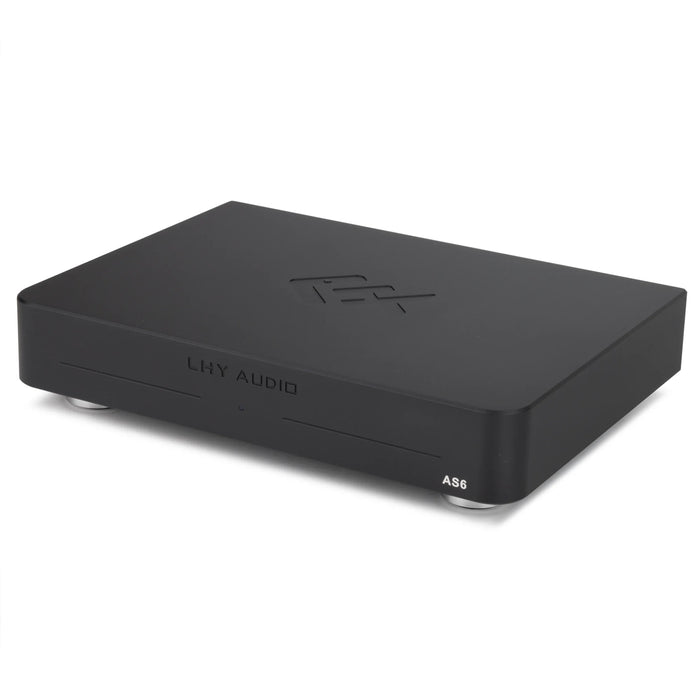

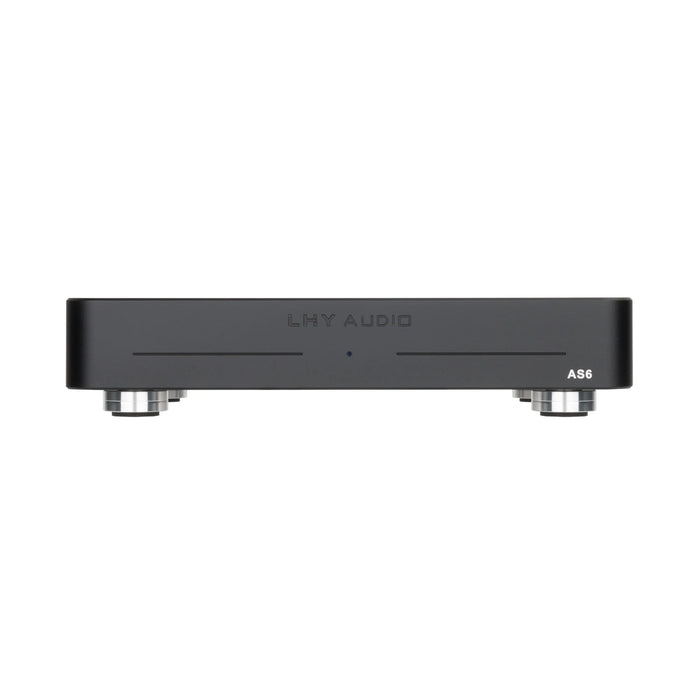

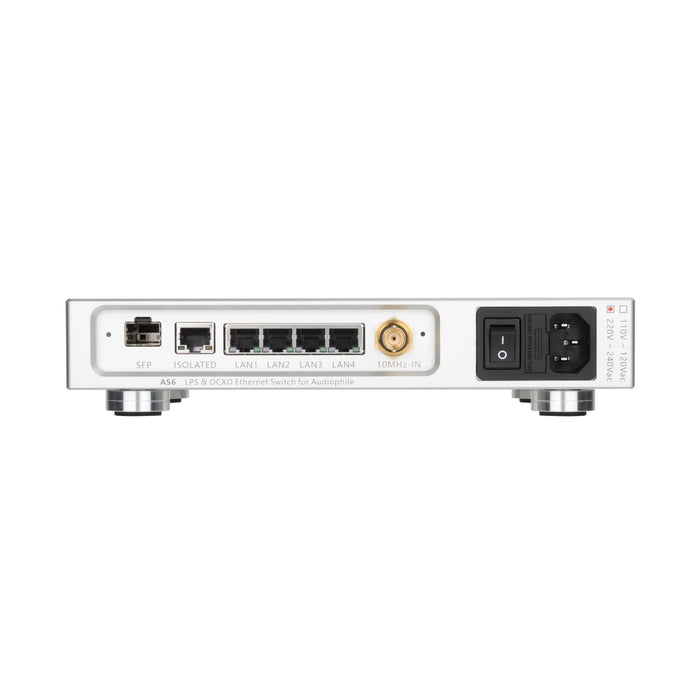

The LHY Audio AS6 represents an advanced iteration of the SW6-SFP audiophile switch, featuring five RJ45 ports alongside one isolated RJ45 port, a fiber optic SFP port, and a BNC Clock input linked to the built-in 10MHz OCXO clock. Encased in a sleek anodized aluminum chassis crafted from a single solid piece, it is engineered to isolate AC and DC current handling from audio signal processing for optimal performance.

The LHY AS6 Audio-grade Network Switch elevates network performance with refined engineering tailored for audiophiles. Building upon the esteemed SW6-SFP design, it offers five RJ45 ports plus one fully isolated RJ45 port to minimize interference, alongside a fiber optic SFP port for enhanced data integrity.

A dedicated BNC Clock input connects to its precise 10MHz OCXO clock, ensuring superior timing accuracy and reducing jitter. Its meticulously crafted anodized aluminum unibody chassis not only delivers elegant aesthetics but also effectively separates AC/DC power handling from sensitive audio signals, resulting in clearer, more transparent sound reproduction in networked audio systems.

Features

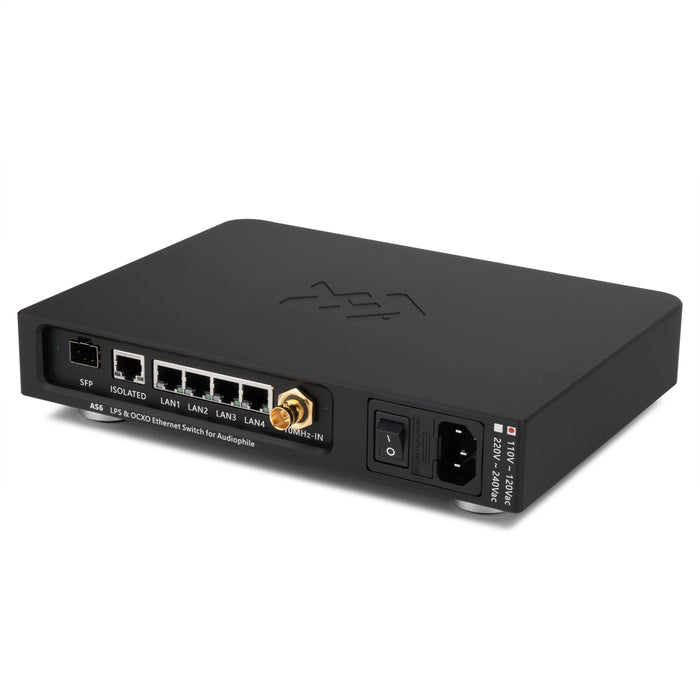

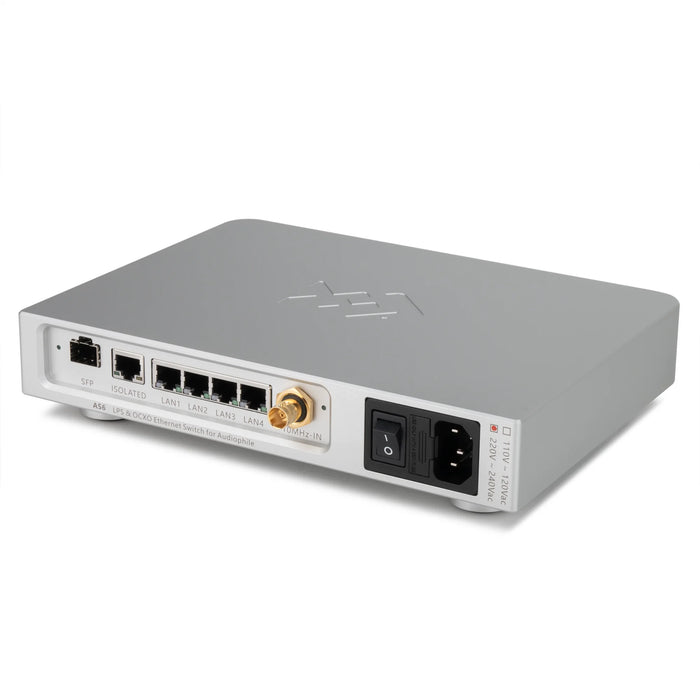

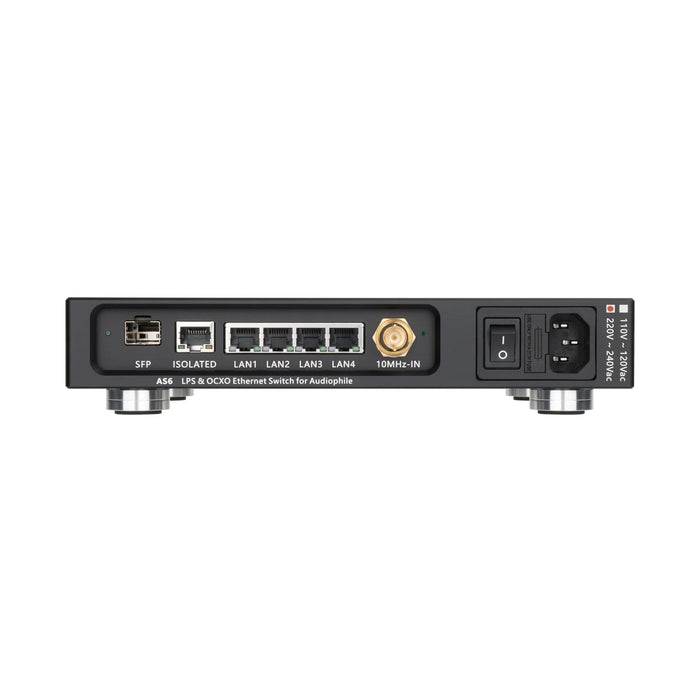

  • Audio-Grade 1.0G Ethernet Switch with 4x RJ45, 1x isolated RJ45 and 1xSFP ports.

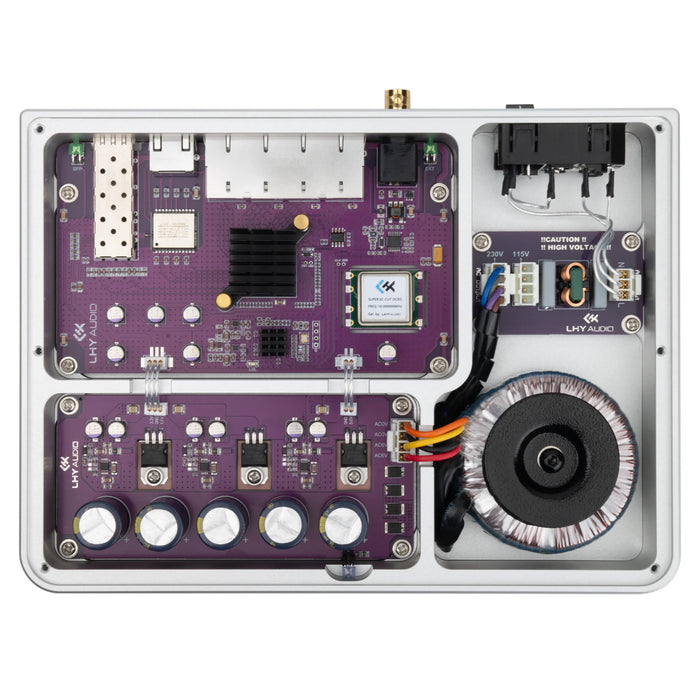

  • Custom designed audio hi-fi dedicated gigabit switch motherboard
  • Special designed Isolated RJ-45 port
  • Ultra-low phase-noise and high precision OCXO clocking
  • High-performance Si5381 PLL circuit
  • 10MHz external clock in BNC socket
  • Ultra-low uV noise level linear regulator circuit
  • AC Transformer: High Quality Noratel 30VA Toroidal Transformer
  • AC EMI Filter and 115/230 voltage selector
  • CNC Aluminum alloy integral CNC hollowed out enclosure separates each different functional circuitry and reduces interference and mechanical
  • 4 x Gigabit Ports RJ-45
  • 1 x Isolated Gigabit Port RJ-45
  • 1 x SFP Port
  • 10MHz Master Clock In
  • Build-in OCXO of Phase Noise -100dBc/Hz (Typical)
  • Ultra-high performance PLL circuitry
  • Noticeable improvement in Clocking precision and lower jitters
  • Master Clock 10MHz Input via BNC connectors (50 ohms)
      Specifications
      • Access Method 10/100Mbps, 10/100/1000Mbps
      • Standards IEEE 802.3, 802.3u, 802.3x
      • Transmission Distance
        • Multimode fiber: 2 km
        • Single-mode fiber: 3 km ~ 120 km
        • CAT5/6 twisted pair cable: 100 m
      • Performance
        • Full line-rate forwarding for 64-byte frames
        • 1000M port: 1.488 Mbps
        • 100M port: 0.1488 Mbps
        • 10M port: 0.01488 Mbps
      • Bandwidth 10 Gbps (non-blocking)
      • SFP Port Maximum distance is 550 m at 1.25 Gbit/s Gigabit Ethernet speed, or 150 m at 4.25 Gbit/s Fibre Channel speed.
      • Fuse T1.0A 250V，5x20mm
      • Conversion Method Media conversion, store-and-forward / cut-through
      • Flow Control Full-duplex mode: Flow control Half-duplex mode: Backpressure method
      • Power Consumption Standby: 5W, Operating: 7–10W
      • Voltage 220~240 VAC
      • Ports 1 x RJ45 (ISO) port, 1 x SFP port
      • Dimensions 150 × 175 × 50 mm (W × D × H)
      • Weight 1.5kg
      • Chassis CNC-machined aluminum alloy chassis
      Support
      About

      LHY Audio has built a reputation among audiophiles for high-end, audiophile-grade components and accessories for home audio systems. A subsidiary of Jay's Audio, the company focuses on designing and manufacturing precision-engineered solutions aimed at improving the sound quality of digital audio systems. LHY Audio's products are extremely popular with discerning audio enthusiasts and DIY hobbyists who are looking to upgrade their digital audio experience.
