Lehmann Phonolith Phono, Preamplifier and Headphone Amplifier
Taxes & Shipping Included

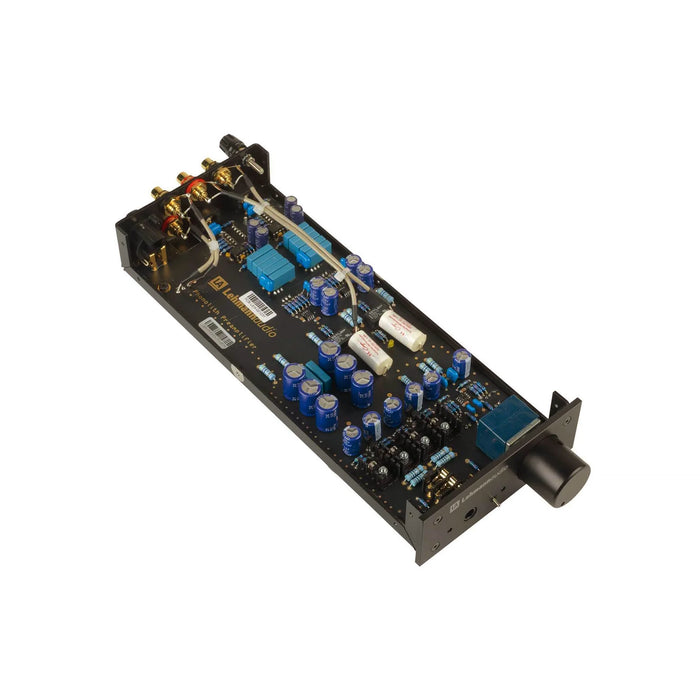

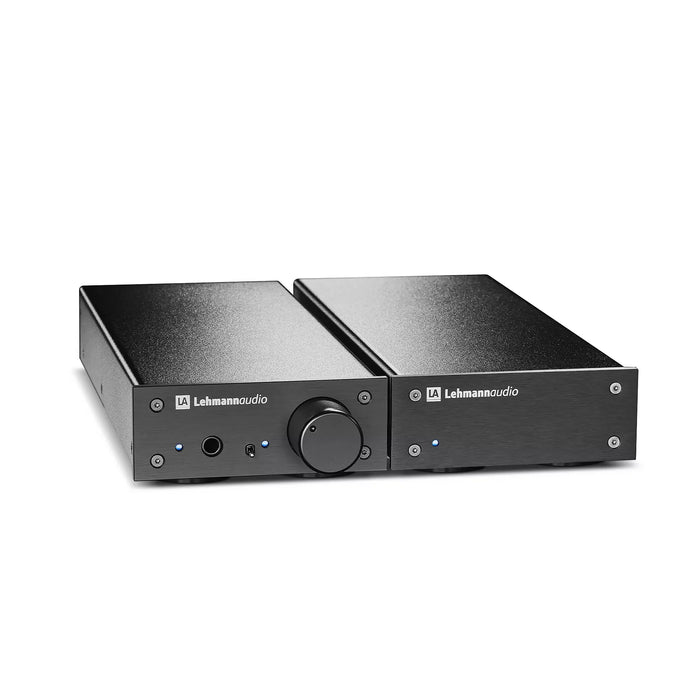

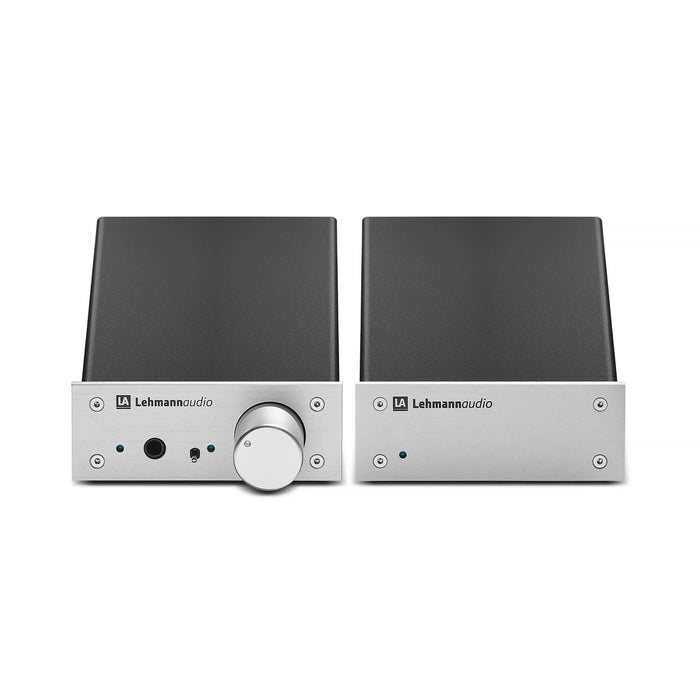

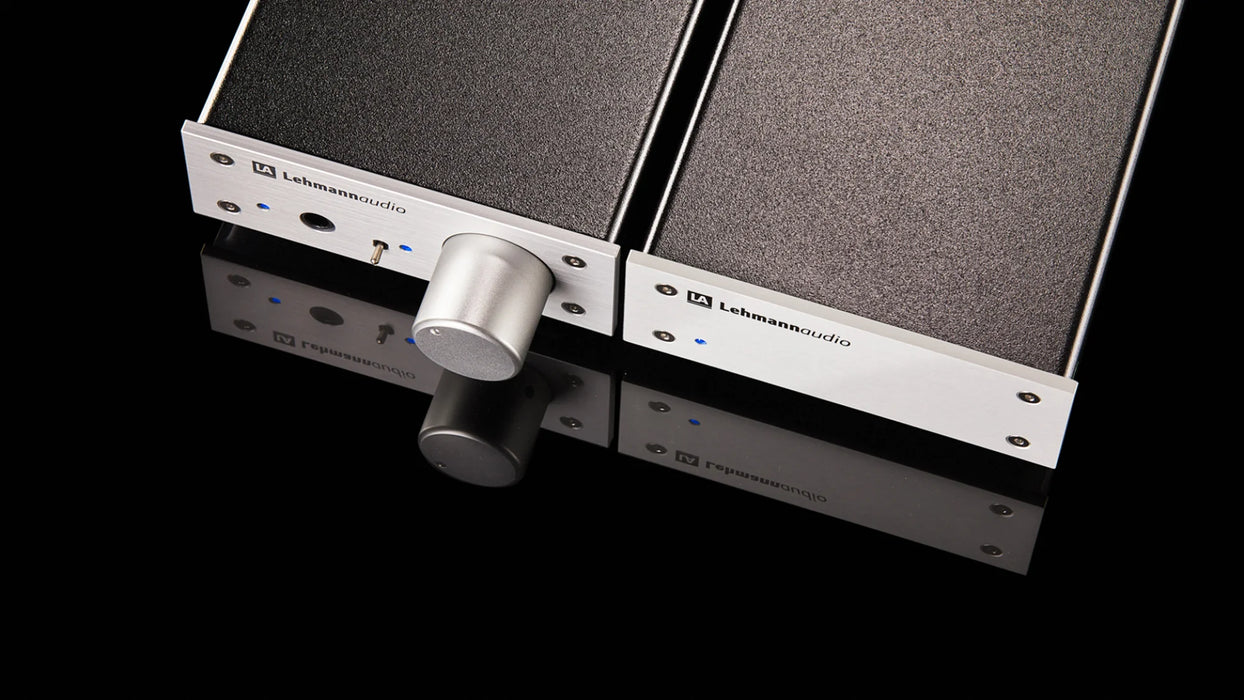

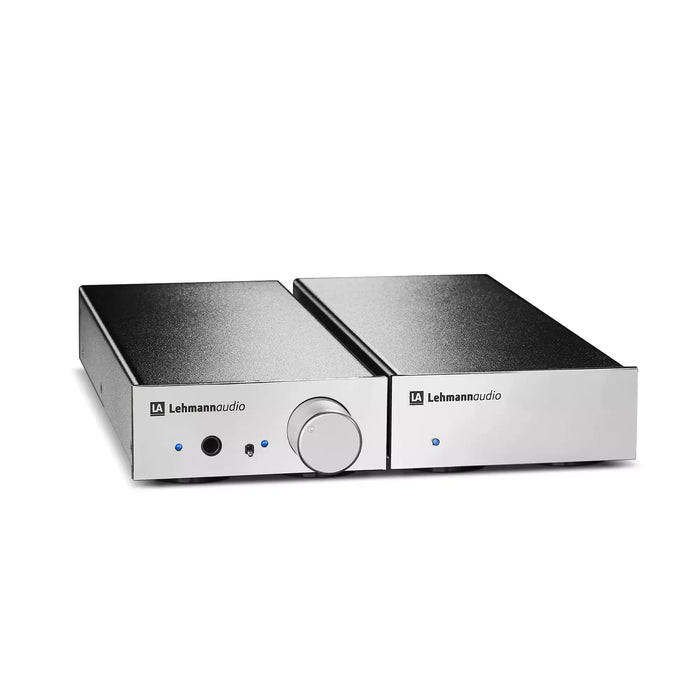

The Phonolith combines an enormously ambitious phono preamplifier, a top-class preamplifier and a reference headphone amplifier in one device. The form factor is unobtrusive, the audio performance leaves nothing to be desired.
The development in the hi-fi sector is clear: streaming dominates - and the vinyl record is holding its own with sales figures that have been growing for years, newly built pressing plants and a constantly growing, enthusiastic circle of fans. Other playback sources are steadily losing importance. At the same time, the demands on hardware quality and audio quality by discerning customers are increasing. Lehmannaudio is responding to this trend with the new Phonolith.
The phono preamplifier section in the Phonolith is equipped with extensive setting options for the impedances and four different gain settings for connecting practically all commercially available cartridges. An additional adjustable filter with three selectable cut-off frequencies can ensure silence in the bass range if necessary.
Headphone amplifiers are Lehmannaudio's second domain alongside phono stages. Internationally renowned mastering studios and sound engineers, e.g. at the legendary Bauer Studios, have been using Lehmannaudio devices for many years to reliably assess their own work. The headphone output is at the highest level that Lehmannaudio has been offering so far. Even insensitive headphones will perform at their best thanks to the Phonolith's adjustable output gain.
The Phonolith's preamplifier output effortlessly drives long cable runs and can be connected to any active speakers or power amplifiers - e.g. the Lehmannaudio Stamp.

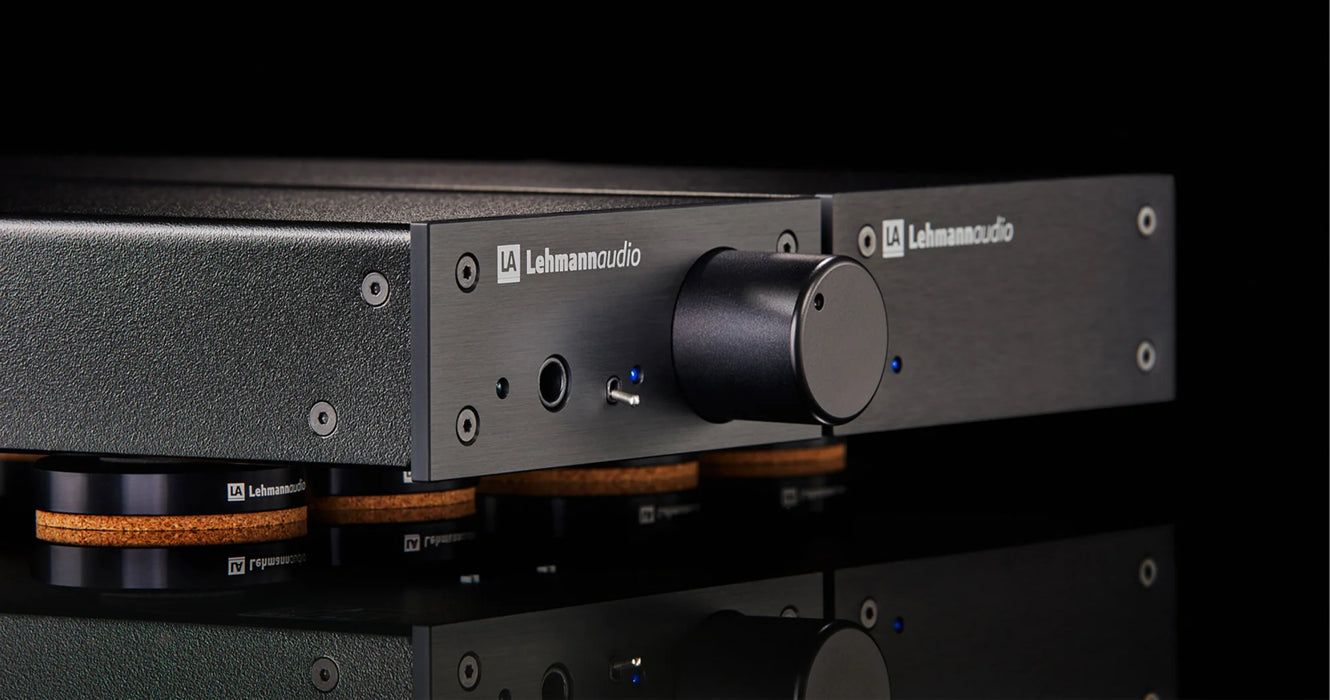

Both the Phonolith audio section and the PWX II LZ stand on Lehmannaudio's own 3S feet, which reliably absorb parasitic resonances.
Features
- Separate inputs for phono and line level sources
- Compatibility for MM and MC cartridges
- Extensive customisation settings in the phono stage
- Pre output for connecting to a pair of active speakers or a power amplifier
- High-quality headphone stage

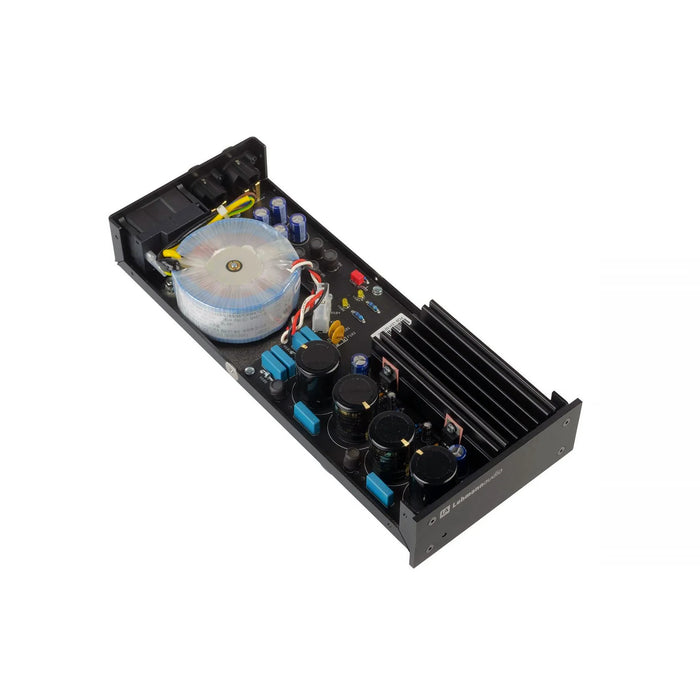

- Separate PWX II LZ power supply
- Both the main unit and the power supply sit on Lehmannaudio 3S isolation feet
- Made in Germany
Specifications
| Phono preamplifier | |
| Input impedance | 47 kohms, 1 kohms, 390 ohms, 100 ohms and intermediate positions selectable via DIP switch, slot for selectable impedance |
| Gain | 36 dB, 46 dB, 56 dB, 66 dB |
| Bass filter | 7 Hz, 32 Hz, 50 Hz, 78 Hz selectable via DIP switches |
| Channel separation | >70dB |
|
High level |
|
| Input impedance | 47 kohms |
| Maximum gain | 0dB, 10dB, 20 dB selectable via DIP switches |
| Maximum output voltage | 9V eff. |
| Output impedance pre out | 50 ohms |
|
Headphone output |
|
| Output power | 400 mW/60 ohms 200 mW/300 ohms |
| Output impedance | 5 ohms |

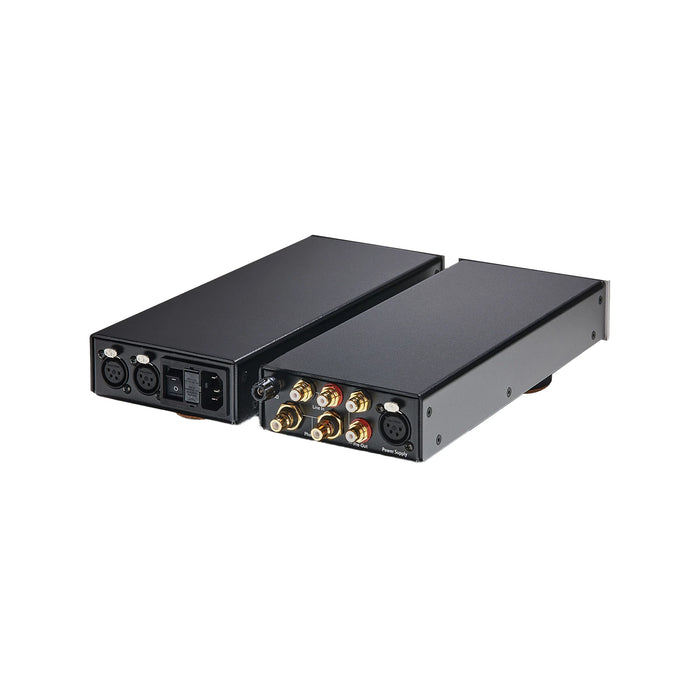

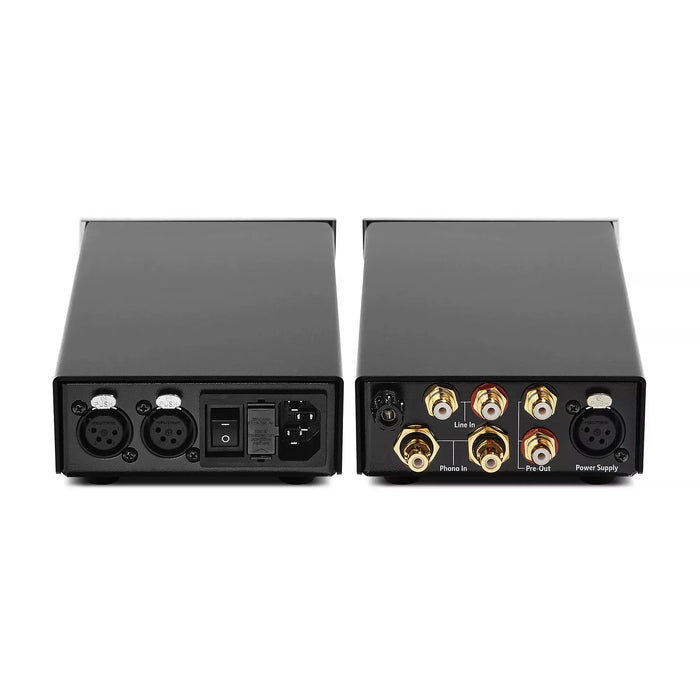

| Connectors audio | 1x Phono In stereo, RCA gold-plated GND 1x High Level In stereo, gold-plated RCA 1x Pre Out Stereo, gold-plated RCA 1x Neutrik stereo headphone jacks 6.3mm with gold plated contacts |
| Mains voltage | 240 V AC |
| Power consumption | 13 W |
| Outer dimensions Audio W x D x H | 110 mm x 280 mm x 50 mm |
| Outer dimensions power supply W x D x H | 110 mm x 280 mm x 50 mm |
| Weight complete incl. connection cable | 2.8 kg |
