Leben RS-30EQ - Audiophile Phono Preamp

by Leben
Original price ₹ 280,000 - Original price ₹ 280,000
Original price ₹ 280,000
₹ 280,000
₹ 280,000 - ₹ 280,000
Current price ₹ 280,000

Taxes & Shipping Included

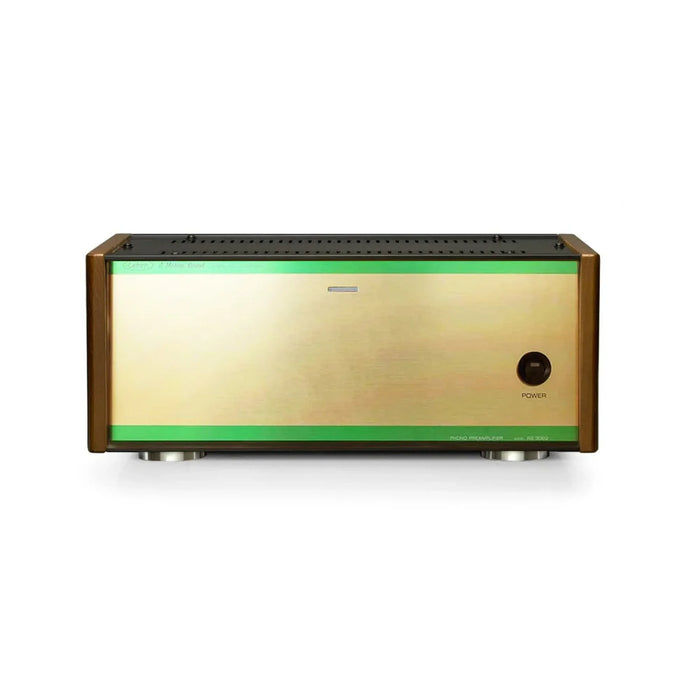

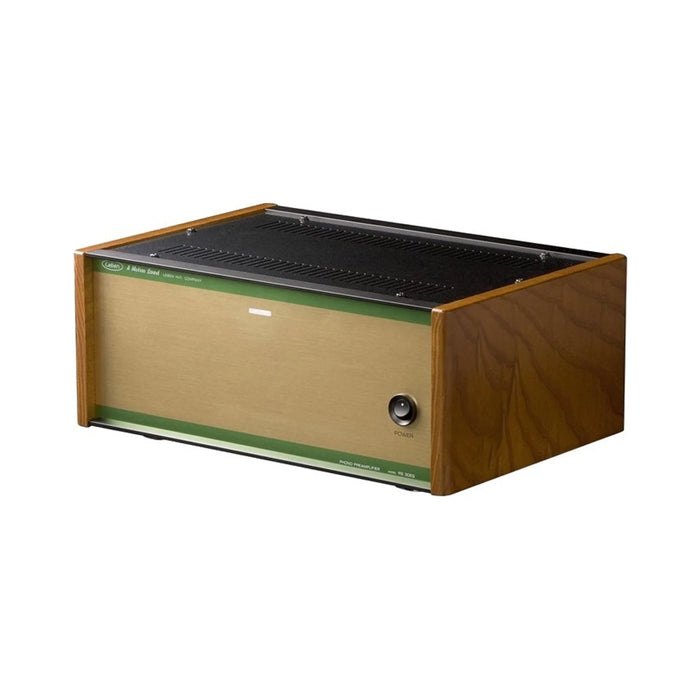

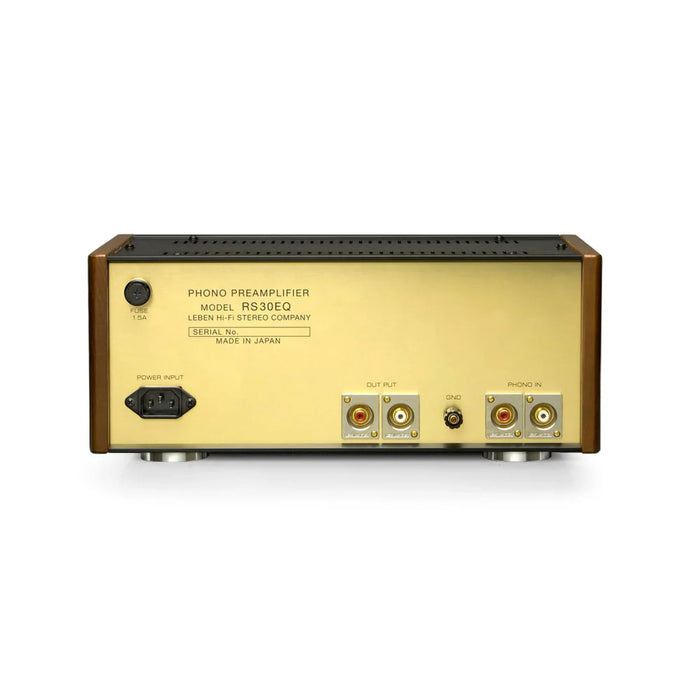

The Leben RS-30EQ is equipped with the CR-type equalizer based on GE (General Electric/USA) 12AT7 authorized by J.A.N.(Joint Army & Navy) standard of the US Army, and can reproduce a very high quality and clear sound without adding any NFB.

To avoid compromising sound quality using the NFB type, one of the solutions we adapted to completely protect the sensitive CR type equalizer was to originally develop for RS-30EQ a high quality "Orient-Core" power transformer perfectly shielded to shut-down hum noise from the transformer perfectly. We have also selected the finest available high-end audio components to keep the deflection of the RIAA curve below +/-0.2%.

Specifications

TUBE COMPLIMENT JAN 12AT7A (G.E.) X 2
6X5GT (G.E.) X 1
GAIN 23.5dB
RIAA CURVE Less than +/-0.2%
INPUT IMPEDANCE 47 Kohm(Normal)
MAX. INPUT 400mV (2KHz.)
OUTPUT VOLTAGE 175mV
POWER CONSUMPTION 17W
WEIGHT 6.0 kg
DIMENSIONS 340(W) x 140(H) x 240(D) mm
ATTACHMENT Power Cord



The Leben RS-30EQ is equipped with the CR-type equalizer based on GE (General Electric/USA) 12AT7 authorized by J.A.N.(Joint Army & Navy) standard of the US Army, and can reproduce a very high quality and clear sound without adding any NFB.

To avoid compromising sound quality using the NFB type, one of the solutions we adapted to completely protect the sensitive CR type equalizer was to originally develop for RS-30EQ a high quality "Orient-Core" power transformer perfectly shielded to shut-down hum noise from the transformer perfectly. We have also selected the finest available high-end audio components to keep the deflection of the RIAA curve below +/-0.2%.

Specifications

TUBE COMPLIMENT JAN 12AT7A (G.E.) X 2
6X5GT (G.E.) X 1
GAIN 23.5dB
RIAA CURVE Less than +/-0.2%
INPUT IMPEDANCE 47 Kohm(Normal)
MAX. INPUT 400mV (2KHz.)
OUTPUT VOLTAGE 175mV
POWER CONSUMPTION 17W
WEIGHT 6.0 kg
DIMENSIONS 340(W) x 140(H) x 240(D) mm
ATTACHMENT Power Cord
