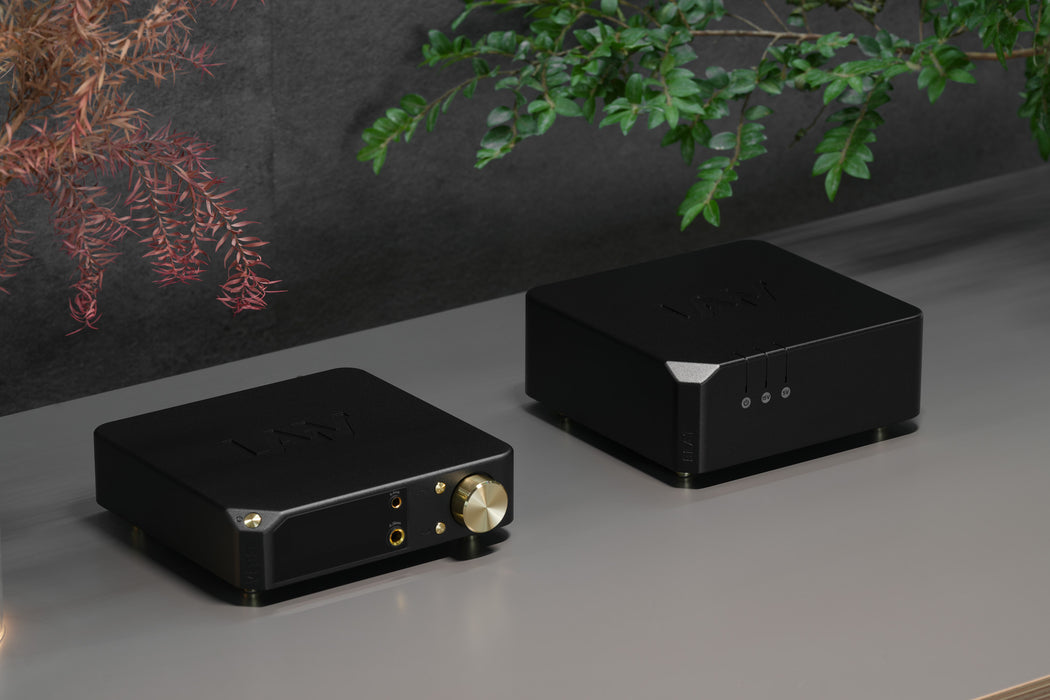

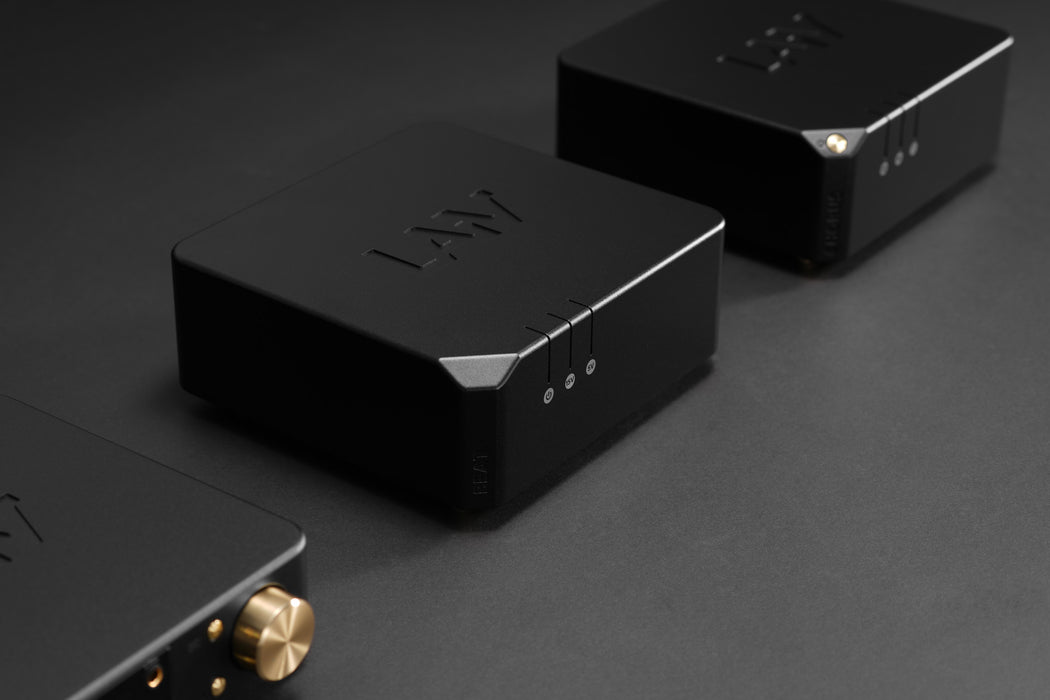

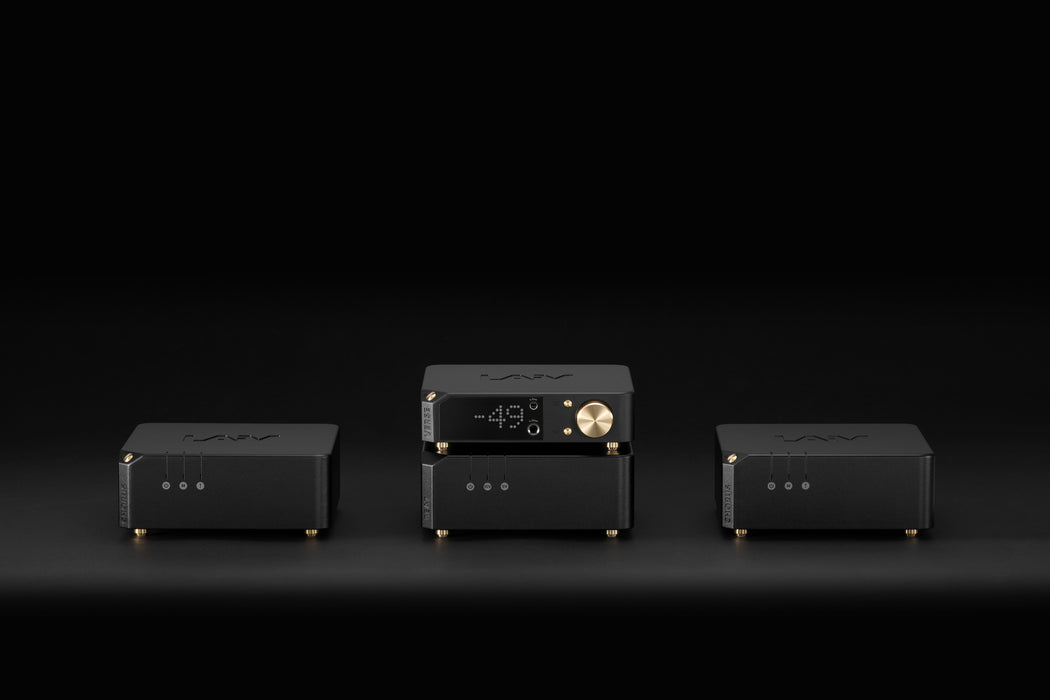

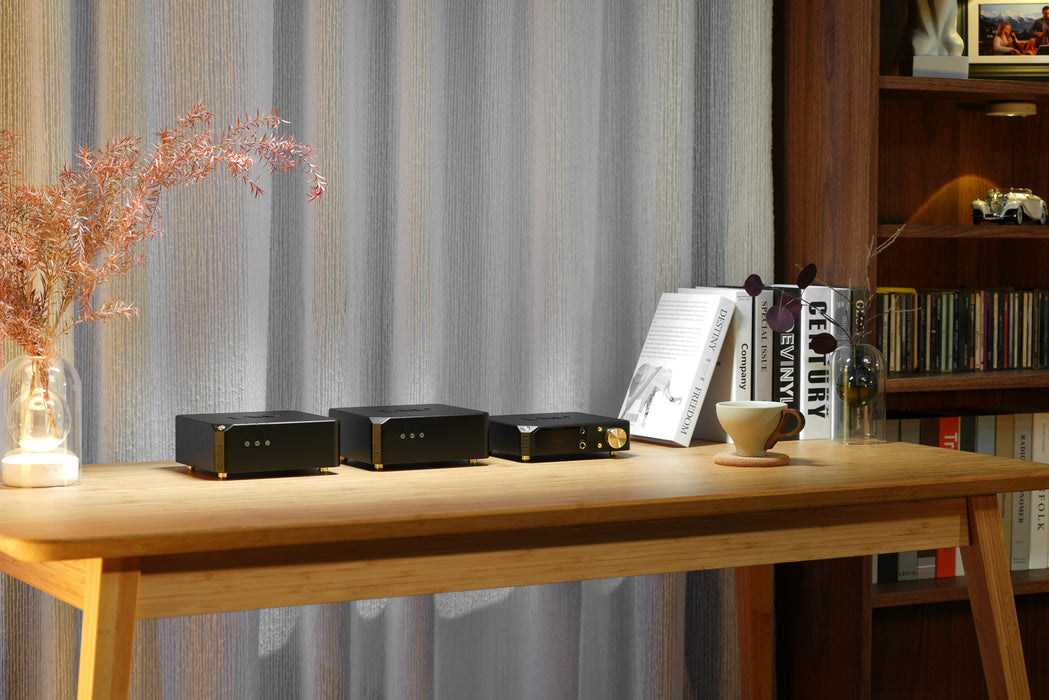

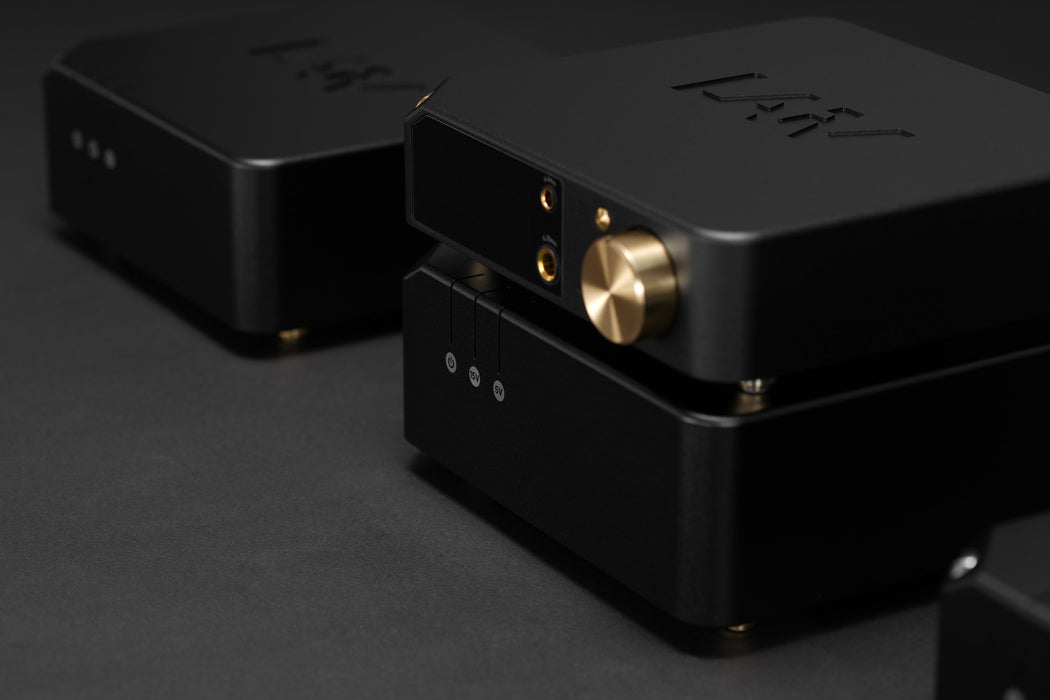

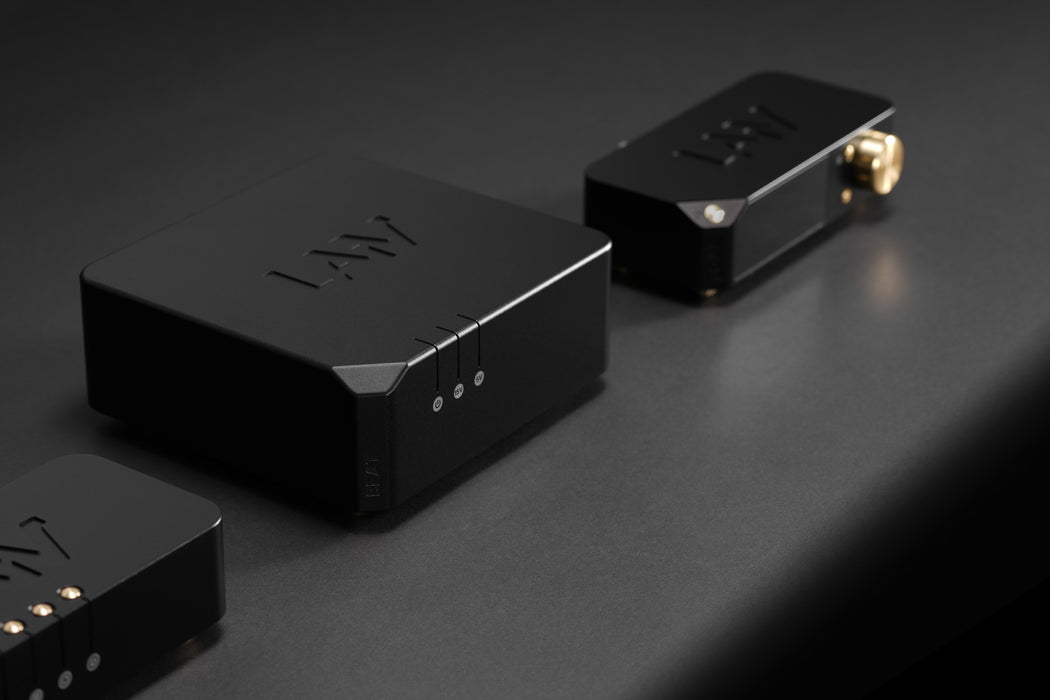

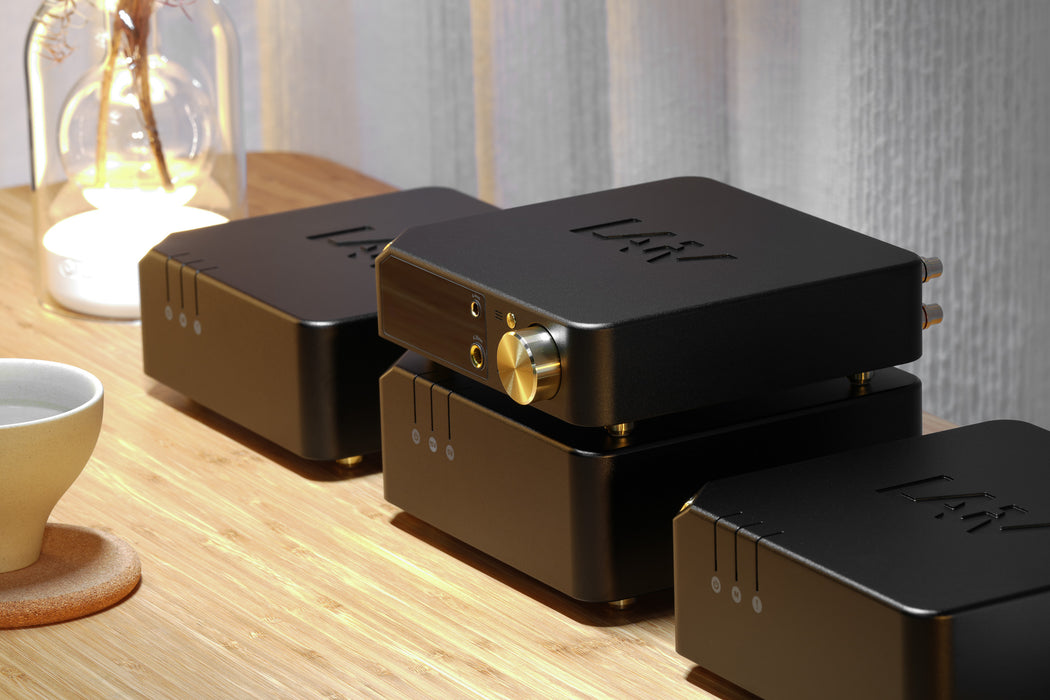

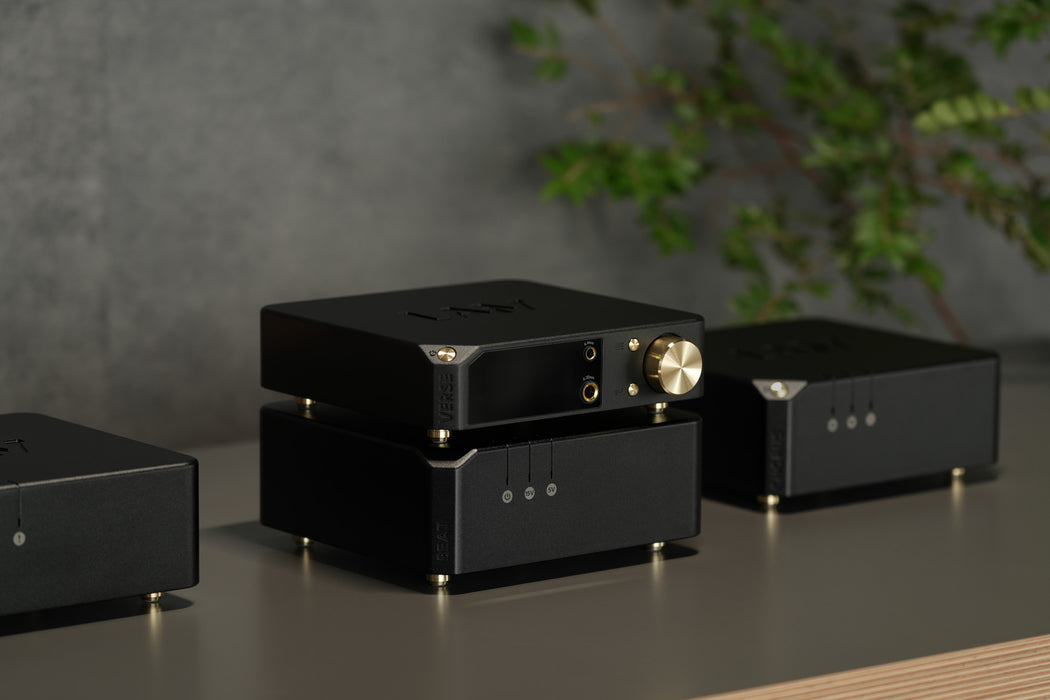

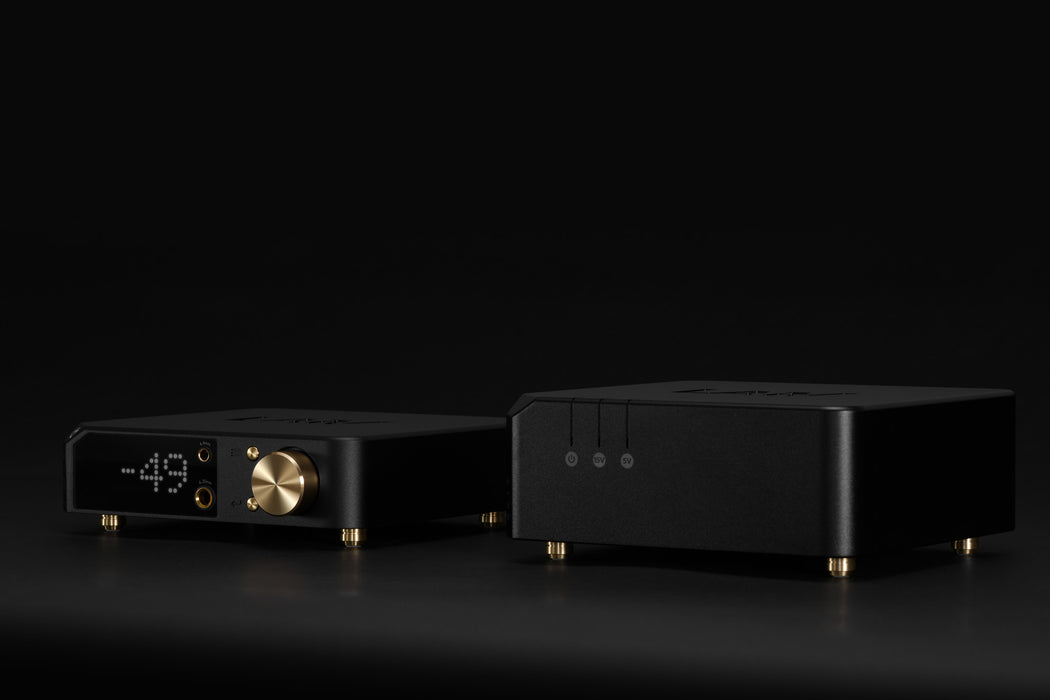

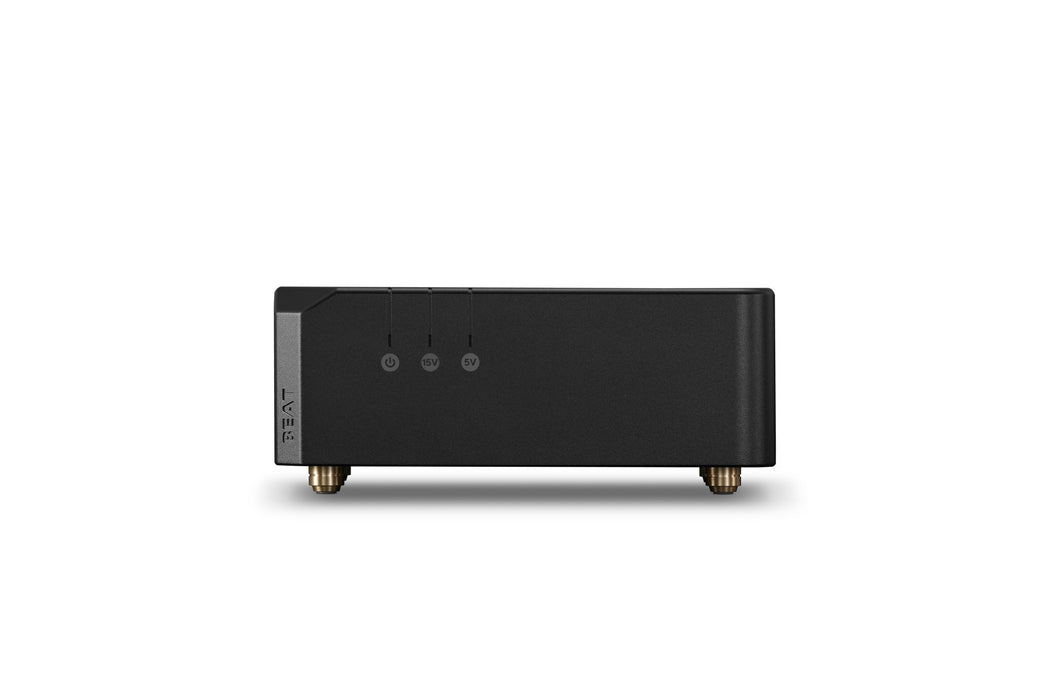

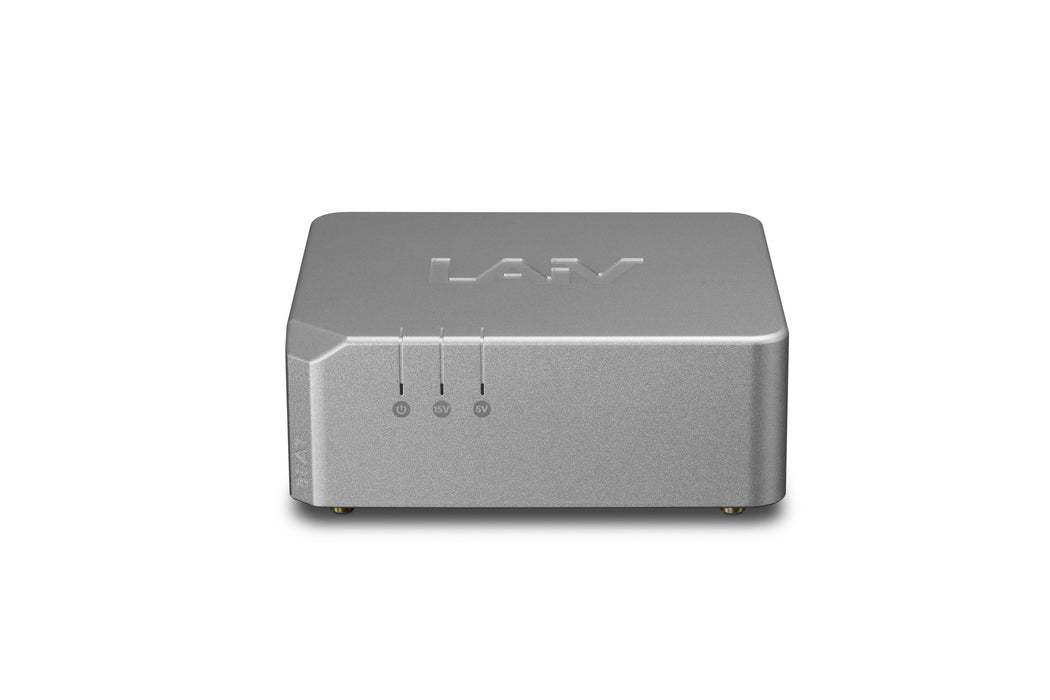

LAiV Crescendo BEAT Dual-Output Power Supply
Taxes & Shipping Included
In an era where digital audio precision is often bottlenecked by the raw electricity feeding it, Singapore’s LAiV has introduced a compelling antidote to the tyranny of noisy switch-mode power supplies: the Crescendo BEAT. This dual-output linear power supply isn’t merely an accessory; it is a foundational upgrade designed to squeeze every ounce of dynamic range and sonic blackness from high-end audio front-ends. By delivering simultaneous, ultra-low-noise 5V and 15V rails from a single, fanless aluminium chassis, the BEAT bridges the gap between raw mains power and pure musical expression, positioning itself as a vital pulse point for both dedicated LAiV stacks and ambitious third-party setups alike.
Why linear power matters
A linear power supply is quieter than a switch-mode adapter because it never chops the mains at high frequency in the first place. Switch-mode adapters are everywhere because they are cheap, not because they are quiet.
A toroidal transformer, careful rectification, generous filtering, and two-stage linear regulation: power that behaves like a still surface, so your components reveal what is actually in the music.

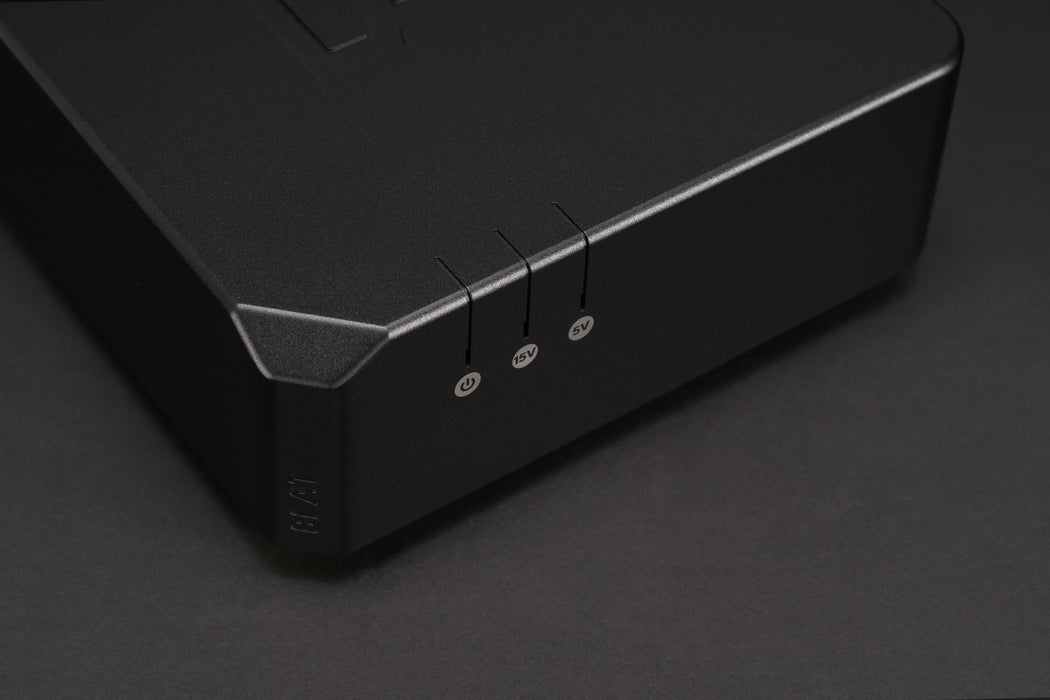

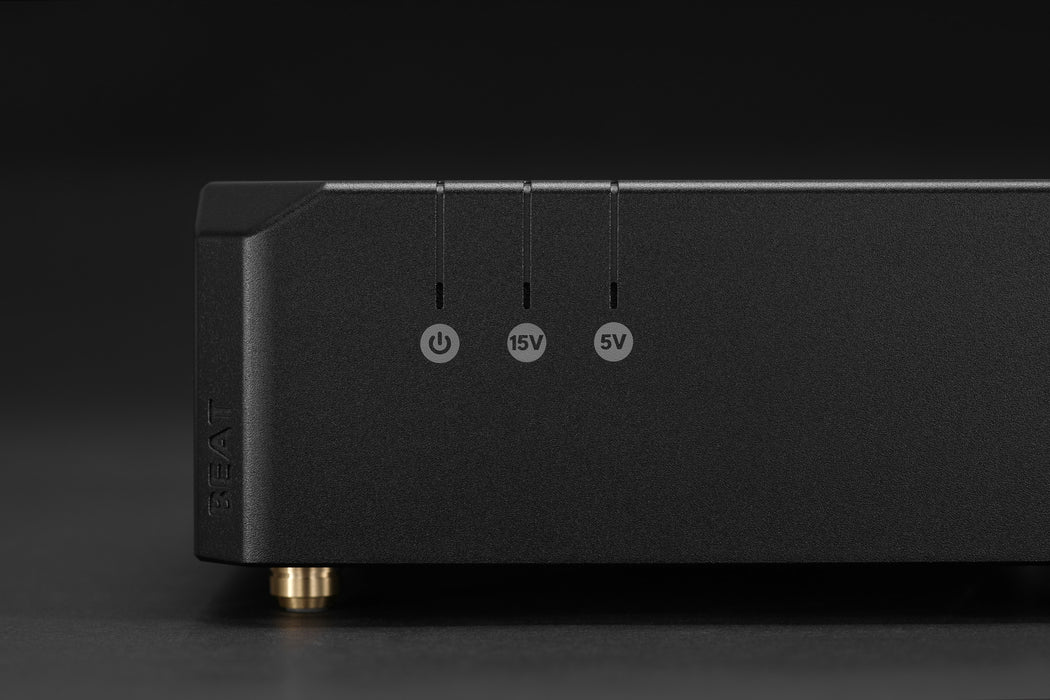

Two rails. Both always on.
The Crescendo BEAT powers two components at once: a 15V output at 2A and a 5V output at 3A, both live simultaneously. Each voltage is fixed rather than adjustable, a deliberate choice: a rail designed for exactly one voltage delivers that voltage best.
Regulated twice, so noise never arrives once
A first stage takes the raw rectified supply and absorbs mains ripple and load swings, then hands an already-clean rail to a second, low-noise stage that does the fine polishing. Each stage multiplies the other’s rejection. Noise that survives the first stage does not survive the second.
Built the traditional way, on purpose

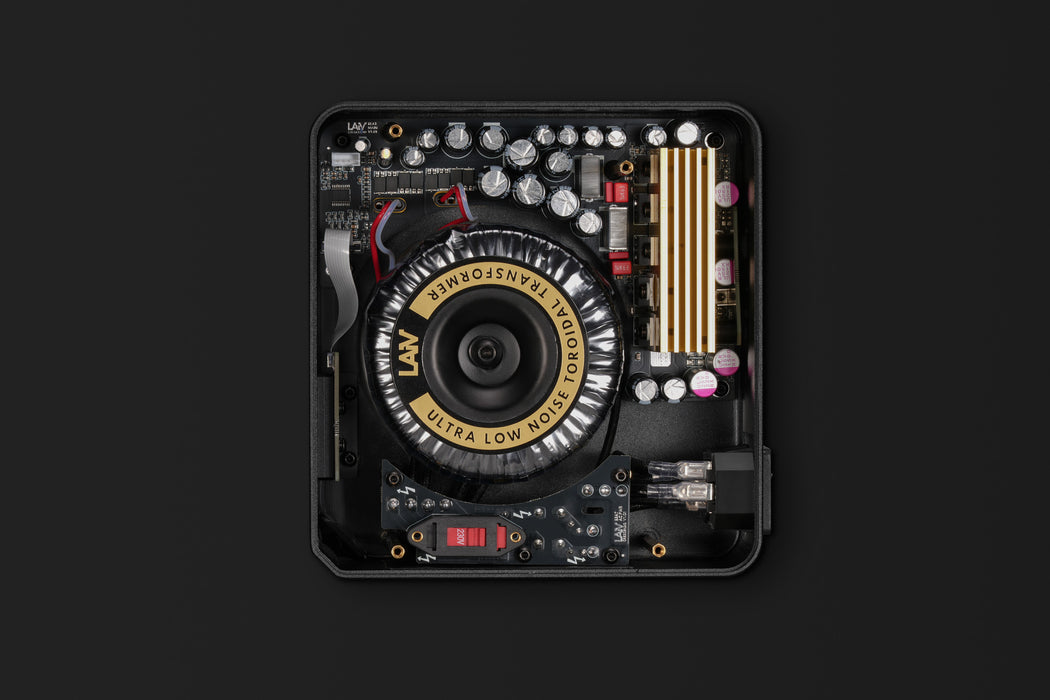

A 70VA toroidal transformer, Schottky rectification, nearly 18,000µF of filter capacitance, and two-stage linear regulation. No fans, no shortcuts. The aluminium chassis runs silent and cool.
Over-current, over-voltage, over-temperature, and short-circuit protection are all built in. A selector on the underside switches the mains between 100-127V and 220-240V, so it works wherever your system lives.
Quiet, measured honestly
Output noise measures at or below 10µVrms with no load and at or below 50µVrms at full load, with ripple rejection above 82dB. We quote both figures because that is how real systems work: your gear draws real current, and the BEAT stays quiet while delivering it.
Features
- Two rails, both always on 15V at 2A and 5V at 3A, live simultaneously. One BEAT powers two components
- Built the traditional way 70VA toroidal transformer, Schottky rectification, nearly 18,000µF of filtering
- Regulated twice Two-stage linear regulation on each rail. Noise that survives the first stage does not survive the second
- Protected from the unexpected Over-current, over-voltage, over-temperature, and short-circuit protection built in.
Specifications
- Outputs 15V at 2A and 5V at 3A, both active simultaneously
- Output noise ≤ 10 µVrms no load / ≤ 50 µVrms full load
- Ripple rejection > 82 dB

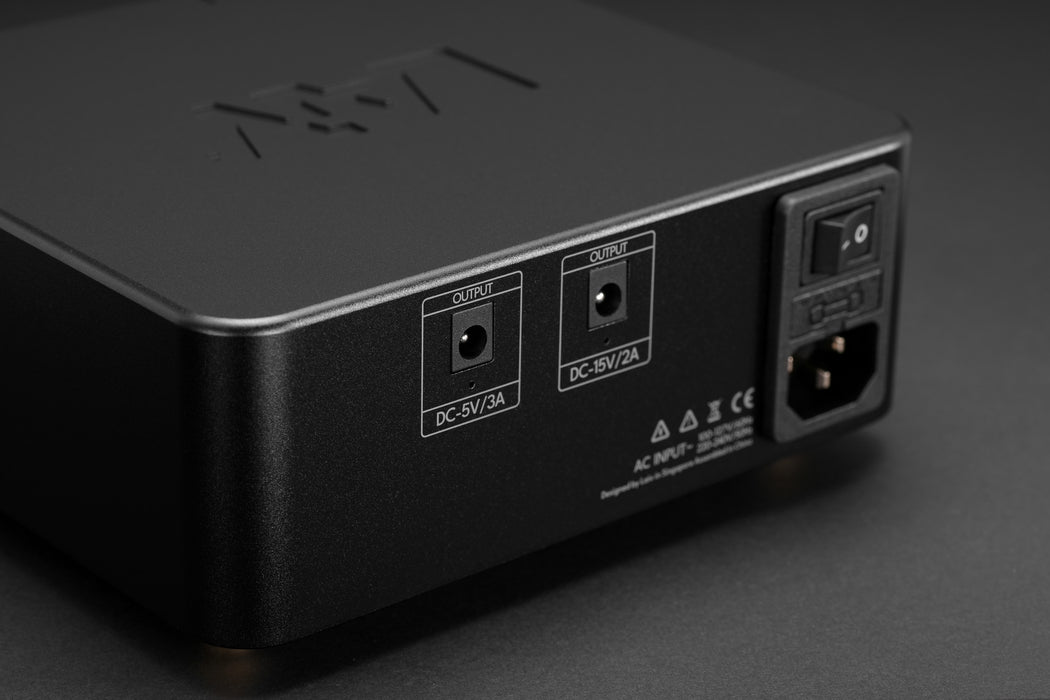

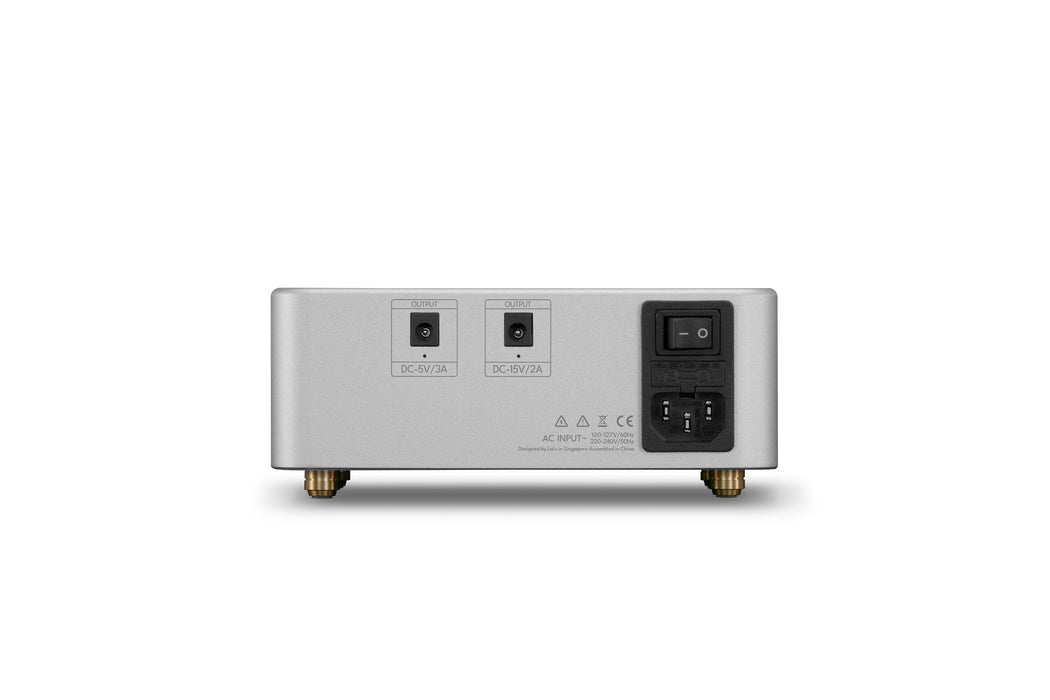

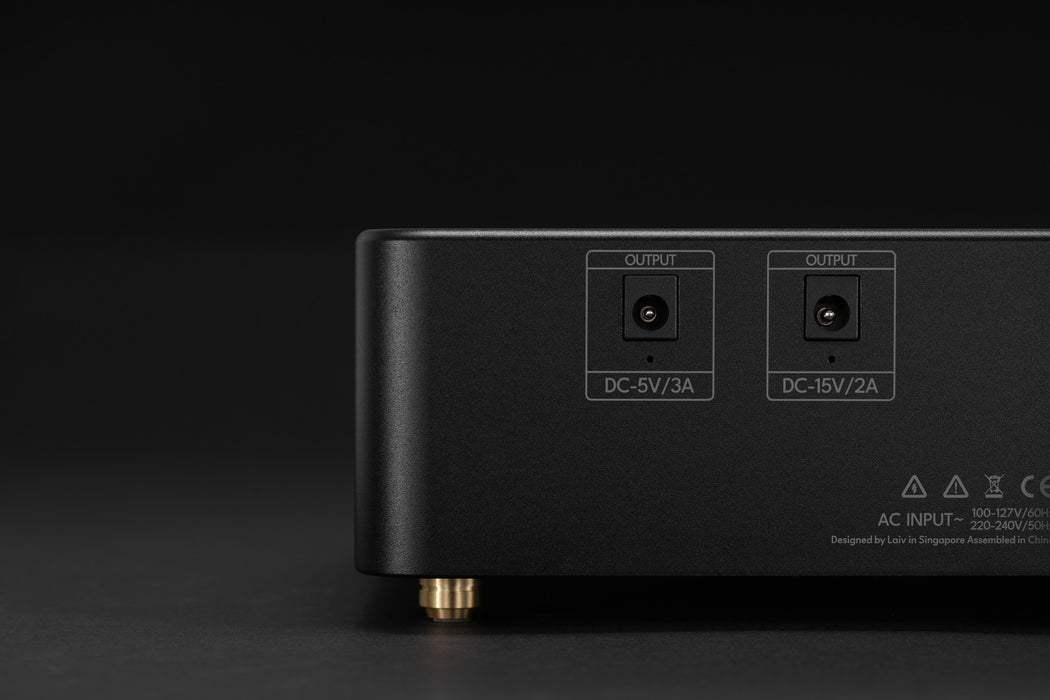

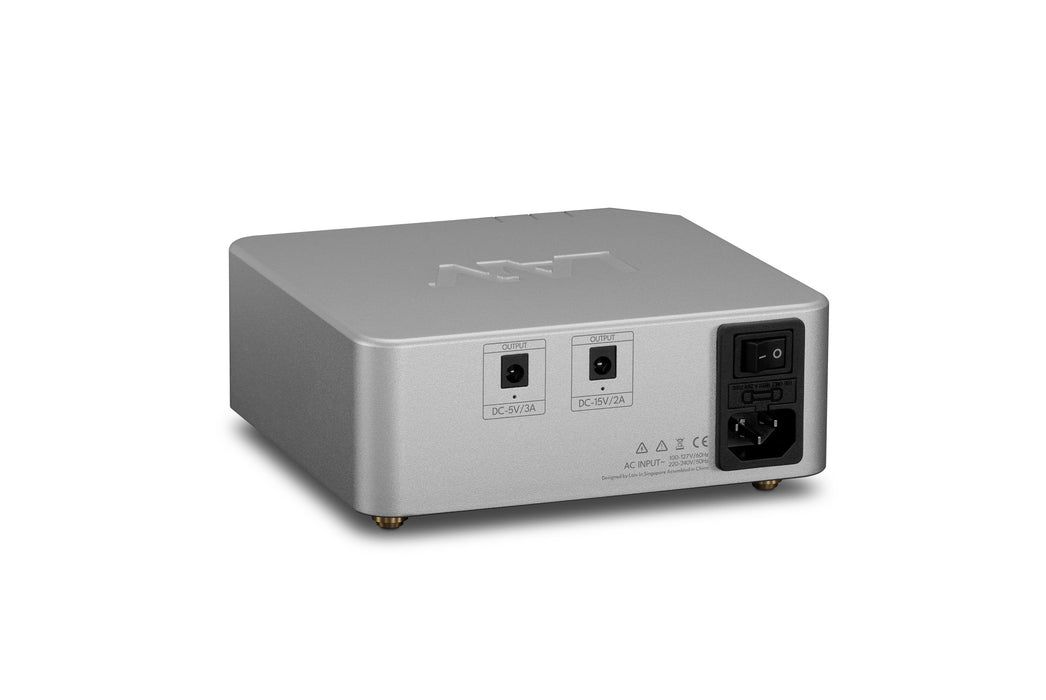

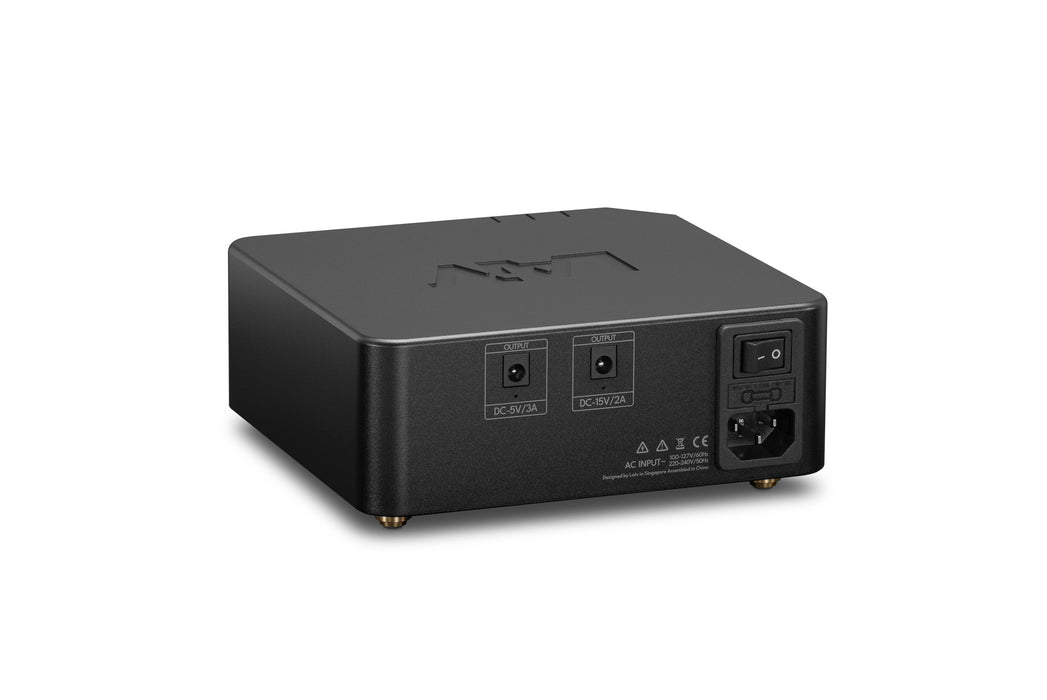

- Output connectors DC barrel 5.5/2.1mm (5V), 5.5/2.5mm (15V)
- Included cables 2 × DC cables, 50cm
- Transformer 70 VA toroidal
- Regulation Two-stage linear regulation
- Rectification Schottky diodes
- Filter capacitance 17,990 µF total
- Protection Over-current, over-voltage, over-temperature, short-circuit

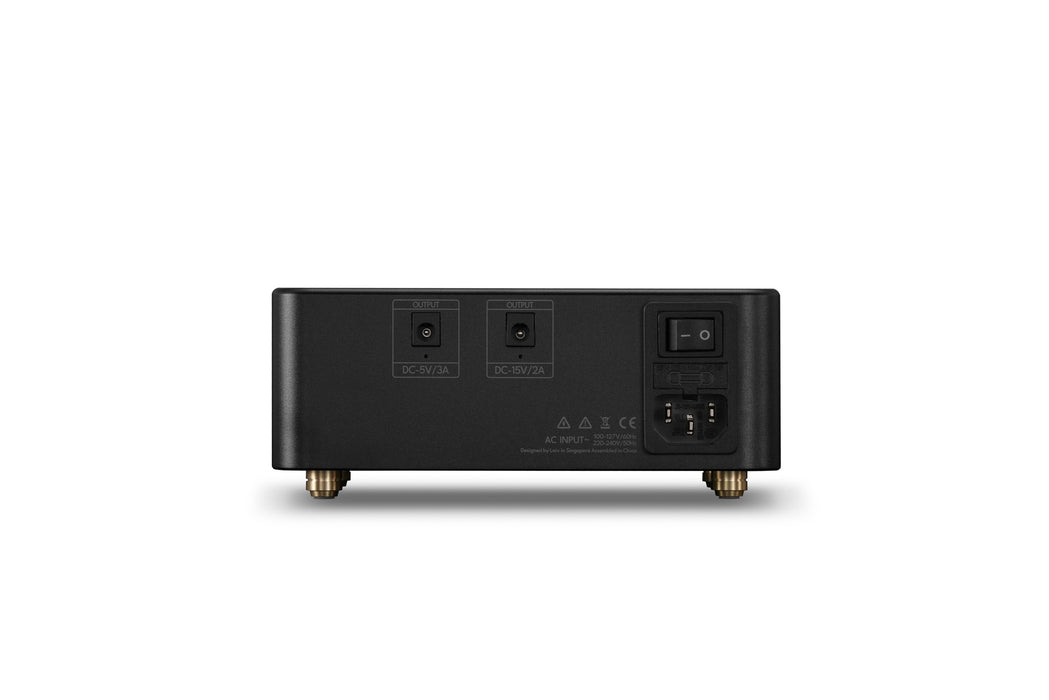

- Mains input 100-127V / 220-240V selectable, 50/60Hz, IEC C14, T2A fuse
- Idle power 1.3 W at 230V
- Dimensions 168 × 167 × 70 mm
- Weight 2.33 kg

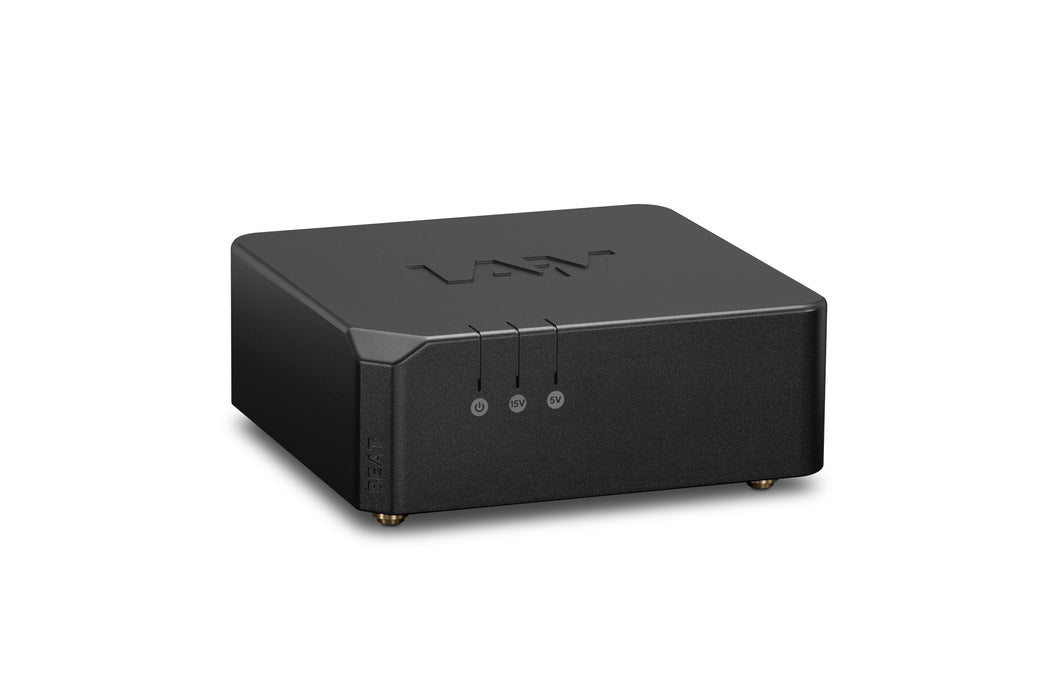

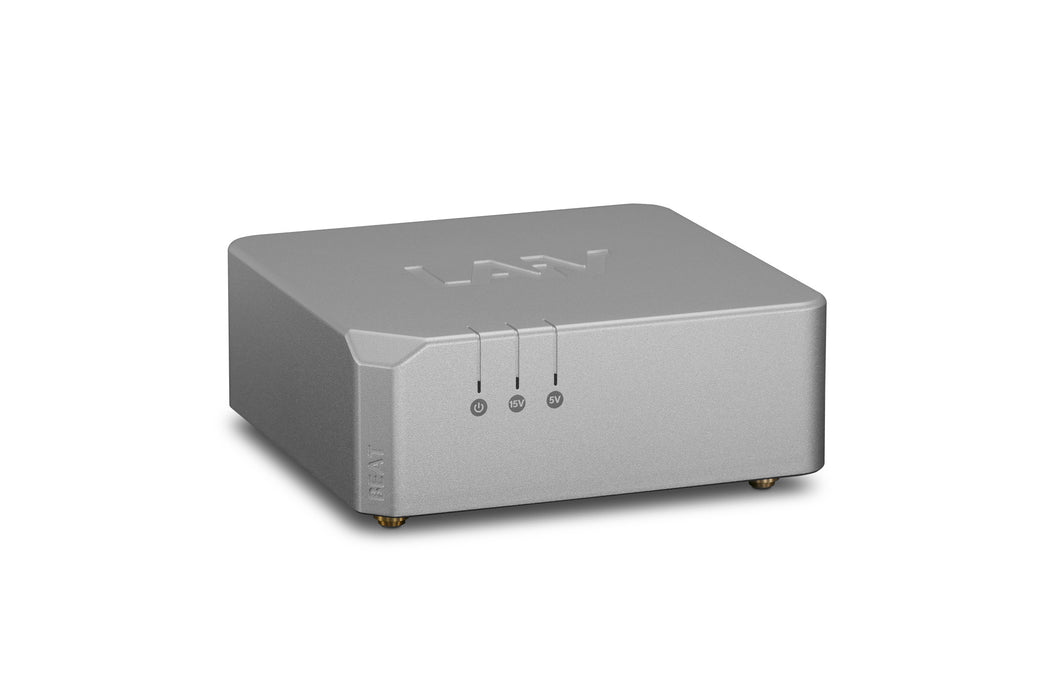

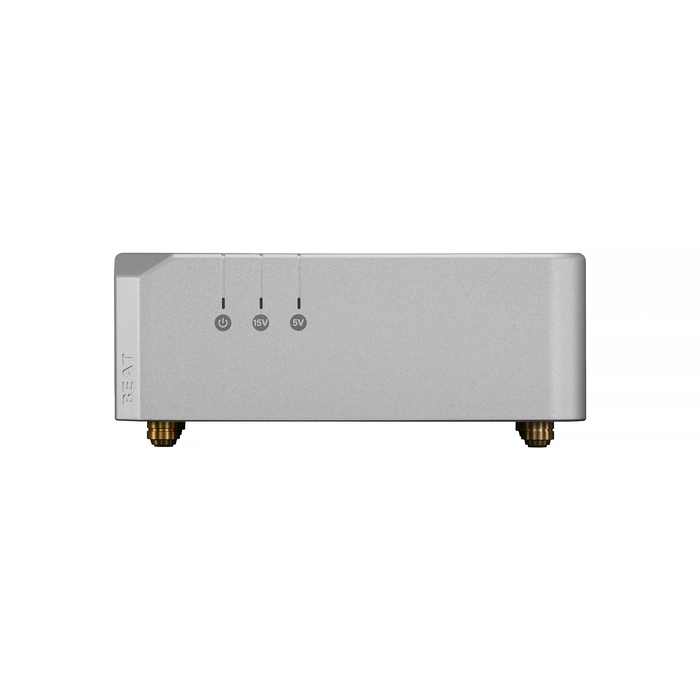

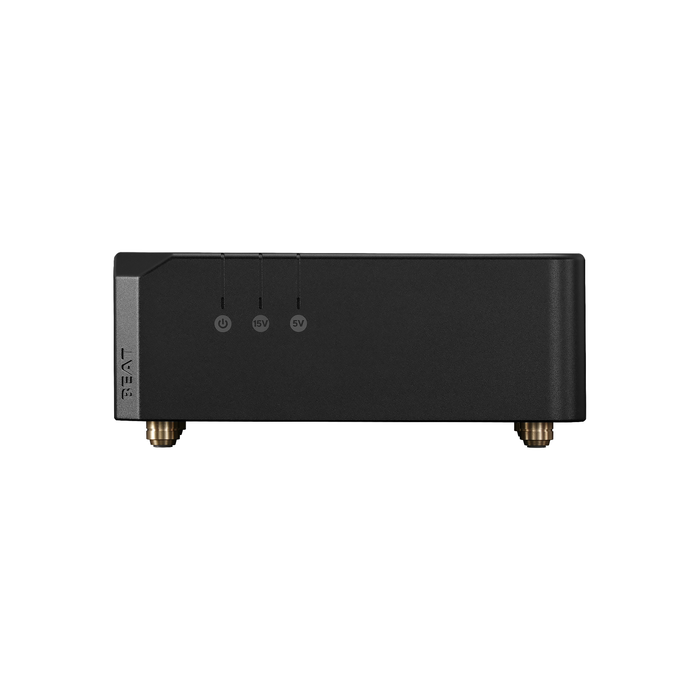

- Chassis Aluminium, fanless, Black or Silver
- Warranty 2 years
-
In the box
- Welcome card with quick start guide
- Crescendo BEAT
- Power cord
- DC5521 to DC5521 cable
- DC5525 to DC5525 cable
