Kinki Studio EX M1+ - Audiophile Integrated Amplifier
Taxes & Shipping Included
The EX-M1+ is positioned above the award-winning EX-M1. It is the new flagship model in the Integrated Amplifier lineup of KINKI STUDIO. It's packed with the most frequently asked for features like dimmable display, preamp output, home theatre bypass.
THE GOOD OF EX-M1 · PRESERVED

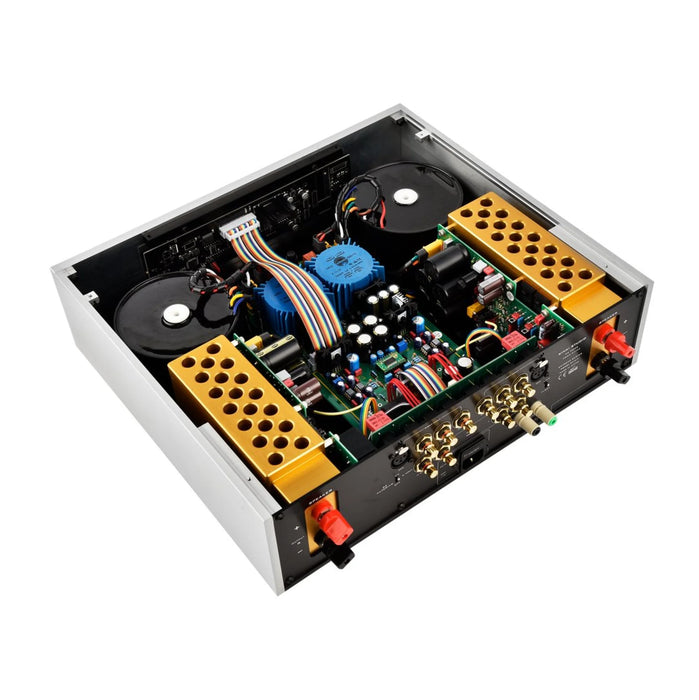

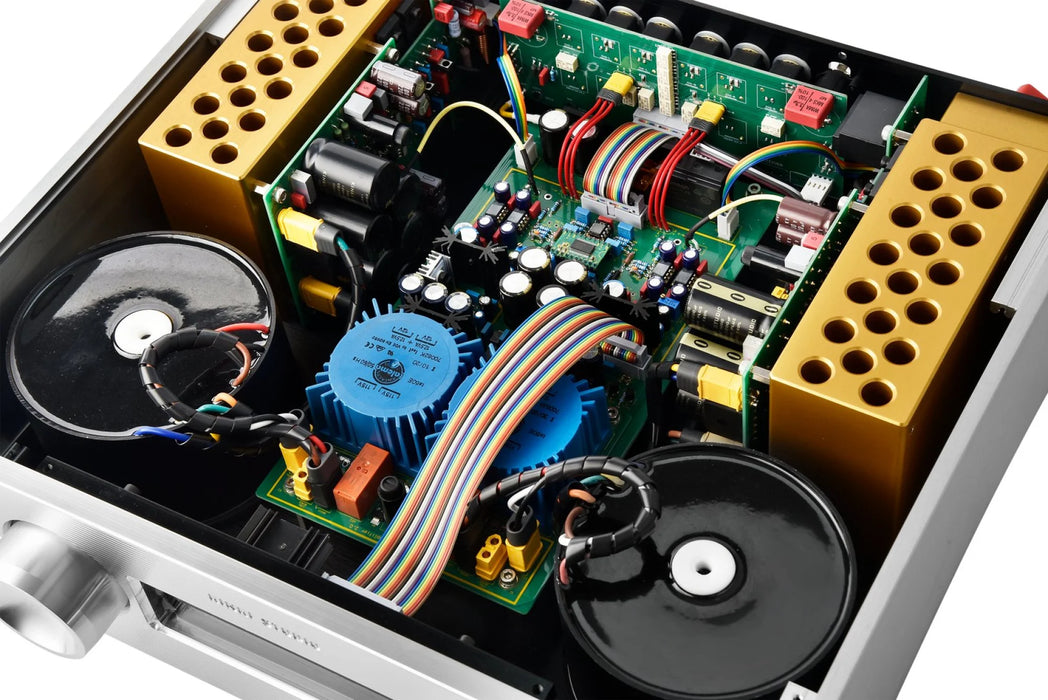

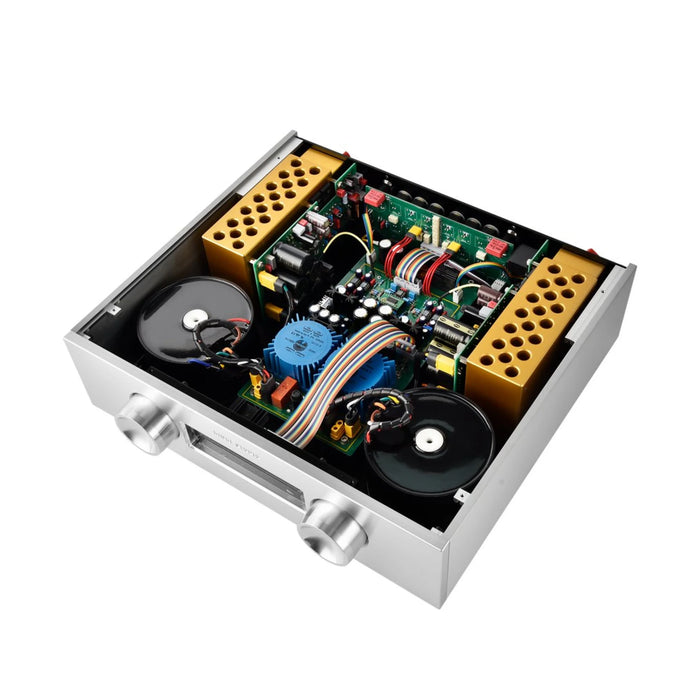

The EX-M1+ is designed based on the award-winning EX-M1. The good of the EX-M1 is well-preserved. Advanced microprocessor-controlled, MUSE volume control, dual 400VA encapsulated transformers, quasi monoblocks amplifier stage with EXICON MOSFET lateral, known for its ultra-fast and dynamic sonic response where the EX-M1+ benefited with.
PREAMP OUT · HT BYPASS

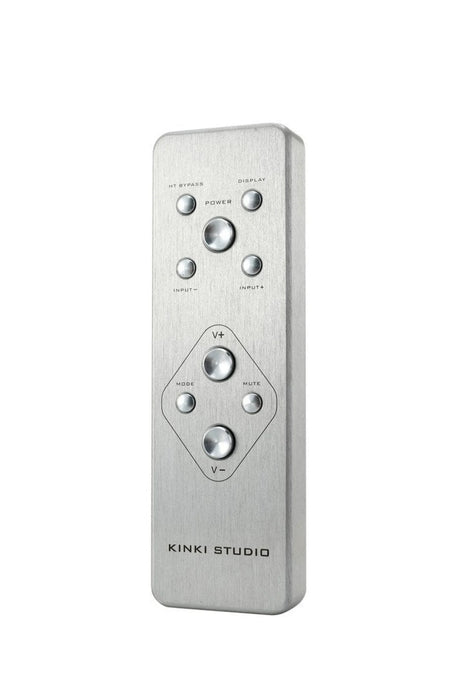

EX-M1+ is equipped with the most anticipated features - Preamp Output and HT Bypass. We did it differently though. The Preamp Output can be enabled/disabled by the completely redesigned Remote Control Unit. It allows the EX-M1+ to be used as a preamp only, or integrated amp where the preamp output can be connected to the subwoofer or to our monoblocks EX-B7 to biamp the loudspeakers.
The same goes to HT Bypass Input. A single press on the Remote Control Unit button enables the HT Bypass Input. The preamp stage is bypassed, EX-M1+ functions as a power amp.
POWER STAGE

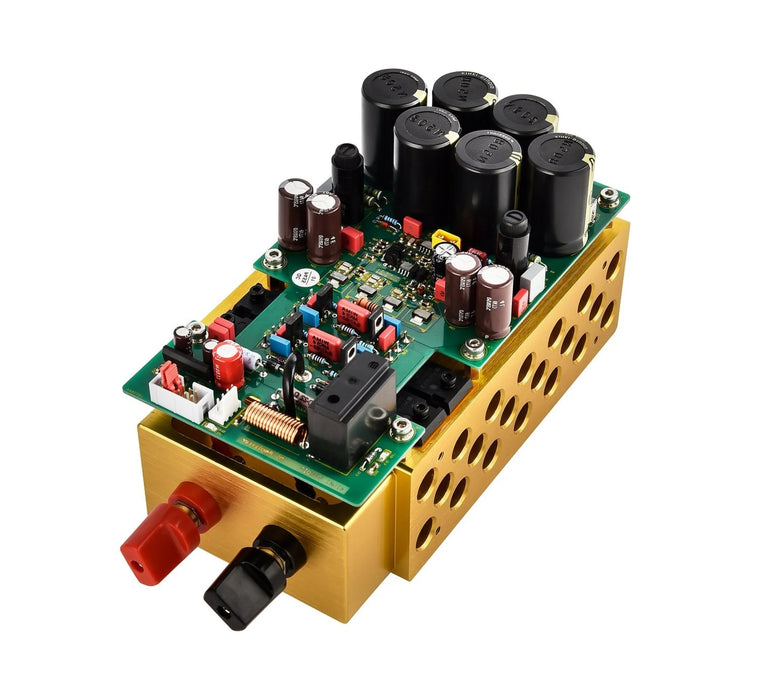

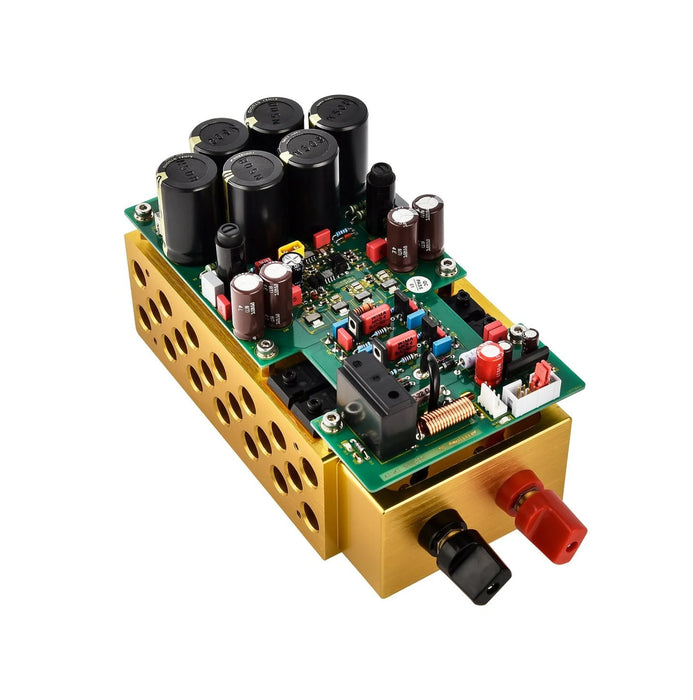

The power amplification circuitry are mounted directly on a large customs made, gold anodized heat sink. The power stage equipped with two pairs of power EXICON MOSFETs, driven in Class AB. Two identical power stage modules are arranged on the left and right sides of the chassis, deliver impeccable power for the two channels: 215 watts into 4-8 ohms.
High damping factor unleash the full potential of the sonic performance of the loudspeakers. EX-M1+ employs high power rail supplies, delivering fast and high recovery DC supply to the power stage. The ultra high slew rate and DC-coupled (no capacitors in the signal path), yielded exceptionally acoustic excellent - neutral, transparency, details, dynamic and ultra fast transient response.
WHAT'S MORE?
The display can now be dimmed, turned off completely.
We have also improved the internal wiring with pure OCC copper and overly well-made gold plated high current connector for the line stage input signal and transformer primary stage.
SOUND CHARACTERISTIC
Neutrality and musicality were the goals to achieve. Rich tonal quality, vivid sound imaging, details, high resolution and dynamic. The choice of the components, design, and tuning does just that.
It is the Kinki Studio gears' sound signature.
Features
- Impeccable power: 215 Watts x 2
- MUSE volume control
- Dual 400VA encapsulated transformers
- Quasi monoblocks amplifier stage with EXICON MOSFET lateral
- Preamp Output and HT Bypass

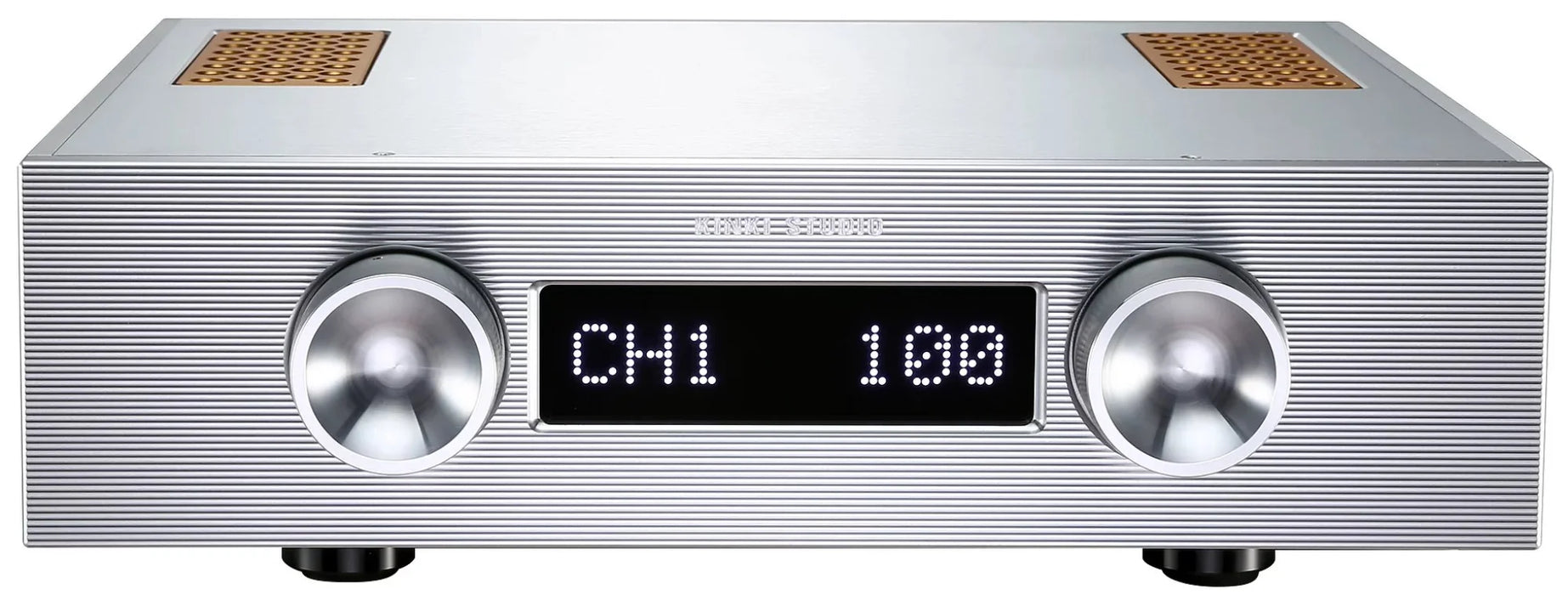

- Dimmable Display
- Pure OCC copper internal cabling
Specifications
-
Frequency Response: 10-150kHz (±3dB)
-
THDN: 0.0232%; 0.006% (A-Weighted)
-
S/N Ratio: >103dB
-
Output Power: 215W RMS (8Ω) , 290W RMS (4Ω) - Both Channel Driven
-
Damping Factor: 2000
-
Gain: Normal Gain 26 dB
-
Max Output Voltage: 55VAC
-
AC Power: 240VAC, 60Hz
-
Input Sensitivity: 2.25Vrms - 3.6Vrms
-
Input Impedance: 50kΩ
-

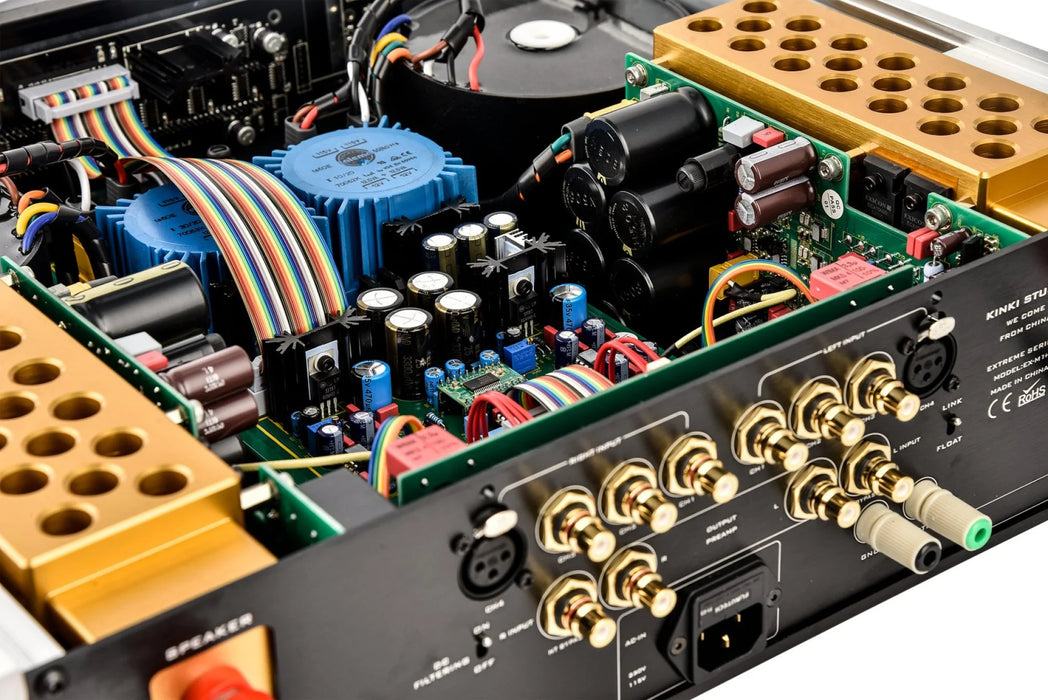

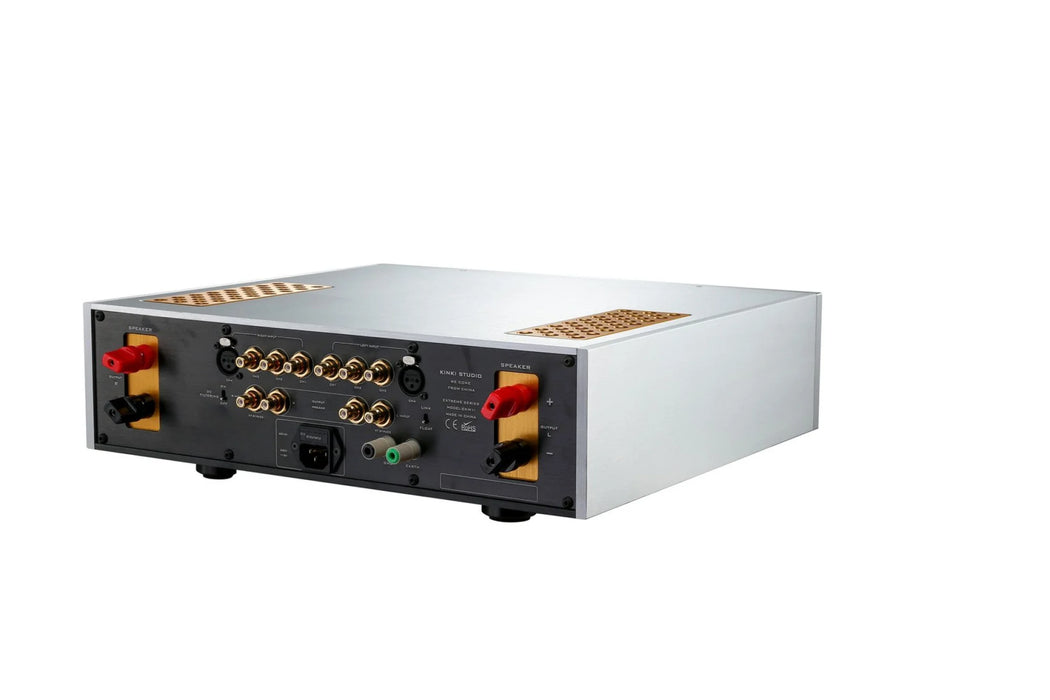

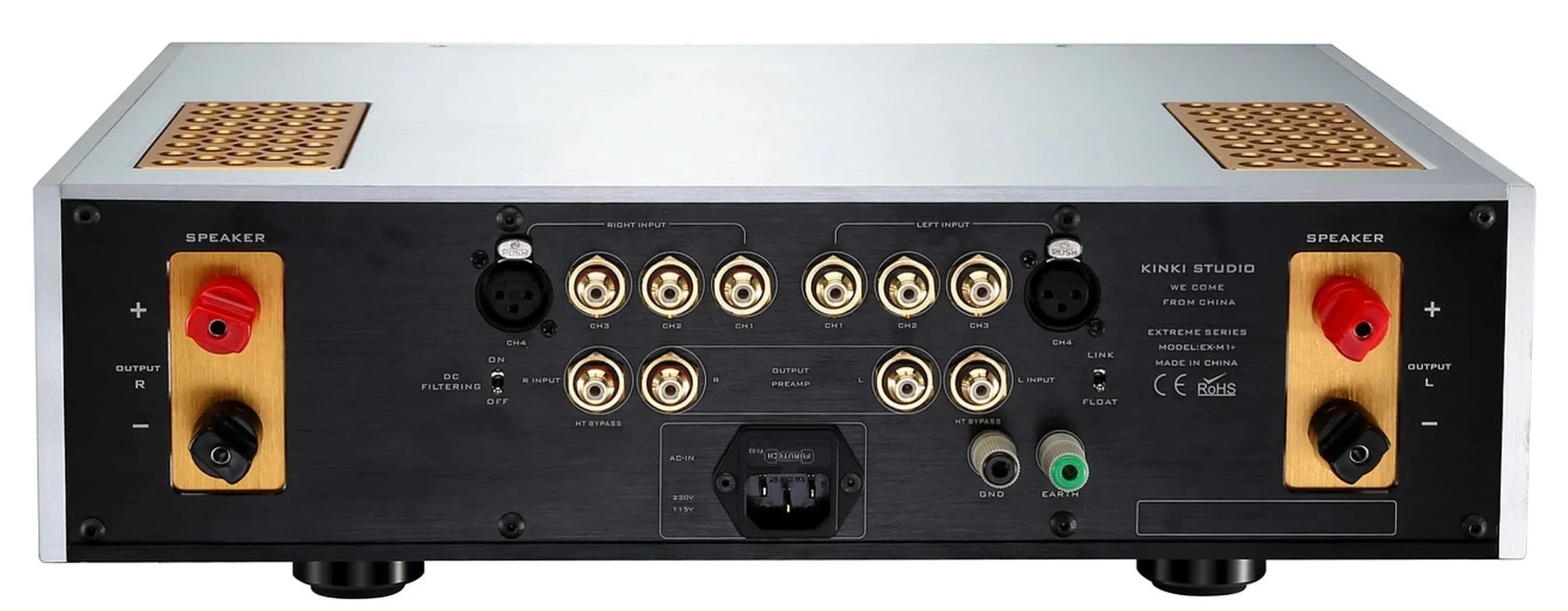

Input Connector: RCA x 3, XLR x 1, HT BYPASS x 1
-
Output: Speaker Binding Post 4mm L/R Channel
-
Output: Preamp Output x 1
-
Dimension: 430W x 125H x 370D
-
Weight: 25KG
