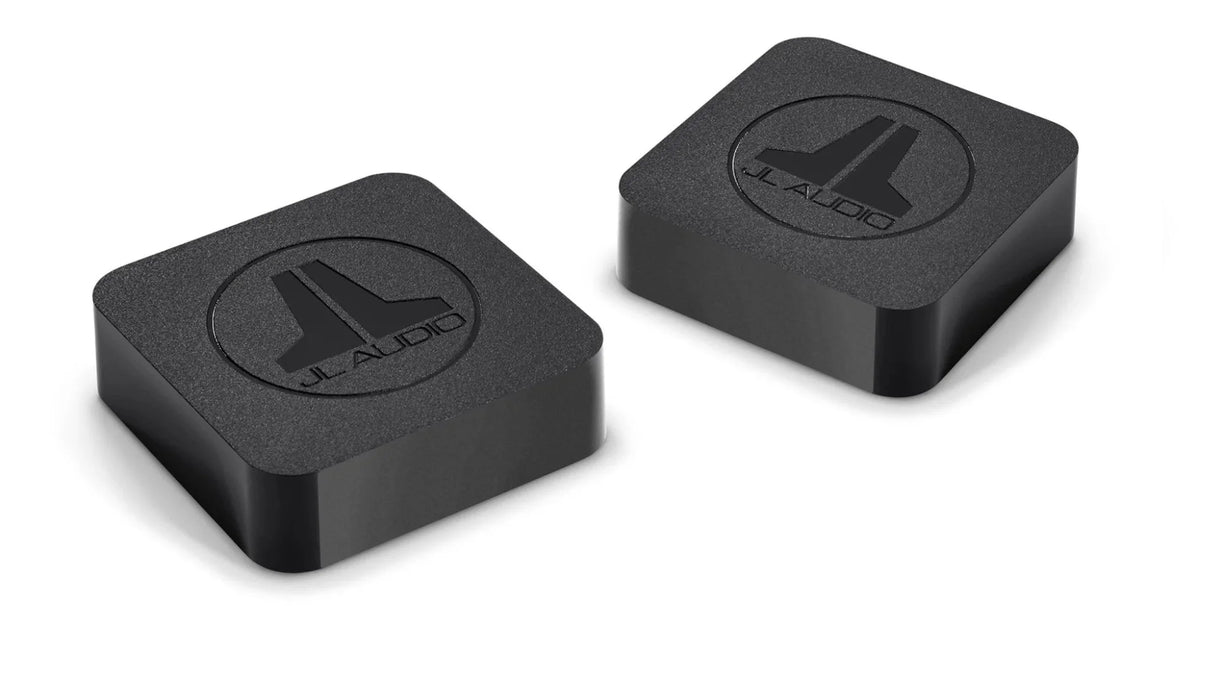

JL Audio JLINK Wireless High-Fidelity Audio Transmitter & Receiver Kit
Taxes & Shipping Included
The JLINK™ TRX system broadcasts at an ultra-high frequency of 2.4 GHz to deliver crystal clear audio signals up to 100 feet away (30 meters), providing the option to send pure, high-fidelity sound to powered loudspeakers without the hassle of routing and hiding signal cables.
Using state-of-the-art wireless technology, the JLINK™ TRX system delivers pure, high-fidelity sound throughout your home, invisibly and effortlessly.
By broadcasting at an ultra-high frequency of 2.4 GHz, the JLINK™ TRX lets you connect any two line-level audio devices together, without the use of RCA signal cables to connect in between. Now you can send crystal clear, stereo sound from a source unit to a receiver, preamp or powered loudspeakers, wirelessly, up to 100 feet away (30 meters) without needing to route or hide long expanses of signal cables. RCA-type input/output connectors are compatible with most audio equipment and a compact design makes it easy to hide the transmitter and receiver chassis out of sight. A JLINK™ port is also included on the receiver for direct connection with JLINK™ compatible JL Audio products.
Especially useful in system designs that include remote source applications, lengthy signal cable runs or demanding installations due to challenging architecture, the JLINK™ TRX system gives you the freedom to position a source unit or outlying amplifier/powered loudspeakers (subwoofer or full-range) almost anywhere you would like.
- Outstanding fidelity in subwoofer and full-range applications
- Bit-Perfect Digital PCM Stereo Wireless Technology (16 bit / 48 kHz)
- RCA-type input/output connectors are compatible with most audio equipment
- Up to 3 JLINK™ transmitters can be used concurrently (3 channels to choose from)
- Up to 4 JLINK™ receivers (sold separately) can be paired to each JLINK™ transmitter
- Receiver includes JLINK™ port for use with compatible JL Audio products.
- TRX includes 1 x Transmitter and 1 x Receiver
- RX includes 1 x Receiver, use for additional outputs in multi output scenarios
Specifications
| S/N Ratio | 80 dB @ 1 kHz, 500 mV |
| THD+N | 0.02% @ 1 kHz, 500 mV |
| Crosstalk | >75 dB @ 1 kHz, 500 mV |
| Frequency Response | 16 Hz – 22 kHz (+0, -1dB) |
| Wireless Range | 100 feet / 30 meters (typical) |
| Wireless Channels | 3 available, selectable via switch |
| Latency | 14 mS |
| Operating Temperature | 32 to 104 °F / 0 to 40 °C |
| AC Power Adaptor | 1 A, 5 volts DC |
| Input Impedance | 25 kΩ |
| Outputs | Bit-Perfect PCM Stereo Digital via 2.4 GHz Wireless |
| Receivers Supported |
Up to 4 |
| Bit Depth/Sample Rate | 16 Bit / 48 kHz |
| Power Requirements | 200 mA, 5 volts (via AC adaptor) |
| Height (H) | 1.12 in / 28.5 mm |
| Width (W) | 3.5 in / 89 mm |
| Depth (D) | 3.5 in / 89 mm |
| Inputs | Analog, left and right RCA-type |
| Inputs | Bit-Perfect PCM Stereo Digital via 2.4 GHz Wireless |
| Outputs | Analog, left & right RCA-type |
| Output Impedance | 250 Ω |
| Full Scale Output Voltage | 1.2 V |
| Power Requirements | 100 mA, 5 volts (via AC adaptor or JLINK port) |
| Height (H) | 1.12 in / 28.5 mm |
| Width (W) | 3.5 in / 89 mm |
| Depth (D) | 3.5 in / 89 mm |
