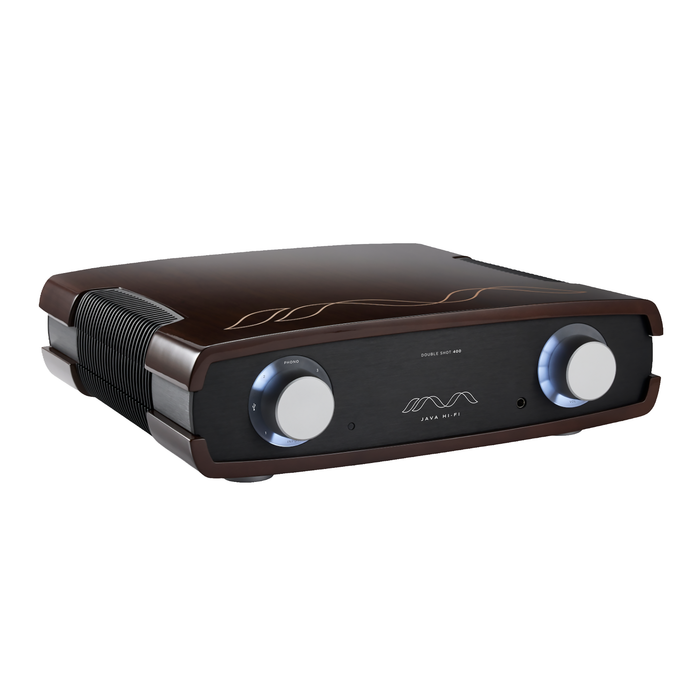

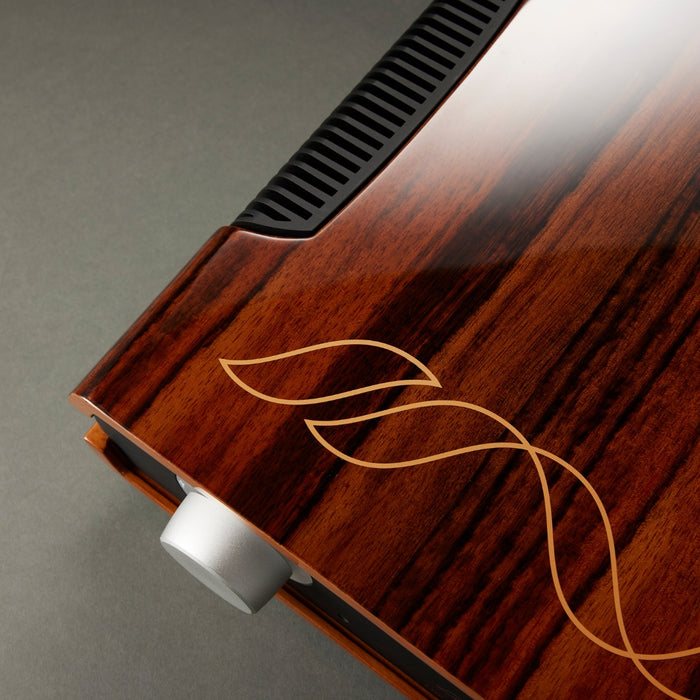

Java Double Shot 400 Integrated Amplifier

In an era where high-end audio often demands a sprawling stack of heavy, heat-generating components, the JAVA Hi-Fi Double Shot 400 integrated amplifier emerges as a masterclass in elegant consolidation. This luxury powerhouse effortlessly bridges the gap between purist minimalism and raw, unadulterated power. By marrying a passive, ultra-transparent Light-Dependent Resistor (LDR) pre-amplifier stage with cutting-edge Gallium Nitride (GaN) FET Class D power modules, the New Zealand manufacturer has achieved the audiophile holy grail: a single-box solution that delivers a massive 400 Watts per channel without sacrificing an ounce of micro-detail or musical soul. Encased in a stunning, resonance-damped artisan chassis, the Double Shot 400 is not merely an amplifier; it is a striking statement piece that commands authority over virtually any loudspeaker on the planet, rewriting the rulebook on what a modern integrated amplifier can accomplish.

JAVA Hi-Fi breakthrough technologies come together to stunning effect in our range of integrated amplifiers. Combining an LDR pre-amp stage with GaN FET amplifier modules, these fully-featured amps include line level inputs, a High-resolution R2R Ladder DAC, MM phono stage, Bluetooth aptX connectivity and more. An elegant one-box solution that will meet all of your audio needs, the JAVA Double Shot 400 delivers 400 watts/8 ohms per channel.

The JAVA Hi-Fi Single Shot Integrated Amplifier is designed to reproduce music with extraordinary realism. Featuring an LDR pre-amplifier stage and cutting-edge GaN FET amplifier modules, our innovative technology and premium componentry works in harmony to reveal subtle new details in familiar pieces of music. Music flows effortlessly from your speakers in its purest form, enveloping the listener in an immersive soundstage that takes you directly to the heart of the performance – to the simple moment when the music becomes beautiful.

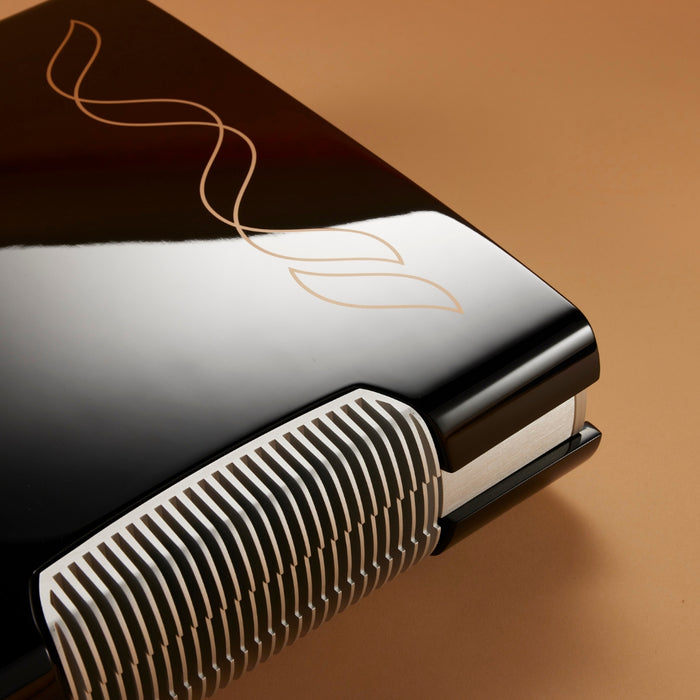

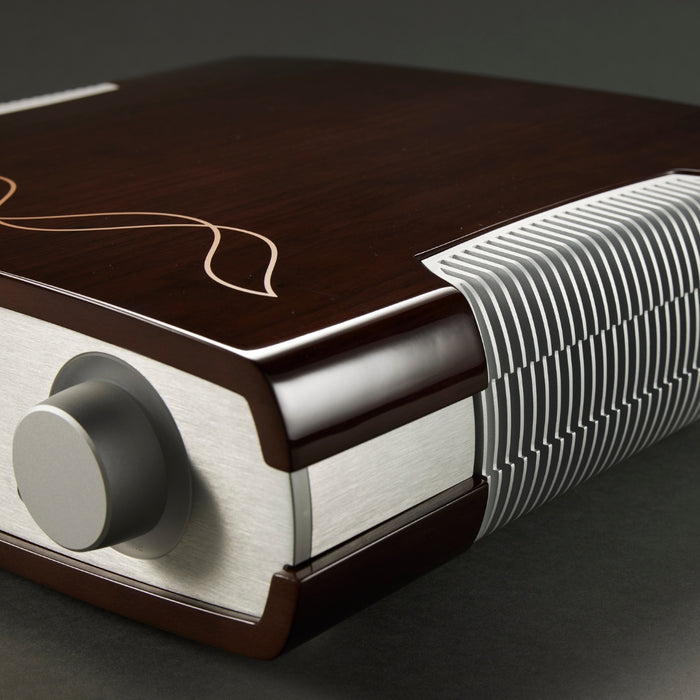

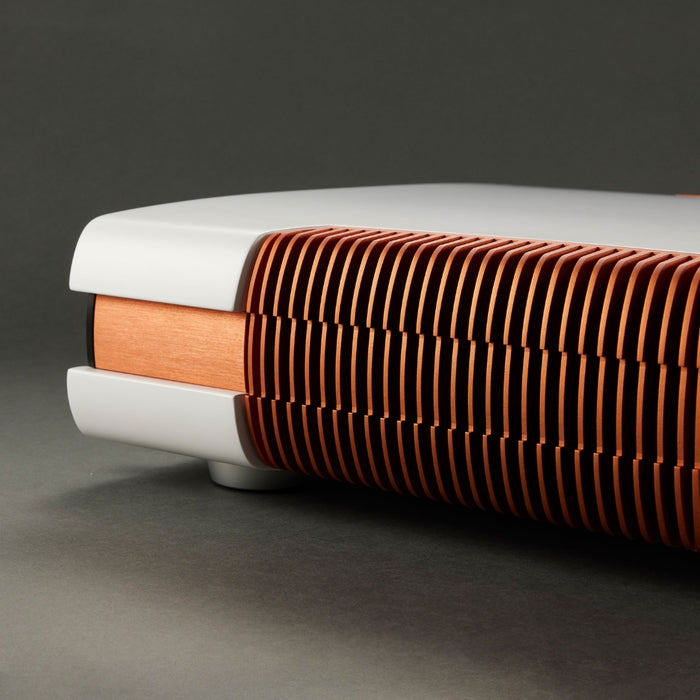

Premium materials are selected for each JAVA Hi-Fi amplifier based on their aesthetic qualities, their durability and their ability to isolate structural vibration and minimise resonance. A unique inverted assembly design further isolates critical electronic circuits from vibration, while high-accuracy laser-cutting and CNC machining of components (utilising advanced computer-aided design software) ensures optimum fit and finish. Extensive prototyping and testing of every component ensures only the highest-quality finished product is shipped, guaranteeing years of trouble-free listening.

Features

• Fully balanced dual-mono configuration from input to output

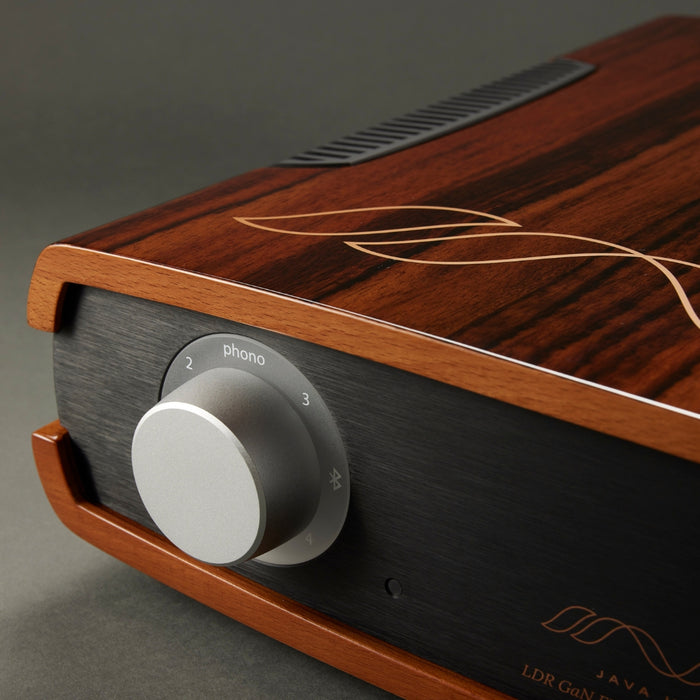

• Luxury real wood Walnut or Ebony veneers

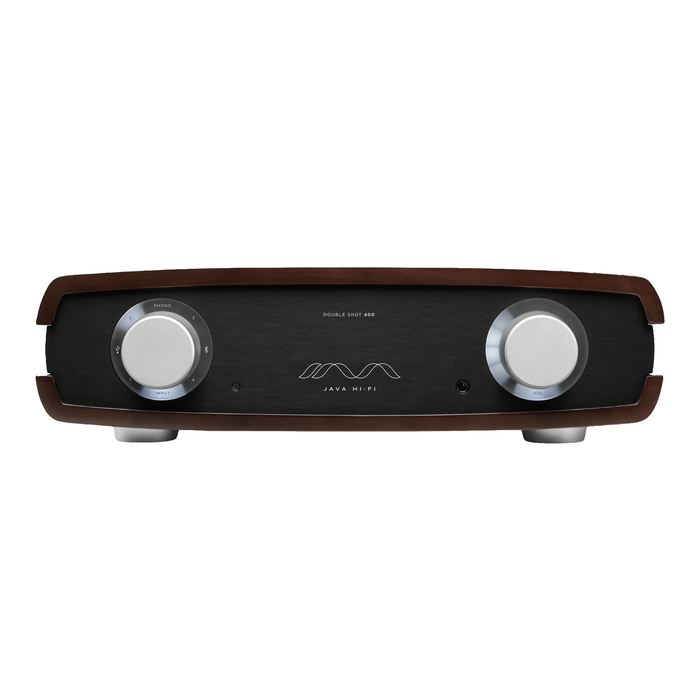

• Precision machined solid 8mm aluminium front panel
• 400 watts/8 ohms

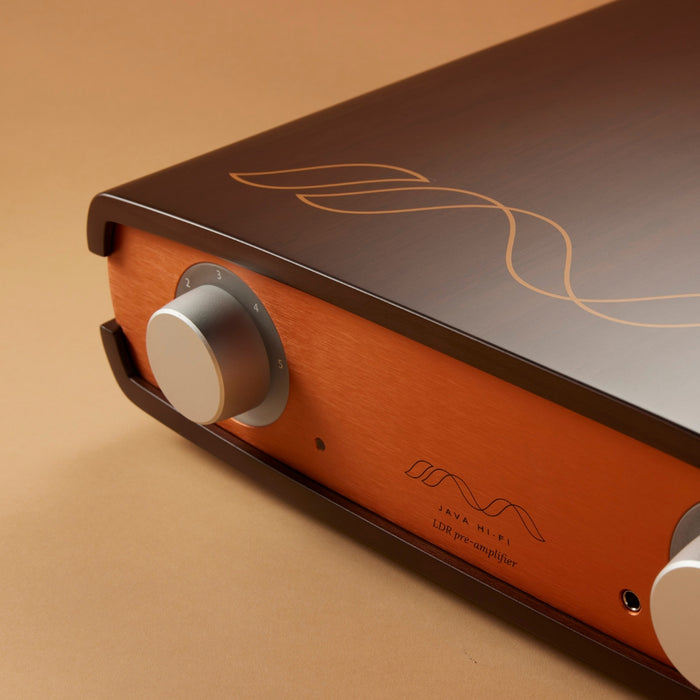

• LDR pre-amp stage and GaN FET power amp stage
• Built-in High-resolution R2R Ladder DAC (USB input)
• MM phono stage (RCA inputs)
• Bluetooth aptX
• 4 x pairs of XLR line-level inputs (fully-balanced)
• 2 x pairs of XLR outputs (variable pre-out and fixed pre-out)
• 1 x headphone output

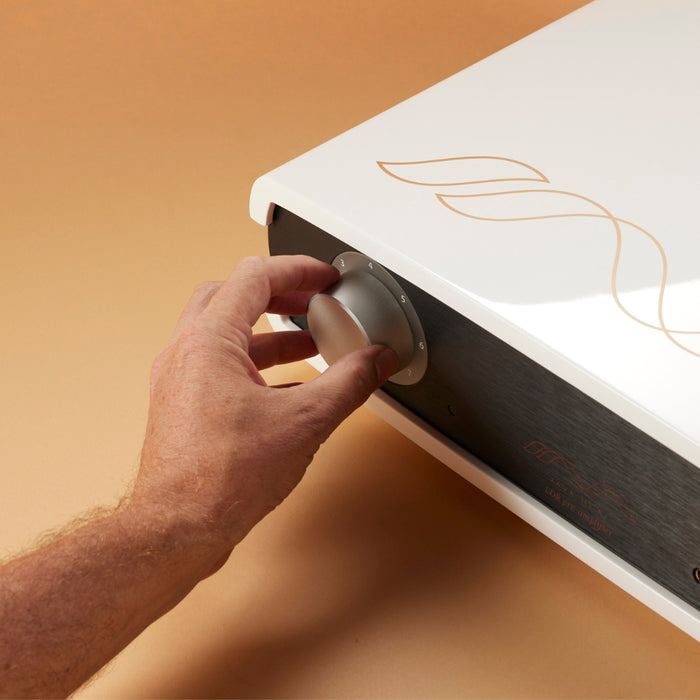

• Remote control for volume and source selection
• ETI Research RCA connectors
• ETI Research speaker binding posts
• Innovative inverted PCB assembly for vibration and resonance control of audio circuit
• Made in New Zealand

Specifications

• Output Power 400W/8Ω (THD < 0.03%)
• Dynamic Range > 108dB SNR and Dynamic Range
• Distortion < 0.01% THD+N (8Ω, 1W, 20Hz to 20kHz); 0.02 % THD+N (8Ω, 25W, 1kHz)
• Output Noise 108 dB (Unwtd, 200W/8Ω)
• Frequency Response 10Hz - 20kHz (+/- 0.5dB)
• Input Impedance 100kΩ
• Common-Mode Rej 75dB (20Hz to 20kHz)
• Input Voltage 100VAC ~ 265VAC (50/60Hz)
• Output Voltage Dual Rails +-32VDC output
• Output Power 400W Continuous Output Power, 600W Peak
• Power Efficiency High efficiency (up to 94%)
• Power Management Ultra low-noise Zero Current Switching (ZCS) SMPS, Advanced protection system, Active power factor corrector
• MM Phono Stage Input Impedance 47kΩ
• MM Phono Stage Input Capacitance 200pf
• MM Phono Stage Gain 45dB (at 1KHz)
• RIAA Filter The RIAA equalisation is achieved using a passive filter network. It achieves the RIAA curve to within 1dB throughout the audio band, with the addition of an anti-rumble filter. High tolerance Japanese thin film resistors and German film capacitors are used throughout the design
• Bluetooth aptX
• DAC R2R ladder DAC utilising dual Analog Devices AD1865 18-bit chips supporting up to 768kHz
• Signal-to-Noise Ratio 124dB (A-weighted)
• Residual Noise 1.6uV (A-weighted)
• Dynamic Range 122dB
• Total Harmonic Distortion + Noise -110dB or 0.0003%
• Frequency Response DC (0Hz) to 22kHz @ 48kHz sample rate
• Frequency Response DC (0Hz) to 44kHz @ 96kHz sample rate
• Frequency Response DC (0Hz) to 88kHz @ 192kHz sample rate
• Output Voltage 2.5Vrms (+10.2dBu)
• Output stage Uses OPA1612s Low Noise Panasonic Resistors Proprietary filtering topology
• Clock Crystek CCHD-575 oscillator — ultra-low clock jitter of 82fSec
• Dimensions 44cm x 41.5cm x 13cm (w/d/h)
• Weight 10.6kgs (23.4lbs)
• Shipping Weight 15.2kgs (33.5lbs)
