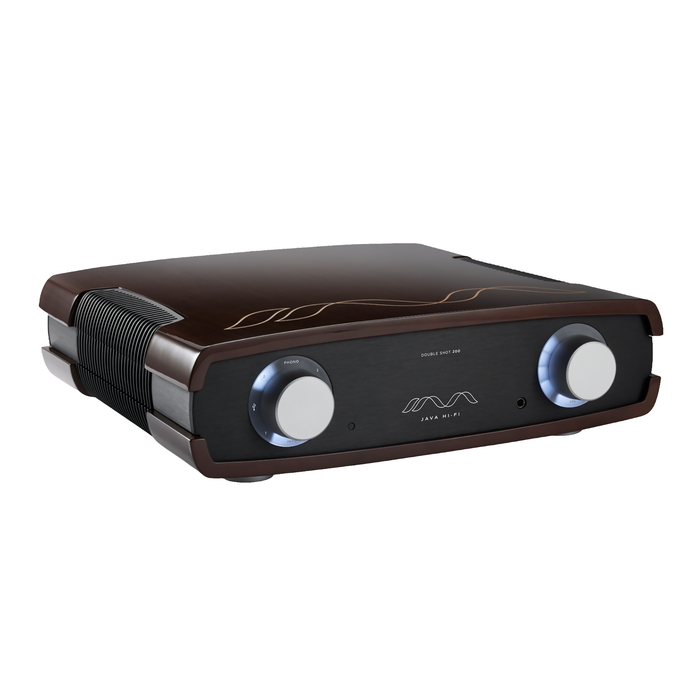

Java Double Shot 200 Integrated Amplifier

For those seeking the pinnacle of acoustic purity without requiring the earth-shaking power reserves of a 400-watt titan, the JAVA Hi-Fi Double Shot 200 integrated amplifier provides an impeccably balanced, sweet-spot alternative. Rather than acting as a stripped-back entry model, this luxury New Zealand design retains the elite, fully balanced dual-mono topology and expansive feature set of its bigger sibling, but focuses its delivery into a refined 200 Watts per channel into 8 Ohms. At its heart, the amplifier achieves a breath-taking level of sonic clarity by marrying a passive, zero-contact Light-Dependent Resistor (LDR) pre-amplifier stage with ultra-fast Gallium Nitride (GaN) FET Class D power modules. Wrapped in JAVA’s signature artisan wood or carbon fiber casework, the Double Shot 200 functions as an all-inclusive, one-box sanctuary for the discerning audiophile—packing a high-resolution R2R DAC, an MM phono stage, and aptX Bluetooth into a component that values nuances, intimacy, and three-dimensional realism above all else.

JAVA Hi-Fi breakthrough technologies come together to stunning effect in our range of integrated amplifiers. Combining an LDR pre-amp stage with GaN FET amplifier modules, these fully-featured amps include line level inputs, a High-resolution R2R Ladder DAC, MM phono stage, Bluetooth aptX connectivity and more. An elegant one-box solution that will meet all of your audio needs, the JAVA Double Shot 200 delivers 200 watts/8 ohms per channel.

The JAVA Hi-Fi Single Shot Integrated Amplifier is designed to reproduce music with extraordinary realism. Featuring an LDR pre-amplifier stage and cutting-edge GaN FET amplifier modules, our innovative technology and premium componentry works in harmony to reveal subtle new details in familiar pieces of music. Music flows effortlessly from your speakers in its purest form, enveloping the listener in an immersive soundstage that takes you directly to the heart of the performance – to the simple moment when the music becomes beautiful.

Premium materials are selected for each JAVA Hi-Fi amplifier based on their aesthetic qualities, their durability and their ability to isolate structural vibration and minimise resonance. A unique inverted assembly design further isolates critical electronic circuits from vibration, while high-accuracy laser-cutting and CNC machining of components (utilising advanced computer-aided design software) ensures optimum fit and finish. Extensive prototyping and testing of every component ensures only the highest-quality finished product is shipped, guaranteeing years of trouble-free listening.

Features

• Fully balanced dual-mono configuration from input to output
• Luxury real wood Walnut or Ebony veneers

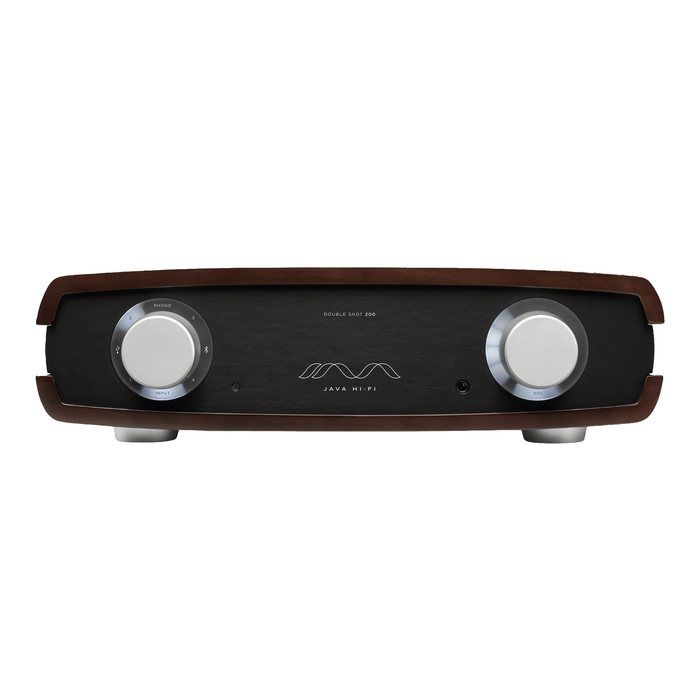

• Precision machined solid 8mm aluminium front panel
• 200 watts/8 ohms
• LDR pre-amp stage and GaN FET power amp stage
• Built-in High-resolution R2R Ladder DAC (USB input)
• MM phono stage (RCA inputs)
• Bluetooth aptX

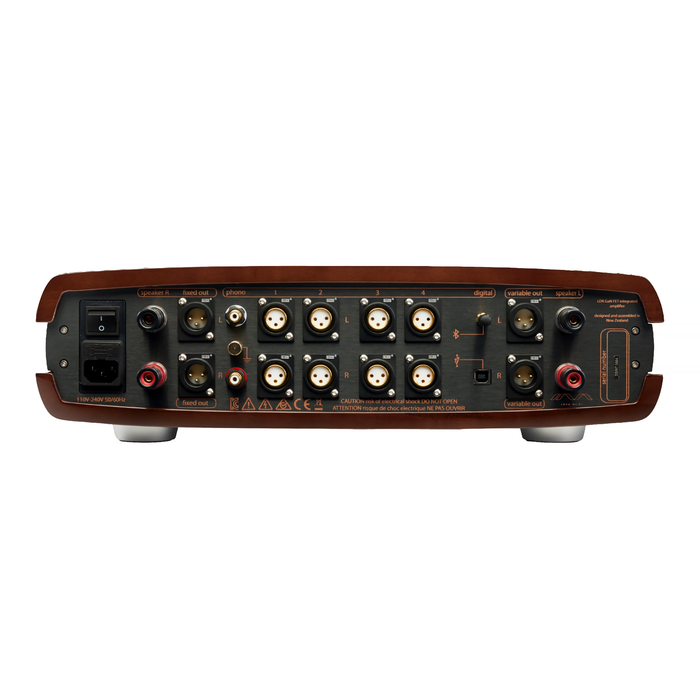

• 4 x pairs of XLR line-level inputs (fully-balanced)
• 2 x pairs of XLR outputs (variable pre-out and fixed pre-out)
• 1 x headphone output
• Remote control for volume and source selection
• ETI Research RCA connectors
• ETI Research speaker binding posts
• Innovative inverted PCB assembly for vibration and resonance control of audio circuit
• Made in New Zealand

Specifications

• Output Power 200W/8Ω (THD < 0.03%)
• Dynamic Range > 108dB SNR and Dynamic Range
• Distortion < 0.01% THD+N (8Ω, 1W, 20Hz to 20kHz); 0.02 % THD+N (8Ω, 25W, 1kHz)
• Output Noise 108 dB (Unwtd, 200W/8Ω)
• Frequency Response 10Hz - 20kHz (+/- 0.5dB)
• Input Impedance 100kΩ
• Common-Mode Rej 75dB (20Hz to 20kHz)
• Input Voltage 100VAC ~ 265VAC (50/60Hz)
• Output Voltage Dual Rails +-32VDC output
• Output Power 400W Continuous Output Power, 600W Peak
• Power Efficiency High efficiency (up to 94%)
• Power Management Ultra low-noise Zero Current Switching (ZCS) SMPS, Advanced protection system, Active power factor corrector
• MM Phono Stage Input Impedance 47kΩ
• MM Phono Stage Input Capacitance 200pf
• MM Phono Stage Gain 45dB (at 1KHz)
• RIAA Filter The RIAA equalisation is achieved using a passive filter network. It achieves the RIAA curve to within 1dB throughout the audio band, with the addition of an anti-rumble filter. High tolerance Japanese thin film resistors and German film capacitors are used throughout the design
• Bluetooth aptX
• DAC R2R ladder DAC utilising dual Analog Devices AD1865 18-bit chips supporting up to 768kHz
• Signal-to-Noise Ratio 124dB (A-weighted)
• Residual Noise 1.6uV (A-weighted)
• Dynamic Range 122dB
• Total Harmonic Distortion + Noise -110dB or 0.0003%
• Frequency Response DC (0Hz) to 22kHz @ 48kHz sample rate
• Frequency Response DC (0Hz) to 44kHz @ 96kHz sample rate
• Frequency Response DC (0Hz) to 88kHz @ 192kHz sample rate
• Output Voltage 2.5Vrms (+10.2dBu)
• Output stage Uses OPA1612s Low Noise Panasonic Resistors Proprietary filtering topology
• Clock Crystek CCHD-575 oscillator — ultra-low clock jitter of 82fSec
• Dimensions 44cm x 41.5cm x 13cm (w/d/h)
• Weight 15.4kgs

Support

• Manual
