IsoTek EVO3 Sirius - Power Distribution

by IsoTek
Original price ₹ 70,000 - Original price ₹ 70,000
Original price ₹ 70,000
₹ 70,000
₹ 70,000 - ₹ 70,000
Current price ₹ 70,000
Variant: UK

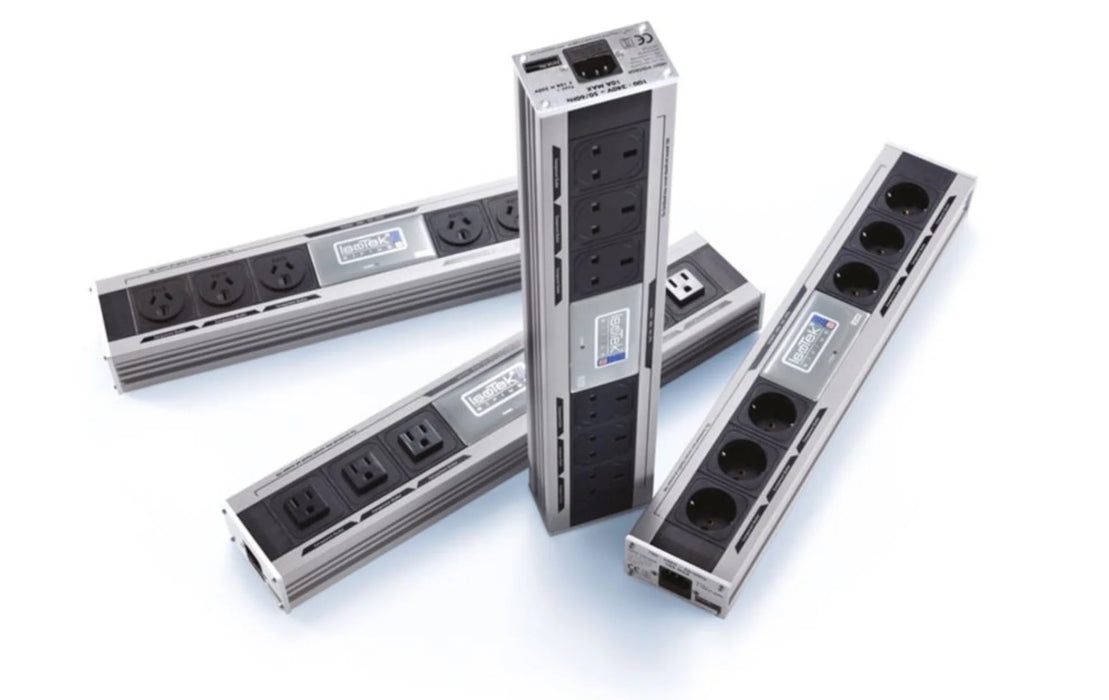

Sirius is a high-performance, multi-award-winning power bar, which protects and improves your precious audio components performance. A special wall bracket system allows Sirius to be mounted discretely behind your audio system.

The EVO3 Sirius is a compact yet elegant power cleaning and distribution bar measuring 480mm in length, 88mm wide and just 50mm high. It features 6 independent outlets each one referencing back to the central PCB to dramatically reduce Differential Mode cross contamination of connected components. Most power filters of this style join output sockets together, running each in series. This is an error as Differential Mode Noise created by your connected electronics will cross contaminate from one output socket to the next. The electrical architecture and design of Sirius is superior.

The EVO3 Sirius has a unique delta filter topology ensuring class-leading power cleaning of both Common Mode and Differential Mode mains noise. This is combined with IsoTek’s unique Inductive Resonance Gate © which further optimizes the isolation between each of the six output sockets. Clean power is then delivered to all six output sockets – each one independently isolated to prevent cross-contamination of mains noise. KERP © (Kirchoff’s Equal Resistance Path) ensures equal resistance and equal power delivery to all outlets. The internal wiring is of the highest standard, pure 6n oxygen free copper conductor strands with silver-plating offer low resistance and high amperage. A PTFE dielectric is used to protect the conductors as well as giving the ultimate internal power delivering system. Furthermore, 22,500A of instantaneous protection is provided, safeguarding valuable equipment via IsoTek’s unique sequential and repeatable protection system.

Housed in an extruded aluminum chassis, Sirius is a solid hard wearing power bar that can easily be wall mounted behind audio systems or placed discretely behind audio racks.

The internal wiring of IsoTek products synergizes with the range of IsoTek power cables. One critical but overlooked area is maintaining commonality of design and material properties though an audio wiring loom, be it signal carrying cables or your power cable network.

Features

  • Suitable for all audio or AV systems
  • RFI reduction 40dB
  • Central clean power network removes Common and Differential Mode mains noise
  • 6 independent outlets stop Differential Mode cross contamination
  • 22,500A instantaneous protection
  • Fully star-earthed network
  • Multi-strand 6n OFC silver-plated internal wiring with FEP dielectric
  • Wall mounting bracket kit included
  • Use with standard IEC C13 power cable
  • UK, EU, US, AU & CH outlets available

Specifications

NUMBER OF OUTLETS 6
TYPE OF OUTLETS UK, EU, US, AU & CH
MAINS INLET 10A IEC C14
MAINS VOLTAGE 100-240V / 50-60Hz
MAXIMUM CURRENT 10A HRC
TOTAL WATTAGE 2,300W (@230V) / 1,150W (@115V)
SURGE PROTECTION 22,500A
DIMENSIONS (W X H X D) 88 x 50 x 480mm
WEIGHT 2.0Kg
