Integra DTM 7.4 Stereo Receiver

Designed and engineered with meticulous attention to detail, the Integra DTM-7.4 Hi-Fi Network Stereo Receiver offers audiophile-grade sound alongside cutting-edge connectivity options and a full suite of custom installation features.

Designed and engineered with meticulous attention to detail, the Integra DTM-7.4 Stereo Receiver offers audiophile-grade sound alongside cutting-edge connectivity options and a full suite of custom installation features. This compact 2-channel receiver seamlessly integrates into any home entertainment system, delivering high-resolution audio output while optimizing space efficiency.

Features

• 110W/ch x 2ch fully discrete amplifier
• 8K HDMI 4 in/1 out with ARC
• Chromecast built-in, AirPlay2, Roon ready
• 768kHz/32bit Premium D/A converter
• Custom-built components for Audio
• Dedicated Phono Circuit board for MM/MC
• Full suite of custom integration software tools
• Works with Sonos for power and volume sync
• Custom integration software tools for streamlined installation

• High resolution sound

• Engineered for vinyl enthusiasts

• Audiophile streaming built-in

• Designed for the smart home era

• Class G amplifier

Specifications

• Audio
  • 110W/ch x 2ch (8Ω, 20-20kHz, 0.08% THD)
  • Frequency response 5Hz - 100kHz (+1/-3dB Direct Mode)
  • Speaker impedance: 4-16 ohms
  • Tone control Bass(100Hz) & Treble (10KHz): +/- 10dB
  • 768KHz/32bits D/A converter - AK4452

  • Dedicated MM/MC Phono Circuit Board

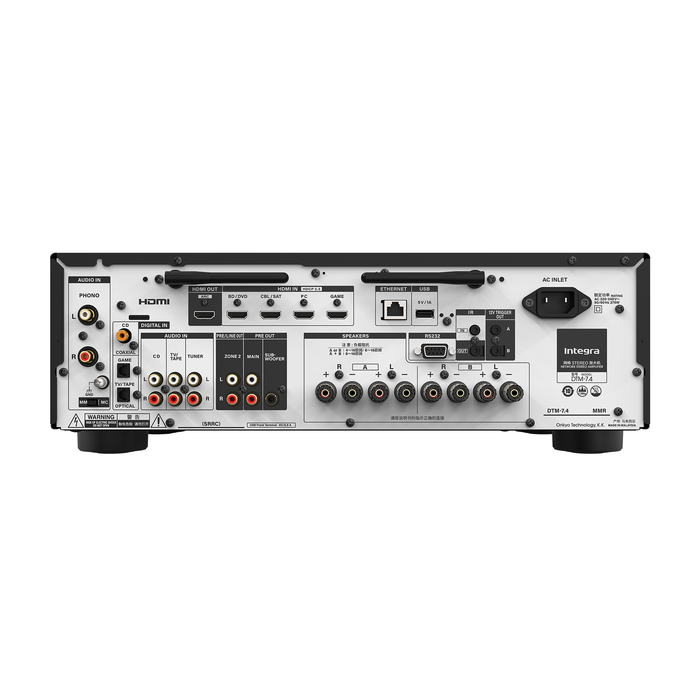

• Inputs / Outputs
  • HDMI 4in / 1out – all supports 8K up to 40Gbps, and ARC
  • Audio input: 3 Analog, 2 Optical, 1 Coaxial, Phono inputs, and Front/Rear USB
  • Audio output: Main and subwoofer pre-out, Zone2 Pre/lineout
  • Wi-Fi and Ethernet
  • AM/FM Tuner
  • Gold plated speaker terminals
• Network
  • Roon Ready certified
  • Chromecast built-in for audio, and AirPlay2
  • Music services: Spotify, Amazon Music HD, Tidal, Deezer, Pandora and TuneIn radio
  • Bluetooth receiver from mobiles and PC (SBC/AAC)
• Dimensions & Weight
  • Dimensions (W x H x D) 17 1/8" x 5 7/8"x 12 15/16" (435 x 149 x 328 mm)
  • Weight 19.8 lbs (9.0 kg)
  • CARTON Dimensions (W x H x D) 21 1/4" x 9 7/16" x 15 3/4" (540 x 240 x 400)
  • Weight 23.1 lbs (10.5 kg)
