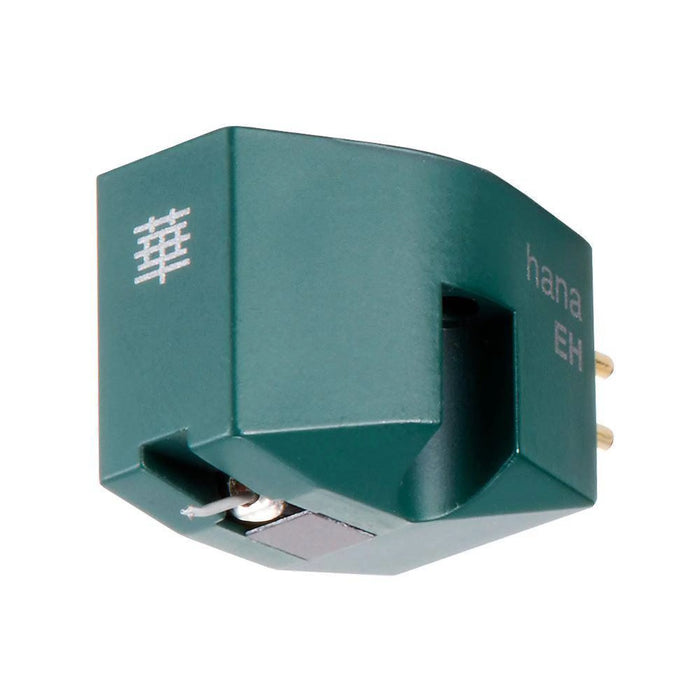

Hana EH - High Output Moving Coil Phono Cartridge
Taxes & Shipping Included
Meaning “Brilliant and Gorgeous” in the Japanese language, “華”, Hana moving coil cartridges are affordably priced and supply the most “Brilliant and Gorgeous” performance to audiophile customers for their budget.

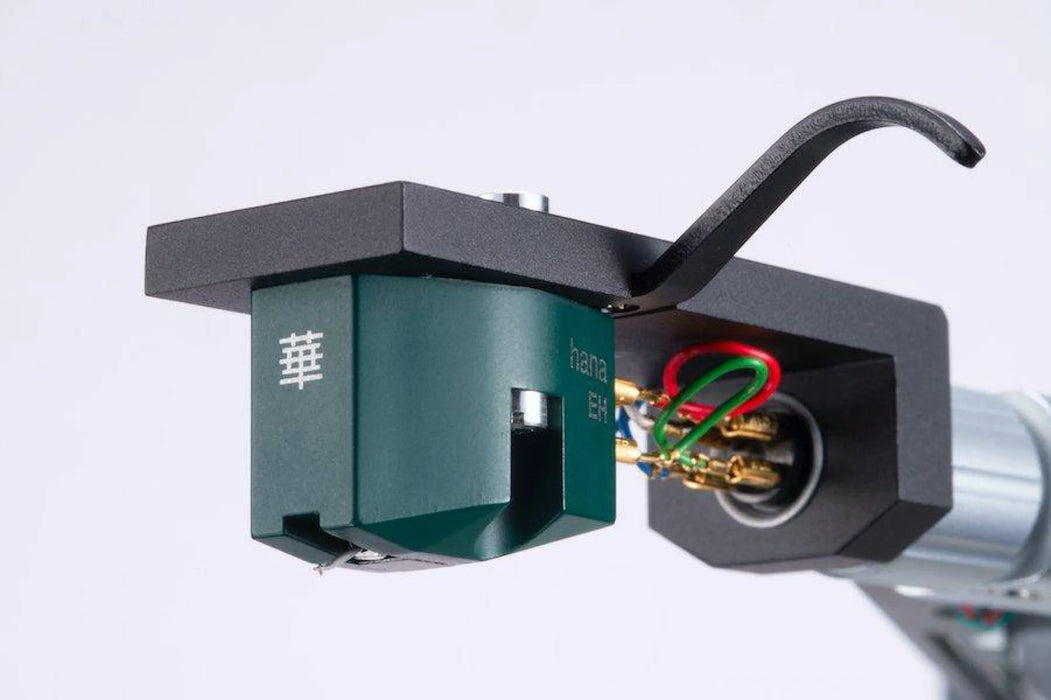

The Hana EH cartridge has a synthetic Elliptical diamond stylus fitted to a high rigidity aluminum cantilever with cross-shaped armature, offering super transparency and excellent tracking ability. The body is manufactured from a composite low resonance plastic material in dark green.
This competitively priced High output moving coil cartridge offers great quality sound referenced against similar priced cartridges. The EH (Elliptical High output) offers 2.0mv/1KHz output.
The Hana Series has been developed with significance placed on easy use and set-up, as well as high performance reproduction. Hana’s high output versions, EH and SH, supply 2mV output, so that they can be directly connected to MM phono input for vinyl reproduction.
Hana cartridges are Made in Japan
Specifications
- Model: Hana EH
- Stylus: Synthetic Elliptical
- Cantilever: Aluminium
- Output Level: 2mV/1kHz
- Output Balance: <2dB/1kHz
- Vertical Tracking Force: 2 gr.
- Tracking Ability: 70μm/2gr.
- Channel Separation: 25dB/1kHz
- Frequency Response: 15~25,000Hz
- Impedance: 130Ω/1kHz
- Suggested Load Impedance: 47kΩ
- Cartridge Weight: 5 gr.
- Body Color: Moss Green
