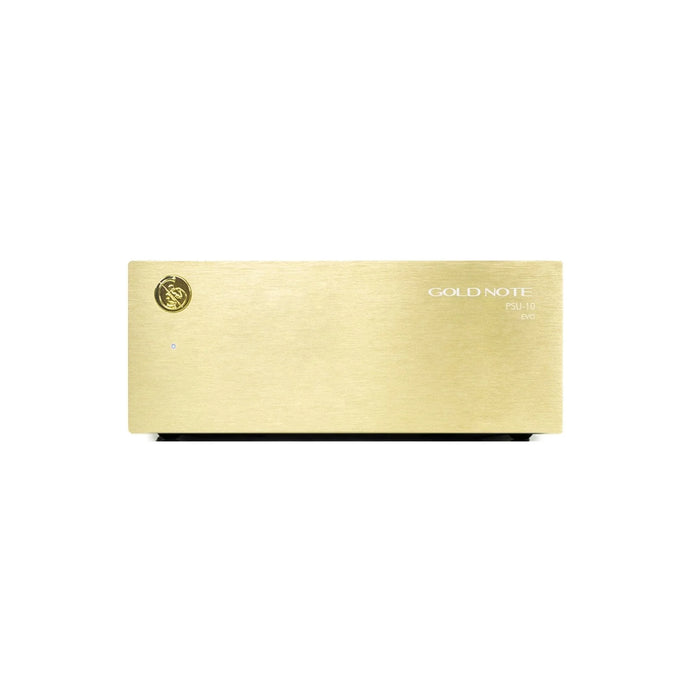

Gold Note PSU 10 EVO Power Supply Unit

Rs. 110,000.00
Color

The PSU-10 EVO has been engineered with the finest audio grade components to enhance the performance of DS-10 and DS-10 PLUS even further. The PSU-10 EVO features a 4-transformer power supply stage enhanced with ultra-low-noise voltage regulators.

The power supply stage takes advantage of a 4-transformer layout with 3 transformers entirely dedicated to the power supply and 1 for the inductive filter.
The Dual Choke Hybrid design features an inductive filter on the analogue stage and is powered by a double inductor, driving both the negative and positive high-current stages. This proprietary technology perfectly filters the current to eliminate interference and electrical noise from the AC power system achieving ideal insulation, an ideal working environment for the electronics to perform at their best.

The ultra-clean power generated by the PSU-10 EVO allows DS-10 and DS-10 PLUS to deliver greater dynamics, better resolution, and even finer details resulting in improved realism, musicality as well as control.

Please note: the PSU-10 EVO is not compatible with the PH-10 Phono Stage
Features
  • 4-transformer power supply stage enhanced with ultra-low-noise voltage regulators
  • Dual Choke Hybrid design
  • Four rail audio grade power supply
  • Two ultra-low-noise voltage regulators
  • Made in Italy
Specifications
  • MAXIMUM VARIATION OF OUTPUT VOLTAGE 0,05 %
  • LINE NOISE REJECTION >80dB
  • COMMON MODE NOISE REJECTION >80dB
  • FULL POWER RESPONSE TIME <2,5µsec
  • POWER SUPPLY 100-120V / 220-240V with auto sense, 50/60Hz
  • POWER CONSUMPTION 70W
  • DYNAMIC POWER >100W
  • STAND BY POWER <1W
  • FUSE 0.5A T
  • WEIGHT Kg. 4 – net, Kg. 5 – boxed
  • Finishes: Black, Gold, Silver
  • DIMENSIONS 200mm W | 80mm H | 260mm D
