Gold Note PH 10 Phono Preamplifier

Engineered to allow ultra precise adjustments and let you enjoy the best out of your system. And with two separate RCA inputs you will be able to connect independently two different tonearms and tune it to match each cartridge specs. Once the tonearm is connected, PH-10 can be adjusted with 4 different GAIN levels [-3dB, 0dB, +3dB, 6dB] to match precisely the output level of any MM or MC cartridge. the perfect setup is guaranteed with 9 different load options - 10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ.

Select between 3 equalization curves and experience outstanding performances. You will finally be able to switch from the internationally recognized RIAA curve, to the DECCA-LONDON or the AMERICAN-COLUMBIA curve, always graphically shown on the front display. And there's more, because you will also be able to “enhance” each curve with a modern Gold Note proprietary design for superior dynamic and powerful results.

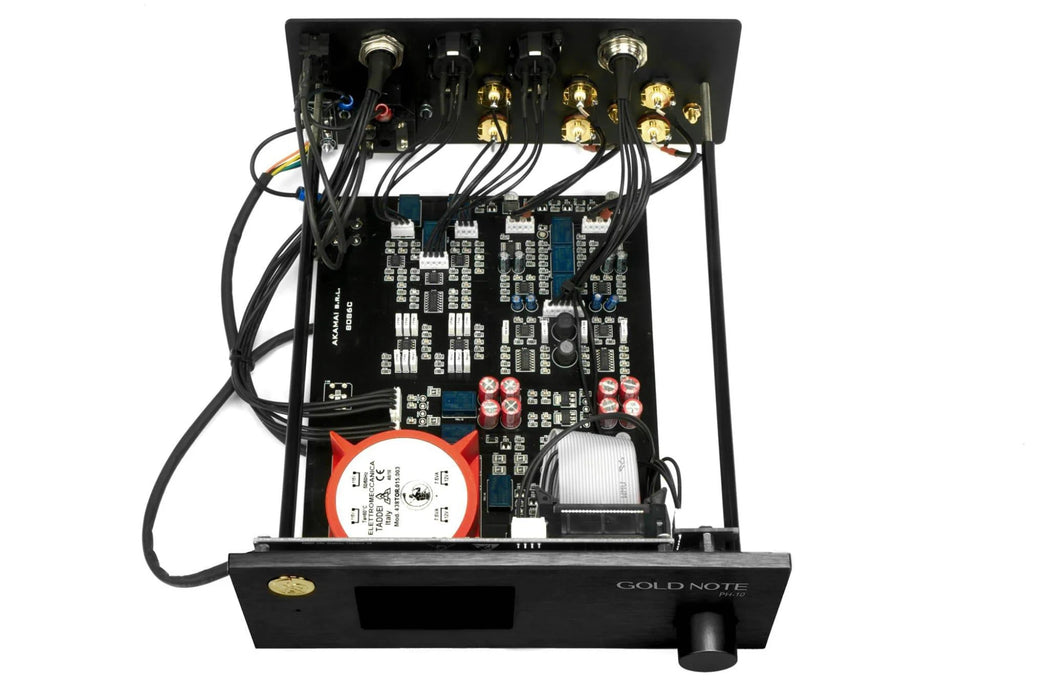

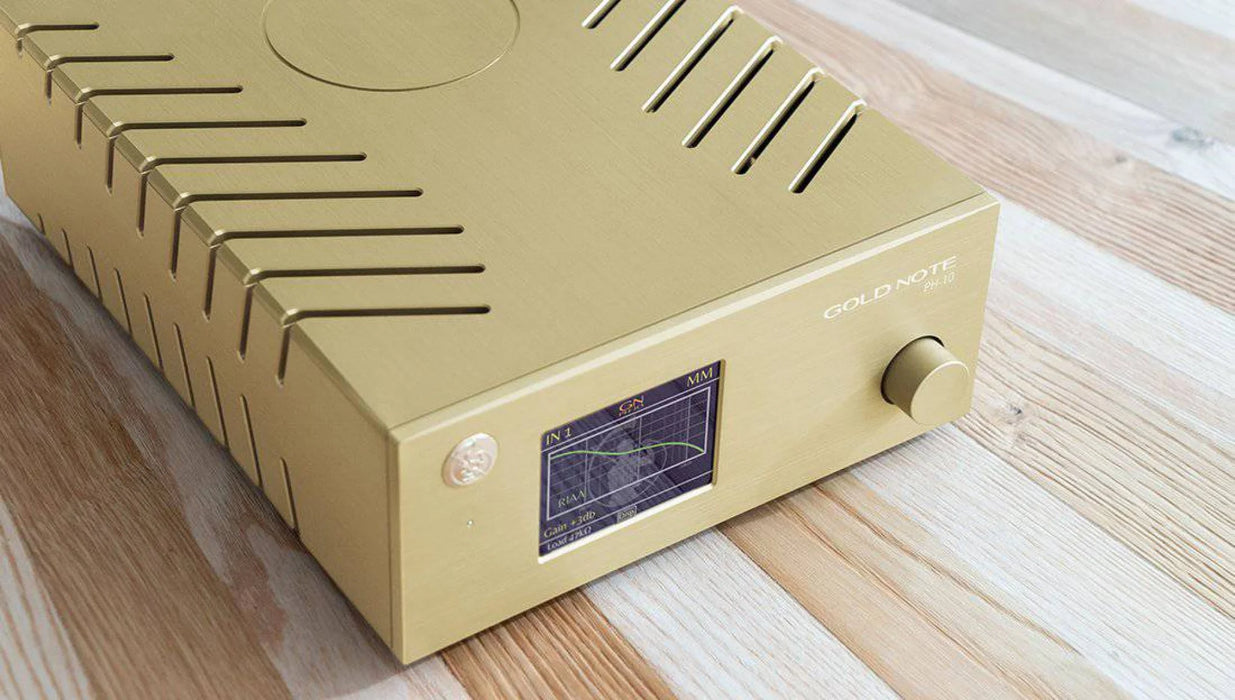

Built from a solid block of machined aluminium and designed to elegantly cool the sophisticated electronics. PH-10 shows every detail on its 2,8” colour display and everything is powered by Gold Note proprietary SKC - Single Knob Control technology – an intuitive control system developed to easily browse and select all the unit's functions. PH-10 comes with a USB port to quickly update the unit via computer anytime new software is available. The unit can be externally powered by a dedicated inductive dual-mono power supply to enhance even more the audio performance.

TWO SEPARATE TONEARMS

With two separate RCA inputs you can connect two different tonearms and adjust settings independently for each single cartridge

SELECT the GAIN STAGE

PH-10 offers 4 different selectable GAIN levels -3dB, 0dB, +3dB, 6dB to precisely match any kind of output level for MM and MC cartridges

9 INTERNAL LOAD options

Perfect matching is easy and quick to achieve with 9 different load options 10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ

3 EQUALIZATION CURVES to enhance

Select the record modulation between the internationally recognized RIAA, DECCA-LONDON or AMERICAN-COLUMBIA curves, and then “enhance” it with our cutting-edge proprietary technology to achieve the best vinyl experience

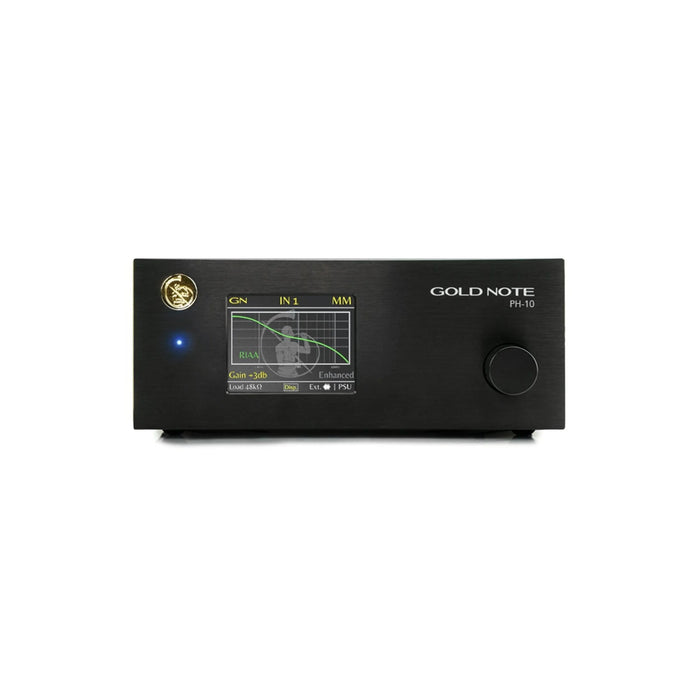

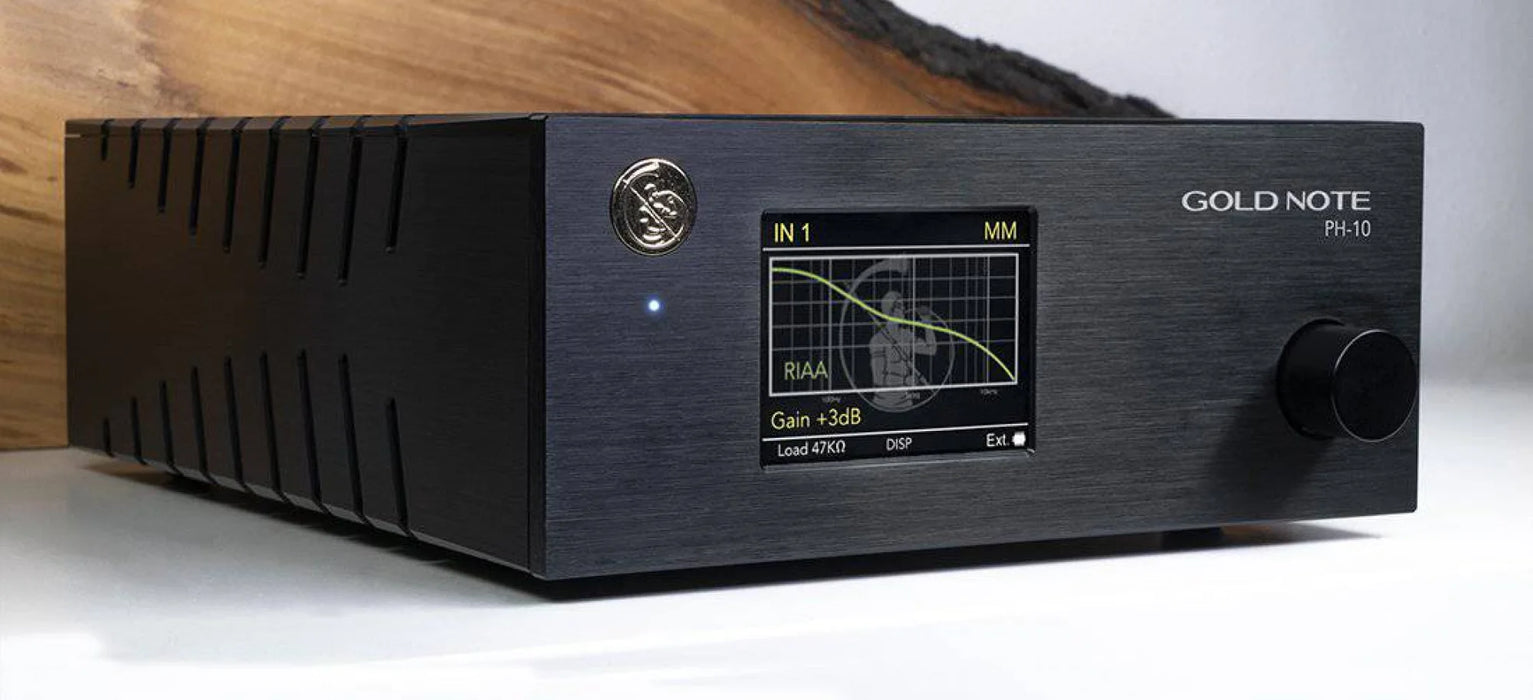

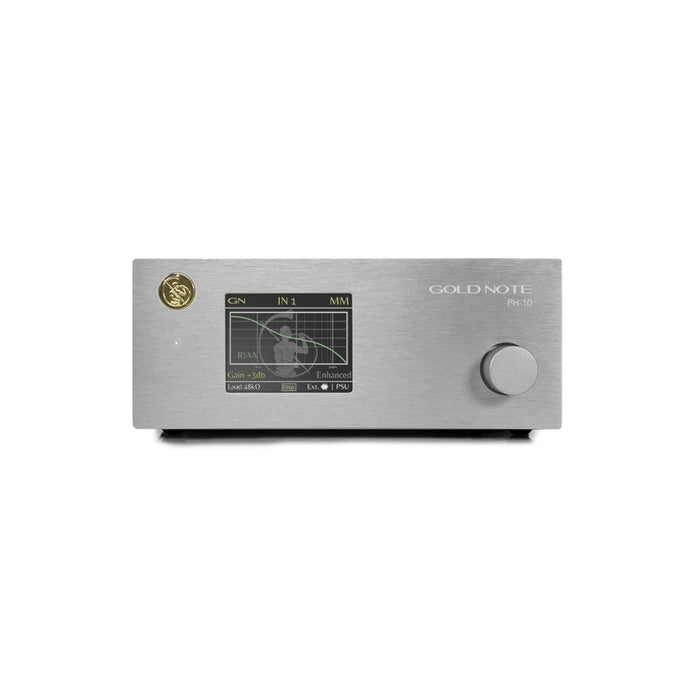

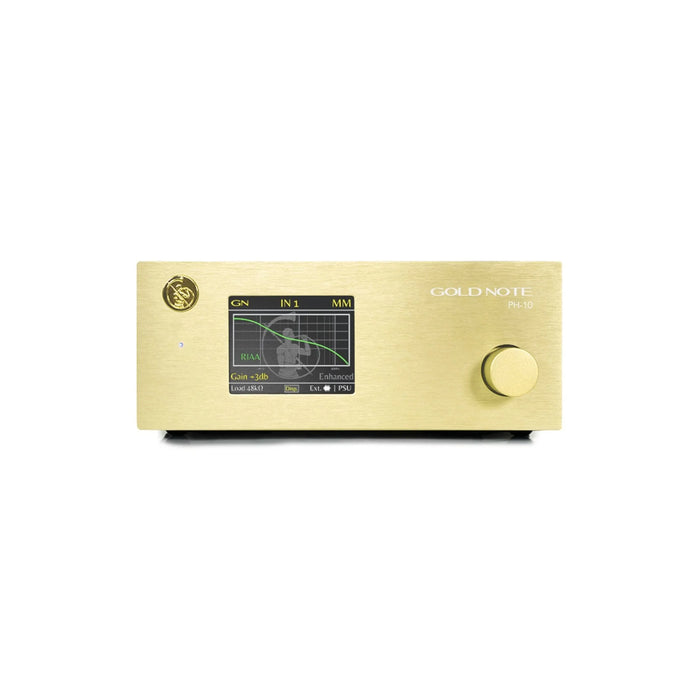

TFT DISPLAY & SKC - Single Knob Control

SKC is a unique technology that paired with TFT display allows quick control of the unit's functions through the single knob

The display shows every information and lets you rapidly select and modify the settings

MODULAR DESIGN

Gold Note modular design allows upgrades with external units, including: External Inductive Power Supply, Curve Equalizer Extender unit, Class-A Tube Output Stage and Gain Stage Enhancer

ELEGANTLY FUNCTIONAL

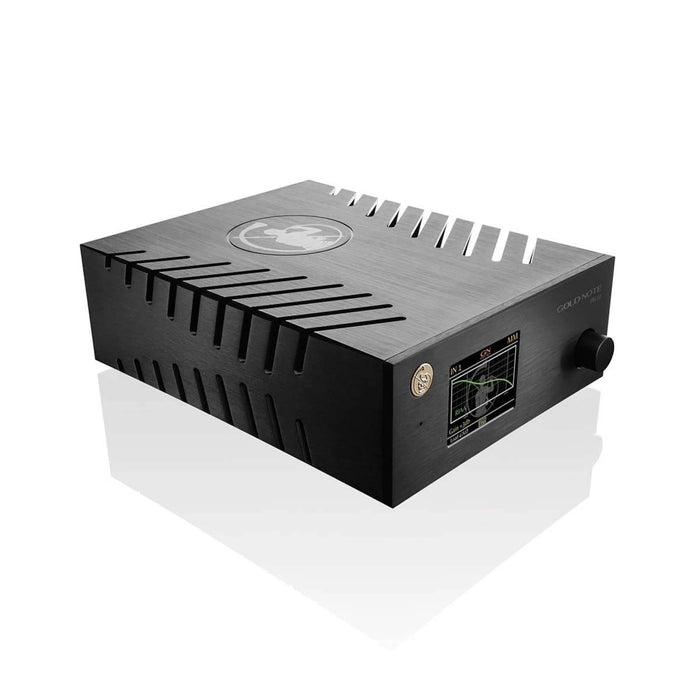

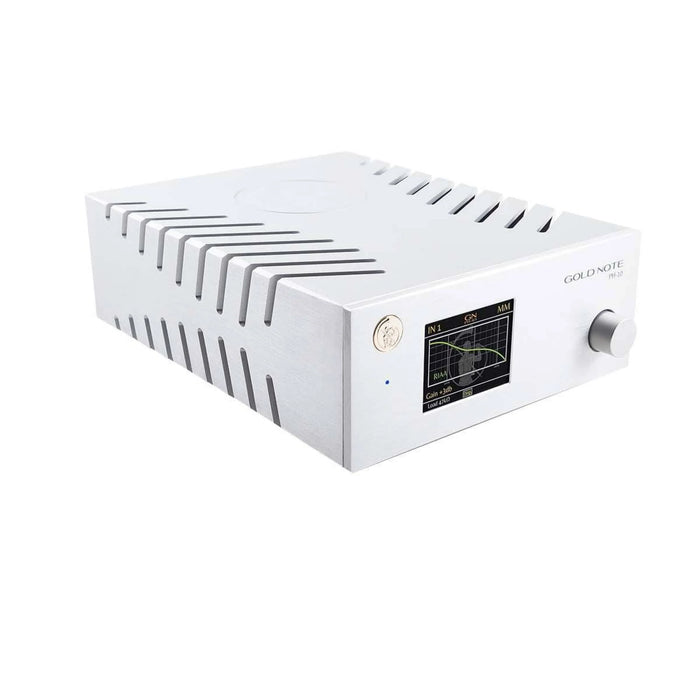

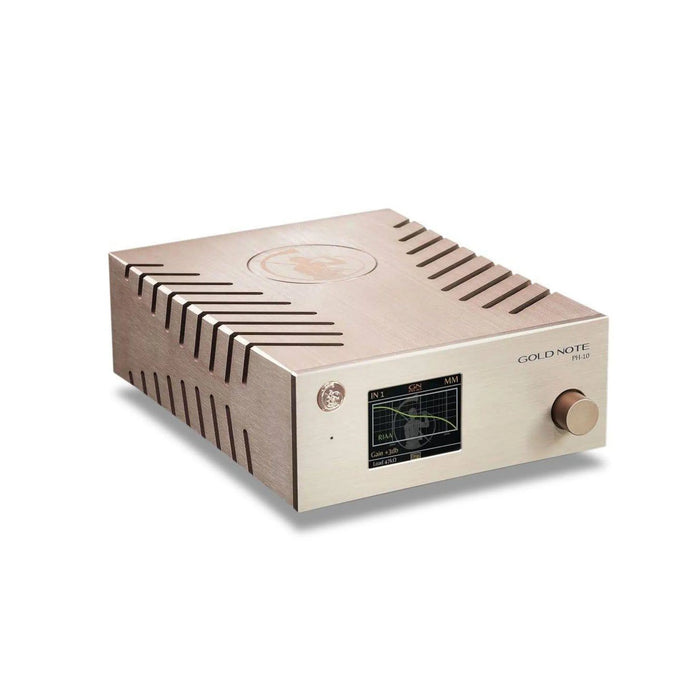

Made of solid aluminium and fully machined, the shell body guarantees low frequency resonance, feedback vibrational control and low magnetic inertial field

• Phono Pre-amplifier with SKC and TFT colour display
• Equalization Curve control: 3 selectable curves [RIAA - Decca-London - American-Columbia] with enhanced option for each
• Frequency response: 2Hz – 200KHz @ +/- 0.3dB
• THD (Total Harmonic Distortion): <0.002% MAX
• Signal to noise ratio: -102dB
• Dynamic response: 122dB
• Output impedance: 500Ω
• Phase response: linear phase, absolute phase inverted
• Weight: 4Kg
• Dimensions: 220mm L | 80mm H | 260mm D
• Main supply: 100V to 245V ▪ 50/60Hz (depending on market destination, not convertible)
• Power consumption: 30W super linear power supply

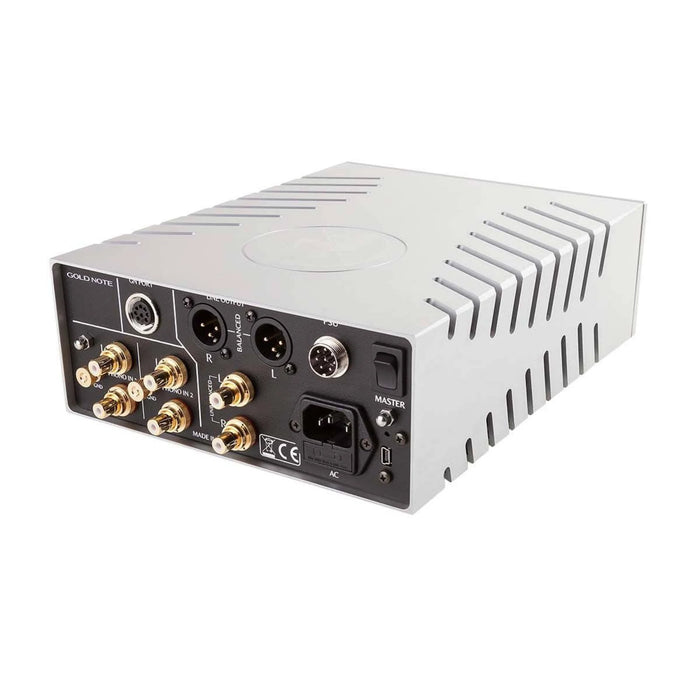

• Line output level (fixed): stereo RCA @ 2Volt and balanced XLR @ 4Volt
• Analogue inputs: 2 separate independent stereo RCA
• Input sensitivity: 0.1mV MC up to 7.0mV MM
• Input impedance: 9 selectable options [10Ω 22Ω 47Ω 100Ω 220Ω 470Ω 1000Ω 22KΩ 47KΩ ]
• Gain: 65dB MC - 45dB MM with 4 options [-3dB 0dB +3dB +6dB]
