Fyne F5E Bookshelf Speaker (Pair)
Taxes & Shipping Included

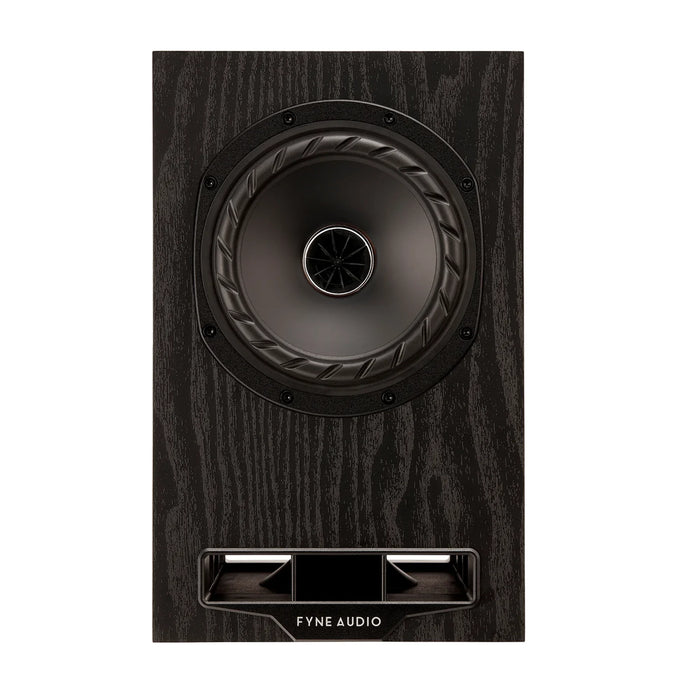

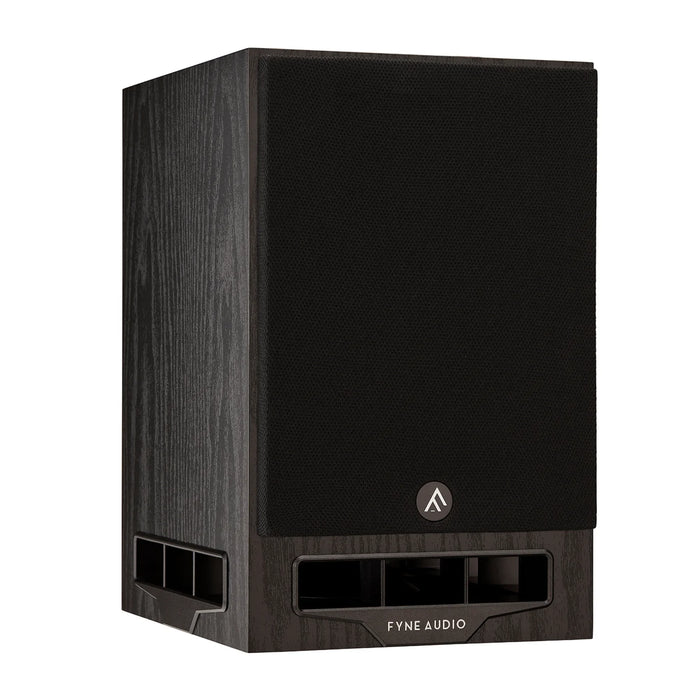

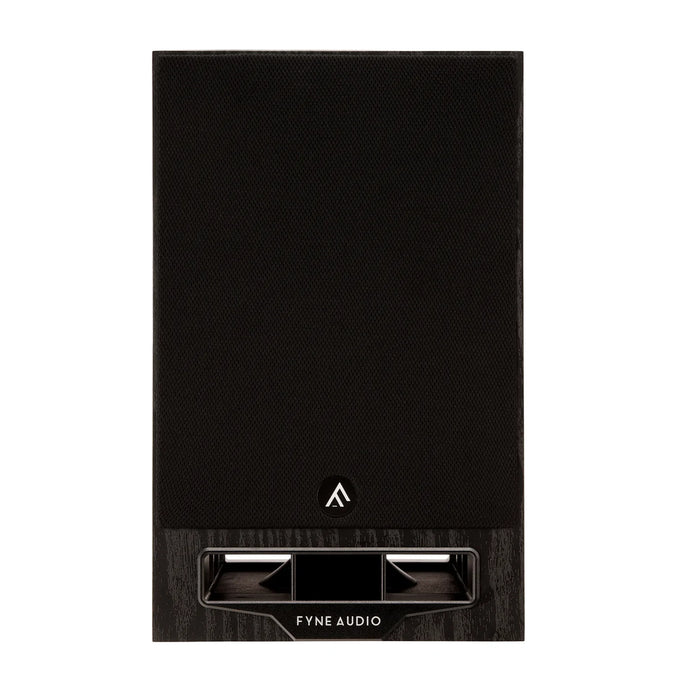

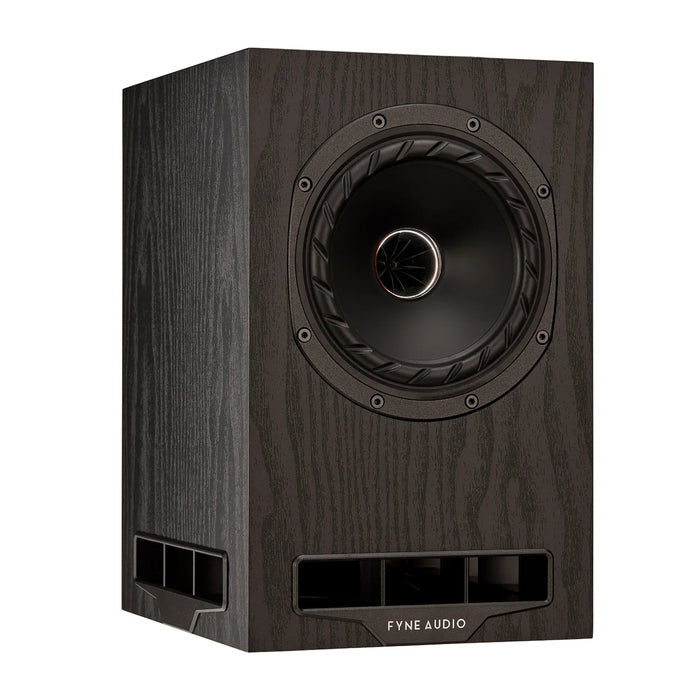

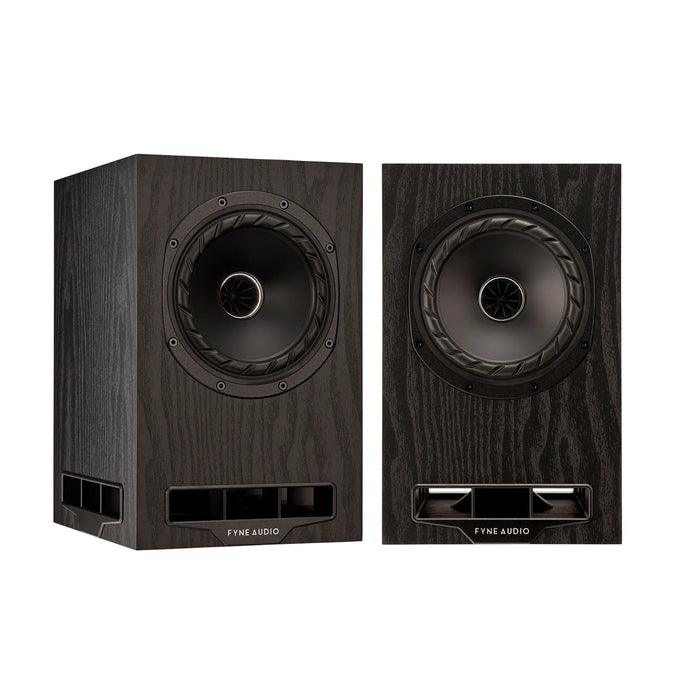

The F5E is your entry point to the advanced sound technology found across the breadth of Fyne Audio’s products. With a 5” IsoFlare point source and FyneFlute surround driver featured in this compact speaker, you’ll enjoy precise stereo imaging and detailed sound. Designed for versatility, it can be wall mounted, placed on a stand, or used on a bookshelf. The BassTrax system ensures non fussy positioning and delivers a smooth, even sound throughout the room. Ideal for small to medium spaces, the F5E combines high performance with a compact design, offering excellent value for those new to premium audio.
The F500 Series is our premium loudspeakers built around the innovative Fyne Audio IsoFlare point source drive unit. Technical Director, Dr. Paul Mills, and our technical team have many decades of experience in point source driver technology, and they have refined the concept using the latest materials science and cutting-edge engineering processes. The F500 Series leverage all the benefits of IsoFlare technology and Fyne’s innovative bass porting system to ensure optimal in-room performance for stereo music and Home Theatre alike.
The F500 Series uses a rigid MDF cabinet, wrapped in sumptuous real wood veneers or piano gloss over a rich paint base. Floorstanding models benefit from an MDF plinth with top adjustable spikes for easy levelling, for additional stability and further control over the F500’s enviable bass performance. Standard F500 Series models are available in a choice of Dark Oak or Black Oak real wood veneers, Piano Gloss Black and Piano Gloss White.
The bookshelf and floorstanding models employ an internal, downwards-firing port system. Below the port, a Tractrix profile diffuser (patent applied for) converts plain wave port energy to a spherical 360-degree wave front, integrating energy uniformly into the room. This clever design ensures that the loudspeaker is less critical of room positioning.
Low-loss, laminated core inductors and audiophile-grade polypropylene capacitors are used exclusively throughout the F500 Series crossovers. The result is an exceptionally clean signal path and very low crossover losses, ensuring the very best in detail resolution and musical communication.
The F500 Series is as impressive with movies as it is music. Fyne Audio’s point source driver technology is ideal for articulating the finest of movie detail with pin-point accuracy. High efficiency and high power handling means the F500 Series delivers an incredibly dynamic and lifelike performance whether you are listening to DTS Master Audio or Dolby True HD.
To fully optimise the driver’s performance, every aspect of the meticulous design has been considered. A vented rear chamber in the Neodymium HF magnet places low frequency resonance well below crossover region. The unique geometry of the high frequency unit’s waveguide provides a flat frequency response and avoids internal reflections.
To eliminate unwanted vibrations, which would be detrimental to the sound quality, both the point source driver and the supplementary low frequency driver fitted to the floor standing models, are built around a rigid cast aluminium chassis. Multifibre paper cones are used providing natural sounding midrange and clean transient behaviour. Cone energy is then very effectively terminated using a fluted rubber surround.
Specifications
| System Type | 2 way, downwards firing port, with BassTraxTM Tractrix diffuser |
| Recommended amplifier power (Watt RMS) | 30 - 90 |
| Continuous power handling (Watt RMS) | 45 |
| Sensitivity (2.83 Volt @ 1m) | 87dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 55Hz – 38kHz |
| Drive unit complement | 1 x 125mm IsoFlareTM, multi-fibre bass / mid with 19mm titanium dome compression tweeter |
| Crossover frequency | 1.8kHz |
| Crossover type | 2nd order low pass, 1st order high pass |
| Dimensions - HxWxD | 270 x 174 x 228mm (10.6 x 6.9 x 9.0”) |
| Net Weight - Each | TBA |
| Finishes | Black Ash |
