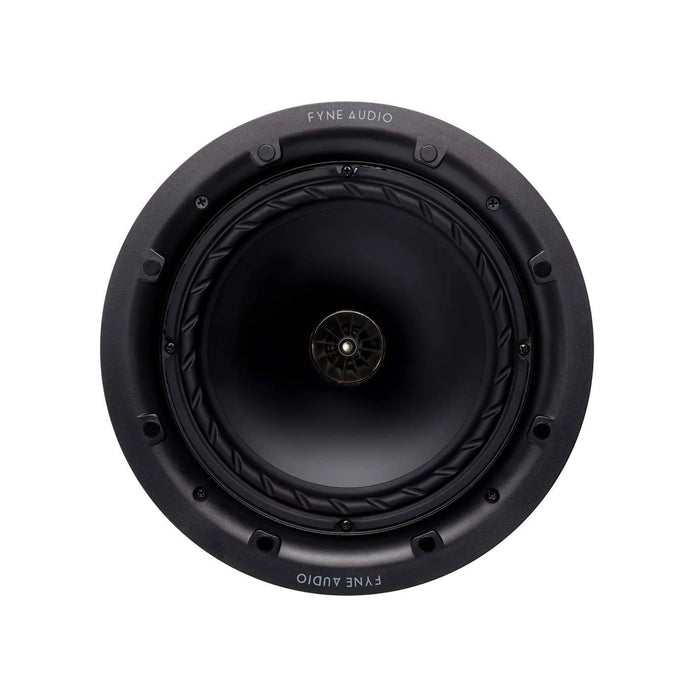

Fyne Audio F502iC - 8inch Ceiling Speaker

by Fyne
Rs. 26,900.00

Delivering all the detail, impact and class-leading imaging of Fyne’s F500 series loudspeakers, the FA502iC brings true audiophile performance to home install loudspeaker design.

Built around the F500 series prestigious 200mm (8”) IsoFlare point source driver with infinite baffle tuned crossover, the design offers high efficiency, high power handling and unique full range 360 degrees isotropic dispersion pattern.

The result is a rich, detailed sound with a wide soundstage and perfect time alignment across the frequency spectrum. Ideal for in-ceiling or in-wall custom applications in the home, the chassis offers simple self-aligning clamps, spring clamp cable terminals and comes supplied with both round and square, fully paintable low profile magnetic grilles.

The grilles are further enhanced with an acoustic scrim cloth to ensure the FA502iC blends seamlessly into the home décor.



    SPECIFICATIONS

    System Type 2 way IsoFlare loudspeaker for in ceiling or in wall application
    Recommended amplifier power (Watt RMS) 30 - 150
    Peak power handling (Watt) 300
    Continuous power handling (Watt RMS) 75
    Sensitivity (2.83 Volt @ 1m) 91dB
    Nominal impedance 8 Ohm
    Frequency response (-6dB typical in room) 35Hz - 34kHz
    Drive unit complement 1 x 200mm (8”) IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm titanium dome compression tweeter
    Crossover frequency 1.7kHz
    Crossover type Passive 2nd order low pass, 1st order high pass
    Dimensions - Dia x Depth 273 x 123mm (10.6” x 4.8”)
    Square grille dimensions 281 x 281mm (11.1 x 11.1”)
    Round grille diameter 281mm (11.1”)
    Cut-out diameter 248mm (9.8”)
    Depth behind mounting surface 120.5mm (4.7”)
    Clamp travel 5 - 50mm (0.2 - 2.0”)
    Suggested min volume 18 L
    Weight - Each 2.5kg (5.5lbs)
