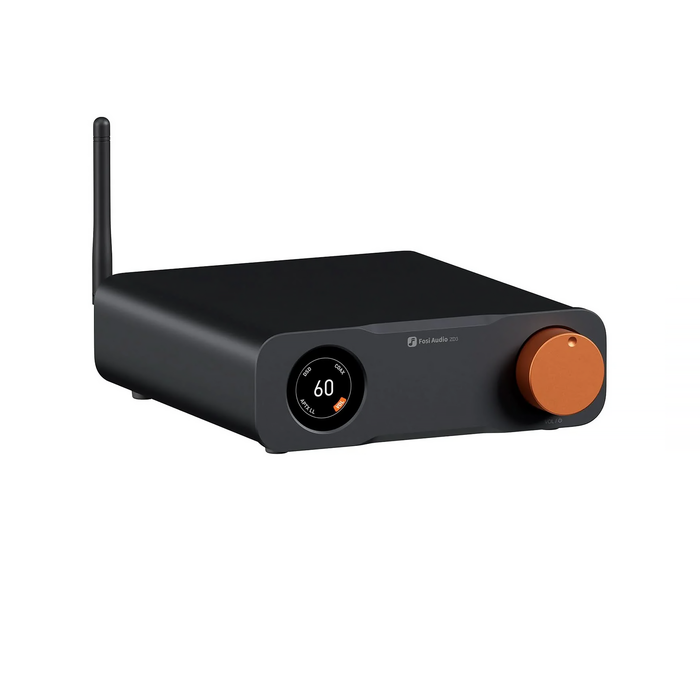

Fosi ZD3 DAC & Balanced Preamplifier
Taxes & Shipping Included
The ZD3 is a HiFi-grade balanced stereo DAC meticulously developed by Fosi Audio after thoroughly understanding user needs. It features an ESS flagship high-precision audio DAC chip, delivering clear and immersive sound quality. Our proprietary I/V conversion circuit and fully balanced circuitry reduce noise and crosstalk, while integrated high-precision wafer resistors and low drift capacitors ensure minimal signal processing errors and better channel balance. Coupled with its sleek design and multiple connectivity options, we are confident it will take you on a superb journey into HiFi music.
The Fosi ZD3 is a fully balanced DAC and preamplifier engineered for discerning audiophiles. Built around the premium ES9039Q2M chipset, it delivers exceptional clarity with support for DSD512 and PCM up to 32bit/768kHz. The unit features comprehensive connectivity—Bluetooth, USB, optical, coaxial, HDMI ARC, and balanced XLR/RCA outputs—adapting seamlessly to any audio configuration. An intuitive 1.5-inch OLED display, remote control, and 12V trigger integration ensure effortless operation and system synchronization. Its refined, compact design complements the ZA3 amplifier for a cohesive high-performance audio setup.
Features
- Flagship Desktop DAC A fully balanced digital-to-analog converter preamp with multiple inputs and outputs. Fosi Audio's first DAC to support HDMI ARC input and comes equipped with a high-performance ES9039Q2M chip to deliver rich and superior sound.
- Premium Chipset The ZD3 features the chipset consisting of XMOS XU316+ES9039Q2M+QCC3031+LME49720. It supports high audio resolution, with a maximum capability of DSD512 and PCM 32bit/768kHz sampling rates, providing unparalleled clarity and depth.

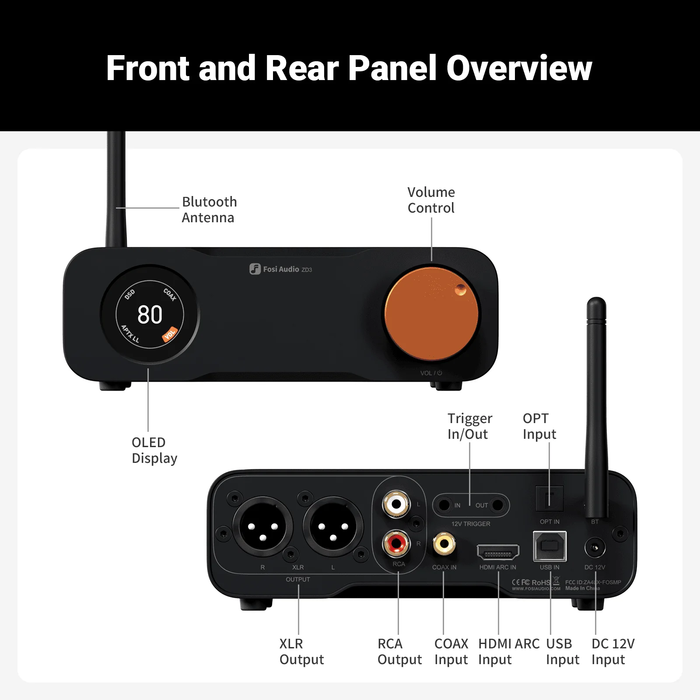

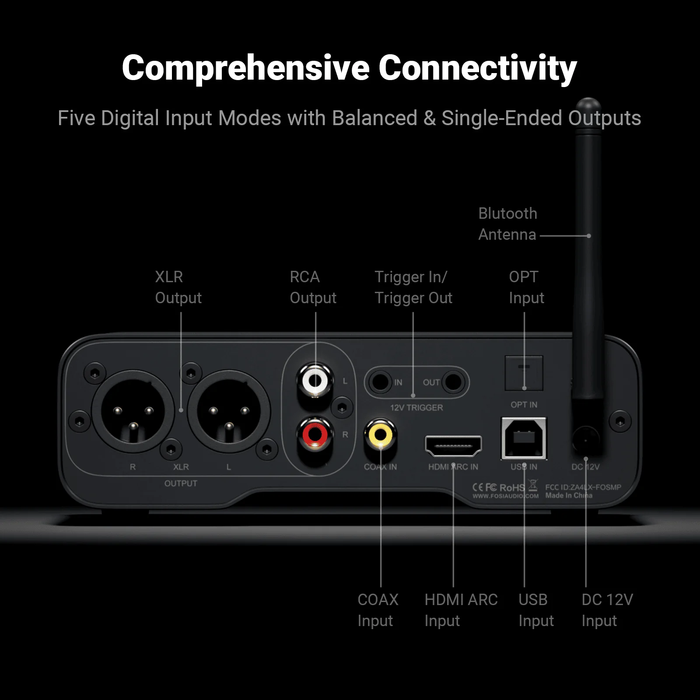

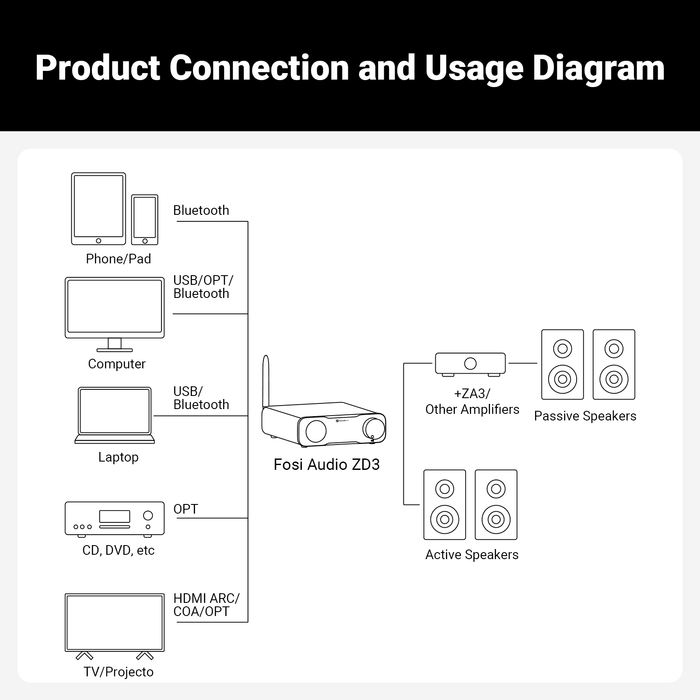

- Versatile & Flexible The ZD3 offers comprehensive connectivity, supporting inputs like Bluetooth, USB, OPT, COAX, HDMI ARC, and balanced XLR/RCA outputs. This flexibility allows you to customize your audio system to suit various setups and scenarios

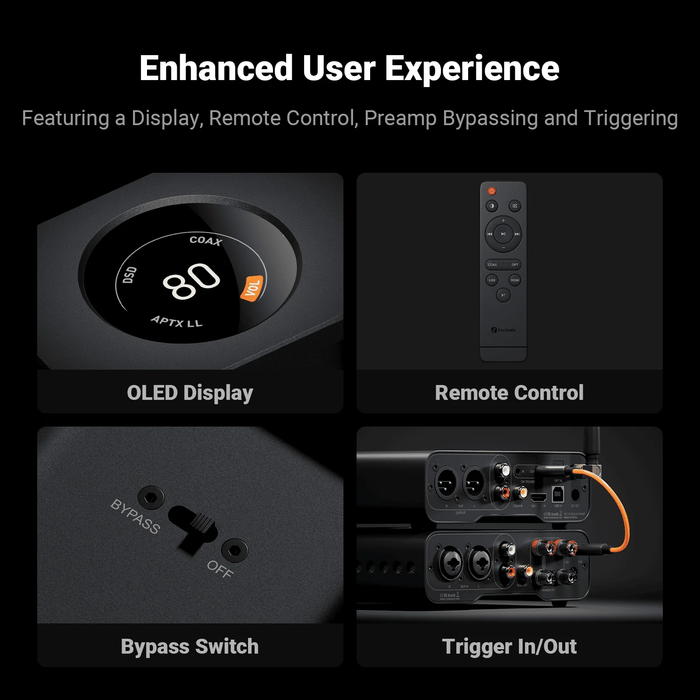

- Ease of Use The ZD3 adopts a 1.5-inch OLED display, remote control, preamp bypass switch, and 12V trigger in/out interfaces, allowing synchronized power on/off with other home audio devices, all for a good user experience.
- Family Design Featuring the same design language as the ZA3 amplifier: compact and exquisite appearance and audiophile-grade components for high performance and excellent sound quality. Pair it with the ZA3 to create a robust home audio system.
Specifications
- Chip Set XMOS XU316 + ESS 9039Q2M + QCC3031 + LME49720
-
Maximum Sampling Rate
- USB: PCM 32bit/768kHz; DSD512
- OPT/COAX: PCM 24bit/192kHz
- Bluetooth: PCM 24bit/48kHz
- USB: PCM 32bit/768kHz; DSD512
-
Output Level
- XLR: 5Vrms
- RCA: 2.5Vrms

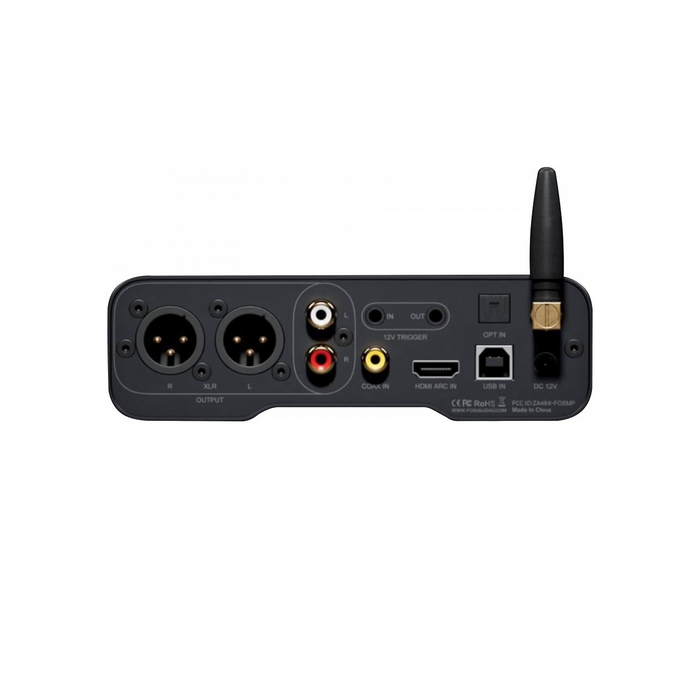

- Input Mode USB, HDMI (ARC), Coaxial, Optical, Bluetooth
- Output Mode XLR, RCA
- SINAD 126dB
- THD ≥120dB
- THD+N <0.00008%
- Dynamic Range ≥123dB
- Noise Floor ≤2μV
- Bluetooth Version 5.0
- Bluetooth Connection Distance ≥13m
- Bluetooth Transmission Audio Format aptX HD, aptX, AAC, SBC
- Power Supply DC 12V 1.5A
- USB Compatible Devices Windows 7, 8, 8.1, 10, 11 (Some require drivers; please refer to the user manual)Mac OS X, Linux (No driver required)

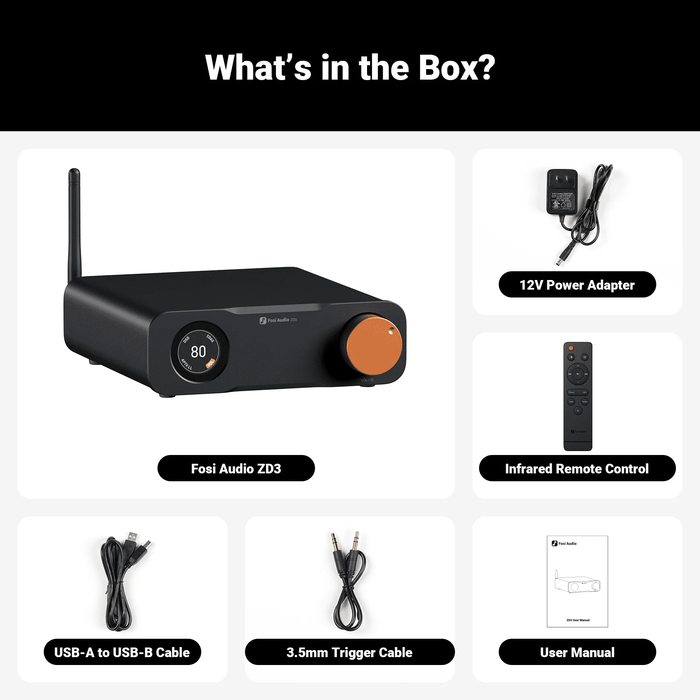

Includes
- 1 x ZD3 DAC Preamp
- 1 x 12v 1.5A Power Adapter
- 1 x IR Remote Control
- 1 x USB A > USB B Cable
- 1 x 12v Trigger Cable
- 1 x User Manual
