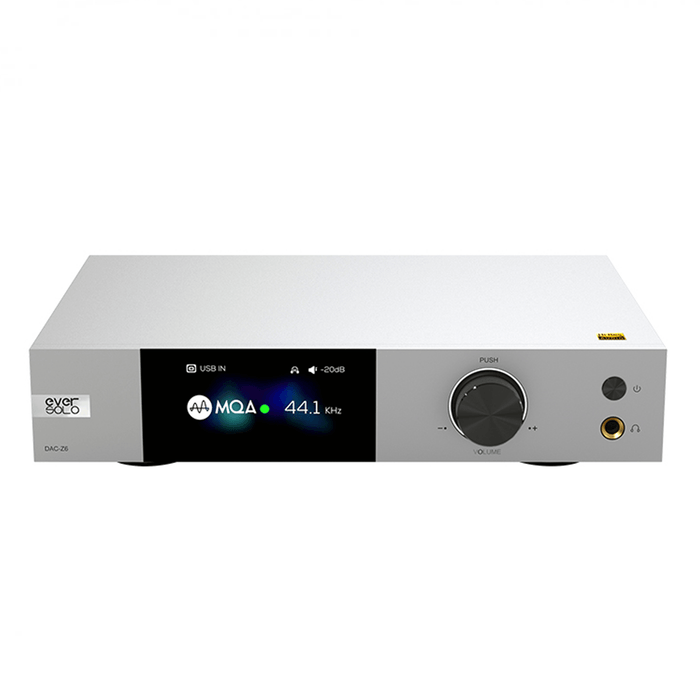

Eversolo DAC-Z6 Digital to Analog Convertor
Taxes & Shipping Included
The Eversolo DAC-Z6 represents a refined approach to digital audio conversion, engineered for discerning listeners who demand precision and versatility. Powered by XMOS 316 processing and dual ES9068 DAC architecture, this compact converter handles demanding formats including DSD512, PCM up to 768 kHz at 32-bit resolution, and full MQA decoding. The integrated preamp delivers authoritative headphone amplification and speaker-level output, while its comprehensive connectivity options accommodate both high-impedance headphones and professional monitoring systems. Meticulous construction ensures clarity across all listening scenarios.
Double High-performance
ES9068 DAC There are 2 ES9068 DAC chips to construct the Double Differential Quadruple Converter, with one ES9068 DAC chip per channel for independent D/A conversion output. The design avoids interference between channels effectively, reduces the noise floor to 6dB, obtains better audio indicators like signal-to-noise ratio and dynamic range etc. DSD512, PCM768@32bit and MQA hardware decoding are supported.
Professional Calibration
Benefited from development engineers’ rich experience in analog circuit design, professional calibration and circuit design are adopted for DAC-Z6. The total harmonic distortion ratio which has been measured is -120dB (0.00009%), signal-to-noise ratio and dynamic range are 125dB. These industry leading indicators are solid foundation for good sound quality.
XMOS 316
The 3rd generation XMOS 316 has faster processing speed and better USB bandwidth, which ensures lossless transmission for high-definition audio data. USB output supports DSD512 Native, PCM768@32bit and MQA full decoding. Optical and Coaxial output support DSD 64 (DoP) and PCM192@24Bit.
DAC-Z6 includes MQA (Master Quality Authenticated) technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.
High Precision Clock Oscillators
FOES dirt XMOS VIGAO PP Two low jitter clock oscillators (45.1584MHz and 49.152MHz) are integrated in DAC-Z6, which correspond to 44.1 KHz and 48KHz multiplied sampling management. Audio decoding is more accurate.
Balanced Differential Amplification Circuit
DAC-Z6 analog audio circuit is fully balanced differential amplification circuit design, which is made up of several operational amplifiers. DAC connects to all analog outputs including XLR, RCA, headphone jack through the circuit. Noise has been eliminated by resolving the crosstalk of the shared loop and improving channel separa-tion. The high-fidelity preamp circuit supports refined volume adjustment, no additional preamp needed.
RCA and XLR Separate Output
In order to reduce the possible signal interference of the RCA and XLR simultaneous output, DAC-Z6 RCA and XLR are output separately to achieve higher audio indicator and better audio performance. For sure, RCA and XL can be output at the same time by setting manually.
Qualcomm QCC5125 Bluetooth Module
DAC-Z6 Bluetooth audio receiver adopts Qualcomm QCC5125 module. It is Bluetooth 5.0 and supports SBC/AAC/aptX/apt LL/aptX HD/LDAC Bluetooth audio protocol. Enjoy CD quality music conveniently by connecting mobile phone, tablet and computer.
Abundant Digital Filters
Three sets of digital filters are provided in DAC setting, with different sound charac-teristics. Distinct tailored modes will meet different listening demands.

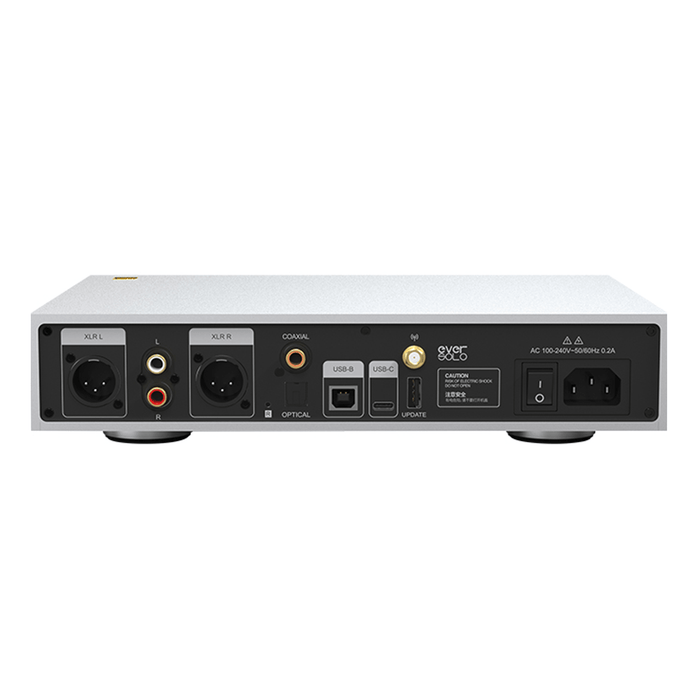

Multiple Ports to Connect with Diverse Audio Source
DAC-Z6 has rich digital audio inputs, including Coaxial, Optical, asynchronous USB DAC, Type-C for computers and mobile devices. APT HD Bluetooth audio input can be used to connect with computers, streamers, CD players and mobile devices etc.
Low Ripple power Module
Low-noise regulated power supply module and dedicated Ultra Low Noise audio filter capacitor are tailored for DAC-Z6. It powers for audio circuit and ensures clearer sound, with low ripple and less interference.
Monitor-level Headphone Amplifier
The professional headphone driver circuit in DAC-Z6 has excellent audio indicators and strong driving force, which means DAC-Z6 can be used as a high-performance headphone amplifier and drive 16-300ohm HiFi headphones, with both high and low gain output options.
Exclusive Controller APP
DAC-Z6 can be easily controlled by mobile phone with the EverSolo Controller APP. Almost all settings can be done in the APP via Bluetooth technology.

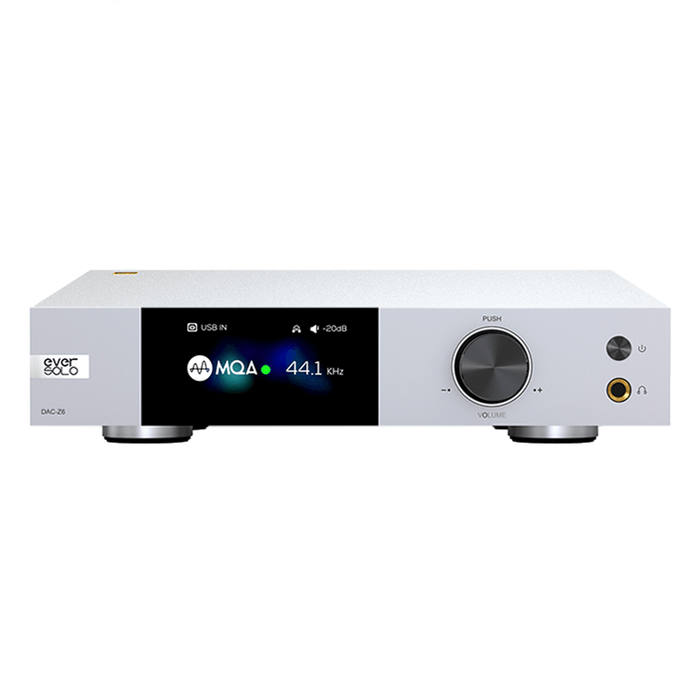

Colorful and Practical User Interface
The 3-inch LCD display on DAC-Z6 shows the colorful user interface, menu setting, audio source selection, VU meter and audio info. UI is cool and user-friendly, with some personalized preference settings.
Multifunctional Knob
The knob on the front panel is multifunctional, not only can be used for volume adjustment but also for menu selection, such as, input source switching, output selection, filter modes, UV meters, system language setup and firmware update etc. The embellishment of ambient light looks scientific and technological. It works as a supplement so that the device can still be controlled without the remote control.
- Rotate: Adjust volume.
- Thy short press: Access system settings.
- Long press: Select input source.
Aluminum Chassis
DAC-Z6 is made of aviation aluminum, processed by CNC workmanship, coming with a stable body structure. It is a combination of exquisite appearance design and modern elements.
Features
- Dual ES9068 D\A converter chip, independent decoding for dual channel.
- The 3rd generation USB XU316 with higher performance and faster speed.
- High precision, low jitter dual clock oscillators synchronous processing.
- Up to DSD512 Native, PCM768Hz@32Bit decoding.
- Optical, Coaxial and USB support MQA full decoding and rendering.
- Qualcomm QCC5125 Bluetooth 5.0 module.
- Fully balanced audio architecture, differential amplifier circuit and professional calibration.
- High-performance headphone amp output, 16-300 ohm headphone driver.
- 3-inch LCD screen, with diverse VU meter modes.
- Low ripple power supply to ensure a purer power source.
- Exclusive mobile phone controller APP for global control.
Specifications
- Model EverSolo DAC-Z6
- Display Screen 3-inch LCD Screen
- Chassis Aviation aluminum alloy
- DAC ES 9068*2
- Audio Processor USB XU316
- OPA Chip RT 9068*2
- Power Supply high quality switching power supply with low noise
- Bluetooth Audio Input Qualcomm QCC5125 Bluetooth module, BT5.0 Support SBC/AAC Bluetooth protocol
- USB-B DAC Input. Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit and MQA
- USB-C DAC Input Compatible with Windows (7, 10), Mac, Android and IOS. Up to stereo DSD512, PCM 768KHz 32Bit, MQA
- Optical Audio Input. Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
- Coaxial Audio Input. Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
- Analog Audio Output
- Preamp output: XLR (balanced), RCA;
- Headphone amp output: 6.35mm single-ended
- USB Port USB2.0*1（only for firmware upgrade）
- Control Methods Remote control, mobile APP control and knob control
- Headphone Impedance 16-300Ω （low gain mode:16-32Ω/high gain mode: 32-300Ω）
- XLR Audio Characteristics
-
Output level(Vrms): 4.1Vrms@0dBFS
-
Output Level(Vrms)：4.1Vrms@0dBFS
-
THD+N@A-wt：0.000094%@1kHz（-120dB@1kHz）
-
THD+N@No-wt：0.000117%@1kHz（-118dB@1kHz）
-
Noise@No-wt ：<3uVrms
-
SNR)@No-wt：125@1kHz
-
frequency response：20Hz-20kHz(±0.15dB)
-
CROSSTALK：-123dB@1kHz
- DNR)@No-wt：125dB@1kHz
-
Output Level(Vrms)：4.1Vrms@0dBFS
-
RCA Audio Characteristics
-
Output Level(Vrms)：4.1Vrms@0dBFS
-
THD+N@A-wt：0.000094%@1kHz（-120dB@1kHz）
-
THD+N@No-wt：0.000117%@1kHz（-118dB@1kHz）
-
Noise@No-wt ：<3uVrms
-
SNR)@No-wt：125@1kHz
-
frequency response：20Hz-20kHz(±0.15dB)
-
CROSSTALK：-123dB@1kHz
- DNR)@No-wt：125dB@1kHz
-
Output Level(Vrms)：4.1Vrms@0dBFS
-
Headphone (low gain mode)
-
Output Level(Vrms)：1.2Vrms@0dBFS
-
Max Power：： 45 mW@32Ω
-
THD+N@A-wt：0.00028%@1kHz(-111dB@1kHz)
-
THD+N@No-wt：0.00031%@1kHz(-110dB@1kHz)
-
Noise@No-wt ：<3.5uVrms
-
SNR)@No-wt：114dB@1kHz
-
Frequency response：20Hz-20kHz(±0.15dB)
- DNR)@No-wt：114dB@1kHz
-
Output Level(Vrms)：1.2Vrms@0dBFS
-
Headphone (high gain mode)
-
Output Level(Vrms)：2.8Vrms@0dBFS
Max Power： 26 mW@300Ω
THD+N@A-wt：0.00014%@1kHz(-117dB@1kHz)
THD+N@No-wt：0.00016%@1kHz(-116dB@1kHz)
Noise@No-wt ：<3.5uVrms
SNR)@No-wt：121dB@1kHz
frequency response：20Hz-20kHz(±0.15dB)
DNR)@No-wt：121dB@1kHz
-
Output Level(Vrms)：2.8Vrms@0dBFS
- Power Input AC 110~240V 50/60Hz Max 0.35A
- Rated Power 9W
- Dimensions 270mm(W) * 187mm(D)* 50mm(H)
- Packing List Remote control*1, power cable*1, product manual*1
