Eversolo DAC-Z10 DAC & Preamplifier
Taxes & Shipping Included
The Eversolo DAC-Z10 transforms your digital music library into pristine analog sound through Eversolo's Fully Isolated Architecture, which segregates digital and analog circuits to eliminate interference and preserve sonic integrity. Dual AK4191 + AK4499 DAC pairs handle independent left and right channels with precision, while a fully balanced preamplifier employs sophisticated dual-channel R2R volume control for exceptional dynamic range and minimal distortion. Three dedicated linear power supplies ensure each channel operates in an ultra-low-noise environment, while XLR and RCA inputs with +10dB gain accommodate any source component. Engineered for discerning audiophiles who demand uncompromising fidelity, the DAC-Z10 reveals the authentic character and finest nuances within your music collection with elegant, purposeful design.
It starts with a dual-mono AKM flagship DAC configuration, working alongside an oven-controlled crystal oscillator (OCXO) combined with a femtosecond-grade PLL system to deliver an “ultra-stable, low-jitter clock architecture.”
Meanwhile, the device’s IIS input supports PCM 32-bit/768kHz and DSD512 Native decoding. Also onboard is a Qualcomm QCC5125 chip that enables near-wired sound quality over wireless transmission, while “three custom-designed toroidal transformers” provide dedicated power pathways that, according to Eversolo, minimize crosstalk and electromagnetic noise.
DAC
Fully Balanced Preamplifier
The DAC-Z10 features a high-performance fully balanced preamplifier, supporting both XLR and RCA analog inputs with up to +10dB gain. Paired with a precision R2R analog volume control network, it delivers ultra-low noise and distortion, significantly enhancing dynamic range and signal integrity, allowing every nuance of the music to be reproduced with clarity and authenticity.

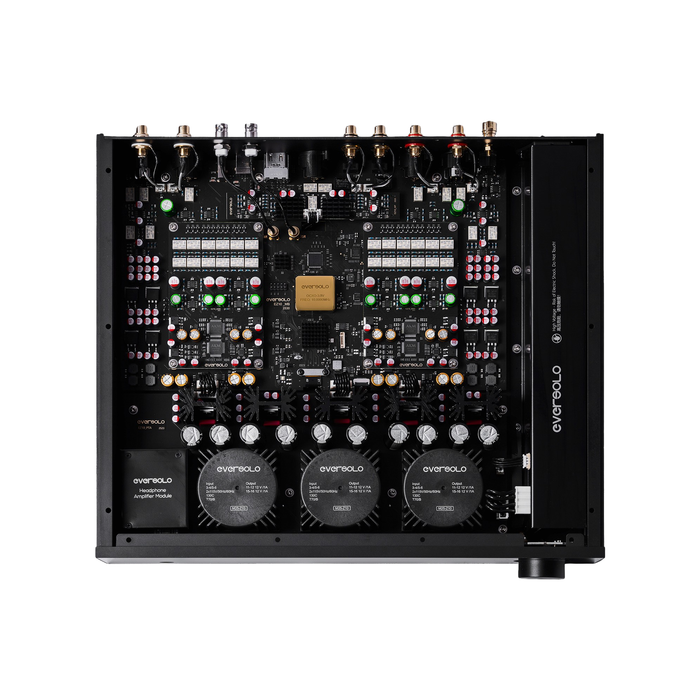

Three Independent Power Supplies
With three independent toroidal transformers for left channel, right channel, and system power, the DAC-Z10 maintains ultra-low noise down to 42μV. This design minimizes interference, giving each channel its own clean, isolated voltage support for a stable and detailed sound.
Dual Decoding Modules
Built on a fully balanced architecture, the DAC-Z10 features dual independent AK4191 + AK4499 DAC modules for the left and right channels. Combined with AKM’s Velvet Sound™ technology, it strikes the perfect balance between precision and tonal richness.
R2R Volume Control
The DAC-Z10 employs a precise R2R resistor array for volume control, preserving the original signal at every level. From quiet listening to full volume, every nuance remains intact, delivering clean, accurate, and faithful sound.
Phase-Locked Loop Technology
The DAC-Z10 integrates an OCXO temperature-controlled crystal oscillator and PLL (Phase-Locked Loop) technology to achieve precise clock reconstruction. Accurate timing is fundamental to high-resolution audio reproduction, and with the stability of the OCXO and the precision of PLL correction, the DAC-Z10 ensures that every note is delivered exactly as intended.
External Clock Support
Accurate timing is key to capturing every musical nuance. By supporting external high-precision clock, the DAC-Z10 takes clock stability and accuracy to the next level.
- Input Specifications 10MHz / 25MHz
 - Input Impedance 50Ω / 75Ω

FPGA Redefined
The DAC-Z10 features a built-in FPGA that shapes IIS data and refines the clock. Every digital signal is thus optimized to its purest form before reaching the DAC — you can truly hear the difference.
Multi-Core USB Audio Processor
The DAC-Z10 features a multi-core USB audio processor, offering higher processing speed and bandwidth to ensure lossless transmission of high-resolution audio data.
- USB Audio In DSD512 Native, PCM 768KHz/32Bit
 - Optical / Coaxial PCM 192KHz/24Bit, DSD64 Dop

Grounding Post
The DAC-Z10’s grounding post channels noise away, eliminating even minor interference and preserving the purity of each note.
8-Mode IIS Digital Audio Input
Via IIS digital audio input, the DAC-Z10 offers 8 switchable modes and supports up to 768kHz/ 32Bit PCM and DSD512 Native. Its fully isolated hardware design separates signal and ground between devices, ensuring clean signals and enhanced audio clarity.
Pure USB Audio Input
USB is often the most convenient choice for digital audio, but electrical noise and ground loops can subtly compromise its purity. The DAC-Z10 introduces an isolated USB Audio input, transmitting only the clean data while blocking all electrical interference.
Isolated AES/EBU Input
To preserve signal purity, the DAC-Z10 features a dedicated isolated AES/EBU input, fully separating electrical noise between front-end and back-end devices. This isn’t just an engineering solution—it’s our commitment to pure sound.
Dual Optical Inputs
The DAC-Z10 supports dual optical inputs, offering greater flexibility and connectivity for your audio system. With dual optical inputs, the DAC-Z10 can connect to two audio devices simultaneously, providing a more versatile listening experience.
Dual Coaxial Inputs
The DAC-Z10 features dual isolated coaxial inputs, supporting up to 192kHz/24bit. This design effectively shields against external interference, preserving every detail with clarity and precision. Dual source input lets you switch devices effortlessly without any signal loss.
TRIGGER IN & OUT for Linked Control
Manually turning each component on and off can be tedious and may cause current surges. The DAC-Z10’s TRIGGER interfaces act as a command channel, enabling seamless linked control across your system.
HDMI ARC Integration
The DAC-Z10 is equipped with HDMI ARC, supporting both ARC and eARC modes for effortless integration into your home theater system. It not only decodes high-fidelity music but also delivers cinematic sound with stunning clarity and realism.
6.35mm Headphone Amplifier Module
The DAC-Z10 has a dedicated 6.35 mm headphone amplifier module that auto-detects impedance and adjusts gain, delivering powerful, detailed sound. High, medium, and low gain settings let you tailor playback to different headphones and listening preferences.
- High Gain Output 1 W(16 Ω)/ 1 W(32 Ω)/ 0.16 W(300 Ω)

High Quality Bluetooth Module
The DAC-Z10 features a built-in Qualcomm QCC5125 Bluetooth module. Whether streaming from your phone or connecting directly via tablet, it delivers a high-fidelity wireless listening experience.
Aviation-grade Aluminum Chassis
The DAC-Z10’s chassis is crafted from aviation-grade aluminum. Rigid yet lightweight, it blends precision engineering with refined texture. Sleek in design, yet full of presence.
Smooth Control Experience
The DAC-Z10 features an 8.8-inch IPS touchscreen with a clear and intuitive interface. Switching inputs, adjusting volume, and checking format information are all at your fingertips.
Sonic & Visual Enjoyment
The DAC-Z10 offers a variety of vintage VU meters and dynamic spectrum displays, allowing you to enjoy the visual beauty of sound while listening to music. With the DAC-Z10, every performance comes alive.
Features
-
  Dual independent AK4191 + AK4499 DAC modules
 - Precise R2R resistor array for volume control
 - Three Custom Linear Power Supply channels
 - External Clock Support
 - Built-in FPGA for Optimised Signal Processing
 - Multi-core USB audio processor
 - Eversolo Precision Core™, Accurate Clock System
 - I2S Input with 8 switchable modes
 - HDMI ARC Input
 - Dedicated 6.35 mm headphone amplifier module
 - Built-in Qualcomm QCC5125 Bluetooth module

Specifications
| Model | Eversolo DAC-Z10 |
| Display | 8.8" IPS |
| Chassis Material | Aluminium alloy |
| Main Processor | DCP8568 |
| DAC | Left Channel: AK4191+AK4499 |
| Right Channel: AK4191+AK4499 | |
| Audio Processor | Multi-core USB audio processor |
| OPA Chip | OPA1612 |
| Power | Triple ultra-low noise linear power supplies |
| Audio Inputs and Outputs | |
| Bluetooth Audio Input | Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols |
| USB-B Audio Input | Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit |
| IIS Input | Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit |
| AES/EBU Input | Up to Stereo PCM 192KHz/24Bit / DSD64 DoP |
| Optical Audio Inputs *2 | Up to Stereo PCM 192KHz/24Bit / DSD64 DoP |
| Coaxial Audio Inputs *2 | Up to Stereo PCM 192KHz/24Bit / DSD64 DoP |
| ARC Input | Up to Stereo PCM 192KHz/24Bit |
| Analog Audio Inputs | XLR (Balanced), RCA |
| Analog Audio Outputs | |
| Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended | Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended |
| External Clock Input | Supports 10M/25M clock inputs with 50Ω or 75Ω impedance |
| Headphone Output | |
| Recommended Headphone Impedance | 16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω) |
| Audio Characteristics | |
| XLR Output Audio Characteristics | Output Level (Vrms): 5Vrms @ 0dBFS |
| THD+N @ No-wt: 0.00008% @ 1kHz (-122dB @ 1kHz) | |
| Noise @ No-wt: <1.2uVrms | |
| SNR @ A-wt: 130dB | |
| Frequency Response: 20Hz–20kHz (±0.1dB) | |
| Crosstalk: -130dB | |
| DNR @ A-wt: 130dB | |
| RCA Output Audio Characteristics | |
| Output Level (Vrms): 2.5Vrms @ 0dBFS | |
| THD+N @ No-wt: 0.000097% @ 1kHz (-120dB @ 1kHz) | |
| Noise @ No-wt: <1.5uVrms | |
| SNR @ A-wt: 128dB | |
| Frequency Response: 20Hz–20kHz (±0.1dB) | |
| Crosstalk: -123dB | |
| DNR @ A-wt: 128dB | |
| Headphone Audio Characteristics (Low Gain Mode) | |
| Output Level (Vrms): 4Vrms @ 0dBFS | |
| THD+N @ No-wt: 0.0003% @ 1kHz (-110dB @ 1kHz) | |
| Noise @ No-wt: <2.5uVrms | |
| SNR @ A-wt: 124dB | |
| Frequency Response: 20Hz–20kHz (±0.1dB) | |
| DNR @ A-wt: 124dB | |
| Headphone Audio Characteristics (Mid Gain Mode) | |
| Output Level (Vrms): 5.6Vrms @ 0dBFS | |
| THD+N @ No-wt: 0.00018% @ 1kHz (-115dB @ 1kHz) | |
| Noise @ No-wt: <2.5uVrms | |
| SNR @ A-wt: 126dB | |
| Frequency Response: 20Hz–20kHz (±0.1dB) | |
| DNR @ A-wt: 126dB | |
| Headphone Audio Characteristics (High Gain Mode) | |
| Output Level (Vrms): 7Vrms @ 0dBFS | |
| THD+N @ No-wt: 0.00013% @ 1kHz (-118dB @ 1kHz) | |
| Noise @ No-wt: <2.5uVrms | |
| SNR @ A-wt: 127dB | |
| Frequency Response: 20Hz–20kHz (±0.1dB) | |
| DNR @ A-wt: 127dB | |
| Other Information | |
| Power Supply | AC 100~240V 50/60Hz |
| USB Ports | USB2.0*1(only for firmware upgrade) |
| Control Methods | Touchscreen control, remote control, mobile App control |
| Rated Power Consumption | 32W |
| Dimensions | 265mm (L) × 310mm (W) × 78mm (H) |

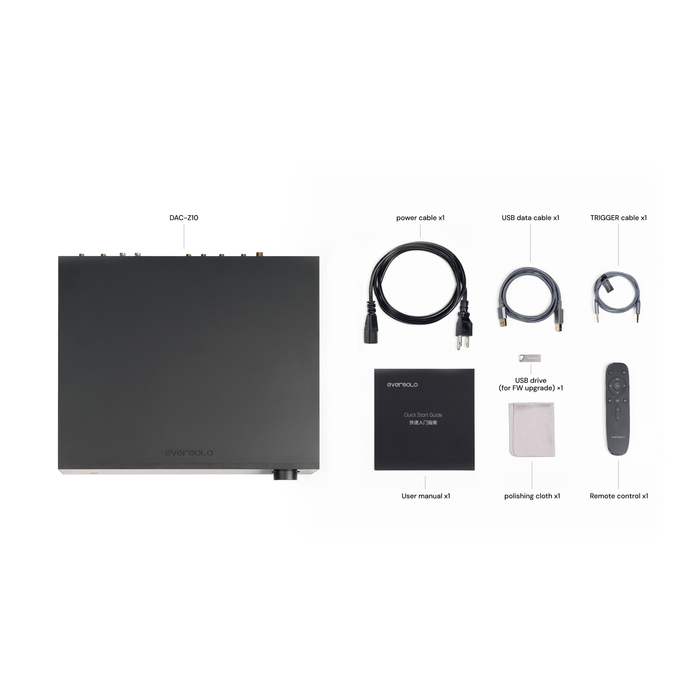

Included
- Power Cable ×1

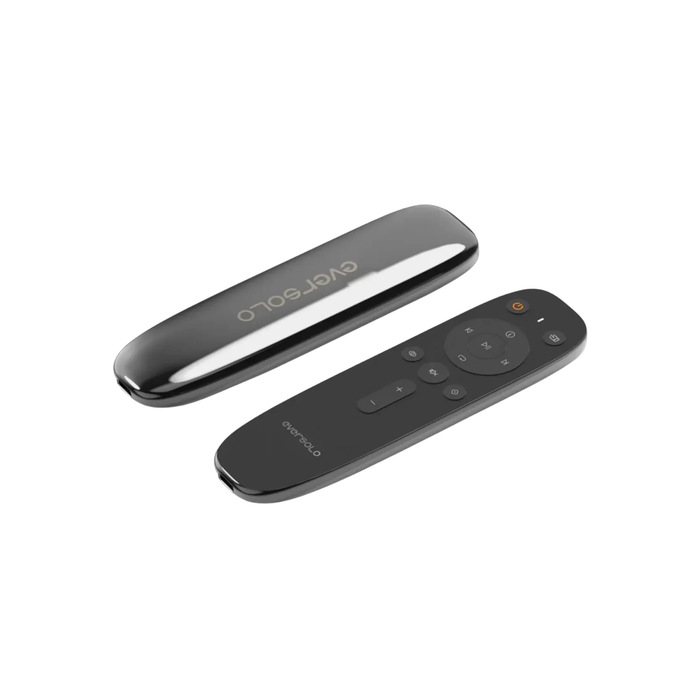

 - Remote Controller ×1
 - USB Cable ×1
 - USB drive (for FW upgrade) ×1
 - Trigger cable ×1
 - Polishing cloth ×1
 - User Manual ×1
