Eton PW8 - 8inch Subwoofer

by Eton
Sold out
Rs. 17,990.00

The all new ETON PW Subwoofer Series - Out now 12" / 10" / 8" longstroke subwoofers with high loadable double voicecoils, strong ferrite magnets, powder coated & stiffened metal baskets and optimized cooling with large core hole. Pressed paper cones, 2 x 2 ohms Impedance, long excursion surround, high SPL, up to 1200 Watts music power.

Engineered in Germany! get it now!

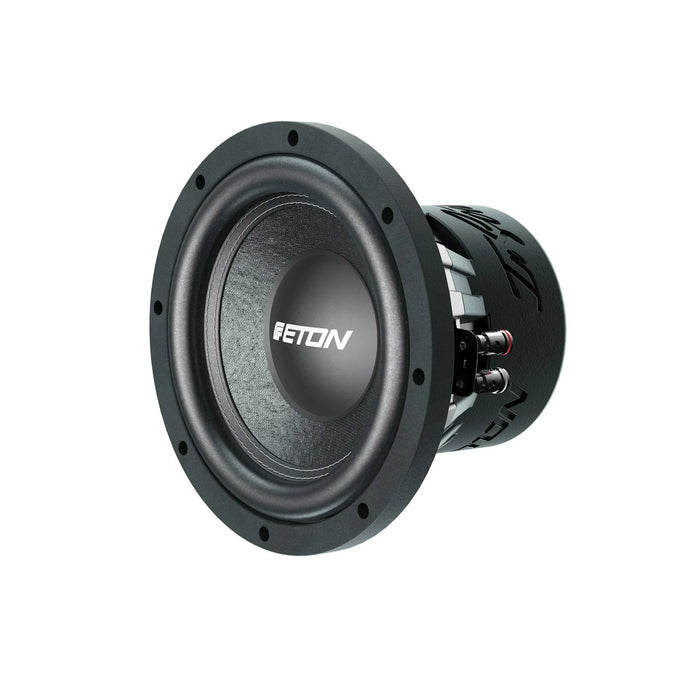

200 mm (8 inch) subwoofer in powder coated metal basket with loadable 50 mm aluminium dual voice coil, pressed and stiffened paper cone with long excursion surround, 2 x 2 ohms impedance, 300 W RMS, 400 W music power handling, large core hole for optimum ventilation, strong ferrite magnet with silicone coating/protection, 216 x 131 mm (DxH), 81.5 dB sound pressure level, 4.6 kg.

Specifications

Nominal impedance Zn (Ohm) 2 x 2 Ohm
DC resistance Re 3.8 Ohm
Resonance frequency fs 1W / TSP (Hz) 37.0
Total Q QTS 0.514
Electrical Q QES 0.564
Mechanical Q QMS 5.843
Equivalent air volume of suspension VAS (dm3) 8.998
Force factor BL x l (Tm) 13.560
Suspension compliance CMS (mm/N) 0.175
Total moving mass MMS (g) 105
Voice coil diameter 50
Voice coil inductance Le (mH) @ 10 kHz 1.640
Effective piston area SD (cm2) 190
SPL (dB) *bei 1 W / 1m 81.0
Rated power / music power (W) 300/400 W
