Eton PA 2 Two Channel Amplifier
Taxes & Shipping Included
Smallest size meets maximum performance and features! State-of-the-art advanced Class-D power amplifier technology enables an efficiency never before seen in this class with the smallest size and maximum amplifier power. Not only is the performance impressive with up to 2 x 140 W RMS, the sound is also impressive: with an ultra low THD+N of 0.01% distortion, it is one of the best on the market! The full range of active filters, connections (high and low level) and gadgets make the PA 2 a real problem solver and all-rounder. Ideal for concealed installation in the vehicle. High-quality die-cast aluminum housing in gunmetal finish with removable connector plugs and variable mounting feet as well as integrated adjustment tool for easy handling. Engineered in Germany.
2-channel Advanced Class-D amplifier with state-of-the-art amplifier technology and high-quality die-cast aluminum housing with removable cover. The integrated adjustment tool makes it easy to adjust the amplifier, even overhead or in tight spaces. Full performance in the smallest size with 2 x 85 W RMS at 4 Ω, 2 x 140 W RMS at 2 Ω, 1 x 285 W RMS 4 Ω bridged. Signal-to-noise ratio 88 dB, damping factor @ 4 Ω >40, ultra low THD+N 0.01% @ 10 W 1 kHz, high-pass active filter CH1/2: 25 - 250 Hz, low-pass active filter CH1/2: 25 - 250 Hz, auto-sense on function (SIG / DC), switchable audio input signal on CH1-4, gain 0. 45 V - 6 V, adjustable high-level input voltage 1 - 15 V | 15 - 40 V, adjustable high-level input resistance 10| 150 | 600 Ω, 4 x audio input (high & low level), variable mounting feet, detachable connection plugs for power and audio signal cables, smart dimensions (LxWxH) 110 x 85 x 45 mm.
Features
- High-performance 2-channel amplifier with 2 x 85 W RMS at 4 Ω, 2 x 140 W RMS at 2 Ω, 1 x 285 W RMS 4 Ω bridged
- Auto-Sense On function (DC/SIG), Hi-Lo level inputs
- Level remote control

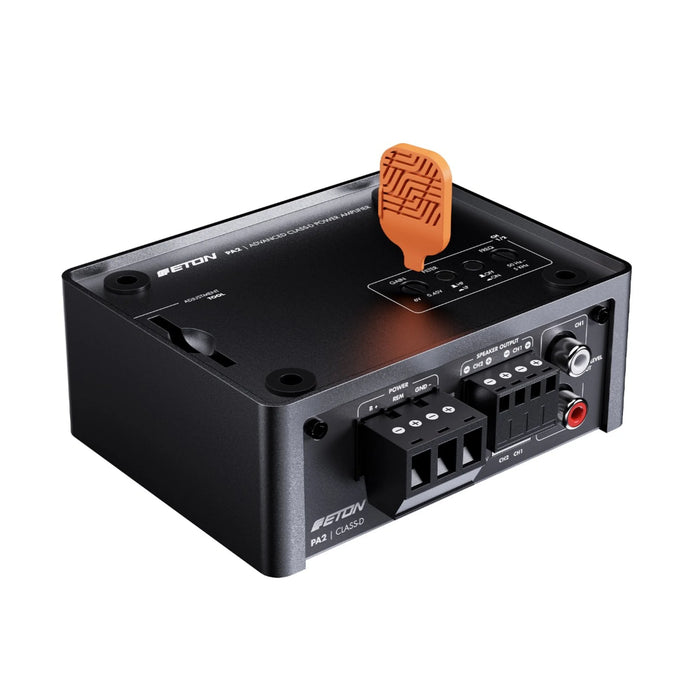

- Integrated adjustment tool for active filters and gain

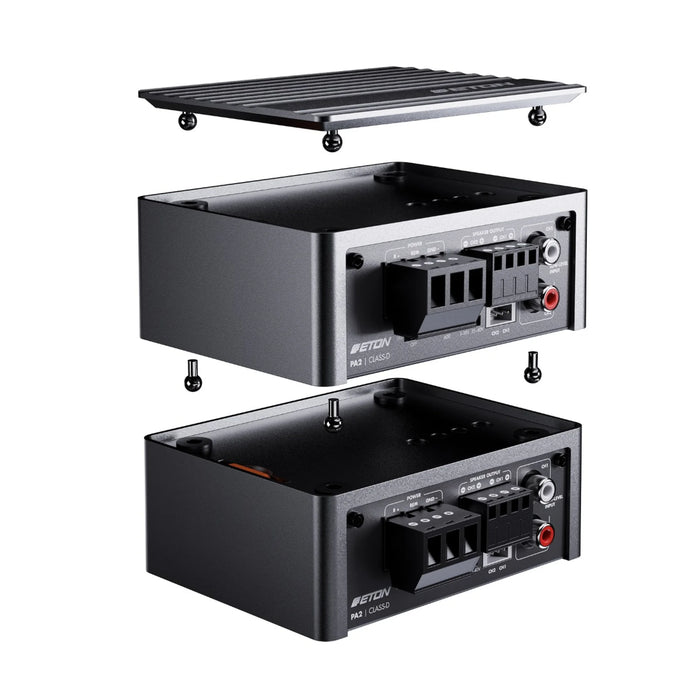

- Removable connector plugs
- Mulit-Mount installation feet for easy and quick mounting
- Innovative cooling design with smart dimensions

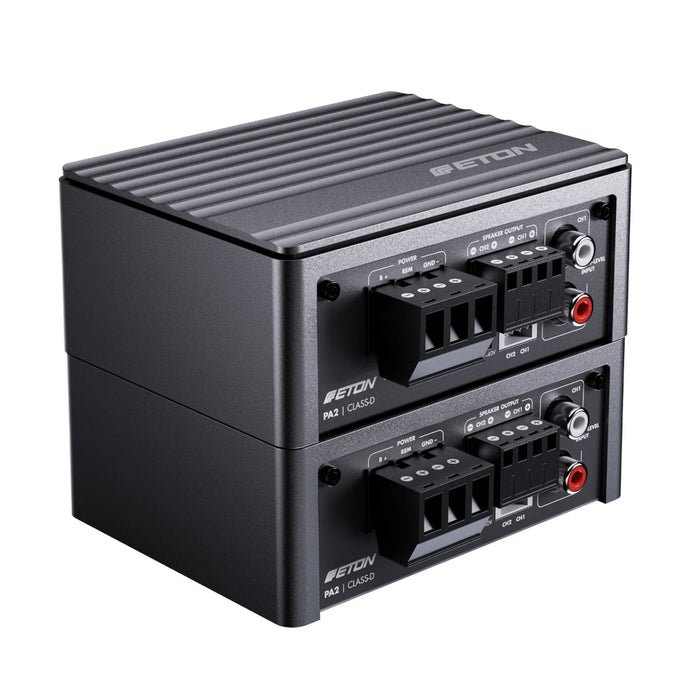

- Stacking of several amplifiers possible
- Engineered in Germany.
Specifications
- Channels 2
- Technology Class-D
- Power at 2 Ohms 2 x 140 W (RMS)
- Power at 4 Ohms 2 x 85 / 1 x 285 W (RMS)
- Auto Sense On Function Sig / DC
- Hi-Lo Inputs 2
- Level Control Yes
- Dimensions (WxDxH) 110x85x45 mm
