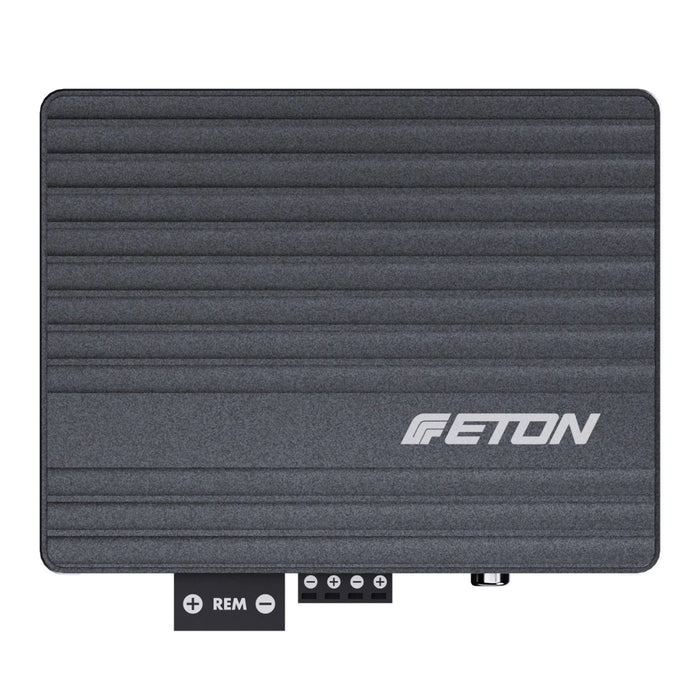

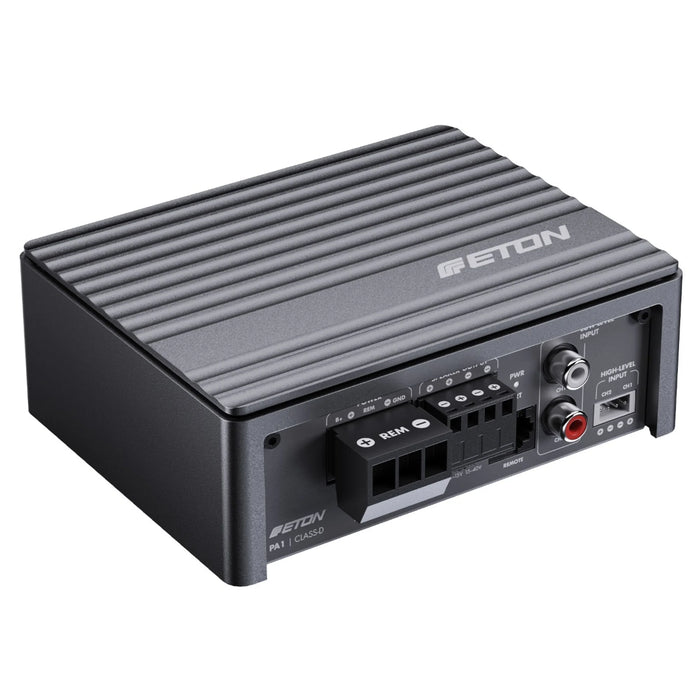

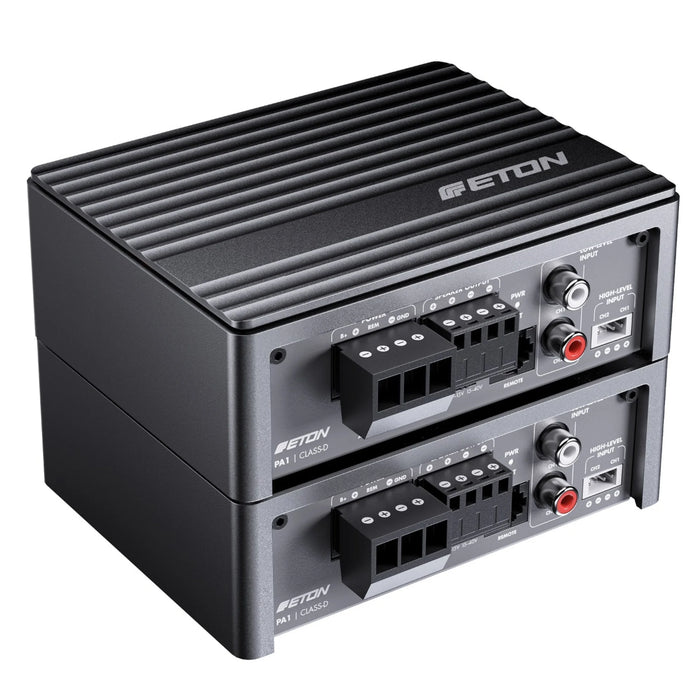

Eton PA 1 Monoblock Channel Amplifier

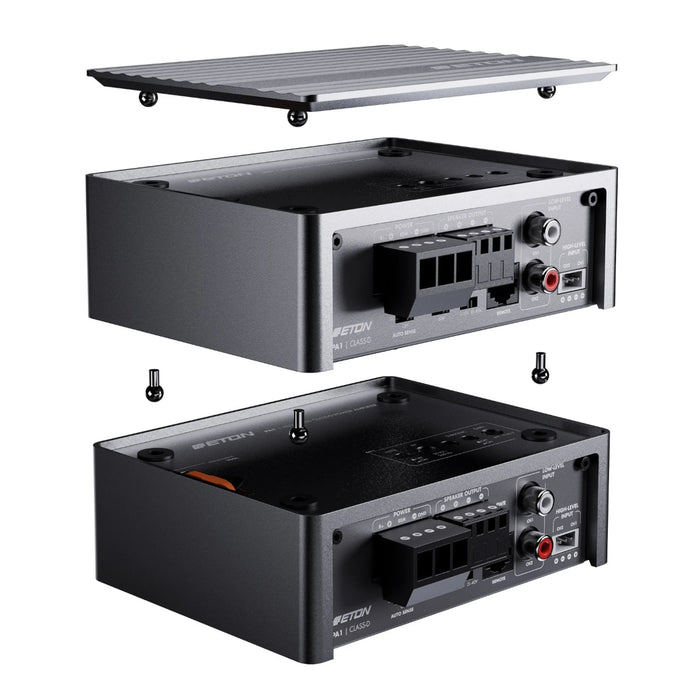

The powerhouse in micro format: the latest Advanced Class-D amplifier technology ensures maximum performance and efficiency in the smallest size - with up to 480 W RMS! High-quality die-cast aluminum housing in gunmetal finish with removable cover and integrated adjustment tool as well as detachable connection plugs for power & audio signal and active filters are real highlights! Thanks to adjustable input signal impedance and voltage, it is also ideal for use in modern vehicles!

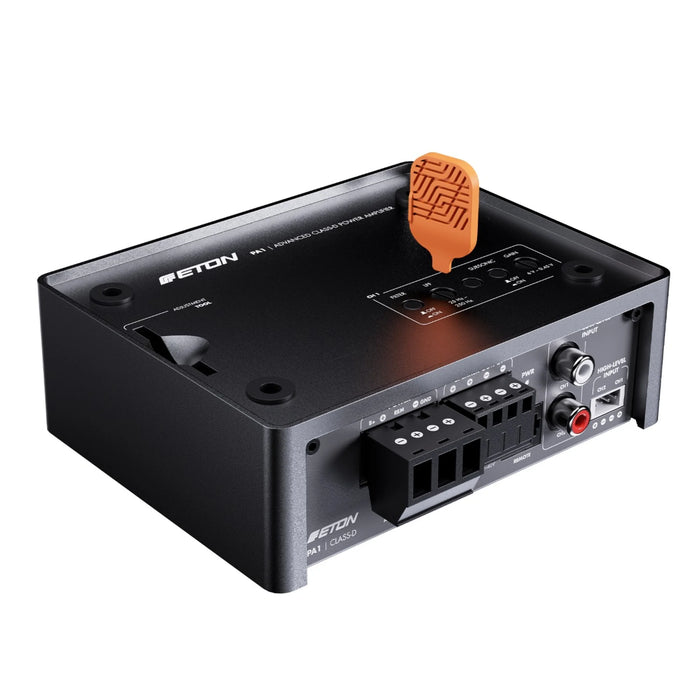

1-channel monoblock Advanced Class-D power amplifier with state-of-the-art amplifier technology and high-quality die-cast aluminum housing with removable cover. The integrated adjustment tool makes it easy to adjust the amplifier, even overhead or in confined spaces. Full performance in the smallest size with: 1 x 200 W RMS at 4 Ω , 1 x 340 W RMS at 2 Ω, 1 x 480 W RMS at 1 Ω. Signal-to-noise ratio 83.5 dB, damping factor @ 4 Ω >88, ultra low THD+N <0.02% @ 50 W 60 Hz, subsonic active filter 30 Hz, low-pass active filter: 25 - 250 Hz with adjustable slope 12 dB / 24 dB Oct, Auto-Sense On function (SIG / DC), gain 0.45 V - 6 V, adjustable high-level input voltage 1 - 15 V | 15 - 40 V, adjustable high-level input resistance 10| 150 | 600 Ω, 4 x audio input (high & low level), variable mounting feet, detachable connection plugs for power and audio signal cables, incl. level remote control, smart dimensions (LxWxH) 128 x 100 x 45 mm
