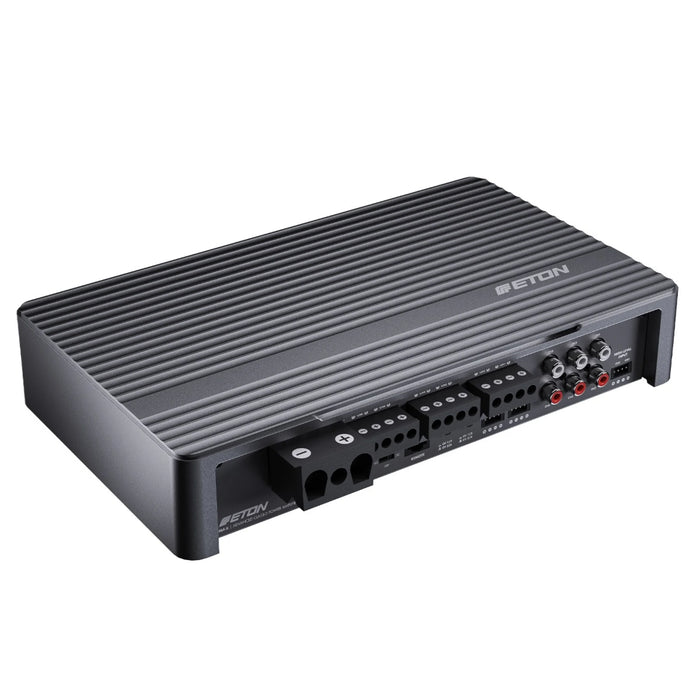

Eton MA 6 Six Channel Amplifier

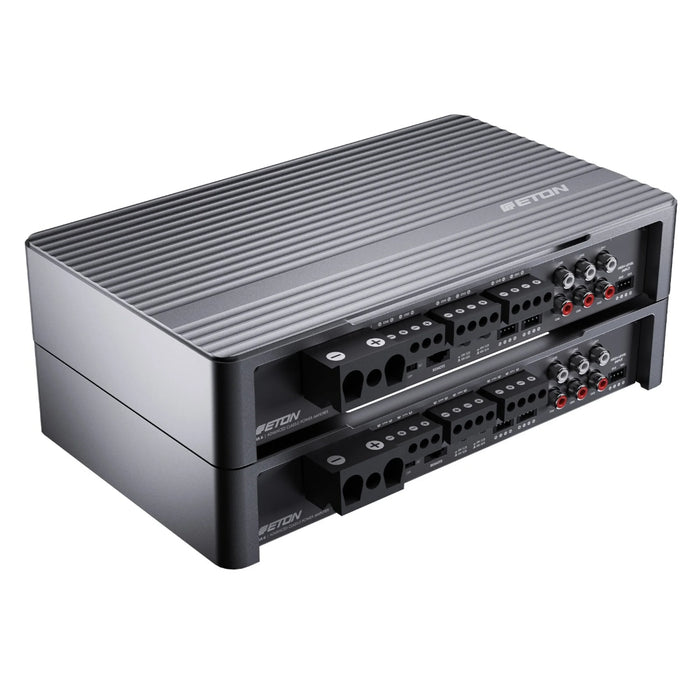

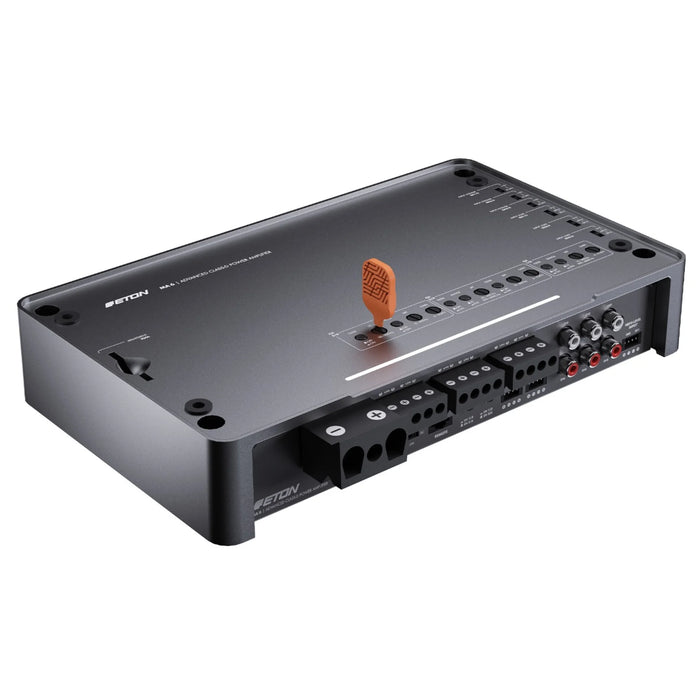

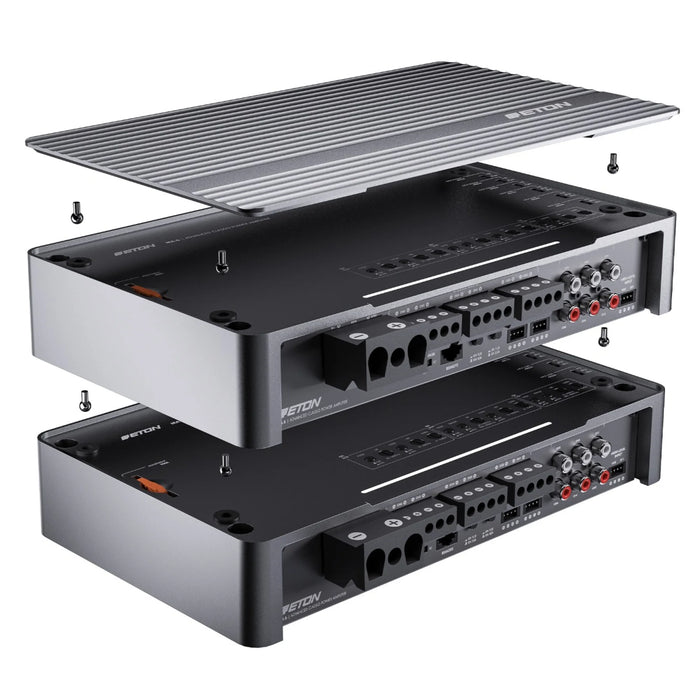

Newly developed 6-channel Advanced Class-D power amplifier in a modern, timeless die-cast aluminum housing with top features. High-performance amplifier with 6 x 120 W RMS at 4 Ω, 6 x 225 W RMS at 2 Ω and 3 x 450 W RMS at 4 Ω bridged. Also equipped with the latest features: Active filter (high & low pass), adjustable high-level signal input voltage and adjustable signal resistance, auto-turn on function SIG / DC detection, suitable for vehicles with start-stop function, switchable audio signal source to all channels, ultra low THD+N distortion behavior, high and low level inputs, LED status lightbar, removable housing cover (logo rotatable by 180°), integrated adjustment tool. Hidden mounting points or variable mounting feet, stacking function of several amps, detachable power & audio signal plugs, wired level remote control, incl. mounting accessories. Engineered in Germany.

State-of-the-art Advanced Class-D amplifier technology in a smart installation dimension of just 270 x 160 x 51 mm. High-quality die-cast aluminum housing in gunmetal finish. High-performance 6-channel amplifier with 6 x 120 W RMS at 4 Ω, 6 x 225 W RMS at 2 Ω and 3 x 450 W RMS at 4 Ω bridged, signal-to-noise ratio 91 dB, damping factor @ 4 Ω >165, Ultra Low-THD+N 0.003 @ 5 W 1 kHz, active filter high-pass CH 1/2: 15 - 300 Hz | 300 - 6000 Hz, CH 3/4 & CH 5/6: 15 - 300 Hz, Active filters low pass CH 3/4: 30 - 300 Hz | 300 - 6000 Hz, CH 5/6: 30 - 300 Hz, Auto Sense-On function: SIG / DC, 6 x high level inputs, 6 x low level inputs (RCA), High level input signal voltage: 1 - 15 V | 15 - 40 V, High-level input resistance: 10 | 150 | 600 Ω, adjustable gain per channel 0.45 V - 6 V, switchable audio signal source, removable connection plugs (power and audio signal), removable aluminum cover (ETON logo rotatable 180° upside down), integrated adjustment tool for active filter and gain settings, LED status lightbar, stacking function of several amplifiers, hidden mounting by means of blind holes or easy mounting by means of removable and adjustable mounting feet, incl. Level remote control, high-level cable adapter, mounting feet and fixing screws. Engineered in Germany.
