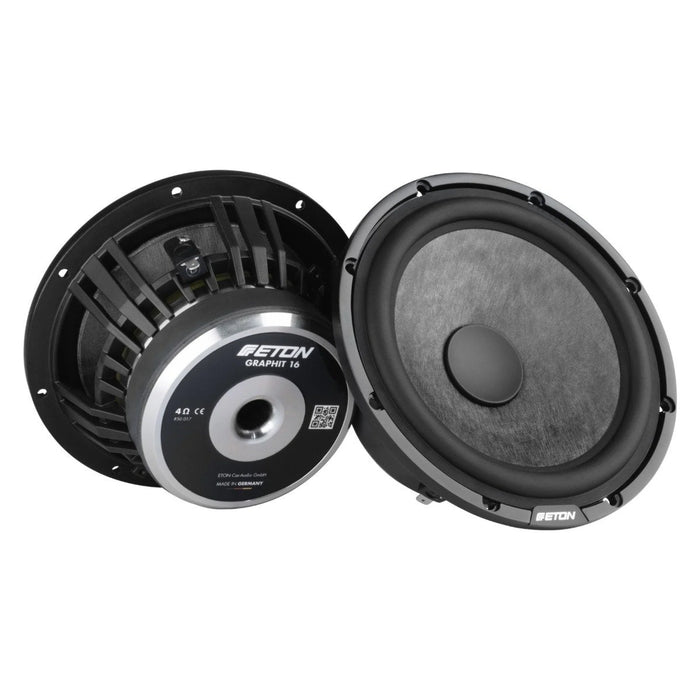

Eton GRAPHIT 16 High-End 6.5inch MidWoofer (Pair)
The Eton Graphit 16 is a High-end 165 mm (6.5") woofer / midrange driver with torsion-resistant carbon fleece sandwich cone and aluminum dustcap: The woofers / midrange drivers have extremely powerful ferrite magnets with polished drive components and large core bore. The heavy-duty 37 mm voice coil is the guarantor for an extremely powerful, dynamic and contoured music reproduction. The ETON typical aluminum die-cast basket geometry with its open design ensures optimum cooling with maximum torsional rigidity. In combination with the anodized aluminum dustcap, the resulting heat is optimally dissipated. The high-quality connection terminals and the symmetrical stranding guidance are details that underline the claim of this system. GRAPHIT 16 is a dynamic and balanced sounding high-end system. Whether hard kick bass or smooth voice reproduction, GRAPHIT 16 convinces with incredible precision and spatiality - a system in a class of its own for true sound enthusiasts!
High-end 165 mm (6.5 inch) woofer/midrange with carbon fleece sandwich cone, anodized aluminum dustcap for optimized heat dissipation and symmetrical stranding guidance with voice coil ventilation. Extremely torsion-resistant die-cast aluminum basket with optimized ventilation and strong ferrite magnet, 4 ohms impedance, 90 W RMS rated power handling, 140 W music power handling, 87 dB characteristic sound pressure, Made in Germany manufacturing and development.
Features
- LOW/MID-RANGE DRIVER - 165 mm outer diameter, 8 screw points, arranged in a circle. Recommended frequency range: 50 Hz - 3000 Hz.
-
ALUMINIUM DIE-CAST BASKET - Increased stability with a minimum of weight, powder-coated, corrosion-resistant basket with optimized heat dissipation and flow-optimised. Reduced resonance of the material for a maximum of precision.
- OPTIMISED-HEAT-DISSIPATION - The T-joke design has been specially designed to absorb and effectively dissipate heat generated by the magnet system, through the large core bore and specially designed ventilation ducts. without creating any flow noise.
- OPTIMISED-VENTILATION - The basket design has been specially developed to ensure better heat dissipation to the environment, in addition the basket design minimises / prevents the generation of noise.
- MADE IN GERMANY - We have been developing and testing loudspeakers for over 35 years. Our entire manufacturing and development know-how plays a central role in this. This loudspeaker was developed and manufactured in Germany and has been subjected to our strict quality control. A promise of quality in terms of performance and workmanship.
Specifications
- Bass/Midrange 165 mm (6.5")
-
Impedance 4 Ω
- Nominal power (RMS) 90 W
- Music power (RMS) 140 W
-
Sound pressure level 87 dB
- Outer diameter 165 mm
- Installation depth 68.8 mm
